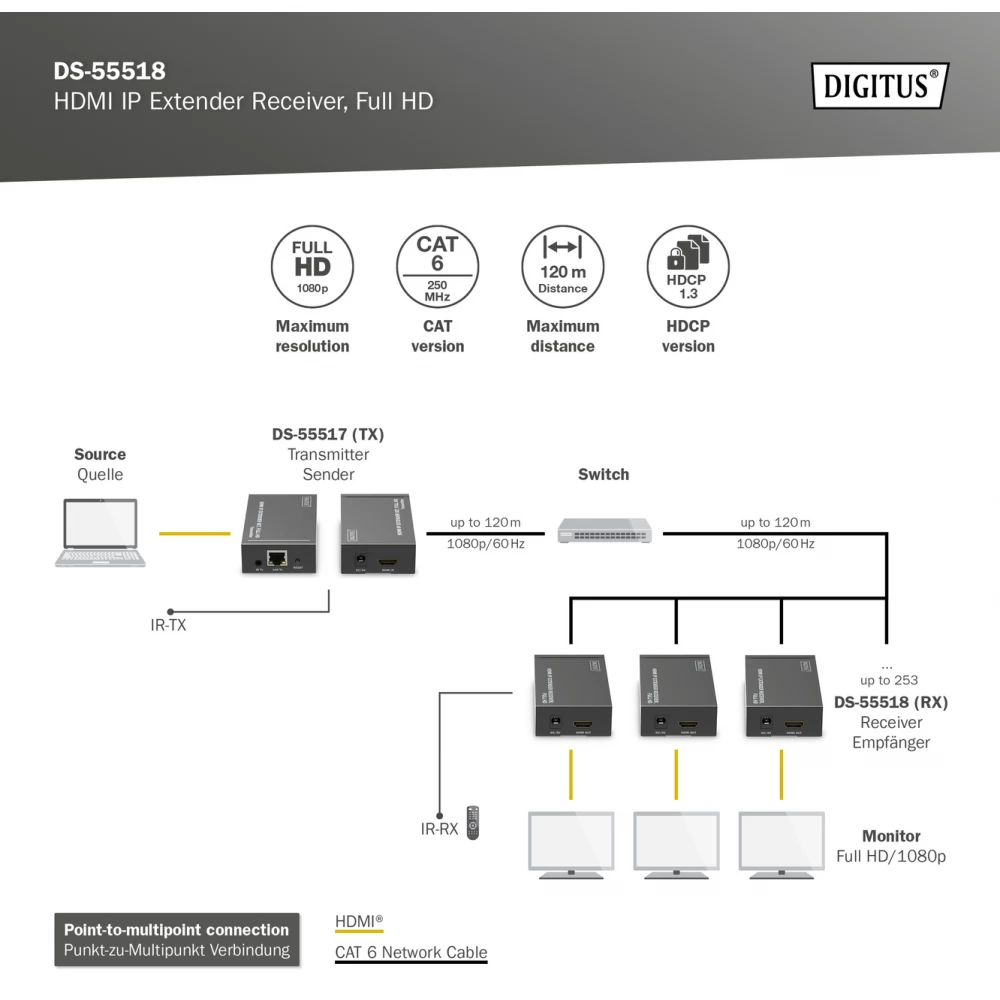

Expand the HDMI IP Expansion Kit (DS-55517) with additional receivers to reproduce your AV content on multiple monitors simultaneously. The kit extends Full HD AV signals up to 120 m with a CAT6 network cable (point-to-point connection). In addition, with the help of network switches and individual receivers (DS-55518), you can distribute your video content to up to 253 displays via your existing network (IP connection) and extend them over an unlimited distance.

- Use additional receivers and your existing network infrastructure to display video content on up to 253 screens (IP connection)
- Extends Full HD AV signals with CAT6 cable over an unlimited distance via existing local network infrastructure or commercial network switches
- Supports 1080p/60Hz, Full HD resolution
- Supports CAT 6, CAT 6A, CAT 7, CAT 8 network cable
- IR interface allows remote control of the input source from the output screen
- HDCP 1.3
- Video bandwidth: 1.65 Gbps

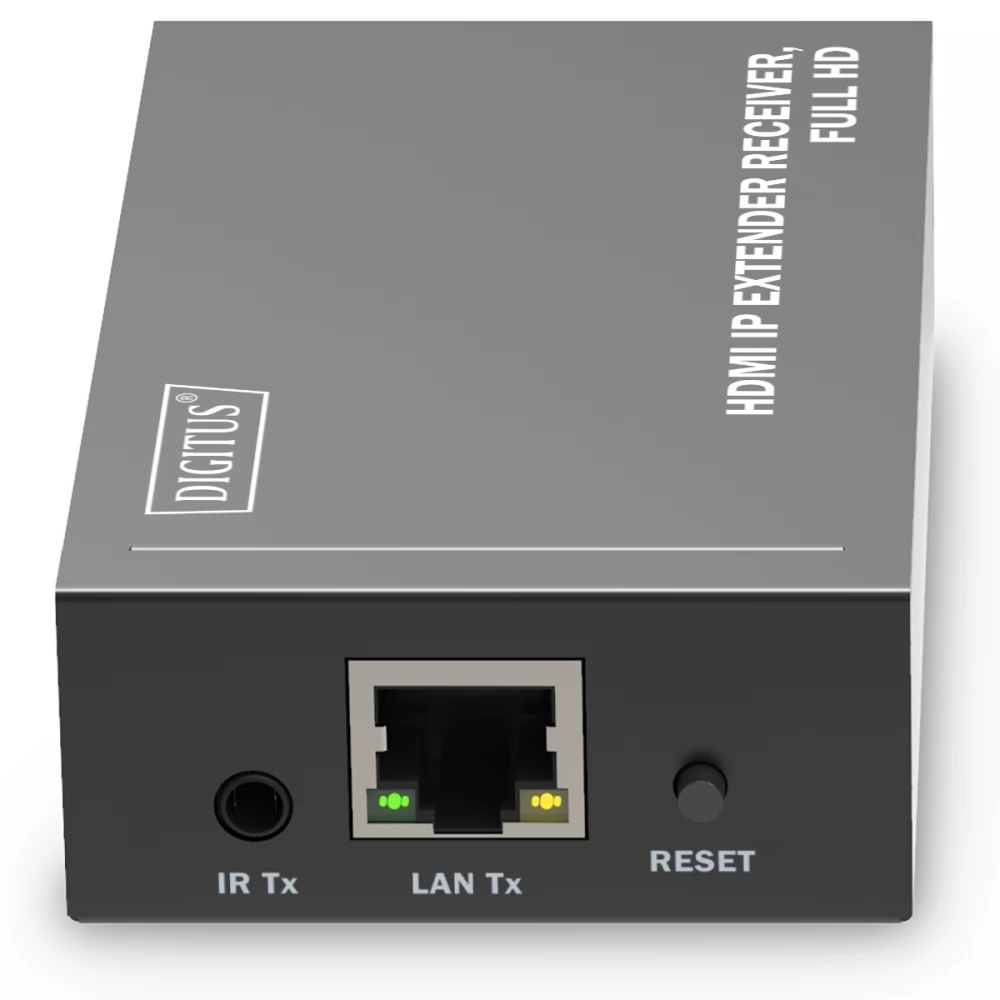

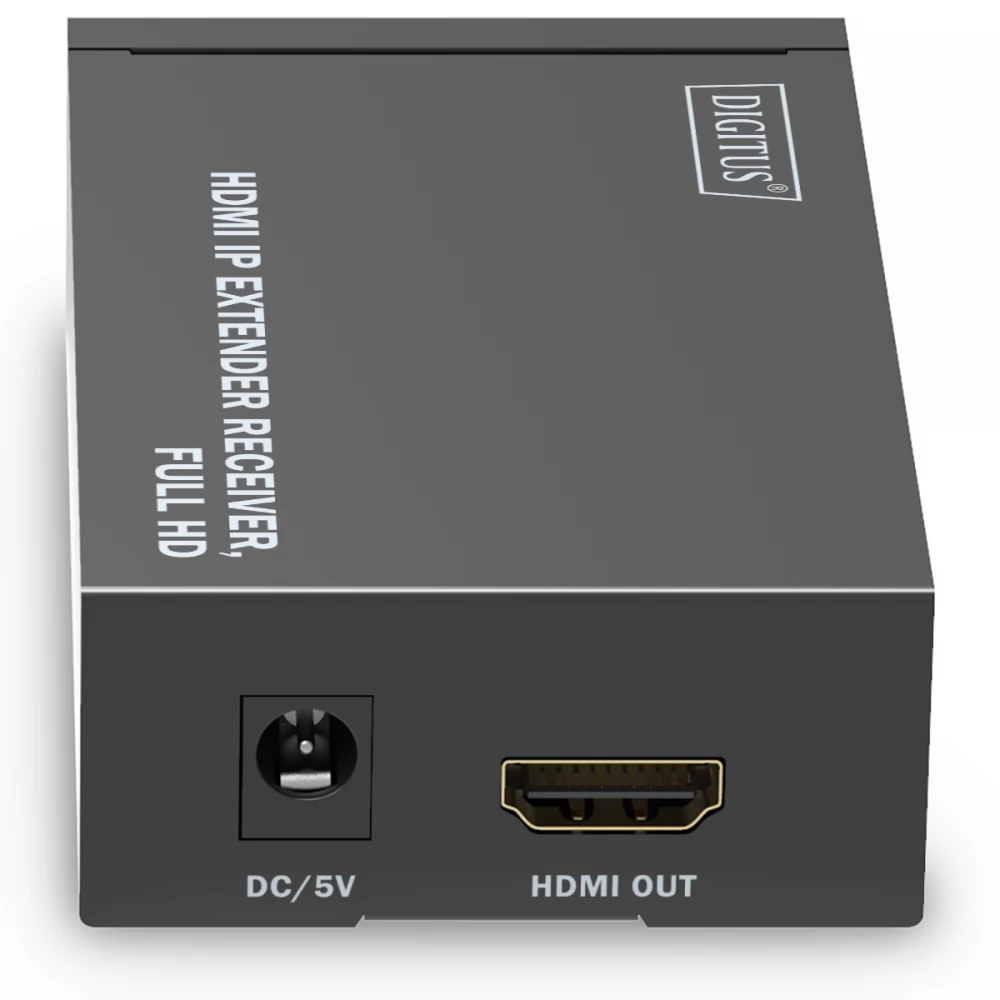

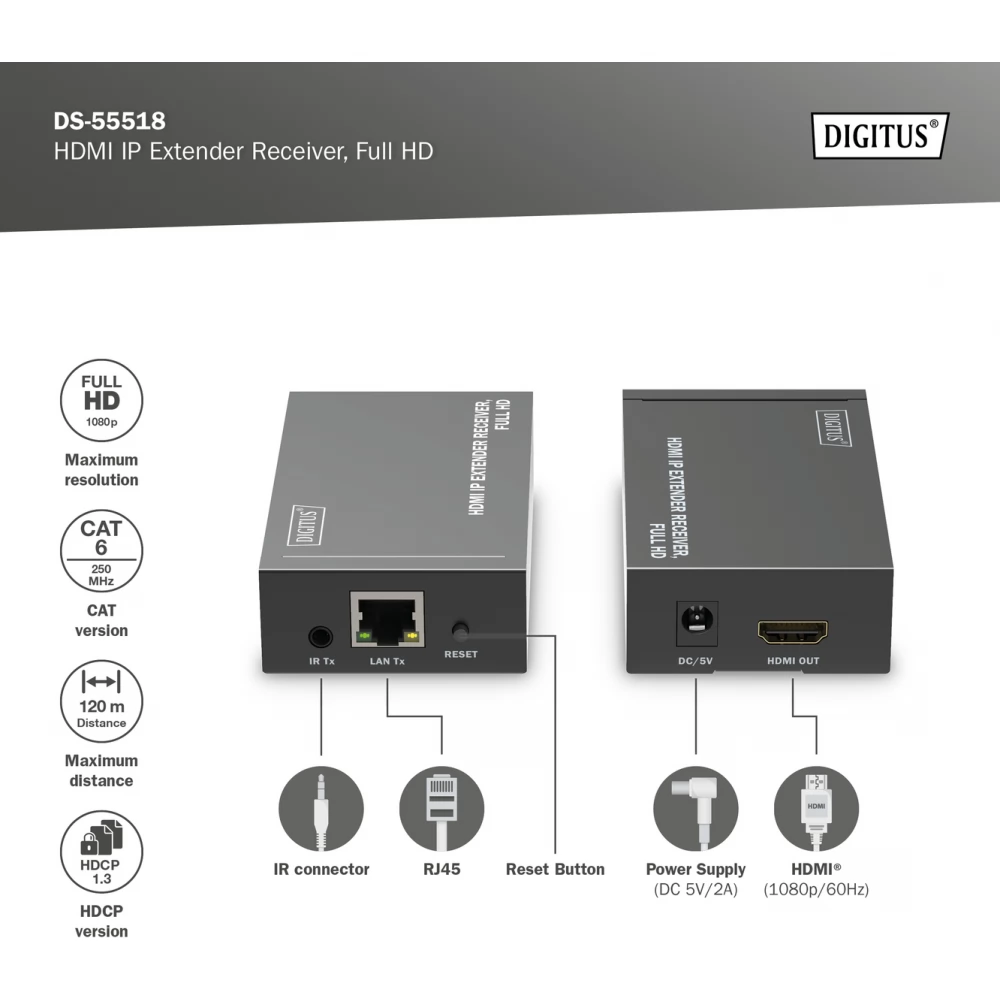

- Receiver unit connections:
- 1x HDMI output (Full HD, 1080p) Connection output device
- 1x RJ45 input Connector CAT transmission cable
- 1 x IR input IR receiver connection
- 1x Power adapter input (DC 5V/2A) Connection to an external power adapter
- Wall-mounted
- Operating temperature: 0-50°
- Power consumption: 8W
- Housing: metal
- Dimensions (1 unit): L 10 x W 5.9 x H 2.5 cm
- Weight (1 unit): 165 g
- Black color
- KVM: no
- PoE (Power over Ethernet): no

Contents of the package:

- 1x receiver unit
- 1x IR receiver cable (1.5 m)
- 1x mains adapter (DC 5V/2A, 1.15 m)
- 1x Fixing material
- 1x User manual
