The additional receiver of the Wireless HDMI Expansion Kit / Splitter Kit (DS-55346) expands this Multicast system with up to 4 receiver modules and receives high-resolution HDMI video and audio signals up to 100 m away without cables. (1:1 connection, unlimited view). Share your media content quickly and easily on up to 4 displays.

- Extends the DS-55346 with additional receivers

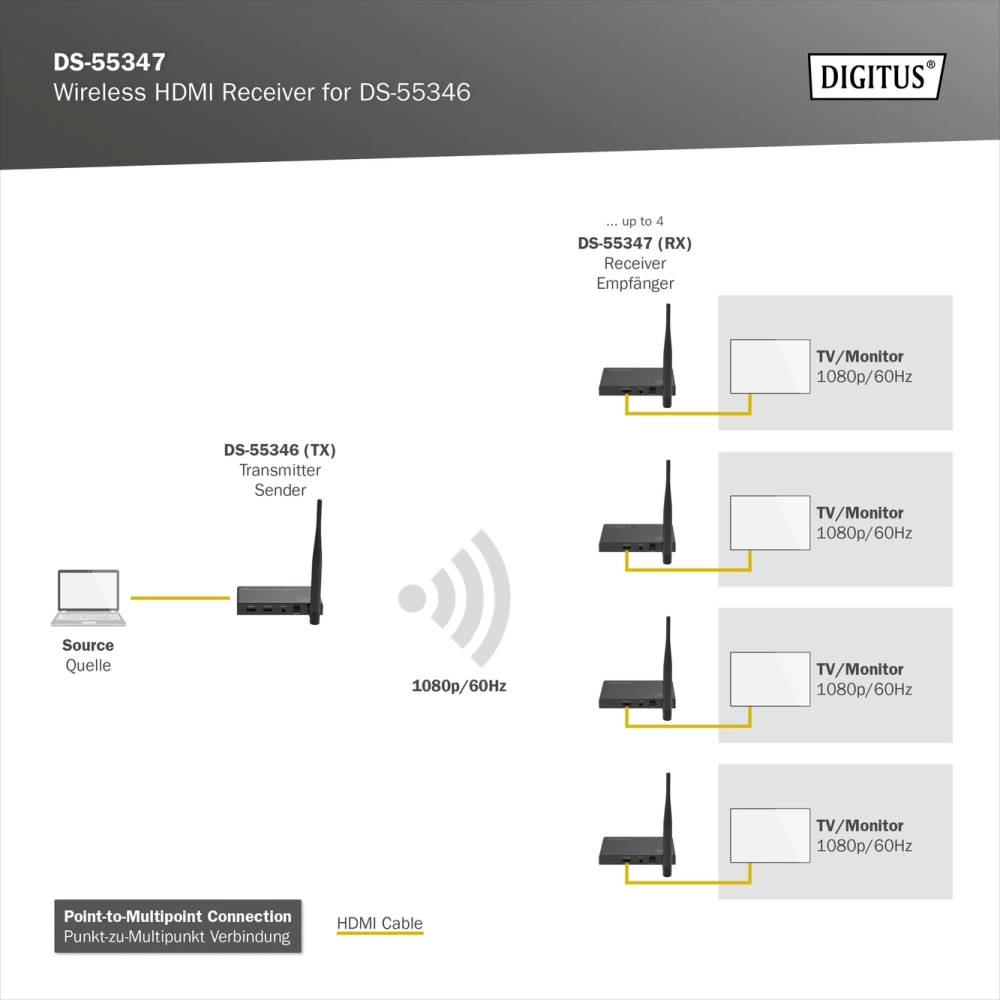

- Distribute your HDMI signal on up to 4 displays (receivers)
- Transmission of HDMI signals in Full HD max. 1080p / 60Hz resolution
- IR transmission to control the source device from the output display
- Plug & Play no software or driver required
- HDMI 1.4, HDCP 1.3

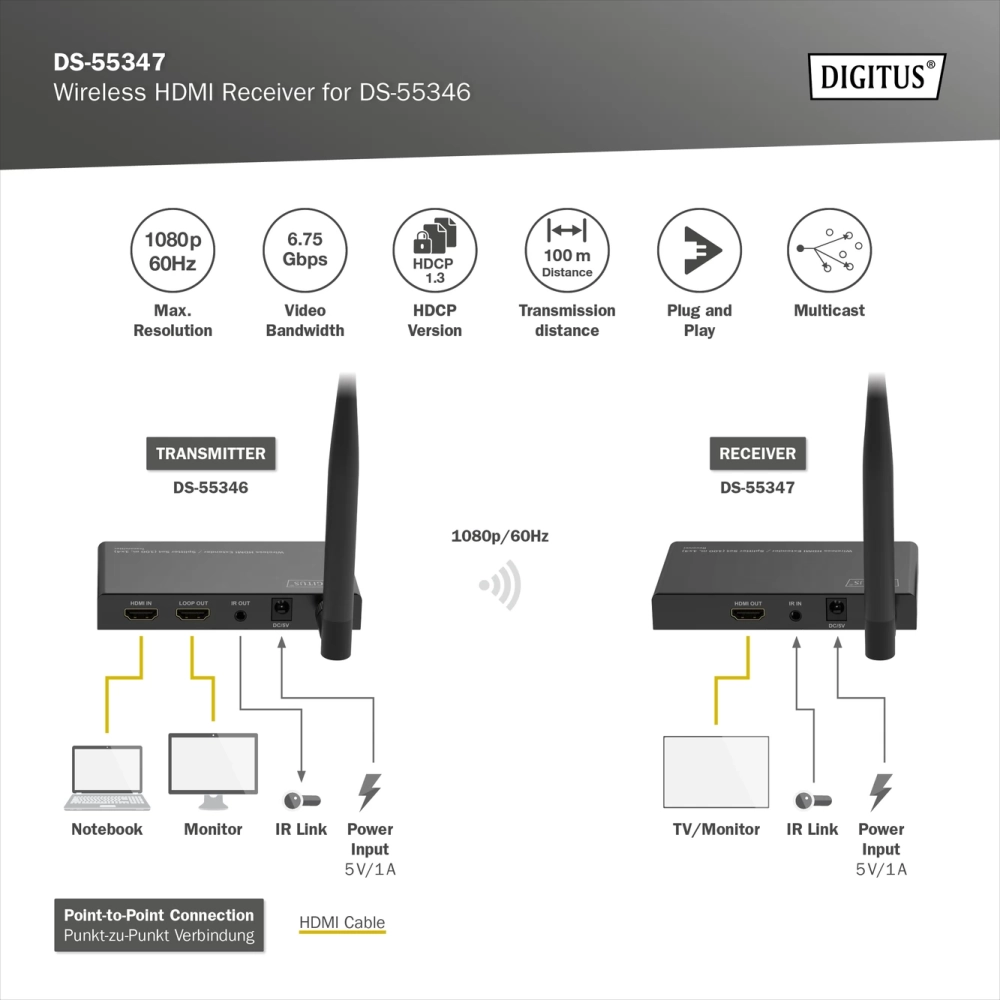

- Transmission distance 1:1 connection: up to 100 m (unobstructed view)
- Transmission distance 1:2 connection: up to 60 m (unobstructed view)
- Transmission distance 1:3 connection: up to 45 m (unobstructed view)
- Transmission distance 1:4 connection: up to 25 m (unobstructed view)
- Frequency: 5 GHz
- Wireless standard: 802.11a
- HDMI transmission speed: 6.75 Gbps
- Compression: H.264
- Transmission delay: 150 200 ms

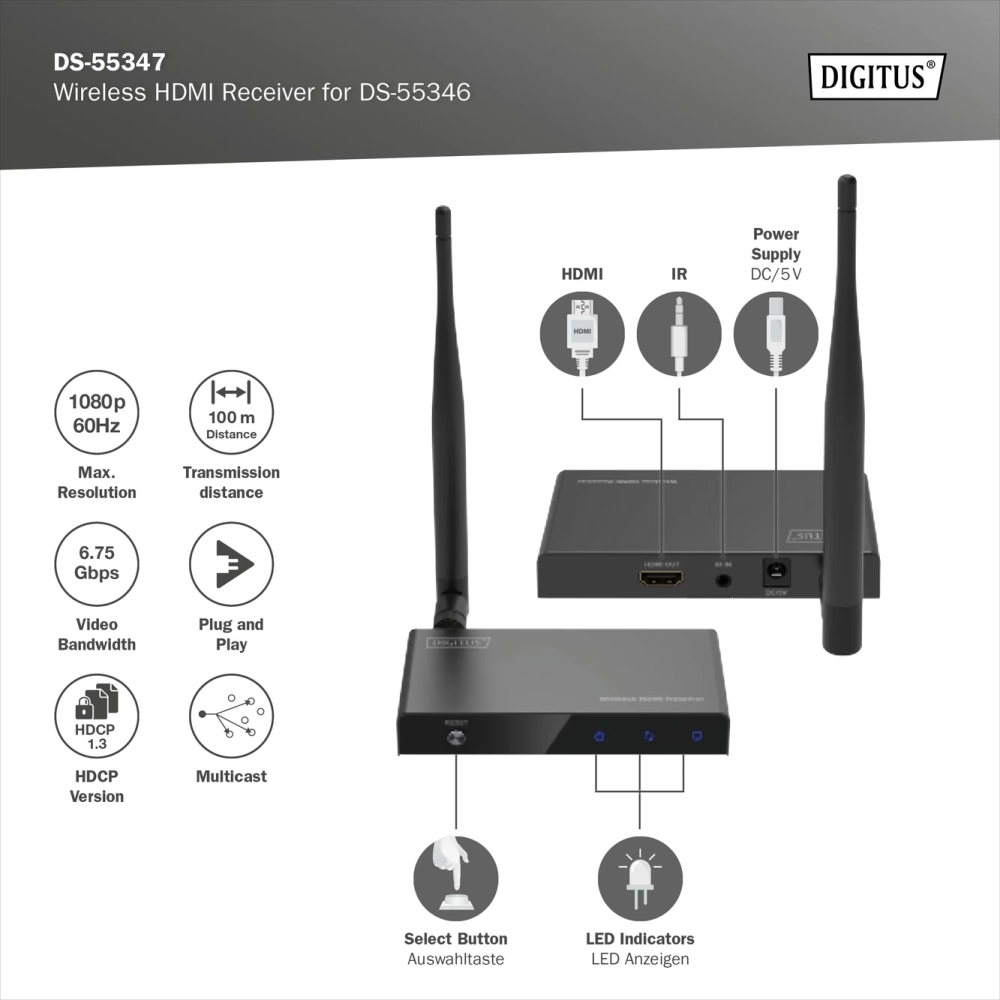

- Receiver connections:
- 1 x HDMI (output) Connection output display
- 1 x IR (input) Connecting IR cable
- 1x mains adapter (DC/5V)
- 1x Reset button
- LED displays: Power / Link / Status
- Operating temperature: 0°C to 50°C
- Current consumption: approx. 1.5W
- Dimensions: H 11.8 x W 6.35 x H 1.8 cm
- Color: black
- Receiver weight: 170 g
- Housing material: metal
- Note: Transmission distance with limited line of sight cannot be determined in general and depends on the installation location
- Note: Walls, glass, etc. shorten the signal range or cause signal loss
- HDTV resolution max.: 1920 x 1080 pixels, 60 Hz
- HDTV standard: 1080p
- KVM: no
- PoE (Power over Ethernet): no
- Video connectors: HDMI
