DIGITUS DS-55340 8K HDMI splitter

The DIGITUS® HDMI splitter distributes/mirrors the audio and video signals of the HDMI device to 4 TVs, monitors or projectors in UHD 8K/60Hz resolution. Audio signals can be separated and played back separately via Toslink or a 3.5mm stereo connection. With the EDID switch, you can set the appropriate settings for the connected displays.

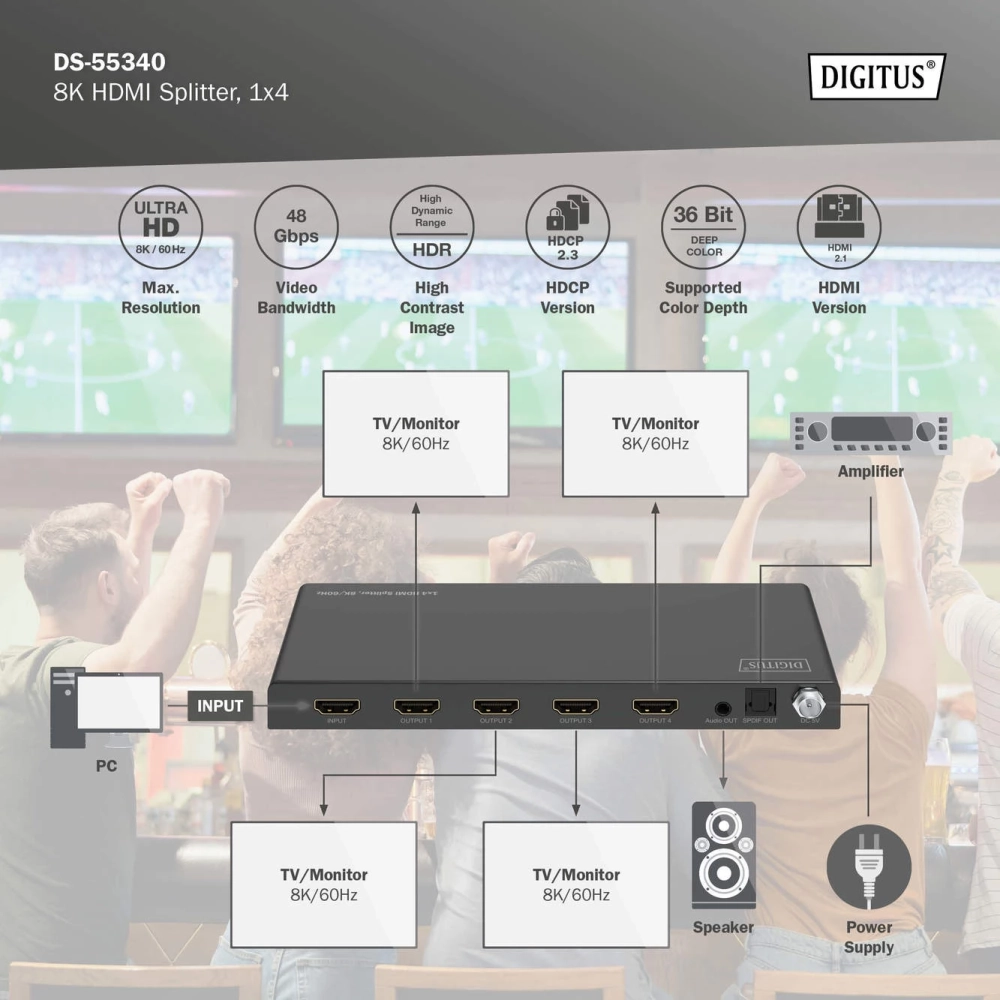

- Distributes HDMI signal to 4 TVs/monitors/projectors
- Sound extractor: Toslink / stereo (3.5 mm) audio signal separation and separate playback
- EDID switch / management
- Max. Resolution: 8K/60Hz (4:4:4)
- Video bandwidth: 48 Gbps
- Supports high dynamic range (HDR)
- Supports HDCP 2.3
- Supports Deep Color (36-bit)
- HDMI 2.1

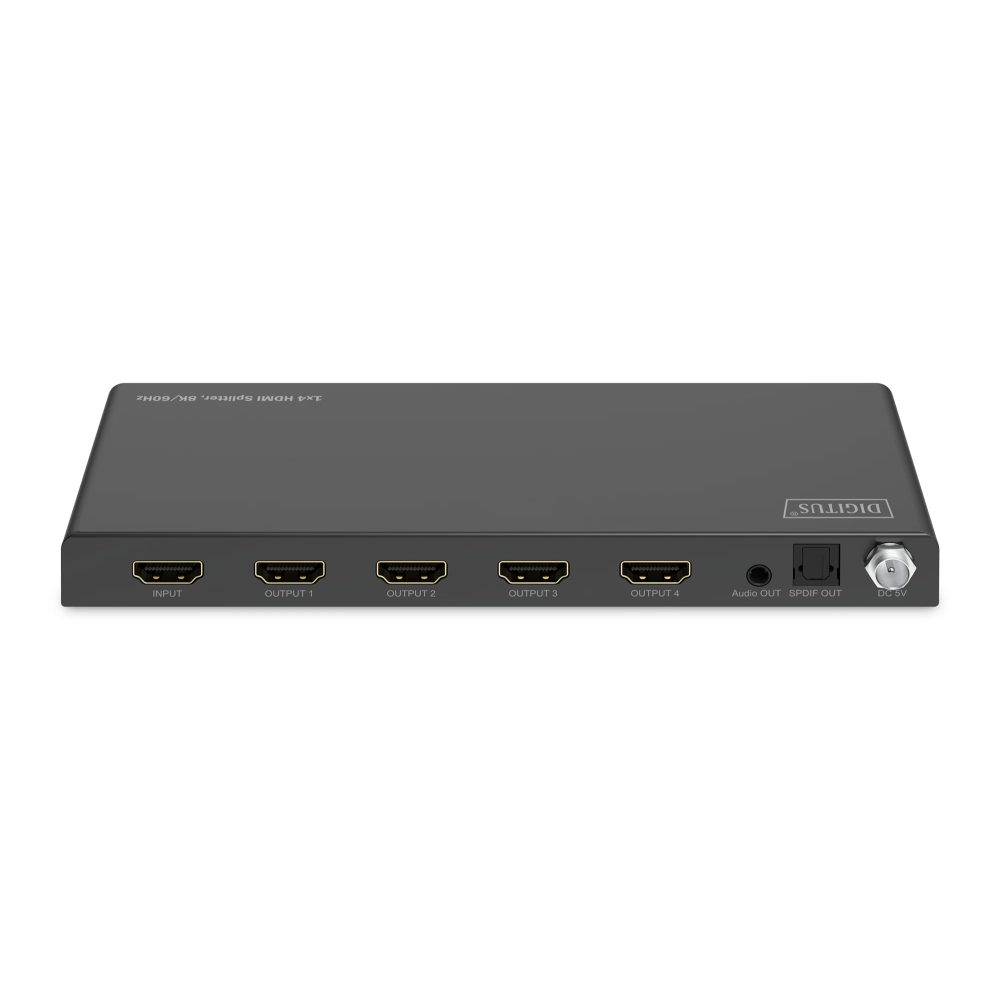

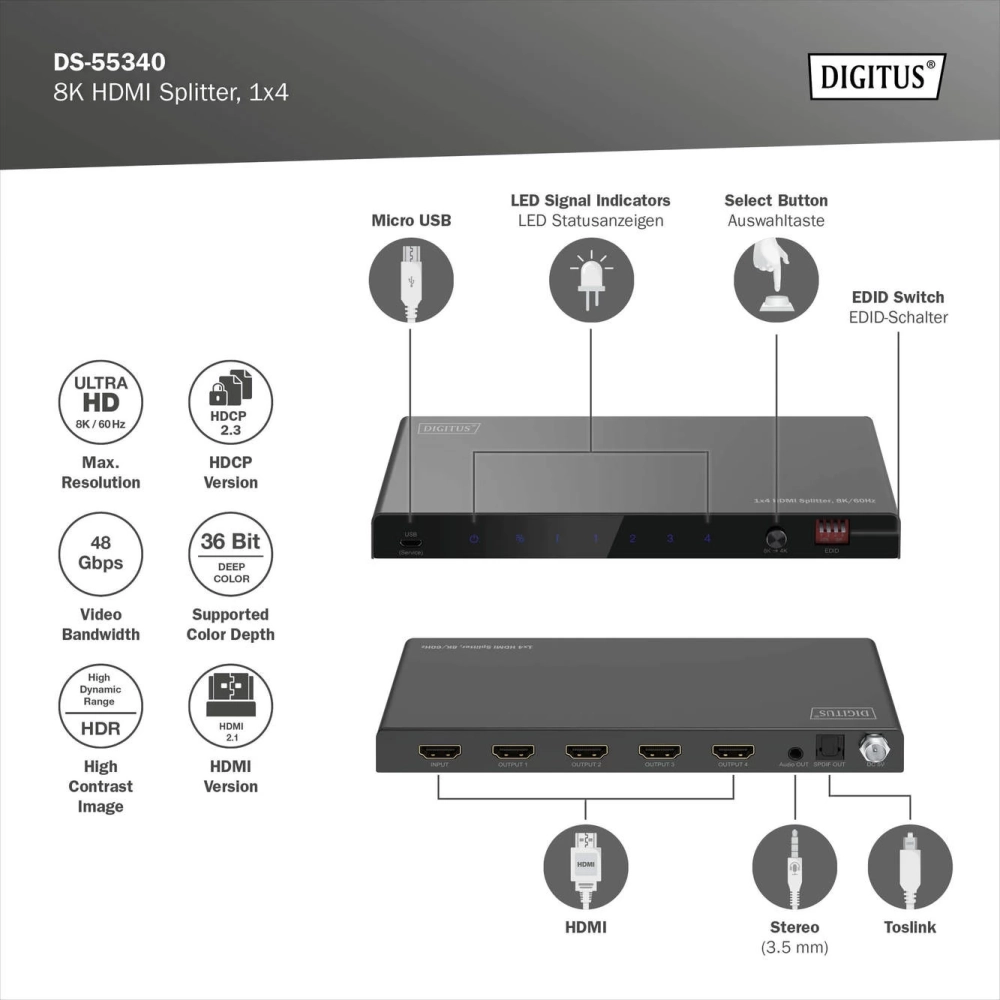

- Connections:
- 1x HDMI input (8K/60Hz)
- 4x HDMI output (8K/60Hz)
- 1x Toslink
- 1x 3.5 mm audio
- 1x DC / 5V input power connection
- 5x status LED
- 1x EDID switch
- 1x Micro USB input Service
- Operating temperature: 0-70°
- Current consumption: approx. 7W
- Housing: metal
- Dimensions (house): length 18.8 x width 7.1 x height 1.8 cm
- Weight: 285 g
- Color: black
- HDTV maximum resolution: 7680 × 4320 pixels, 60 Hz
- HDTV standard: Ultra HD 8K
- Number of ports: 4
- Signal input: HDMI
- Signal output: HDMI
- Video connectors: HDMI
