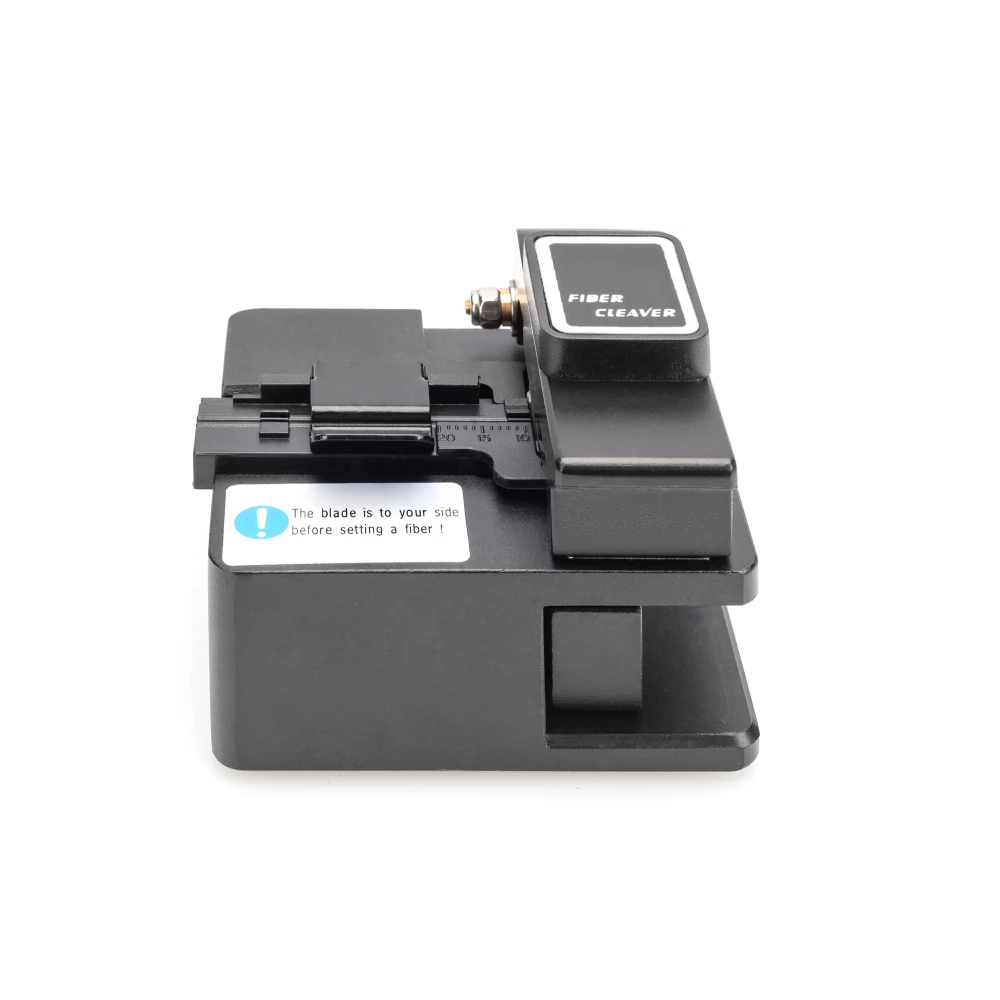

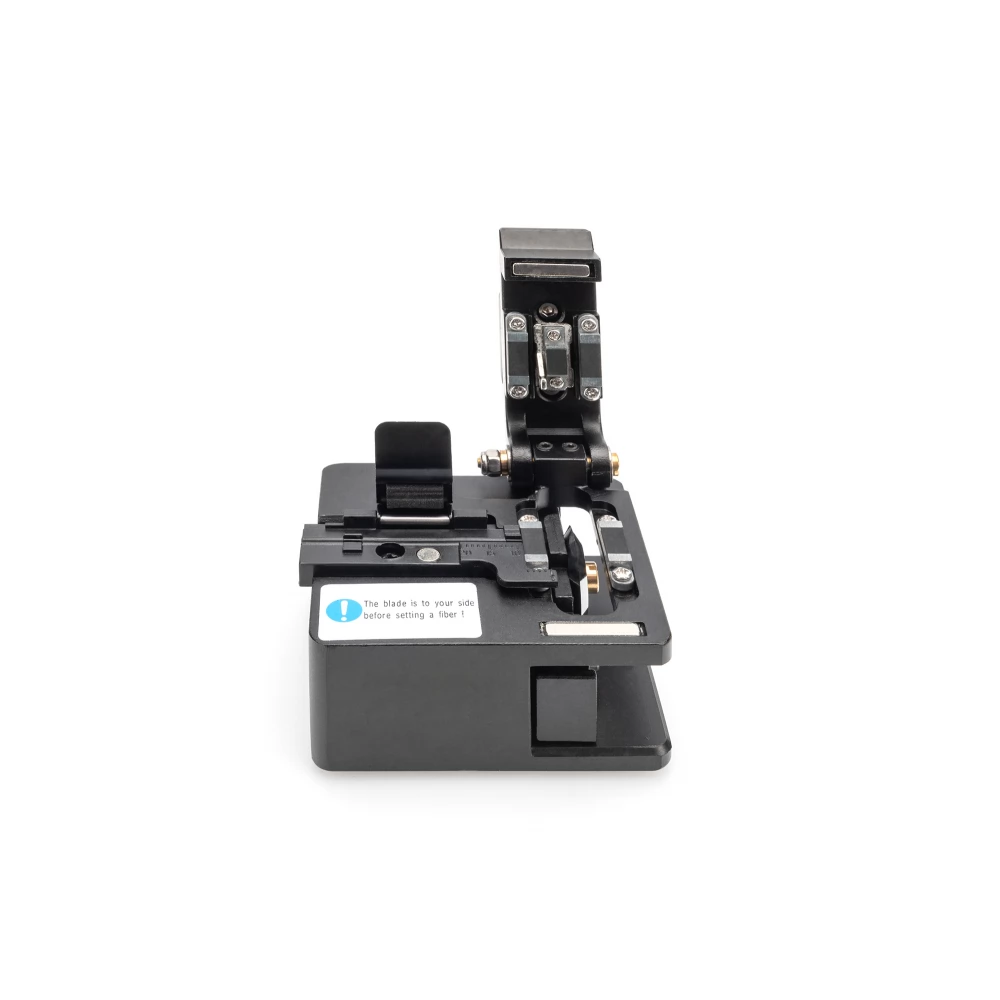

DIGITUS DN-FO-FC Optical Fibre Cleaver

The Digitus cleaver can be used for various fiber versions. Thanks to its compact design and light weight, it can be used anywhere and is ideally suited for the preparation of field terminal connectors or for occasional splicing. The life of the cutting disc is 48,000 high-precision fiber core cutting operations. After that, the blade can be easily replaced.

- Supported fiber diameter: 125um
- Supported fiber diameter, including Coating: 250um, 900um
- Supported fiber type: silicon optical fiber
- The average cutting angle (split angle): ≤0.7 degree (single core fiber)
- Maximum cutting angle (slip angle): ≤1.2 degrees (single core fiber)
- Cutting fracture rate: ≤5%
- Cutting length: Coating diameter 250um: 9~16mm; Coating diameter 900um: 10~16mm
- Blade life: 48,000 fiber cores (24 positions, one position 1000 times, height adjustable 3 times)
- 3 in 1 with multi-function mount, bare fiber support, leather cable (butterfly and round), ribbon cable
- Operating temperature: -10℃ ~ +50℃; Working temperature in the alpine region: -25℃ ~ +50℃;
- Storage temperature: -30 ℃ ~ +60 ℃;
- Other environmental characteristics: relative humidity: ≤90% (no condensation); Altitude: 0m ~ 3600m; Working height in plateau area: 0 m ~ 5000 m. Wind resistant characteristics: wind speed ≤15 m/s
- Comes with dustproof/shockproof protective box and provides blade replacement manual and support tools
- Dimensions (H × W × D): 6 × 5.5 × 5.5 cm
- Shipping box dimensions (plastic case) (H × W × D): 11.2 × 8.5 × 6.8 cm
- Weight: 255g (without packaging), 355g (with package)
