The actual distance is 100 meters via Cat5e/Cat6 cable. Small but powerful

- Provides 52Vdc, 0.58A power to remote PDs via 2 pairs of outputs.
- Supports both 10/100 Base-T and Gigabit devices
- Works over a wide input voltage range, 100-240 VAC, 50 or 60 Hz
- Easily combines power and data cables into a single cable
- All output ports have output current limiting, short circuit protection, full Powered Device (PD) detection and classification
- The injector can be used regardless of the operating system

The DN-95132 is an indoor active PoE midspan injector specifically designed for complex backhaul and network applications. Provides 52Vdc, 0.58A power to remote PDs via 2 pairs of outputs. It supports both 10/100 Base-T and Gigabit devices. It works for 30W PoE PDs such as wireless APs, WLAN routers, network cameras, IP phones, microwave radios and other high-performance Ethernet terminals. It fully complies with the IEEE802.3af / at PoE standard. Enclosed in an IP40 fireproof plastic housing. It operates on a wide range of input voltages, 100-240 VAC, 50 or 60 Hz. It has a sensor chip inside that detects and classifies the PD before power is applied. It only supplies current when it detects a standard PD.

- IEEE802.3 10Base-T Ethernet
- IEEE802.3u 100Base-Tx Fast Ethernet
- IEEE802.3ab 1000Base-T Gigabit Ethernet - IEEE802.3ab 1000Base-T Gigabit Ethernet
- Fully complies with the IEEE802.3af / PoE standard
- RoHS compliance
- WEEE compliance
- Input: 100-240Vac 1.0A 50 / 60Hz
- Output: 52Vdc 580mA
- Power connectors: 4/5(+), 7/8(-)
- Data speed: 10/100/1000Mbps
- Operating temperature: between 0°C and 40°C
- Operating humidity: between 20% and 80%, non-condensing.
- Storage temperature: -20 °C to 70 °C, non-condensing temperature: -20 °C to 70 °C
- Storage humidity: between 10% and 90%, does not condense.
- Operating altitude: up to 2000 meters
- Approvals: CE/FCC
- Housing: plastic
- Color: white
- IP classification: IP40
- Size: 107.3mm x 56mm x 34mm

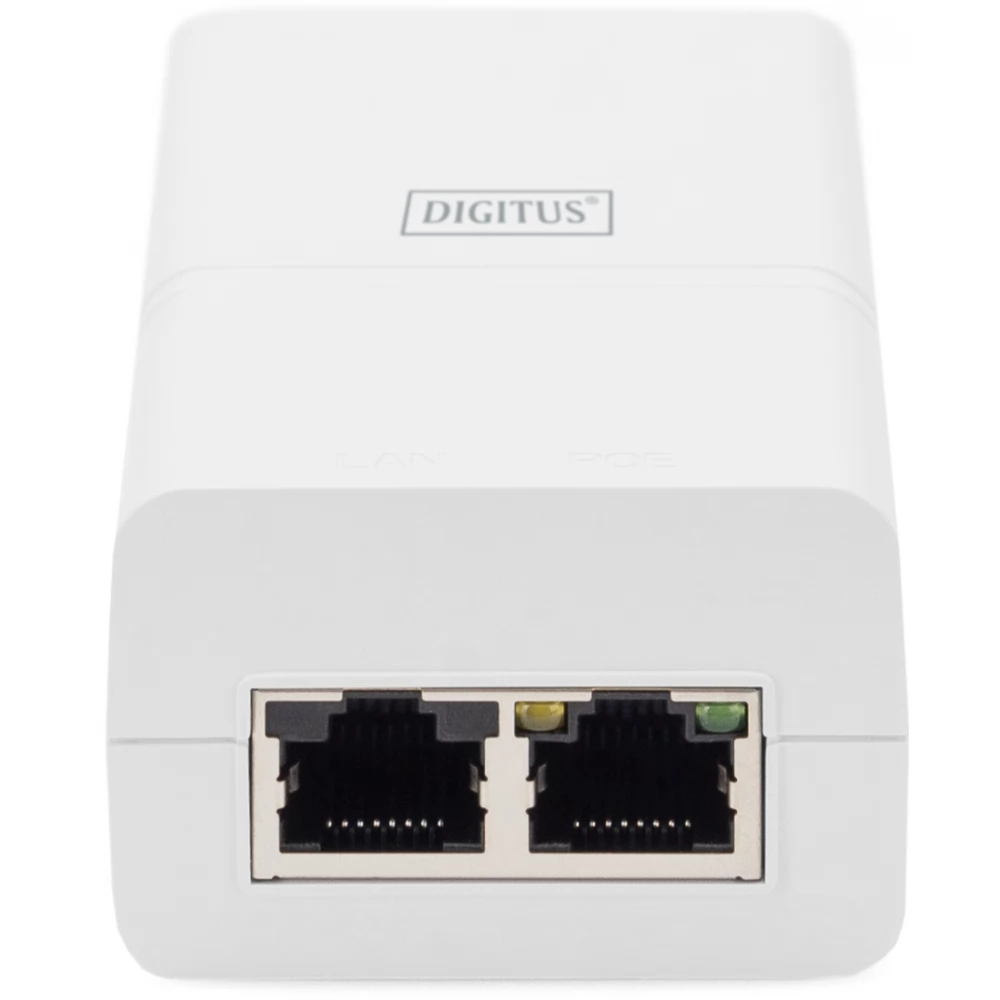

- Performance indicator: yellow
- PoE load indicator: Green
