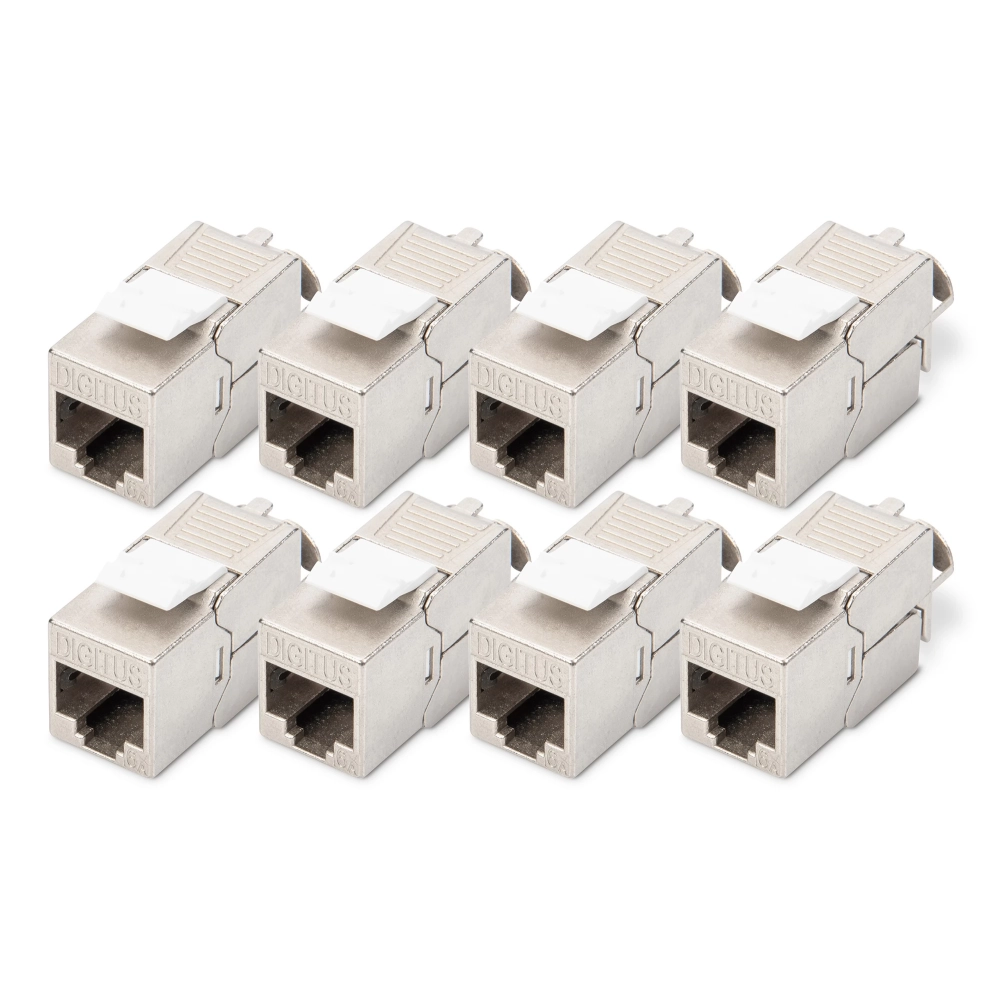

DIGITUS DN-93615-8 CAT 6A Keystone Module

The Digitus® 6A DN-93615 trapezoidal module set is impressed with future-oriented standards and high-quality network. The compact design allows a series of installation into a 48 (19 ") 1U panel. The toolless installation uses color-coded LSA rails according to EIA/TIA 568 A&B. Compact design also means that the module fits into the modular connection boxes appropriate to the design.

- Category 6a 10GBASE, 500 MHz
- ISO/IEC 11801 3, EN 50173-1
- Suitable for POE/POE+/4PPOE (IEEE 802.3AF, 802.3AT, 802.3BT)
- Suitable for installing a modular patch panel and modular wall substrate.
- RJ45-Jack, 8p8c
- Cable assembly with insulation shift connectors, color code according to EIA/TIA 568 A and B
- Cable catch and cable recording with intelligent cable operator
- Tool -free assembly connection
- shielding of 360 °
- Case Mater
- contact material: phosphorgebronz
- contact coating: nickel, gilded 0.5 µ
- Paste force: max. 30N (according to IEC 60603-7-51)
- Holder power: 7.7 kg between the socket and the connector
-Operating temperature range: -20 ° C and +70 ° C (ISO/IEC 11801, ANSI/TIA 568 C.2)
-Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
- Copper cable diameter: AWG (26/7 22/1), twisted and compact wire
- AWG 22/1 tested with solid cable
-(Digitus® DK-174x-A-VH-X; AWG 22/1 Cat. 7A Installation Cable)
- Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/land)
- Tool-free installation with LSA insulating and color code according to EIA/TIA 568 A and B
- Intelligent Cable Manager (Re -Close)
- CAT 6A Keystone Module Set: 8 pcs.
- Dimensions (maxszxm): 21.0 x 14.5 x 34.5 mm
- Weight: 19.5 g
