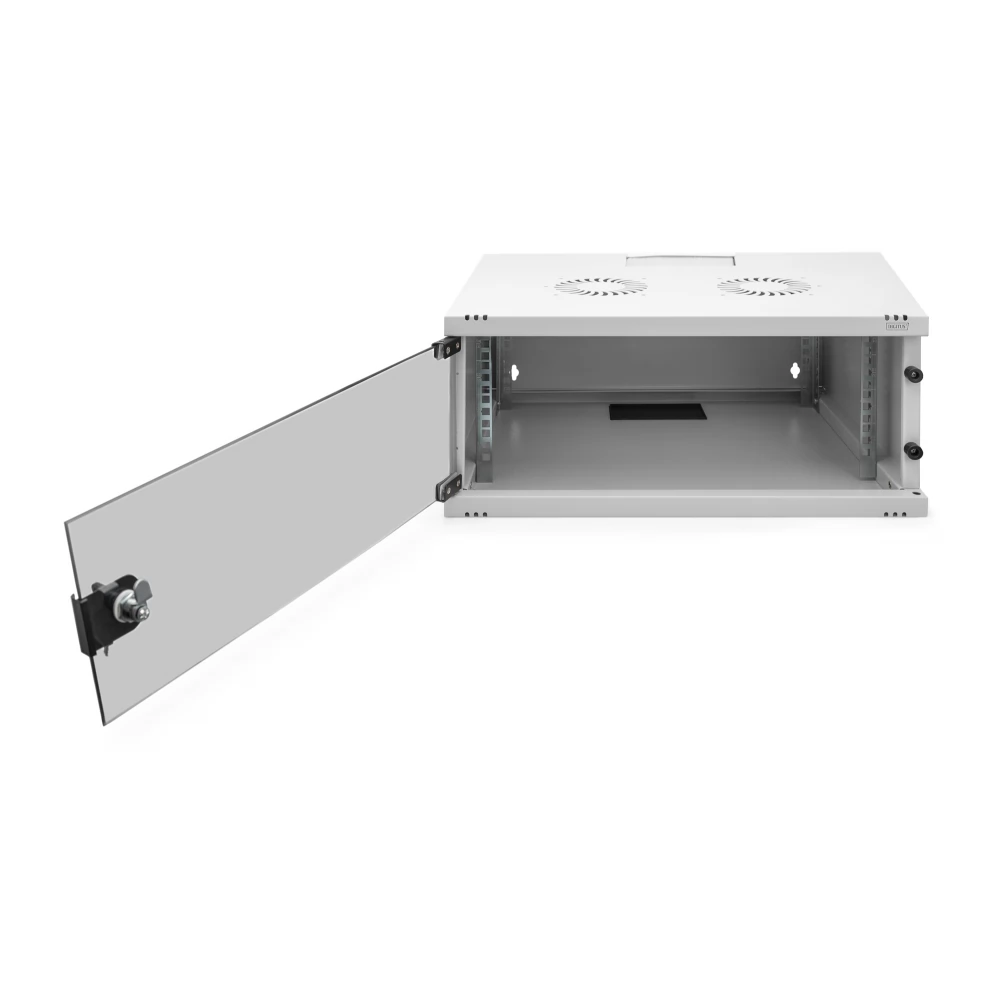

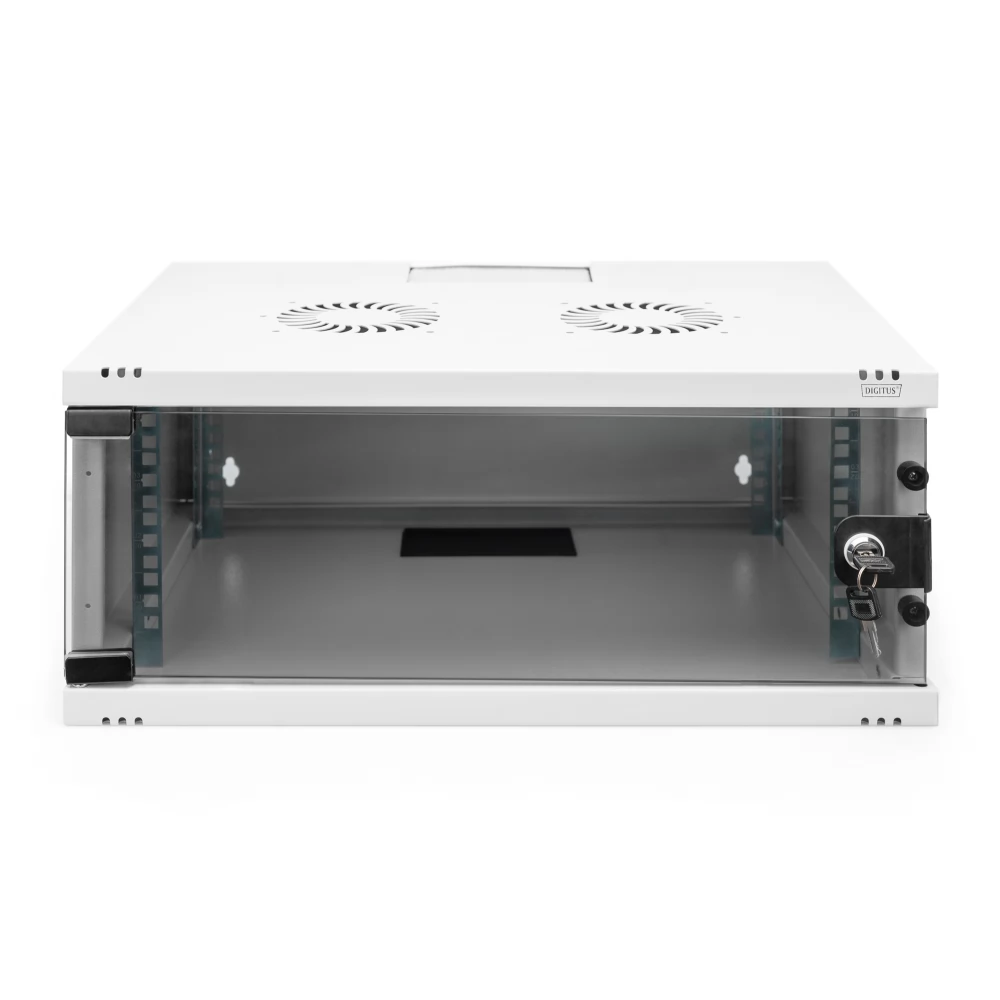

The Soho series is assembled with 483mm (19 ") wall cabinets, with a flat package to optimize costs. Four rack units with a full glass door and brush cable insert on the roof and floor, which is perfect for dividing or constructing small and medium-sized networks. equipped with well-readable rack units. Their depth is adjustable. Each cabinet is made of 1.5 mm thick steel plate. The coloring is performed with electrostatic dust coating in standard gray (RAL 7035) or soot black (RAL 9005) colors. The door legs can be replaced. The installation takes only a few steps and is extremely simple thanks to the attached step -by -step instructions.

- IP20 security class

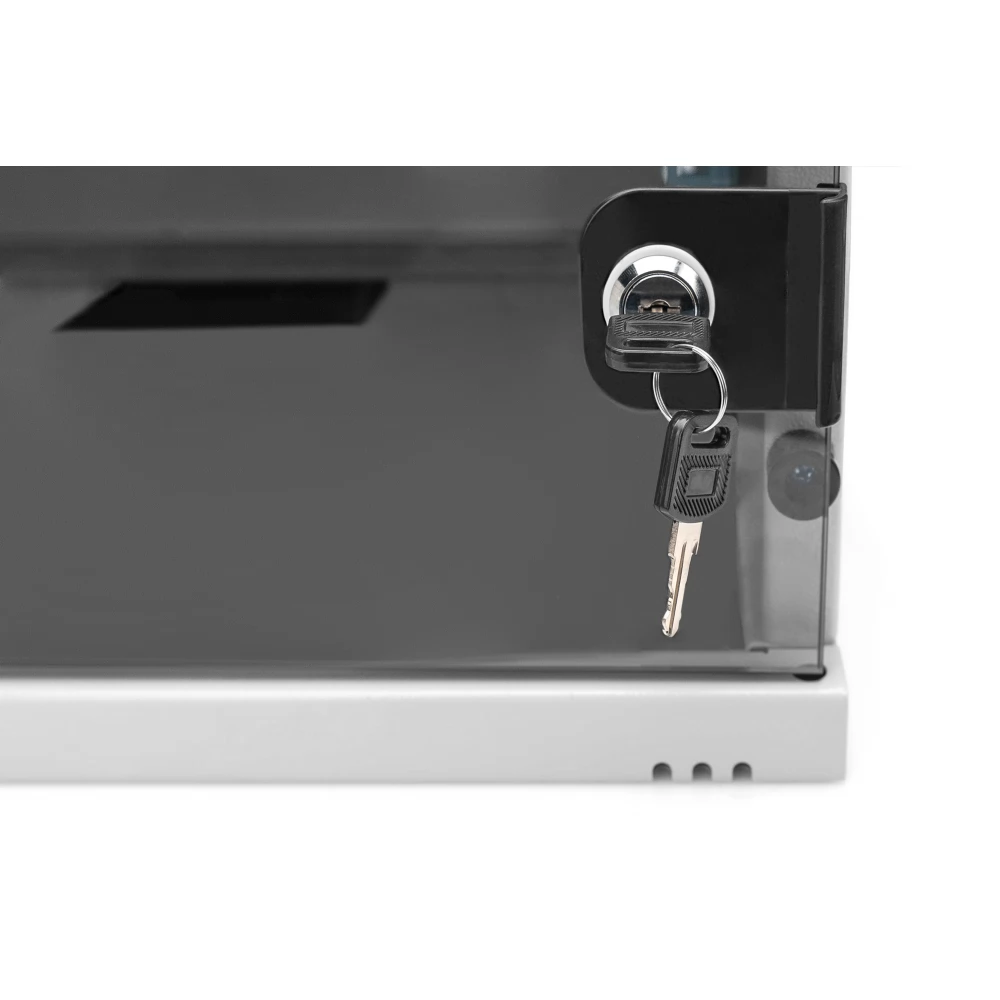

- lockable safety glass door
- a door opening angle of 200 °
- 1 point lock structure on the front door
- The depth of 483 mm (19 ") profile rails is adjustable
- 1.1 1.5 steel sheet with heavy load capacity with dust sprinkle coating
- Cable intake top with brush strips with plastic covers at the bottom

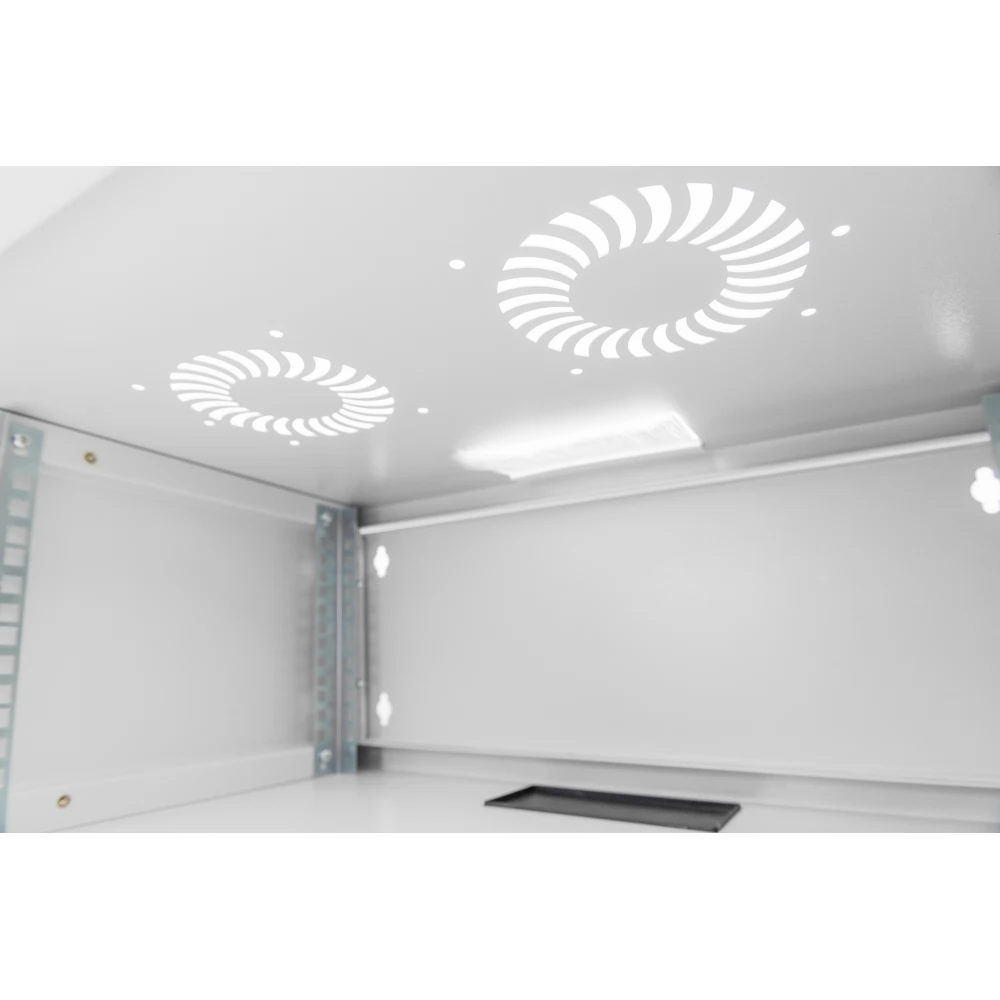

- The roof prepared for the fan units (punctured inputs)
- Ventilation openings for active and passive ventilation and suction
-Equipment mounting depth min.-Max: 170-270 mm
- The installation depth of the parts min. Max: 170 270 mm
- Type of cabinet: Wall -mounted cabinet
- Color: light gray, Ral 7035
- Depth: 400 mm
- front door: glass door that opens at a time
- load capacity: 60 kg
- side panels: both sides
- Units: 4
- Width: 540 mm
- IP Protection Class: IP20
- equipped with: no
