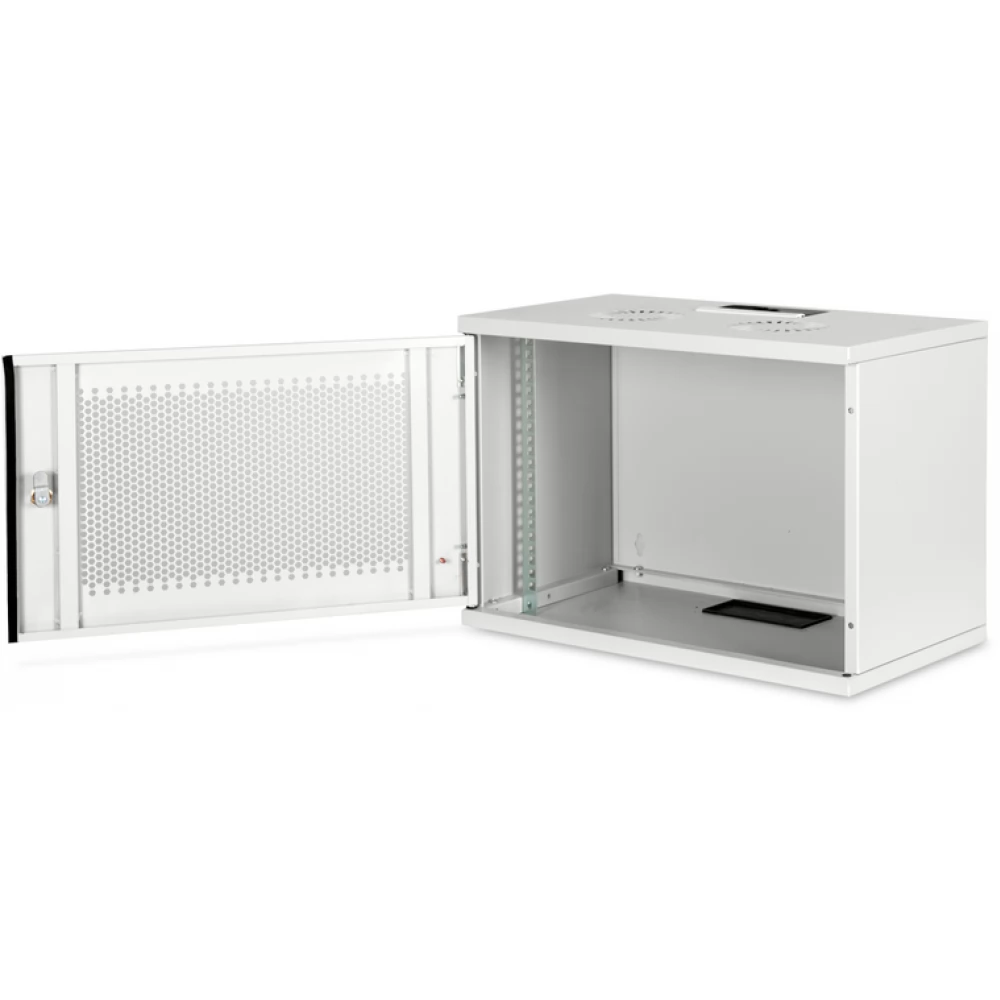

7U wall mounting cabinet, SOHO, unmounted 370x540x400 mm, perforated front door, grey.

- Safety class rating IP20
- Lockable perforated steel front door
- 200° door opening angle
- 1-point-locking-mechanism on the front door
- 483 mm (19“) profile rails mounted on the front side inside the cabinet, galvanized
- 483 mm (19”) profile rails are adjustable in depth
- 1.1 1.5 strong sheet steel with a high loading capacity, powder coated
- Cable entry with brush strip on the top and with plastic cover on the base
- Roof is prepared for fan units (punched out entries)
- Ventilation slots for active and passive ventilation and exhausting
- Equipment mounting depth min.-max.: 170-270 mm
- IP protection class: IP20
- Color: light grey, RAL 7035
- Depth: 400 mm
- Front door: Steel door, perforated, single opening
- Units: 7
- Load capacity: 60 kg
- Mounted: no
- Cabinet type: Wall mounting cabinet
- Width: 540 mm
