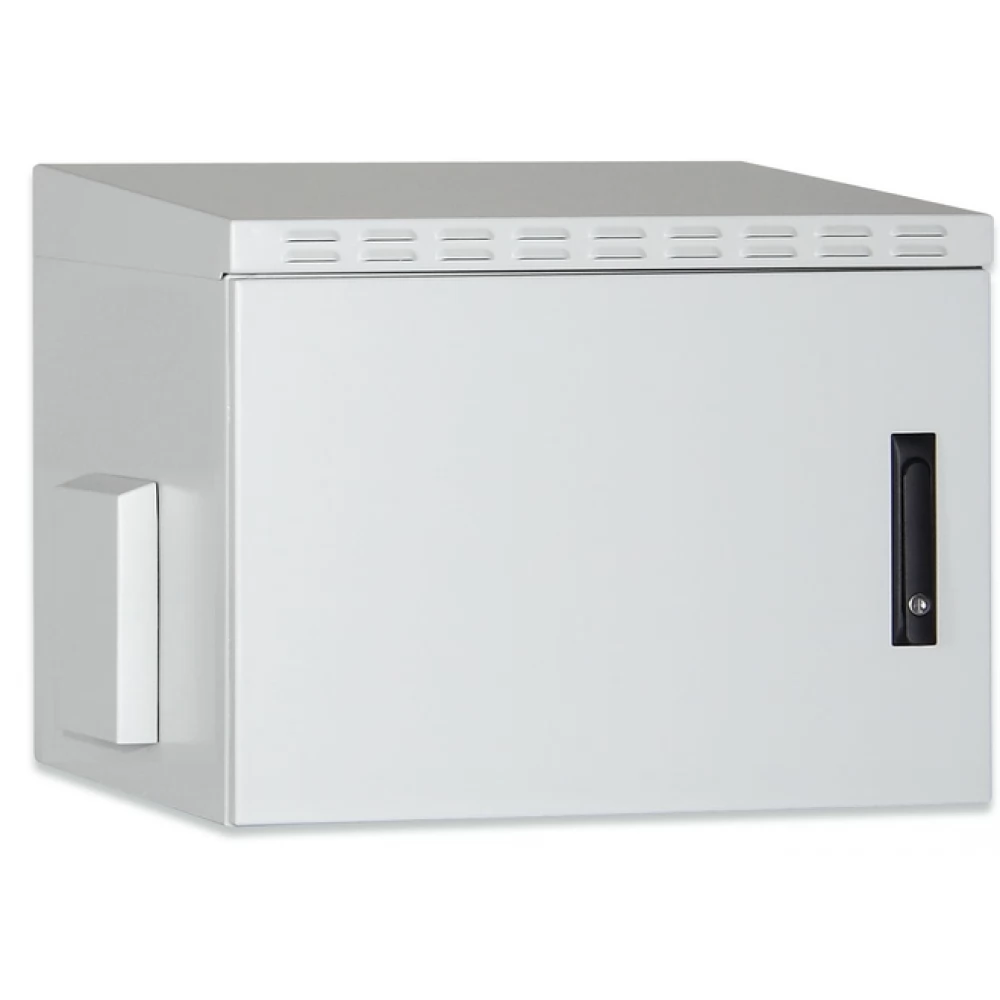

U wall cabinet, outdoor, IP55 490x600x600 mm, gray color (RAL 7035).

- IP 55 security class
- Lockable steel entrance door with swivel
- 140° door opening angle
- 3-point locking mechanism on the entrance door
- Entrance door with ground wire and two welded U-shaped reinforcement bars and sealing system

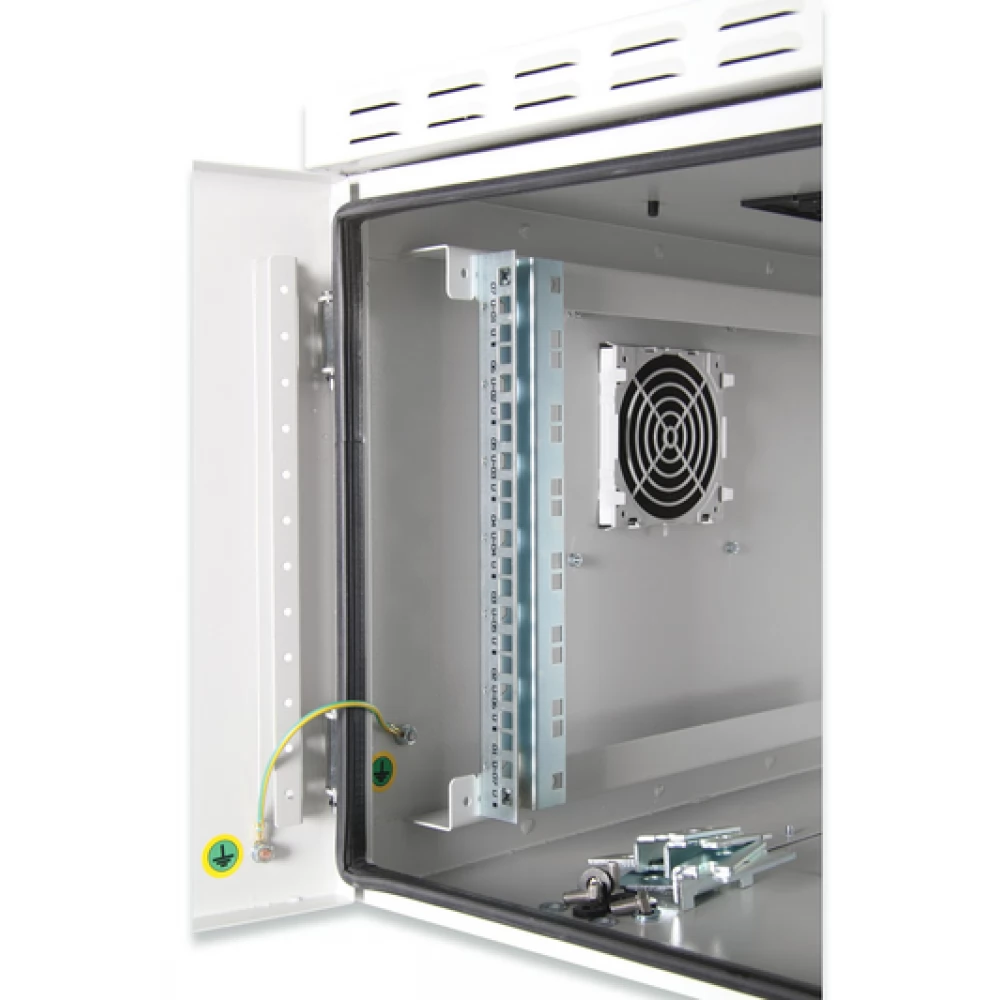

- 483 mm (19“) profile rails mounted on the front side of the cabinet, galvanized
- The depth of the 483 mm (19“) profile rails is adjustable, with a height unit marking
- 1.5 mm strong, heavy-duty steel sheet, powder-coated
- Single welded housing for greater strength

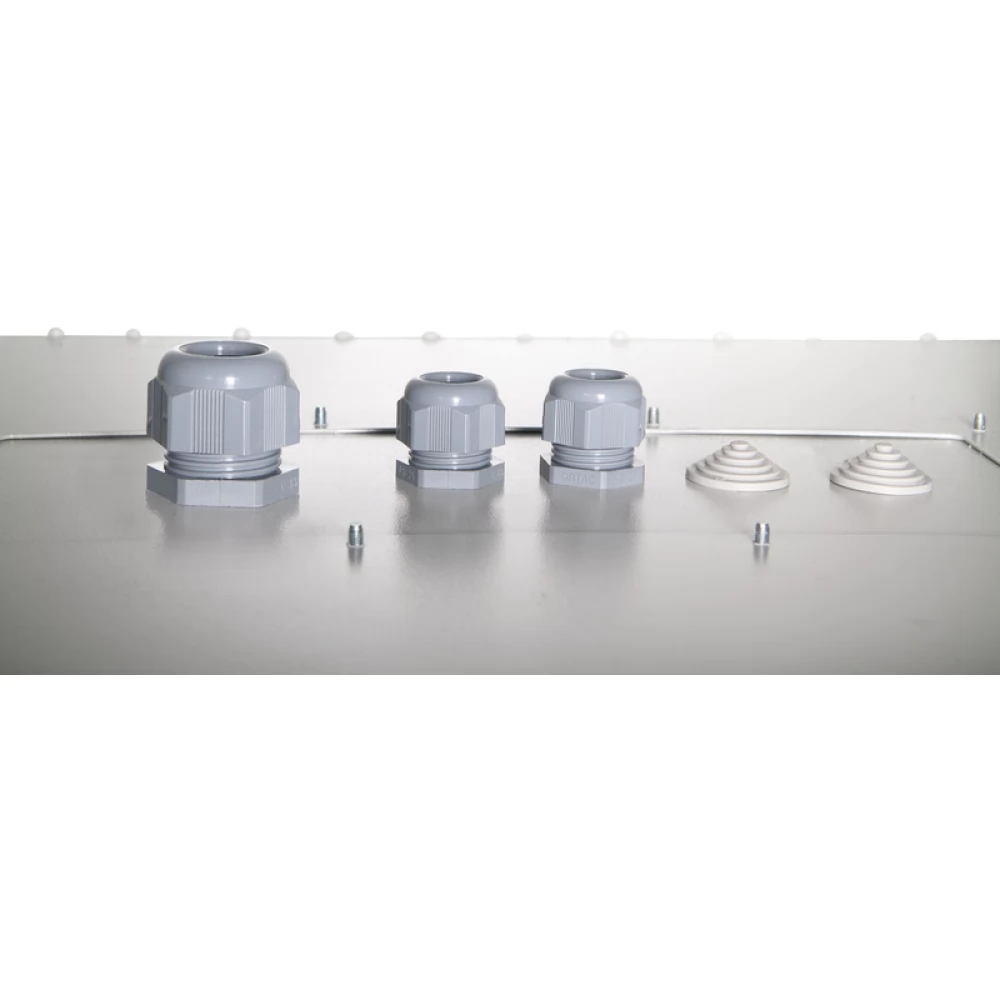

- Cable entries in the base: 2x M32, 1x M63, 2x PVC blind caps (with a diameter of 28 mm)

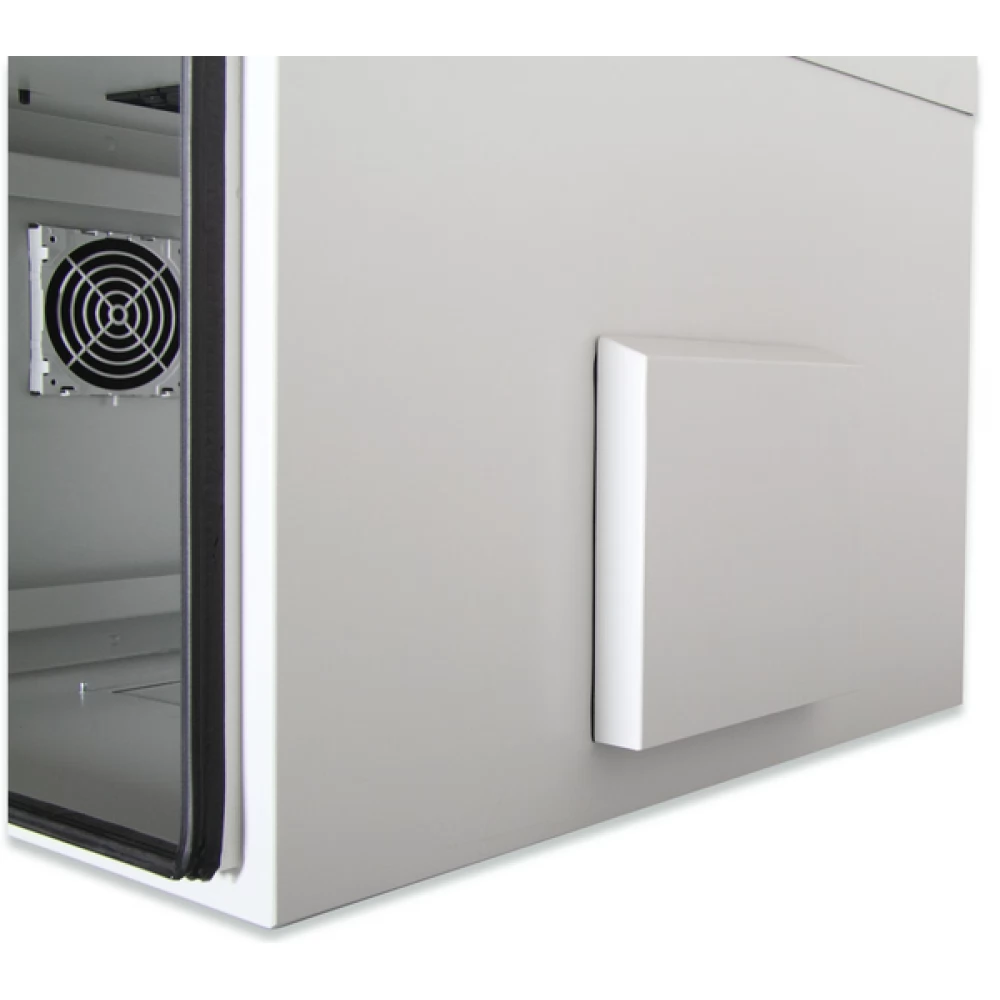

- The roof provides protection for the respective fan units, ensures ventilation and warm air
- The built-in ventilation holes ensure the entry of fresh air
- Including 4 pcs. 3 mm strong support brackets and suitable screws and washers for wall mounting
- Equipment installation depth min.-max.: 142-500 mm
- Distance of the installation holes from the wall bracket (H x W) in mm: 298 x 550
- IP protection class: IP55
- Color: light gray, RAL 7035
- Depth: 600 mm
- Entrance door: Steel door, closed, single opening
- Units: 7
- Load capacity: 100 kg
- Installed: no
- Cabinet type: Wall cabinet, outdoor
- Width: 600 mm
