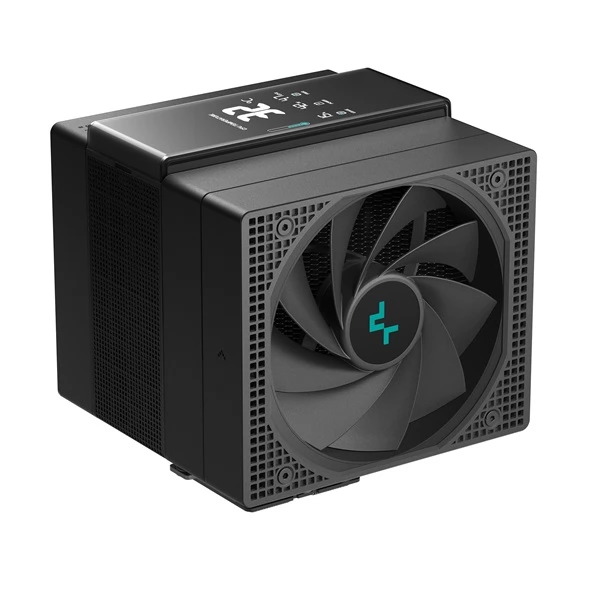

The DeepCool ASSASSIN IV VC VISION is a double-tower, heat-conducting tube universal CPU cooler with one 120mm and one 140mm PWM control fan. The cooling capacity has been significantly increased thanks to the vapor chamber at the bottom, and it has also received a high-end, four-segment digital display.

Steam chamber developed
Steam chambers are essentially large, flat heat pipes with high thermal conductivity. In the ASSASSIN IV VC series, heat is conducted through the cooling plate, which initiates the cooling process in the planar chamber. The heat equalizes and travels up the heat pipes, where the fins further cool it. This solution increases the cooling capacity to an impressive 300 W TDP.

Improved four-segment display
Its outstanding novelty is the improved four-segment display that monitors CPU temperature, usage time, performance and frequency. The digital panel is magnetized, so installation and adjustments are extremely easy. The display is controlled by DeepCool software and only requires an open USB 2.0 header.

Visual temperature indicators
A temperature warning system is integrated with a color-coded visual thermometer display: below 80°C, the indicator remains green; Between 80°C and 90°C it becomes bright orange; when the temperature rises above 90°C, it turns red and the lights start flashing.

Silent or performance mode
With the flick of a switch, the ASSASSIN IV VC VISION can be transformed from a whisper-quiet cooler to situations where low noise is paramount to the effective cooling power of DeepCool air coolers.

Elegant, clean design
The ASSASSIN IV VC VISION's chassis is clean, sleek and helps air flow through the fin towers, while the relocatable 120mm fan provides unobstructed space for high-performance RGB RAMs.
Keeping RAM free
• Intel LGA1851/1700/1200/115X: Barrier-free, Intel LGA20XX: 63 mm
• AMD AM4/AM5: Barrier-free

Quiet operation
A key factor in its extremely quiet operation is the use of three-phase, six-slot, four-pole, low-voltage and energy-efficient fan motors. The high-end, genuine FDB bearings in each fan are the benchmark, and for good reason.

Exceptional design
It has a base reinforced with a vapor chamber and seven heat pipes that provide highly efficient heat transfer through two lamellar heatsink towers, thus ensuring an even higher level of heat dissipation. The included DM9 thermal paste meets the strict standards used in industrial applications.

Lower airflow
Because the central 140mm fan sits deep in the heart of the ASSASSIN IV VC VISION, airflow is lower, providing additional cooling to the surrounding hot VRMs.

Simple installation
Installing larger air coolers can be tricky, which is one of the main reasons why the hardware and installation are designed to be extremely user-friendly for the 172mm tall ASSASSIN IV VC VISION. Even the magnetic display panel and sliding design of the main fan are designed with ease of installation in mind.

Wide compatibility
ASSASSIN IV VC VISION supports virtually all modern mainstream AMD and Intel CPU sockets, including LGA1700 and AM5 sockets.
• Intel: LGA20XX/1851/1700/1200/115X
• AMD: AM5/AM4

Technical data
- Product dimensions (L × W × H): 147 × 144 × 172 mm
- Net weight: 1780 grams
- Bearing type: Fluid dynamic bearing
- Dimensions of the cooling fin (L × W × H): 140 × 110 × 160 mm
- Heat pipe: Ø6 mm × 7 pcs
- Fan dimensions (L×W×H): 140×140×25 mm / 120×120×25 mm
- Fan speed (Power mode): 500~1800 rpm ±10% / 500~1700 rpm ±10%
- Fan speed (Quiet mode): 500~1450 rpm ±10% / 500~1350 rpm ±10%
- Fan Airflow (Power Mode): 61.25 CFM / 58.06 CFM
- Fan Airflow (Quiet Mode): 48.55 CFM / 46.75 CFM
- Fan air pressure (Power mode): 3.76 mmAq / 2.1 mmAq
- Fan air pressure (Quiet mode): 2.46 mmAq / 1.35 mmAq
- Total noise level (Power mode): ≤29.3 dB(A)
- Total noise level (Quiet mode): ≤22.6 dB(A)
- Fan connector: 4-pin PWM
- Fan nominal voltage: 12 VDC
- Rated fan current: 0.2 A / 0.2 A
- Fan energy consumption: 2.4 W / 2.4 W
- Nominal voltage: 12 VDC
- Power consumption (Power mode): 4.8 W
- Energy consumption (Silent mode): 3.6 W
- Nominal voltage of display module: 5 DC voltage
- Nominal current of display module: 0.08 A±10%
- Display module energy consumption: 0.4 W
- Display area: 44.6x53.6 mm

In summary, the DeepCool ASSASSIN IV VC VISION is a high-quality cooler with the latest technology, which stands out from the field not only in terms of cooling performance, but also in its visual appearance. It combines fast heat transfer, excellent cooling performance, stylish design, and user-friendly installation that meets all demands
