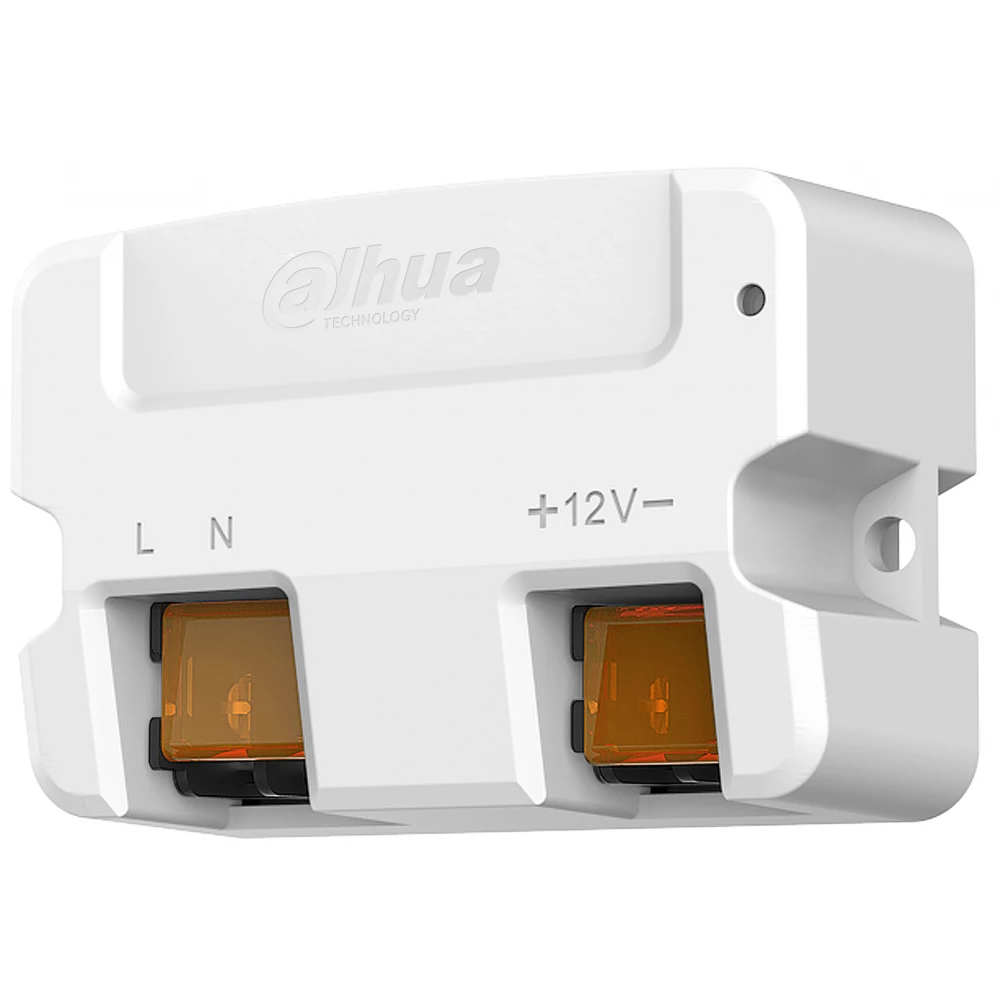

DAHUA PFM320D-015

DC 12 V/1.5 A mains adapter

- Simple installation
- Support using the indicator light
- Supports wide temperature operation between -30°C ~ +70°C and the full load efficiency of the power supply can be up to 100% at these temperatures
- Accurate overcurrent, overvoltage protection

Specifications
- Rated input: AC 100 V ~ 240 V, 50/60 Hz, 0.6 A
- Output voltage: DC 12 V, + 7%/-3%
- Output current: Max 1.5 A (+70°C)
- Protection: Overvoltage protection, overheating protection, overcurrent, voltage load protection; ESD: EN61000-4-2, +/6 kV contact; +/8 kV air; Surge: EN61000-4-5, Combination wave: Common mode ± 4 kV (12 ohms), Differential mode ± 2 kV (2 ohms)
- Operating temperature: -30°C ~ +70°C
- Operating humidity: 5% ~ 95%
- Size: 77.3 mm x 51.9 mm x 30.0 mm
- Weight: 95 g
- Installation: The flat mounting can be installed in the junction boxes and the wall mounting bracket
- Color: white
- Input plug: 2-pole connector (L/N)
- Output connector: 2-pole connector (+12V-)
