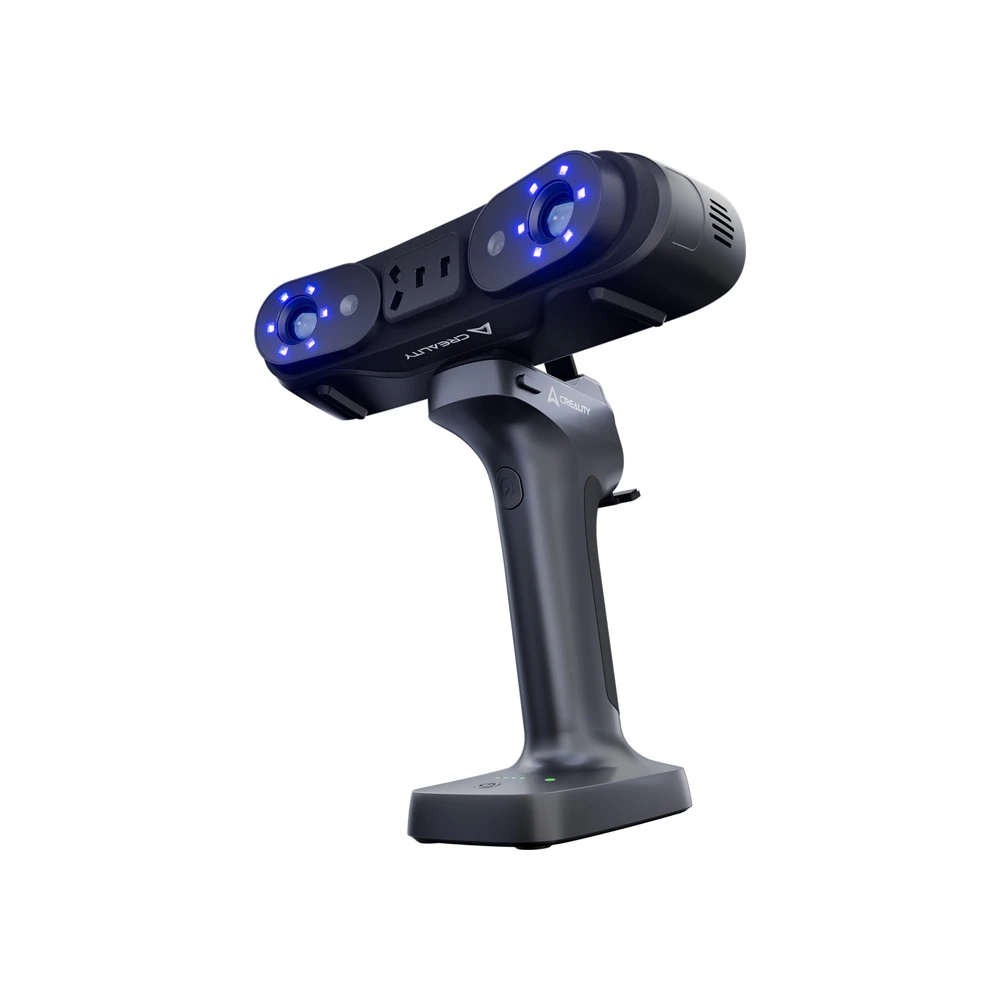

The Creality Sermoon X1 redefines industrial 3D scanning: its high precision, flexible scanning modes and robust design make it ideal for design, manufacturing and quality assurance applications.

Industrial grade accuracy ⇒ 0.02 mm + 0.04 mm/m
With a measuring accuracy of 0.02 mm and a volumetric accuracy of 0.04 mm/m, the Sermoon X1 meets even the most stringent requirements in a professional environment. Integrated photogrammetry provides precise results without markers – completely eliminating cumulative errors, even for large objects.

Stability thanks to the CNC monobloc design
The housing consists of a CNC-milled one-piece structure that provides exceptional rigidity, thermal stability and vibration-free results – ideal for precise work even with high scanning volumes.

Versatile scanning modes for every detail
The Single-Line + 7 + 34 combined system uses blue laser lines and NIR structured light to enable high-precision scanning in any lighting conditions.

Single laser line: For accurate detection of deep and hard-to-reach areas.

34 cross laser lines: For comprehensive 3D scanning. This configuration effectively covers larger areas and significantly increases scanning speed.

7 parallel blue laser lines: Detailed recording of complex structures. It captures even fine surface features with precision – ideal for applications that require a high level of detail.

NIR structured light: In near infrared (NIR) mode, structured infrared light is used for fast and marker-free scanning. This method is particularly suitable for testing sensitive or hard-to-mark surfaces.

The combination of blue laser lines and infrared structured light enables flexible object detection on a wide spectrum of sizes – from very small (5 mm³) to very large objects (up to 4000 mm³).

Integrated photogrammetry with scale bars
The Sermoon X1 is equipped with a built-in photogrammetry function and two scale bars that automatically correct size deviations during reconstruction. This allows the scanner to achieve an impressive volumetric accuracy of 0.02 mm + 0.03 mm/m.

Intelligent stabilization for smooth scanning
Thanks to the temperature compensation algorithm controlled by artificial intelligence and the efficient thermal management system, the performance of the Creality Sermoon X1 remains stable even during longer scans. It automatically compensates for temperature fluctuations, ensuring precise and consistent results without drift or quality degradation - even with intensive, continuous use.

Wireless and mobile
With Wi-Fi 6 and up to 4 hours of battery life, the Sermoon X1 offers complete freedom of movement. Data transmission of up to 4.7 Gbps ensures fast and uninterrupted work.

Lifelike colors and textures
The 2 megapixel RGB camera with Qualcomm ISP chip and integrated lighting captures realistic colors and the finest texture details - perfect for design, 3D visualization and creating digital twins.
