Creality Raptorx is an advanced 3D scanner designed for professional users. Equipped with NIR structured light technology, it guarantees exceptional scanning accuracy and speed. Thanks to its compact and wireless design, it performs well in a variety of working conditions, even in intensive light - up to 100,000 luxat mode in 34 laser line mode. In addition, Raptorx offers a widespread application, from scanning complex objects to precise, high -resolution detail.

Excellent scanning quality and versatile applications
Raptorx reaches 0.02 mm + 0.06 mm/m accuracy and up to 60 fps, so it can capture the smallest details. Thanks to its full -colored scanning capability, it is ideal for surface analysis projects. The device manages objects of 5 mm³ to 4 m³, so it can be used versatile for scanning small parts, silhouettes or large mechanical parts.

Scans that meet different needs

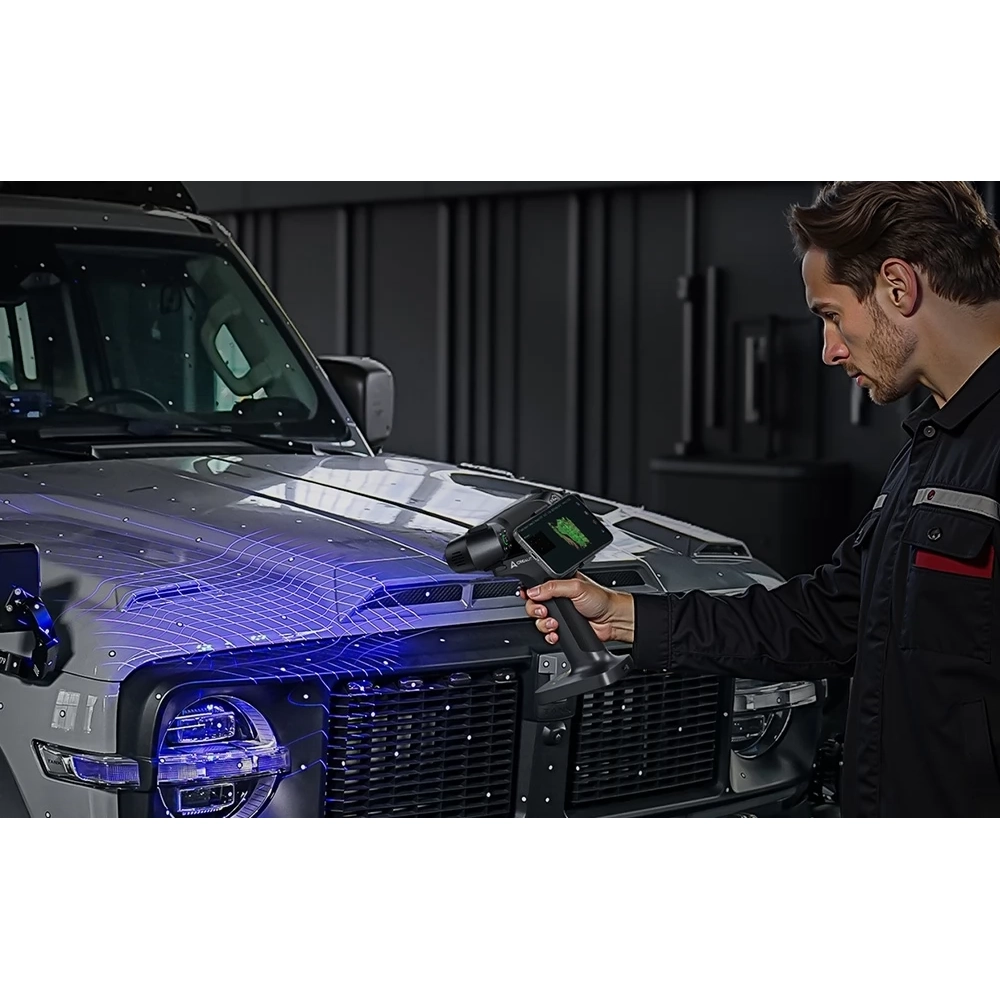

Raptorx offers various scanning modes: manual scanning for greater freedom, standing scanning with automatic platform rotation, detailing to map the smallest parts, and a way to scan large objects. This makes the device an ideal tool in many industries, such as the automotive industry, medicine and art.

Mobility and comfortable use
Wireless design and only 405g weight make Creality Raptorx extremely comfortable during everyday use. The scanner is equipped with a rechargeable battery, which allows for about 4 hours uninterrupted operation and charges to 80%in about 1.5 hours. This makes the device perfect in the studio and on the field.

NIR Structured Light Scanning - Skaning Unleaded

Creality Raptorx Nir (Near Infrared) uses a structured light technology that allows for scanning without markers. With One-Shot 3D Imaging technology, scanner provides stability and reduces the risk of losing the subject. This function simplifies manual scanning, making the process smooth and comfortable.

Reliable scanning

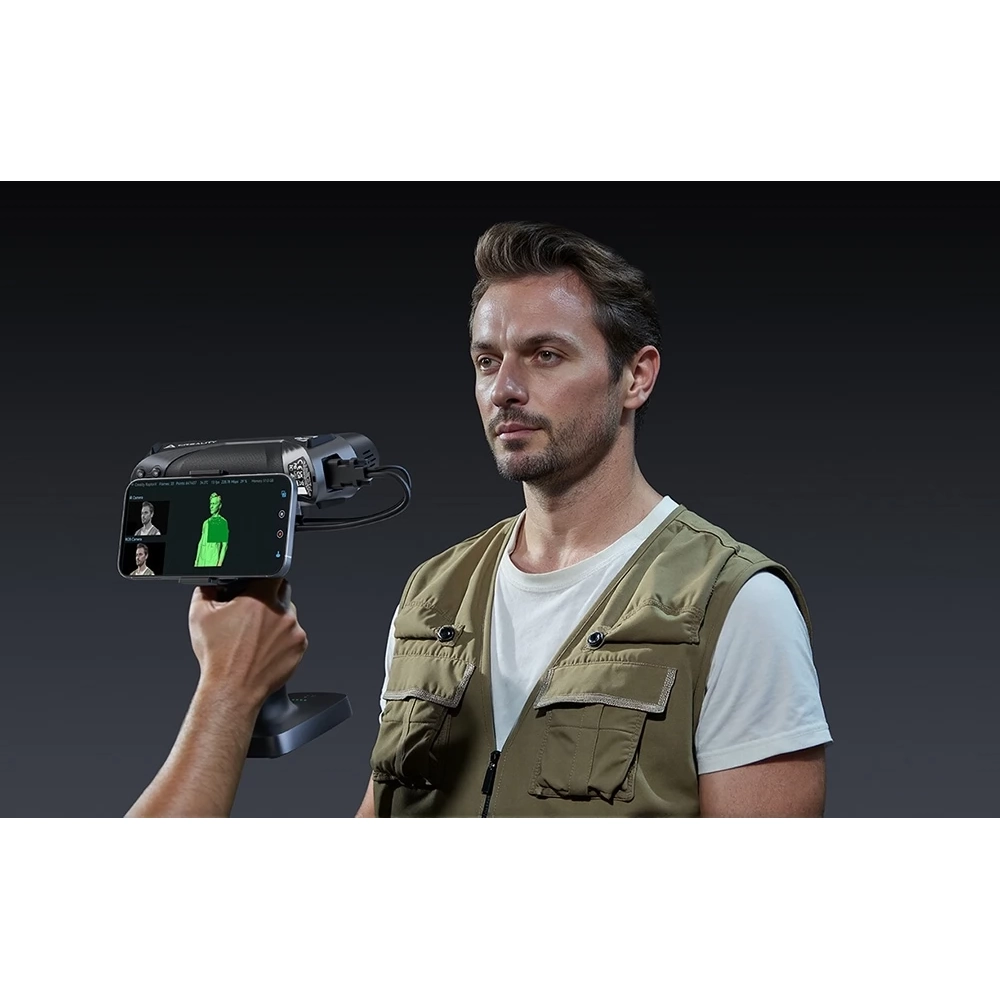

Raptorx has a unique face and body-based algorithm that allows you to accurately reproduce details such as hair and body contours. It takes only 2 minutes to scan a full body. In addition, the device supports scanning on the entire 24 -bit color palette, which allows the objects to be accurately rendered. Thanks to the high degree of mother data, Raptorx is capable of scanning black and metallic objects without spray or coating, which saves and increases comfort.
Creality Raptorx Nir (Near Infrared) uses a structured light technology that allows for scanning without markers. With One-Shot 3D Imaging technology, scanner provides stability and reduces the risk of losing the subject. This function simplifies manual scanning, making the process smooth and comfortable.

High quality optical parts
The Raptorx scanner is equipped with a 2.3 million pixel 3D camera. The nine element glass lens provides minimal distortion and great depth of field. Metal lens formation increases durability and operation stability, even under harsh conditions.

Crealityscan software
The scanner operates with intuitive Crealityscan software, which offers advanced features such as point cloud editing, face and body scanning, and one-click calibration. The software is compatible with many popular programs, such as Solidworks, Maya and Blender, so you can easily integrate scanning into further design processes.

Scanner
-Compatibility: CR-scan Otter, CR-Scan Raptor, Creality Raptorx
- WiFi protocols: wifi6, backward compatible
- Frequency band: 5 GHz
- Transmission speed: parallel line mode: ≤50 fps; Infrared mode: ≤30 fps
- Battery type: lithium
- Battery capacity: 5000 mAh (2 pieces)
- Fast charging power: 30 W
- Surgery Protocol: PD / AFC / FCP
- Filling powder: Type-C
- Interface: USB-A / USB3.0
- Power connector: DC12V / USB5V
- Phone holder: magnetic
- Power button: mechanical
- Scan Start button: Mechanical
- Dimensions: 193.7 x 119.8 x 81.7 mm
- Weight: 444 g
-operating temperature range: -10 ° C and 40 ° C
- Operating humidity: 0-90% RH

Scanner
- Scans: 7 blue parallel laser line / 34 blue laser line / nir
- accuracy: up to 0.02 mm (7 blue parallel laser line / 34 blue laser line); up to 0.1 mm (NIR)
- volume accuracy: 0.02 mm + 0.6 mm / m (7 blue parallel laser line / 34 blue laser line); 0.05 mm + 0.1 mm/m (nir)
- Scan frequency: 420 000 measurement/s (7 blue parallel laser line); 1,020000 measurement/s (34 blue laser line); 3.580000 Measurement/S (NIR)
- 3D resolution: 0.02-2 mm (7 blue parallel laser line /
