The Creality CR-Scan Raptor is an advanced 3D scanner that combines blue laser and infrared (NIR) technology for metrology-level accuracy. Thanks to this advanced technology, the scanner allows the creation of highly accurate 3D models of various objects, from small objects to large components with a maximum size of 2000 x 2000 x 2000 mm. The CR-Scan Raptor is the ideal tool for both professionals and 3D enthusiasts looking for the highest quality and accuracy in their projects.

The CR-Scan Raptor is characterized by a scanning accuracy of up to 0.02 mm thanks to its seven laser lines, which enable objects to be reproduced in extremely high detail. Blue laser scanning can reach speeds of up to 60 frames per second for fast and efficient operation. In NIR scanning mode, the speed can be up to 20 frames per second, which also guarantees high performance while maintaining excellent image quality. These features make the CR-Scan Raptor ideal for applications that require both precision and speed, such as reverse engineering, product design and quality control.

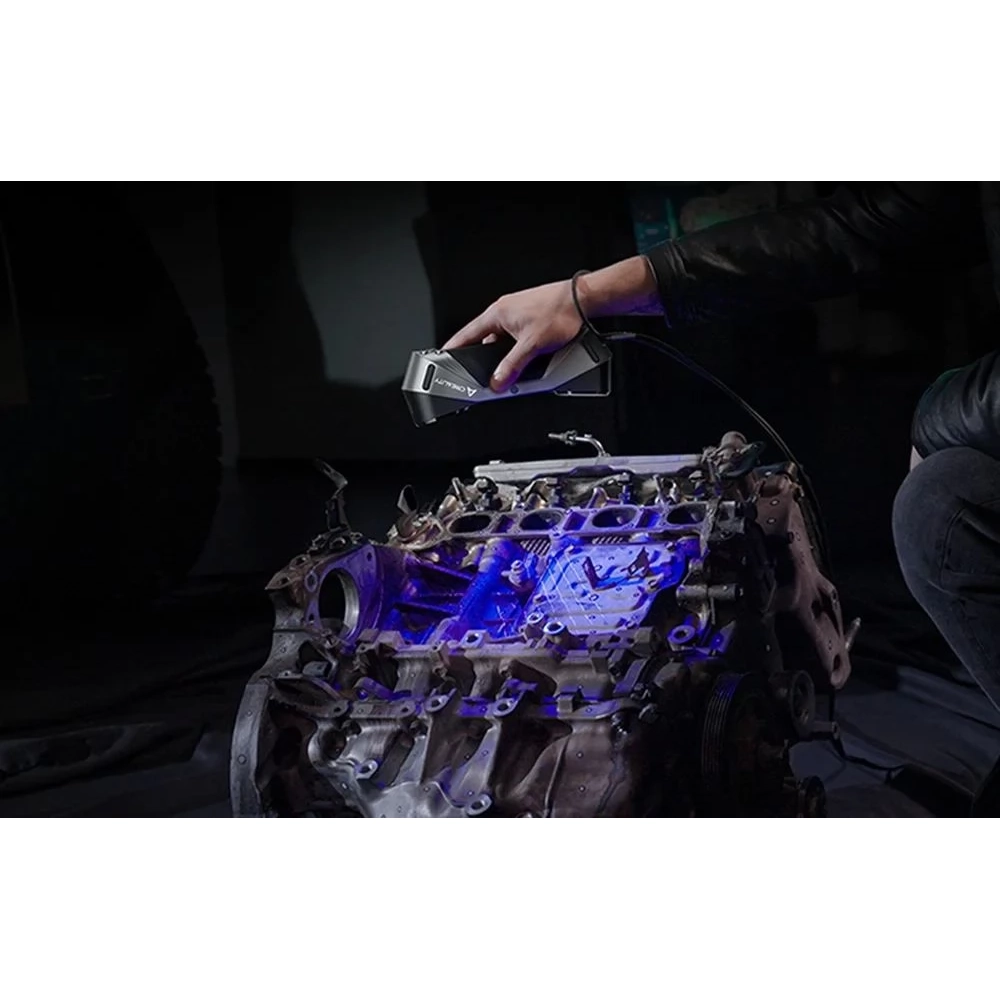

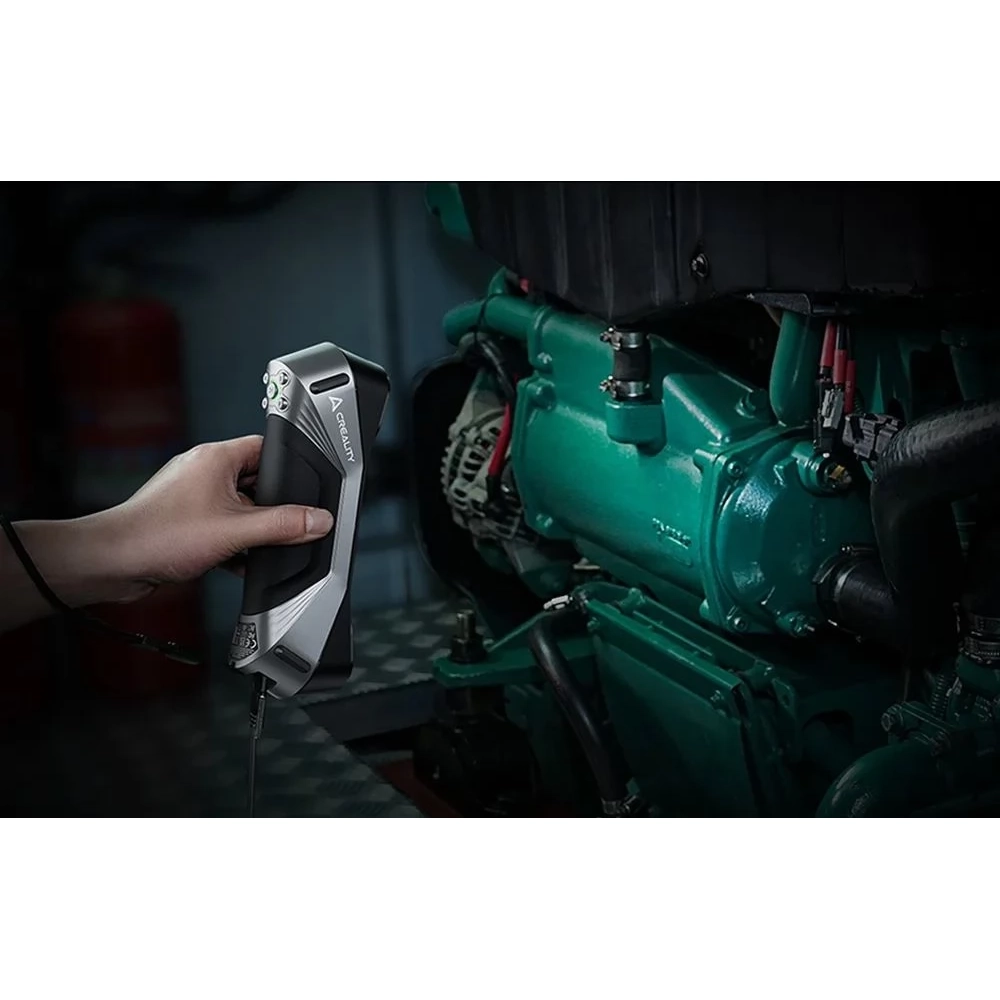

CR-Scan Raptor is a versatile scanner that can work in different conditions and with different types of objects. Its line scanning technology allows you to record objects from 5 x 5 x 5 mm to 2000 x 2000 x 2000 mm. With this wide range of sizes, the scanner is well suited for scanning small details as well as large items such as car parts or large architectural models. The device is also equipped with a color mapping function, which allows realistic reproduction of the texture and colors of objects.

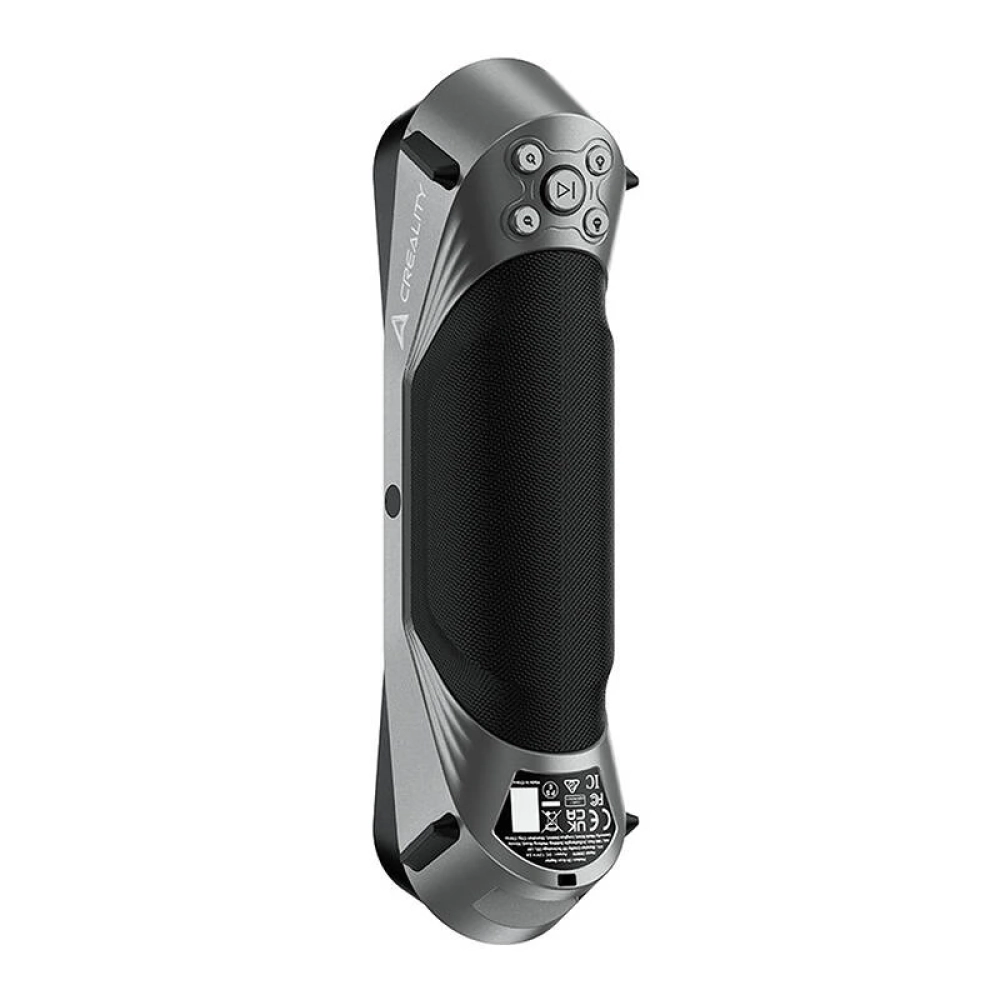

Thanks to an advanced temperature compensation algorithm and anti-vibration technology, the CR-Scan Raptor scanner provides stable and precise scanning, regardless of environmental conditions. This is especially important when scanning large objects or working in harsh environments where changing temperatures can affect the accuracy of measurements. In addition, the scanner has an intuitive user interface and touch-sensitive button management, making it easy to use even for those new to 3D scanning.

The CR-Scan Raptor can handle hard-to-scan surfaces such as black or metallic objects without the need for spraying. With a 24-bit RGB camera and 12 LEDs illuminating the object to be scanned, the device is able to capture the finest details and realistic colors, which is crucial for applications that require the exact reproduction of the object's appearance.

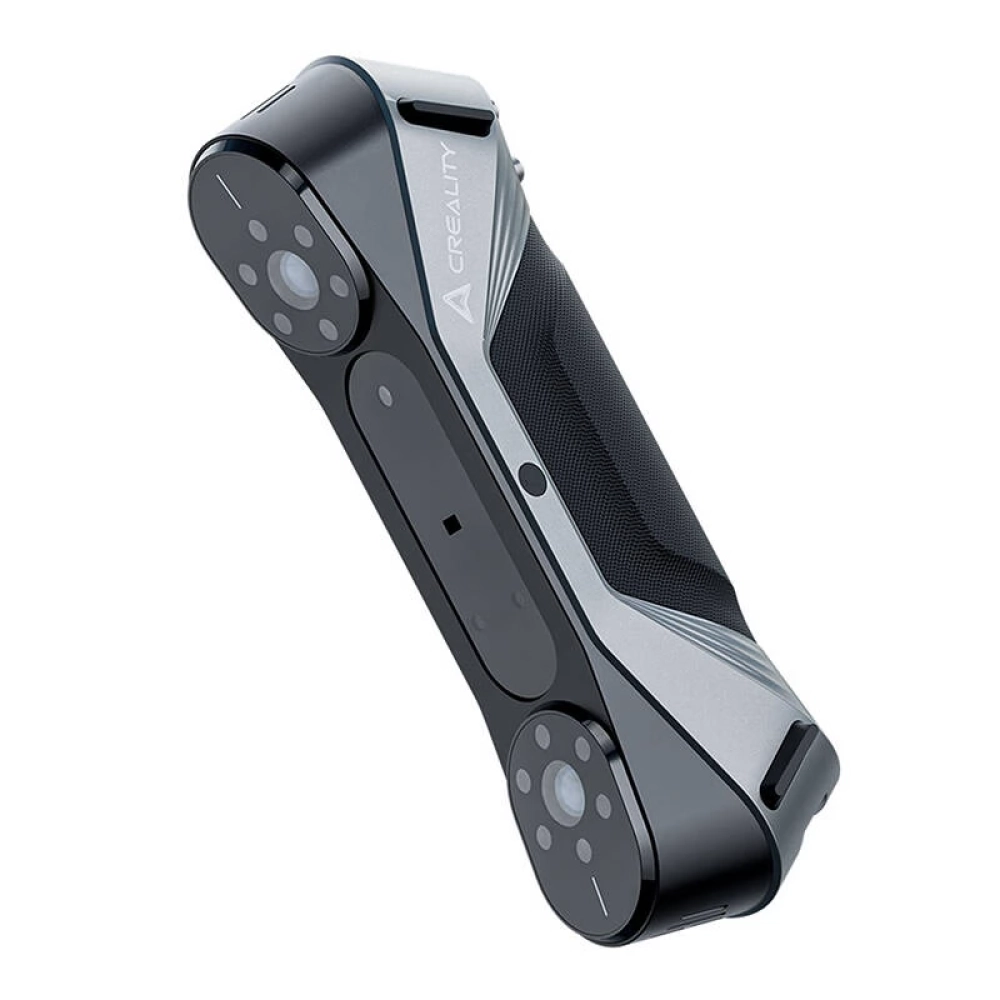

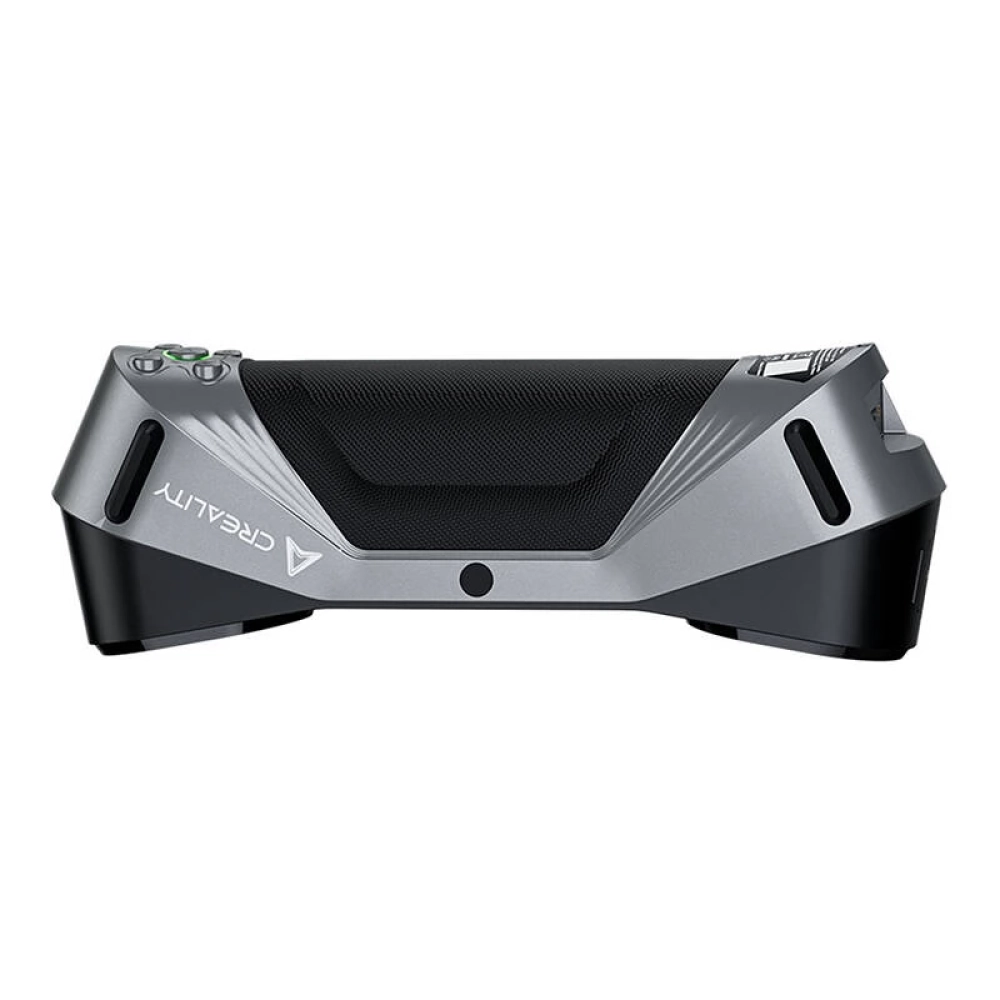

The CR-Scan Raptor offers a wide range of features and specifications that allow for versatile use. The operating range of the scanner is 150-1000 mm, and the minimum scanning volume is only 5 x 5 x 5 mm. The device is light (372 g) and compact, making it easy to carry and use in various places. With support for Windows and macOS and future compatibility with wireless scanning, the CR-Scan Raptor is ideal for office and field use.

Technical data
- Scanning mode: Blue light (7-line laser), NIR (infrared, binocular structured light).
- Accuracy: Blue light: up to 0.02 mm at 100 mm, NIR: up to 0.1 mm
- 3D resolution: Blue light: 0.02-2 mm, NIR: 0.1-2 mm
- Scanning speed: Blue light: Up to 60 fps, NIR: Up to 20 fps
- Minimum scan volume: Blue light: 5 mm × 5 mm × 5 mm, NIR: 150 mm × 150 mm × 150 mm
- Single recording range: Blue light: 270 mm × 170 mm at 300 mm, NIR: 930 mm × 580 mm at 1000 mm
- Operating distance: Blue light: 150 mm 400 mm, NIR: 170 mm 1000 mm
- Color mapping: Yes
- Alignment modes: Marker / geometry / texture
- 3D imaging camera resolution: 1920 × 1200
- Additional lighting: 12 white LEDs
- Improvement of marker recognition: 12 blue LEDs
- Laser safety: Class I (eye safe)
- IMU (Inertia Measurement Unit): Yes
- Output format: OBJ/STL/PLY
- Power supply: 12V 2A
- Data interface: Type C / USB 3.0
- Dimensions of the device: 215 mm x 50 mm x 74 mm
- Weight of the device: 372 g
- Wireless Scanning: Supported with future wireless scanning accessories
- Supported systems: Windows 10/11 (64-bit) and macOS
- Operating temperature range: between -10°C and 40°C
