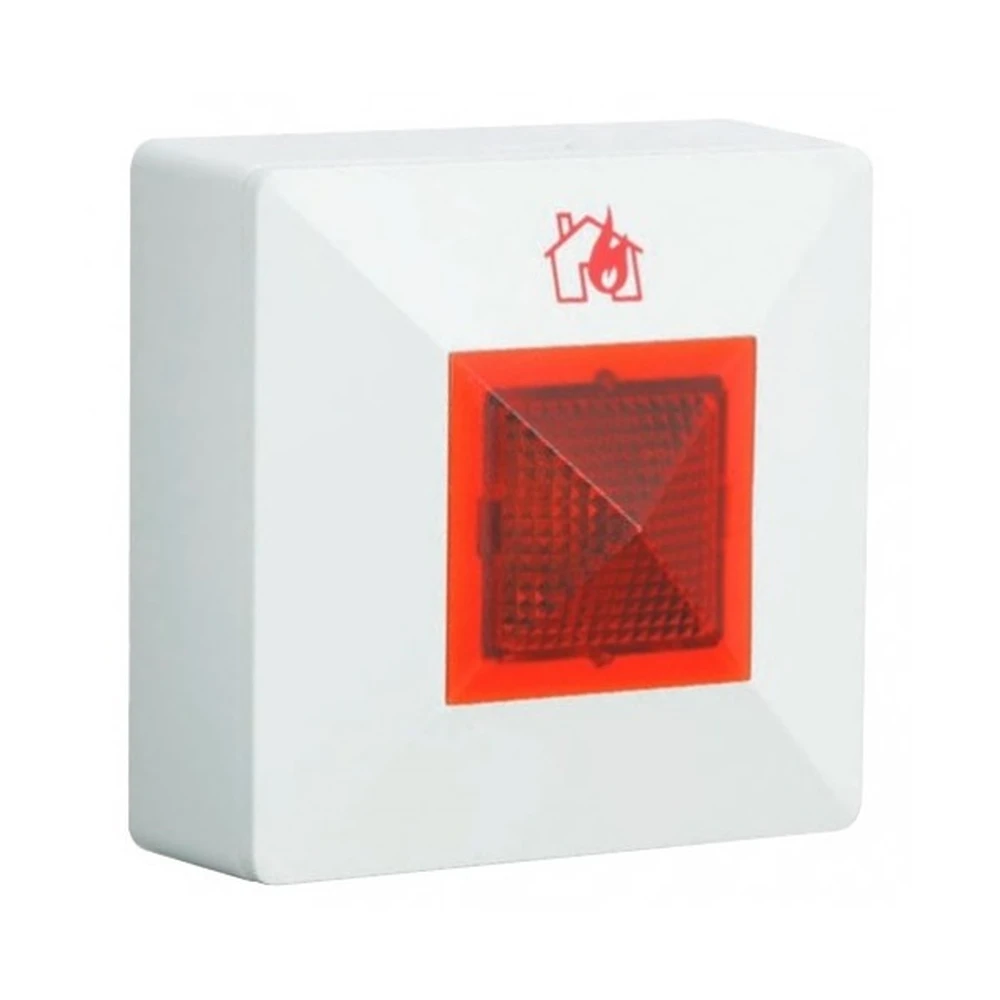

The Smart Addressable Loop Connected Remote Alarm (MRIAD) is designed to provide discrete remote control controlled by the Smart Addressable Control Panel while allowing multiple sensors to be monitored within a given area, minimizing wiring requirements.

MRIAD is compatible with Cooper's range of intelligent addressable fire extinguishing systems. The device is connected directly to the loop and is started by the system with the "soft address" when the system is started, and it is equipped with built-in short-circuit isolators.

When using the "site installer", the remote display connected to the intelligent addressable loop must be programmed as an address output (beep) and can be programmed using the comprehensive cause and effect tables as continuous, pulsed, global, panel, zone, address or double tap input, etc. The device is delivered with a back box and surface-mounted.

- Loop connected
- Soft recipient
- Built-in short-circuit isolator
- One address
- High visibility LED
- Can be programmed to monitor several remote sensors
- Fits a standard single rear box
- Aesthetic
- Quick and easy installation
- Wide viewing angle for better visibility
- Discreet design for any decoration
- Can be controlled remotely
- Can be switched on with causal programming
- Reduced costs
- Minimizes cabling
- Easy to maintain/service

Specifications
- Operating voltage: 24 V DC
- Quiescent current: 220 µA
- Alarm current: 6 mA
- Cable size: 0.5 mm² ~ 2.5 mm²
- Operating temperature: -10°C ~ +55°C
- Humidity: 0% ~ 95%
- Construction: ABS
- Color: white
- Lens: Red
- Size: 87mm x 87mm x 49mm
- Weight: 0.28 kg
- Ingress protection: IP30

Can be used with Cooper Intelligent addressable fire extinguishing systems.
