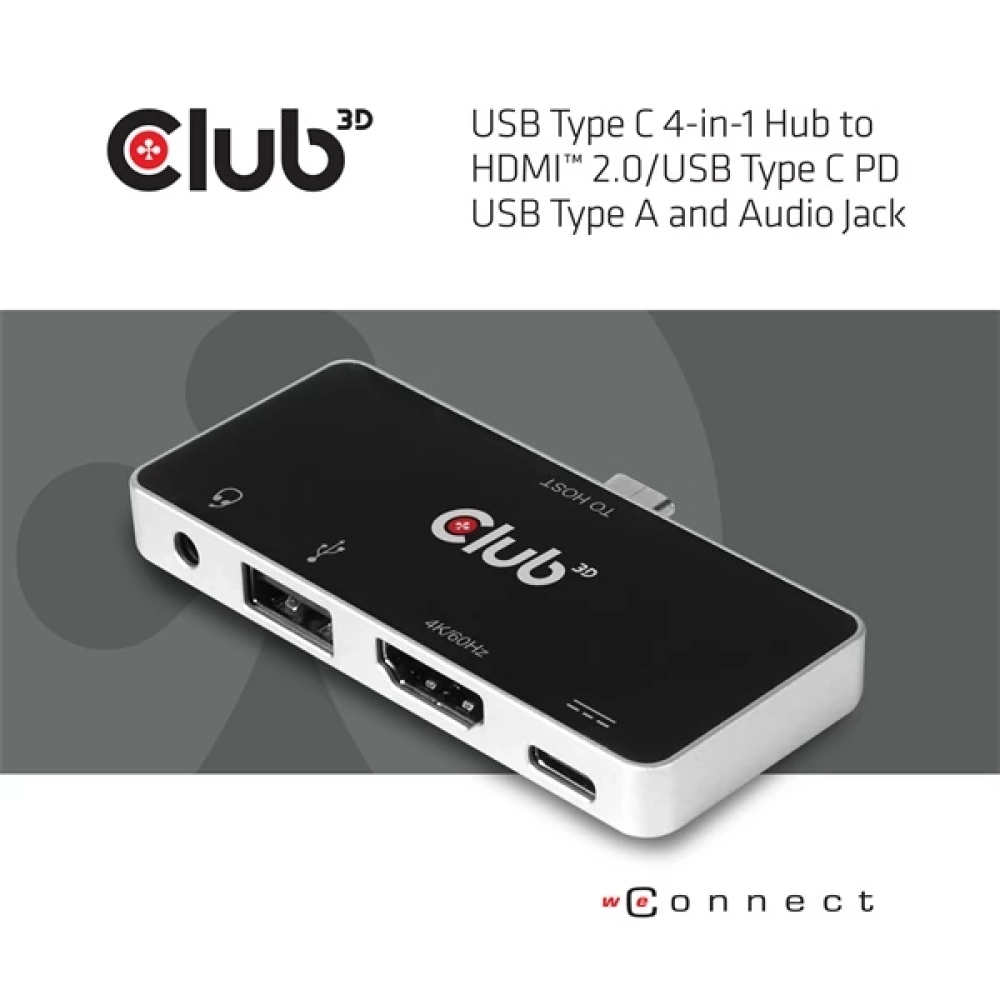

USB TYPE C 4-in-1 HUB HDMI ™ 4K60HZ USB TYPE C PD / USB TYPE A / AUDIO JACK
CSV-1591-Club 3D Hub is a 4 in 1 USB Type-C Hub Hub HDMI ™, USB Type-A 2.0, 3.5 mm Audio and USB Type-C PD charging, the design fits perfectly with all DP Alt devices. Use this Hub to enjoy a high-resolution video of the host on a big screen, enjoy fantastic music, transmit USB 2.0 data, and connect a USB Type-C PD adapter to fill your host.

This hub all uses USB Type-C and Thunderbolt ™ 3 that supports DP Alt mode. When Thunderbolt ™ 3 works in rich, this product transmits a DP signal.

Technical data
Product name: USB TYPE C 4-in-1 HUB HDMI ™ 4K60HZ USB TYPE C PD / USB TYPE A / AUDIO JACK
Product series: dock station
Article number: csv-1591
EAN Code: 8719214471453
UPC code: 841615101634
Features:
• Upstream:
1x USB Type-C male (connection to host) supports DP1.2 Alt mode up to 5.4 Gbps bandwidth, 4 lanes 21.6 Gbps
• Downstream:
1x HDMI ™ Mom
Support for HDMI ™ Max 4K/60Hz 4: 4: 4 8bit with 18Gbps bandwidth
Supports 6/8/10/12 bit depth output
Support for Output Pixel Format RGB4: 4: 4/YCBCR4: 4: 4/YCBCR4: 2: 2
Support HDCP 2.2 and HDCP1.4
Supports HDR
1x USB Type a 2.0, max. 480MBPS bandwidth
• Supports BC 1.2 Max 7.5 W (5V@1.5a) with refill
• 1x 3.5 mm combined sound*
Supports the 48K/44.1KHz sampling frequency
* Note: The audio can be transmitted via HDMI or 3.5 mm audio group. The following explanation illustrates the priority of the audio output when both HDMI and 3.5 mm Audi Group are connected.
• If you connect the source device to the product in front of the absorbing devices, the audio output is through the last connected port.
• If the dishwashing devices are connected before the source device is connected, the audio output is done through the 3.5 mm audi group
OS Support: All

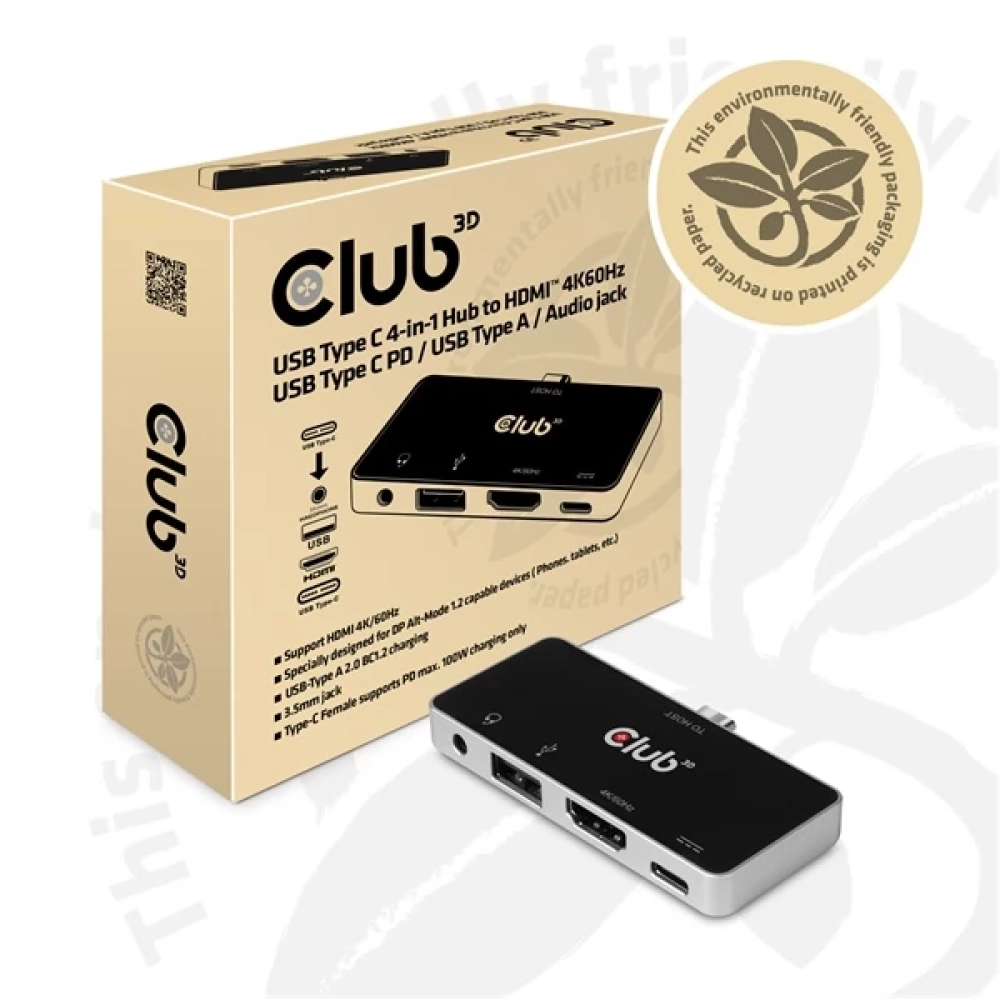

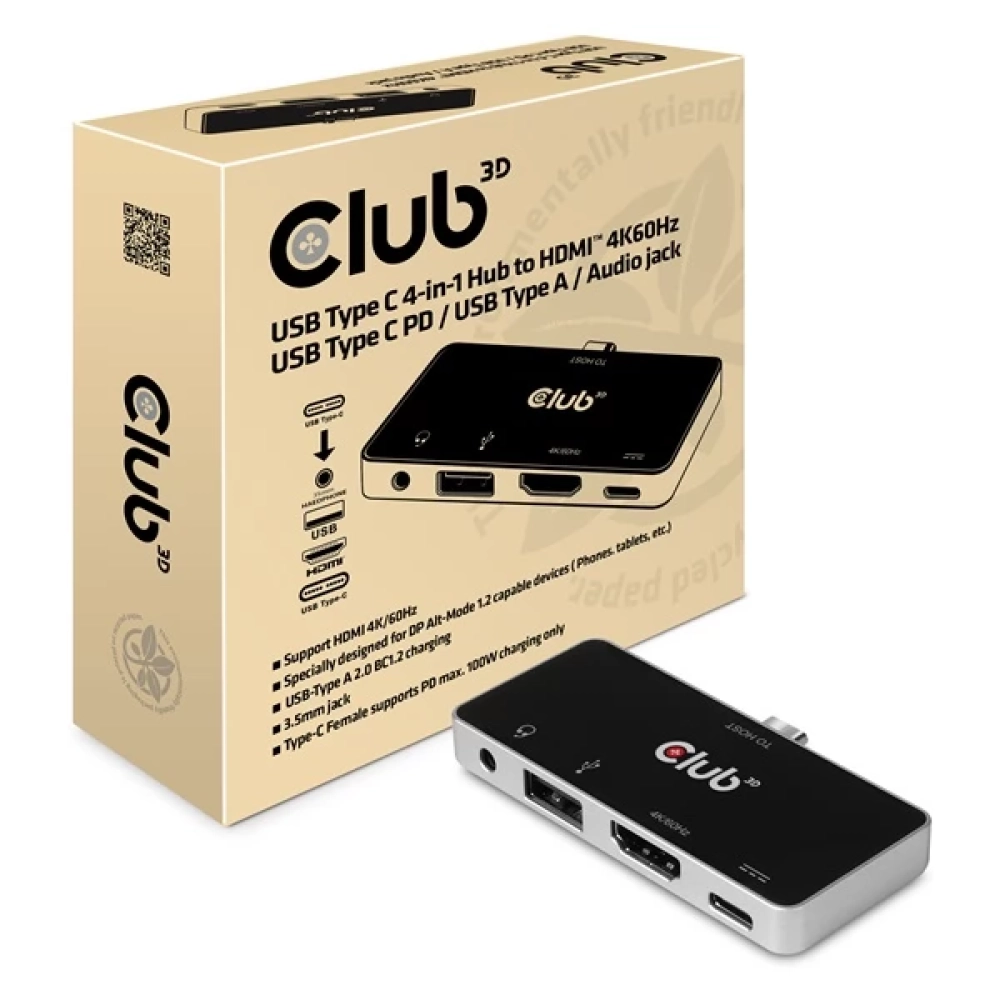

In the box:
• csv-1591, 4 in 1 hub
• Fast installation guide

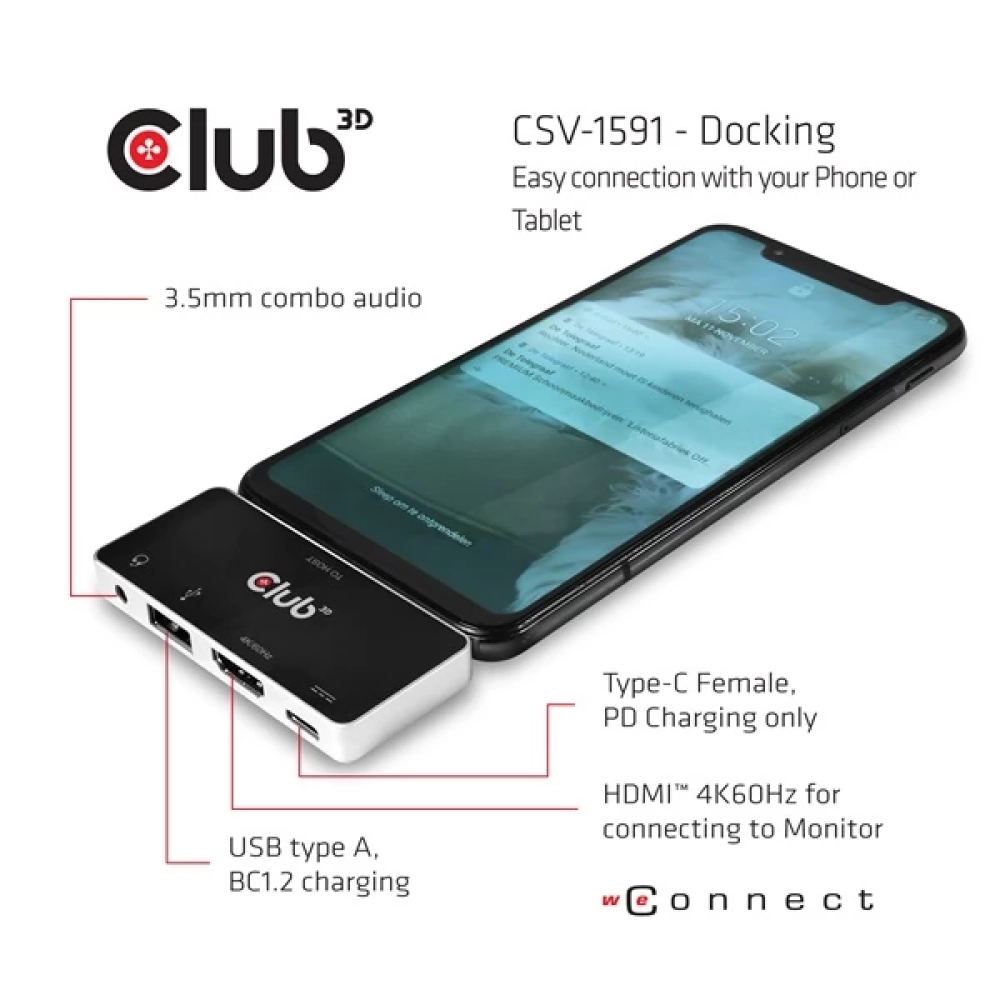

Available interfaces:
• Upstream:
- 1x USB Type C plug
- (Host connection)
• down:
- 1x HDMI ™ 4K60Hz connector to connect to the monitor
- 1x type USB, BC1.2 Charging
- 1x USB Type-C nut, only PD charge
- 1x, 3.5 mm combined sound
Other information:
• Box size: 10 x 10 x 3 cm
• Box size: 3.93 x 3.93 x 1.18 inches

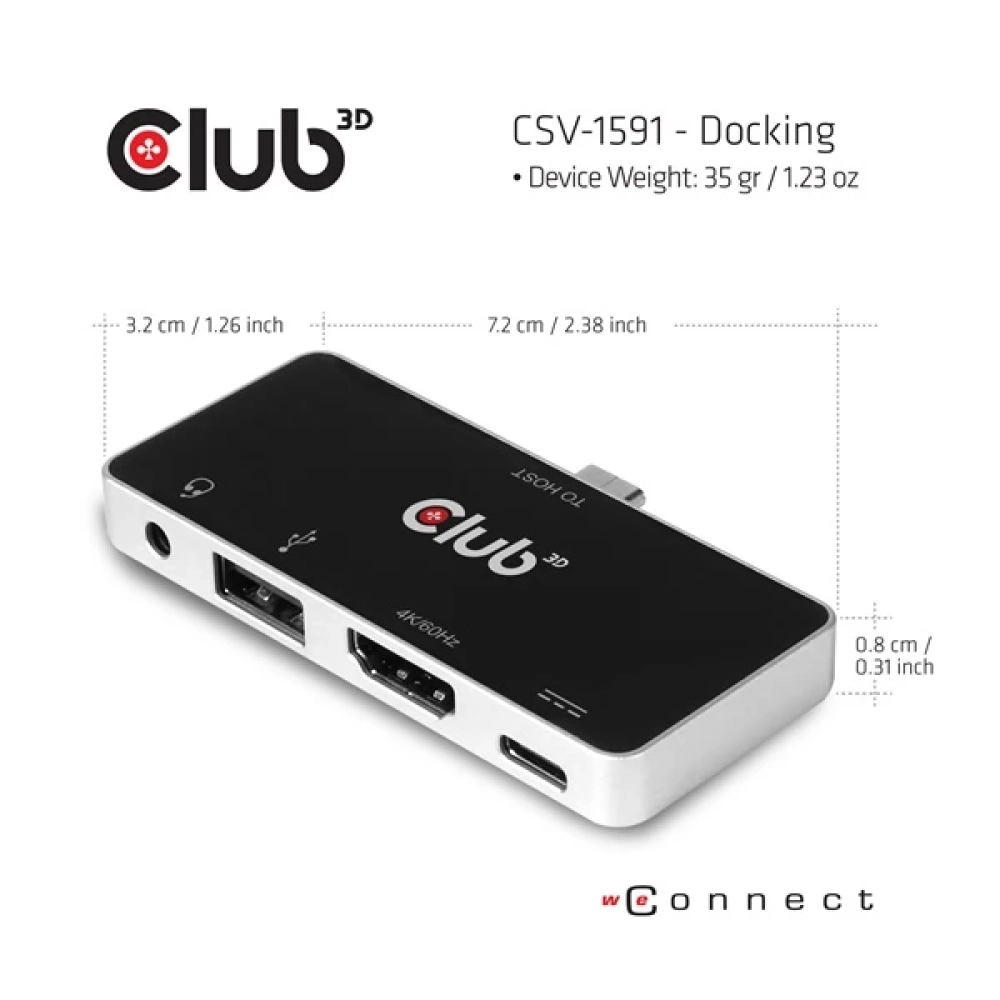

• Device size: 7.2 x 3.2 x 0.9 cm
• Device size: 2.83 x 1.26 x 0.9 x 0.35 inches
• Device Weight: 35 gr / 1.23 ounces
• LDPE bag weight: 5 gr / 0.17 ounces
• Box weight: 65 gr / 2.3 ounces
• Total weight: 105 gr / 3.7 ounces
• meets Rohs, FCC and CE EMI requirements
