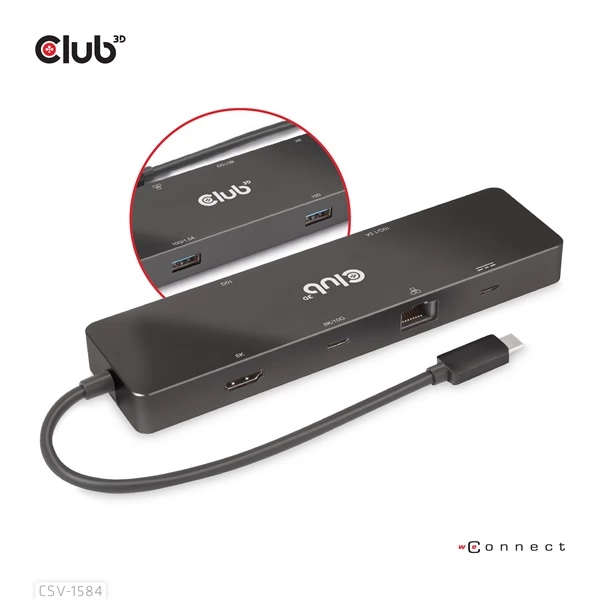

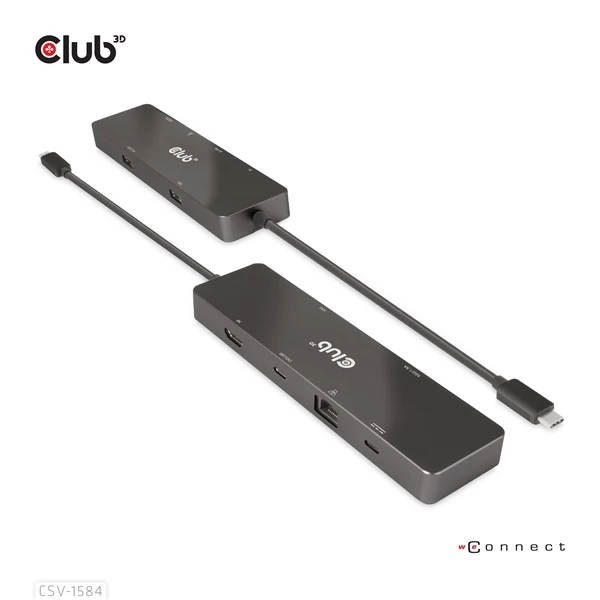

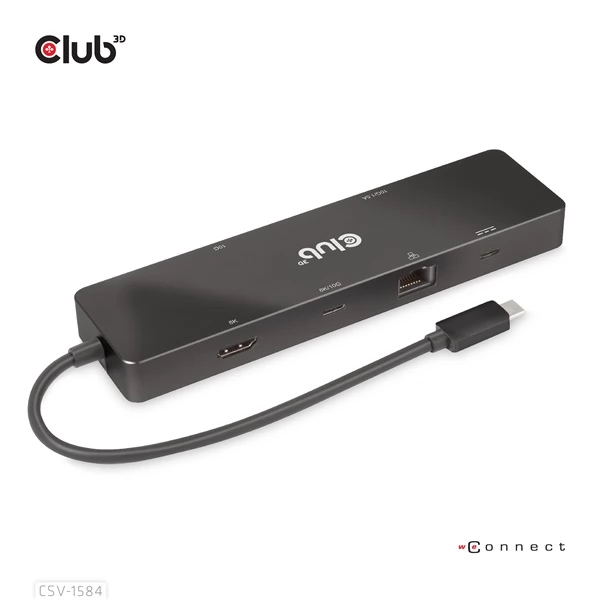

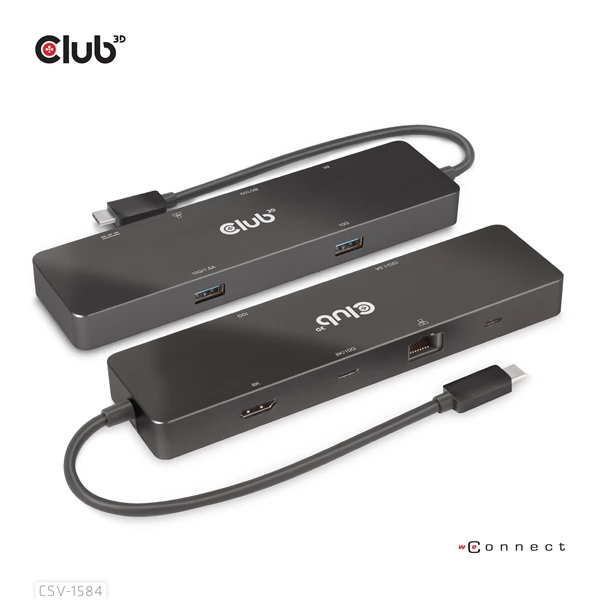

USB3.2 GEN2 TYPE-C, 6 in 1 Double Display Portable Dock with USB Type-C Video 4K60Hz

Club 3D CSV-1584 is a USB3.2 Gen2 Type-C, 6 in 1 HDMI ™ 8K30Hz/4K60Hz, 2xusb Type-A (10g), Ethernet RJ45 (1Gbps) and 2xusb Type-C, 1x Video4K60Hz) or 0. Watt, which offers an ideal solution for expanding the USB Type-C port or Thunderbolt host (PC/laptop/mobile phone, etc.), especially for machines with a single USB Type-C port. This uses HUB DP1.4 ALT-Supported IC, which allows the output of up to one 8K30Hz (DSC) or two different videos (2 times 4K60Hz), and the USB Type-C video supports the transfer of USB3.2 Gen2 data at up to 10 Gbps. 2 USB Type-A and USB Type-C video port allows you to connect 3 USB devices simultaneously. Gigabit Ethernet port allows for internet, and USB Type-C PD charging powder supports up to 100 W PD charges. Each USB Type-C supported with DP Alt mode is rich.

Technical data
Product name: USB3.2 Gen2 Type-C, 6 in 1 Double Display Portable Dock with USB Type-C Video 4K60Hz
Product series: dock station
Product code: CSV-1584
EAN Code: 8719214472818
UPC code: 841615103072

Features:

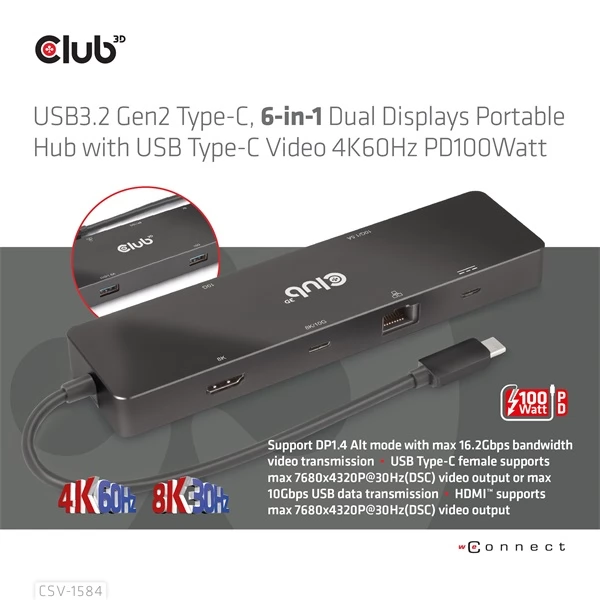

• Supports DP1.4 Alt mode with a maximum of 16.2 Gbps bandwidth video transmission
• The Type-C nut up to 7680x4320p@30Hz (DSC) supports a video output or a maximum of 10GBPS USB data transmission
• HDMI ™ up to 7680x4320p@30Hz (DSC) supports a video output
• Simultaneous support for Dual 4K/60Hz in MST mode on Windows
• Simultaneous support for Dual 4K/60Hz in SST mode on Mac OS
• Supports the Great Dynamic Range (HDR)
• One USB-A port (away from upstream) supports up
• 2 USB-A port supports a maximum of 10 Gbps data transfer
• Support Gigabit Ethernet, 10MBPS/100MBPS/1000MBPS
• Type-C PD charging powder supports the PD3.0 Fast Role Swap and a maximum of 100 W Power Supply

Applications:
• Made specifically for portable displays with USB Type-C interfaces

Supported resolutions:
• up to 8k30hz/4K60Hz depending on the source
Note: If the host supports DP1.4 Alt mode, the output can be up to 8k/30Hz; If the host only supports DP1.2 Alt mode, the output will only be supported up to 4k/30Hz. Output resolution, update frequency, video pixel format depends on the performance of your computer and monitor

OS Support:
• Windows 10 or higher, Mac 13.5.2

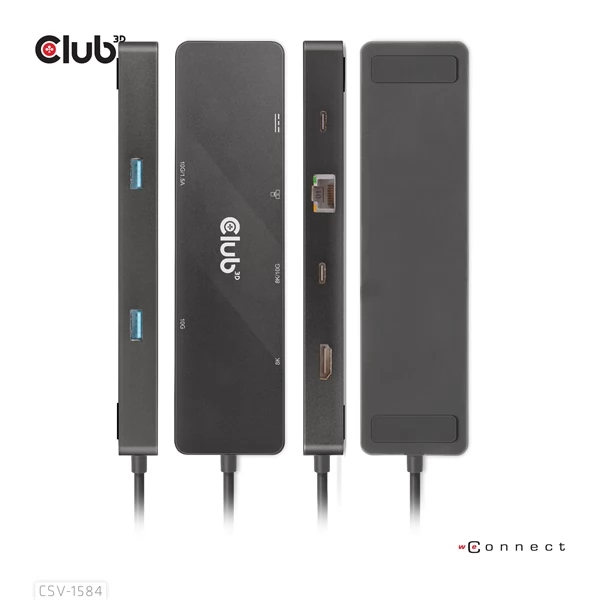

Interfaces available
Upstream:
• 1 pcs USB Type-C connector (host connector)
Down:
• 1x USB Type-C Video & Data
(8k30hz or 10g data)
• 1x HDMI ™ Video 8k30Hz

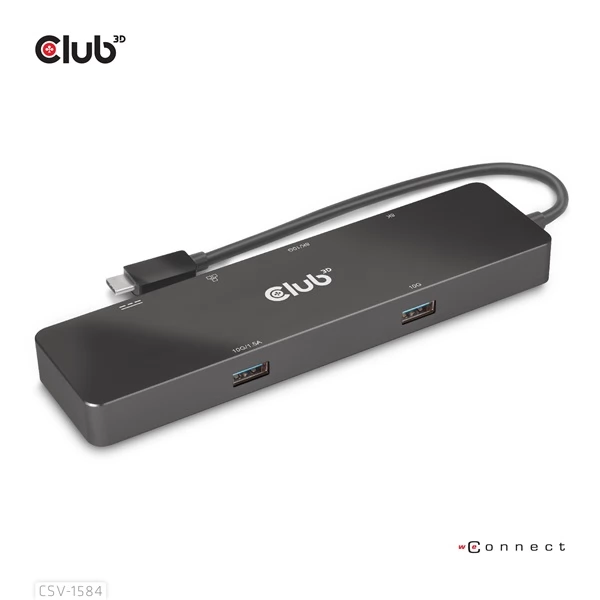

• 2x USB Type-A Data 10g
• 1x RJ45 (1 Gbps)
• 1x USB Type-C PD Charging (100 W)

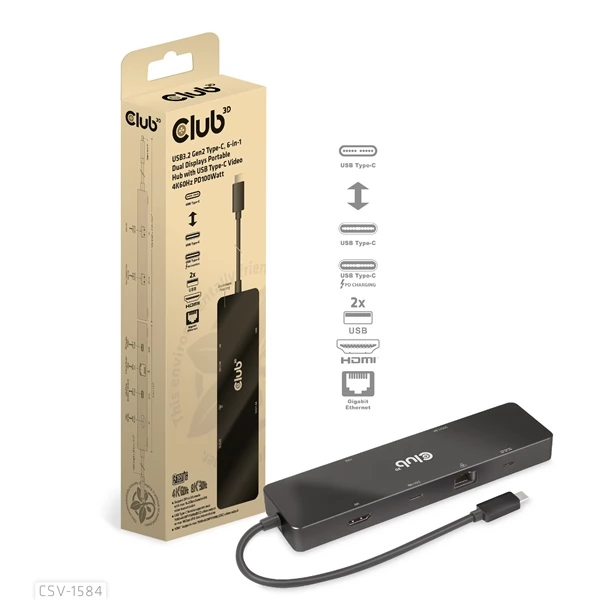

In the box:
• CSV-1584 MI USB3.2 GEN2 TYPE-C, 6 in 1 Hub HB HDMI ™ 8K30Hz/4K60Hz, 2xusb Type-A (10G), Ethernet RJ45 (1Gbps) and 2xusb Type-C, 1x Video4K60Hz or 0T1xpd3 and 0T1xpd3.
• QR code to download the quick installation guide (QIG)

Other information:
• box size 25 x 8 x 3.5 cm / 9.84 x 3.15 x 1.38 inches
• Size of the device: 16.5 x 4.35 x 1.6 cm / 6.5 x 1.72 x 0.63 inches
• Total length: ± 37 cm / 14.57 "
• Weight of the device: 144 gr / 5.08 ounces
• Box weight: 54 gr / 1.9 ounces
• Total weight: 198 gr / 6.98 ounces
• meets Rohs, FCC and CE EMI requirements

Warning: Safe use - product can only be used at heights above 2000 meters/6562 feet

Note: If the host supports DP1.4 Alt mode, the output can be up to 8k/30Hz; If the host only supports DP1.2 Alt mode, the output will only be supported up to 4k/30Hz. Output resolution, update frequency, video pixel format depends on the performance of your computer and monitor
• 1x USB Type-C Male Host Connection
- Supports DP1.4 Alt mode with a maximum of 16.2 Gbps bandwidth video transmission
- Max 10Gbps data transfer, USB3.2 GEN2
- compatible with lower versions such as DP1.2 Alt mode, USB3.0 and USB2.0
- Supports reversible insertion
• 1 x USB Type-C nut (video and data)
- Maximum 7680x4320p@30Hz (DSC) Video Output or Max 10Gbps USB Data Transfer Support
- Supports the Great Dynamic Range (HDR)
- Support for multiple color formats: RGB; YCBCR4: 4: 4; YCBCR4: 2: 2; YCBCR4: 2: 0 8/10/12 BPC;
- Support HDCP2.3 and 1.4
- Supports reversible insertion
- Supports short circuit (SCP), overcurrent protection (OCP)
- compatible with lower versions such as DP1.2 Alt mode, USB3.0 and USB2.0
• 1x HDMI ™ female video output
- Support for up to 7680x4320p @ 30Hz (DSC)
- Supports the Great Dynamic Range (HDR)
- Support for multiple color formats: RGB; YCBCR4: 4: 4; YCBCR4: 2: 2; YCBCR4: 2: 0 8/10/12 BPC
- Support HDCP2.3 and 1.4
- Simultaneous Support for Dual 4K/60Hz in MST mode on Windows
- Simultaneous Support for Dual 4K/60Hz in SST mode on Mac OS

Note:
1) the above resolution combination only for information, the actual video output
