USB GEN2 TYPE-C-HDMI 8K60HZ or 4K120HZ HDR10+ DSC1.2 with Power Delivery 3.0 Active M/F Adapter

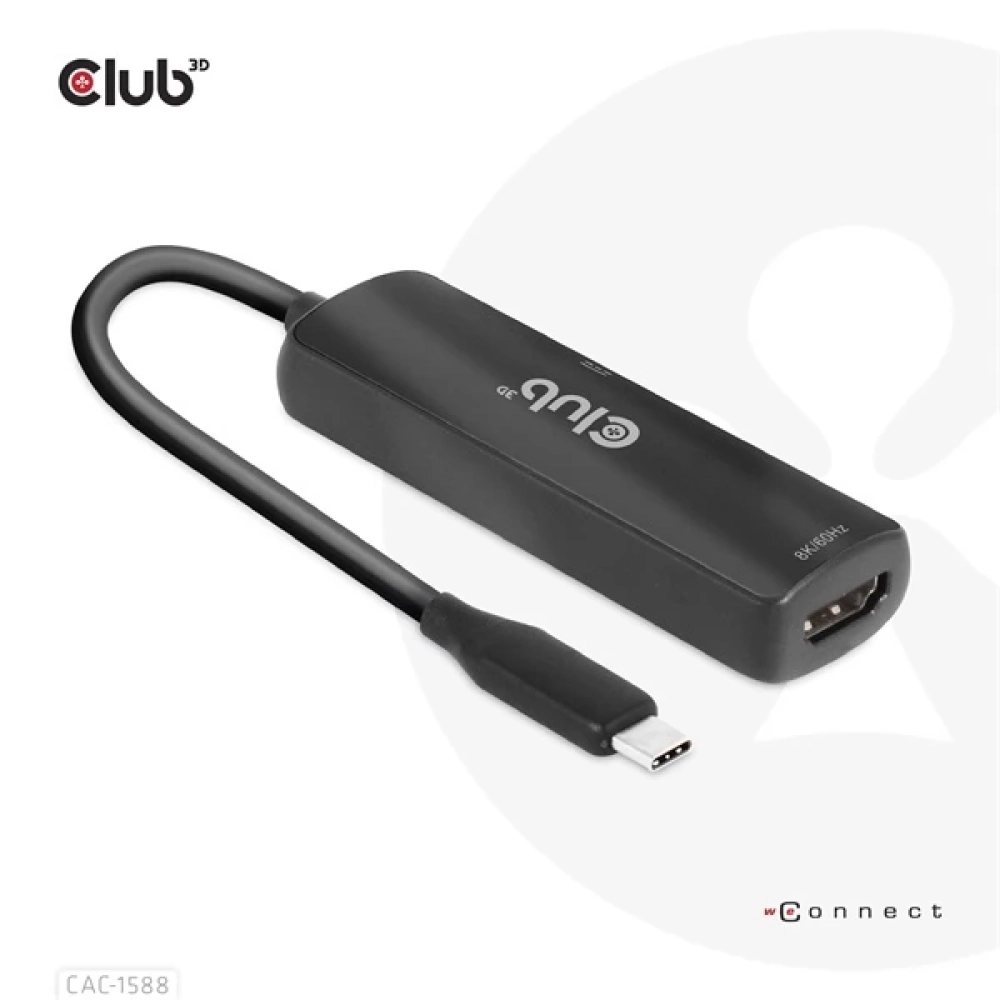

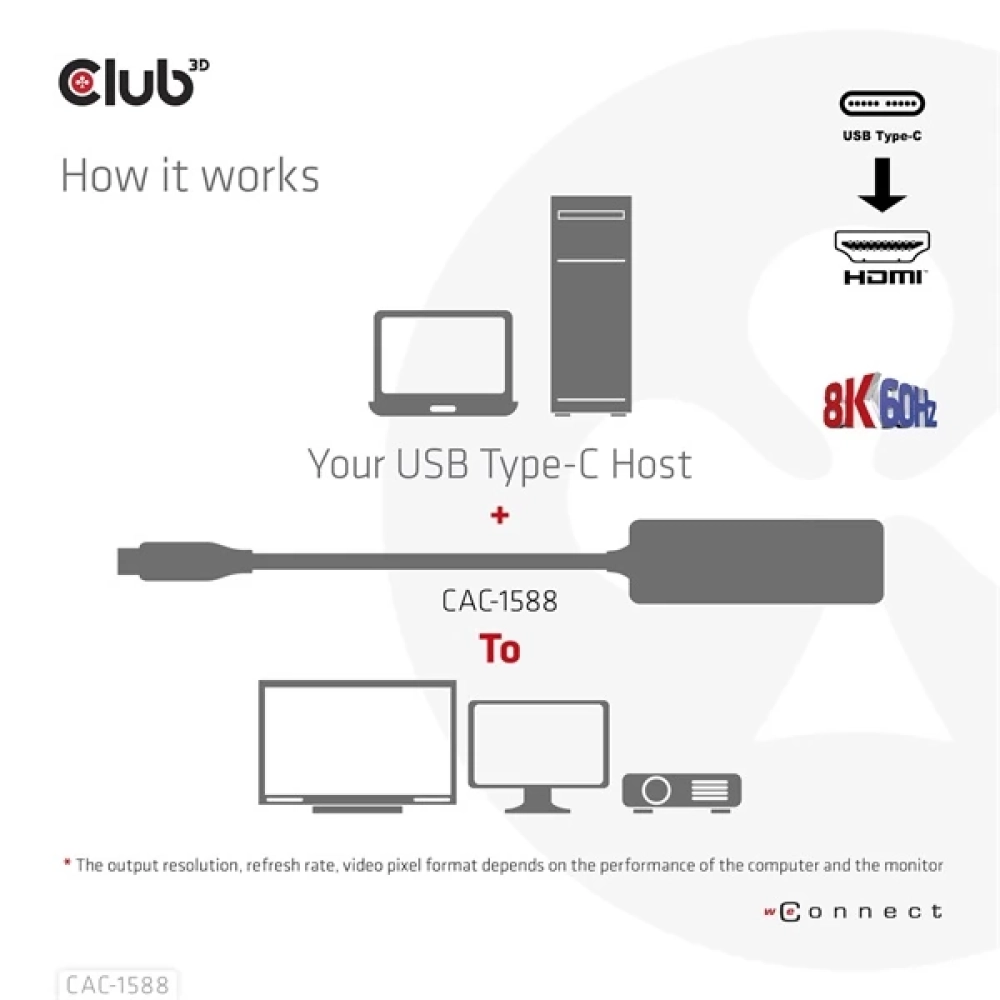

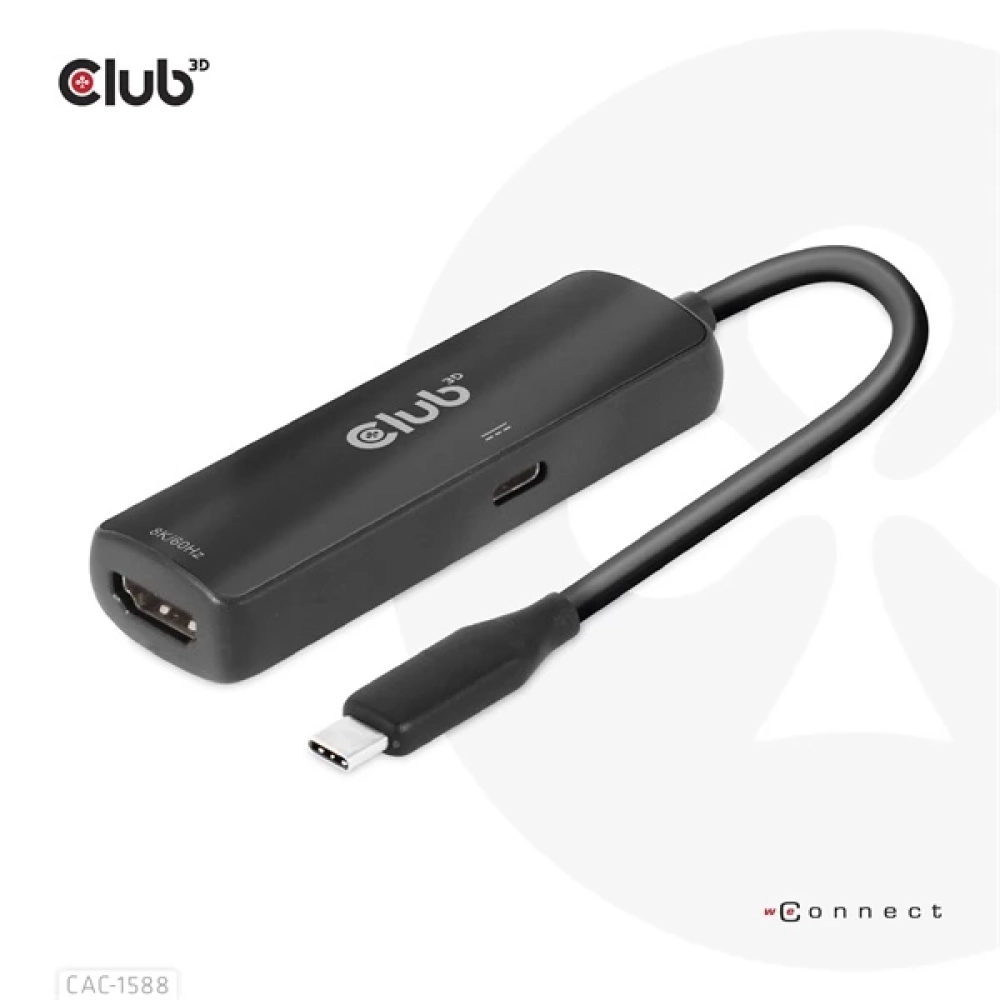

Club 3D CAC-1588 is a USB Type-C-HDMI ™ (8K60Hz or 4K120Hz) adapter with PD charging. The HDMI ™ port allows you to connect HDMI ™ Monitor to watch videos on a large screen, and the USB-C PD port supports PD3.0 with a maximum of 100 W PD filling. All USB Type-C and Thunderbolt ™ are rich in DP1.4 Alt mode.
With DP1.4 Alt Mode DSC video compression technology, this adapter is able to convert DP1.4 Alt Mode video signals to HDMI ™ format, supporting up to 8K60Hz (7680 x 4320) ** Video resolution and creating lifelike colors and movements using HDR10+. The adapter is bus power, so there is no need for external power!

Technical data
Product Name:
USB GEN2 TYPE-C-HDMI ™ 8K60HZ or 4K120HZ HDR10+ DSC1.2 with Power Delivery 3.0 Active M/F Adapter
Product series: Adapter
Product code: CAC-1588
EAN Code: 8719214472610
UPC code: 841615102846

Features:
• Compatible with VESA DisplayPort ™ V1.4 specification
• Compatible with HDMI ™ max. 8K60Hz or 4K120Hz specification
• Support HDCP1.4 and HDCP2.3 specification
• Supports DSC V1.2A and backward compatible with previous version
• Support max. resolution/update frequency up to 8k/60Hz or 4K120Hz
• Support for Dynamic HDR10+
• Supports 8/10/12 bit -depth output
• Support for RGB/YCBCR4: 4: 4/YCBCR4: 2: 2/YCBCR4: 2: 0 Pixel format

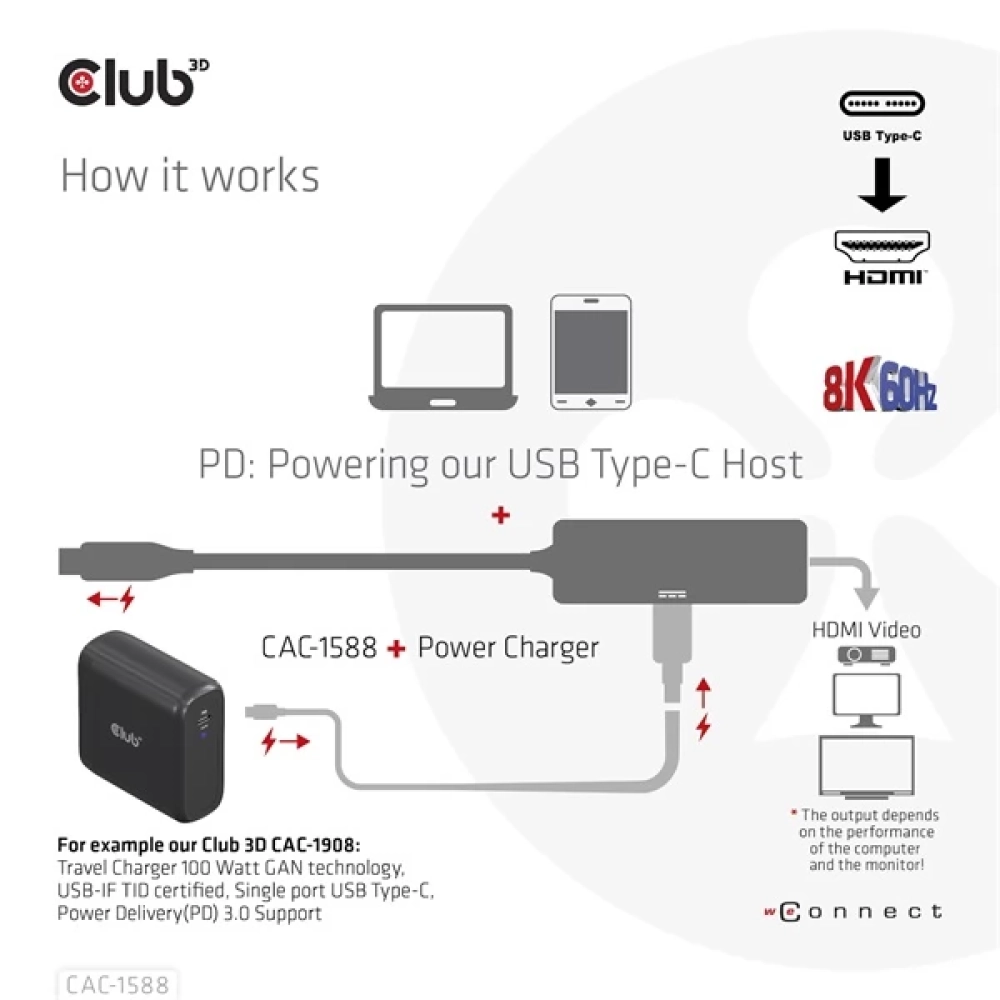

• Support max. 100 Watt PD charging
• Supports PD3.0 quick role exchange, the connected device does not get off when pulling the PD adapter

Supported resolutions:
• Support max. resolution/timing up to 8k60hz or 4K120Hz

This product is designed specifically for use with DSC 1.2 graphics processing units (GPU) through USB Type-C connection: At the time of printing, these supported GPUs
Quadro ™: RTX8000, RTX6000, RTX5000, RTX4000, RTX3000 Mobile
NVIDIA® Turing ™: Titan RTX, RTX 2080, RTX 2070, RTX 2060
Intel ™ Eleven Based Gen, Icerake, Iris Plus Graphics, UHD Graphics
Please make sure you use one of the above-mentioned graphics technologies to achieve Club 3D CAC-1588 excellent functionality.
This adapter will work with lower-specific GPUs, make sure that power will decrease due to the specifications of the given GPU!
Functionality also depends on the HDMI ™ m/m cable used. In combination with the CAC-1588 adapter, we advise you to use 28AWG or higher quality HDMI ™ plug/plug cable, such as Club 3D CAC-1370, CAC-1371 and/or CAC-1372 max. Up to 2 meters. !

OS Support:
• Windows
• Mac os

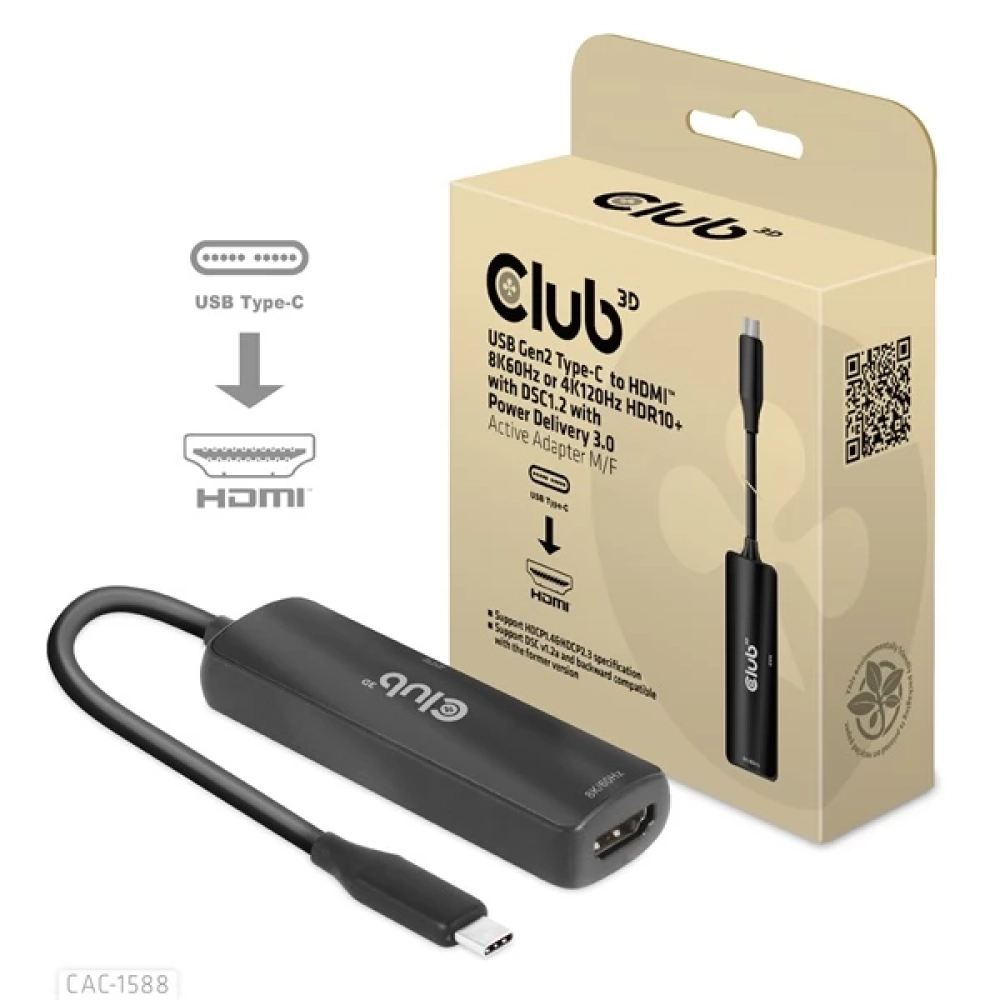

In the box:
• CAC-1588 USB GEN2 TYPE-C HDMI ™ 8K60HZ or 4K120HZ HDR10+ DSC1.2 with Power Delivery 3.0 Active M/F Adapter

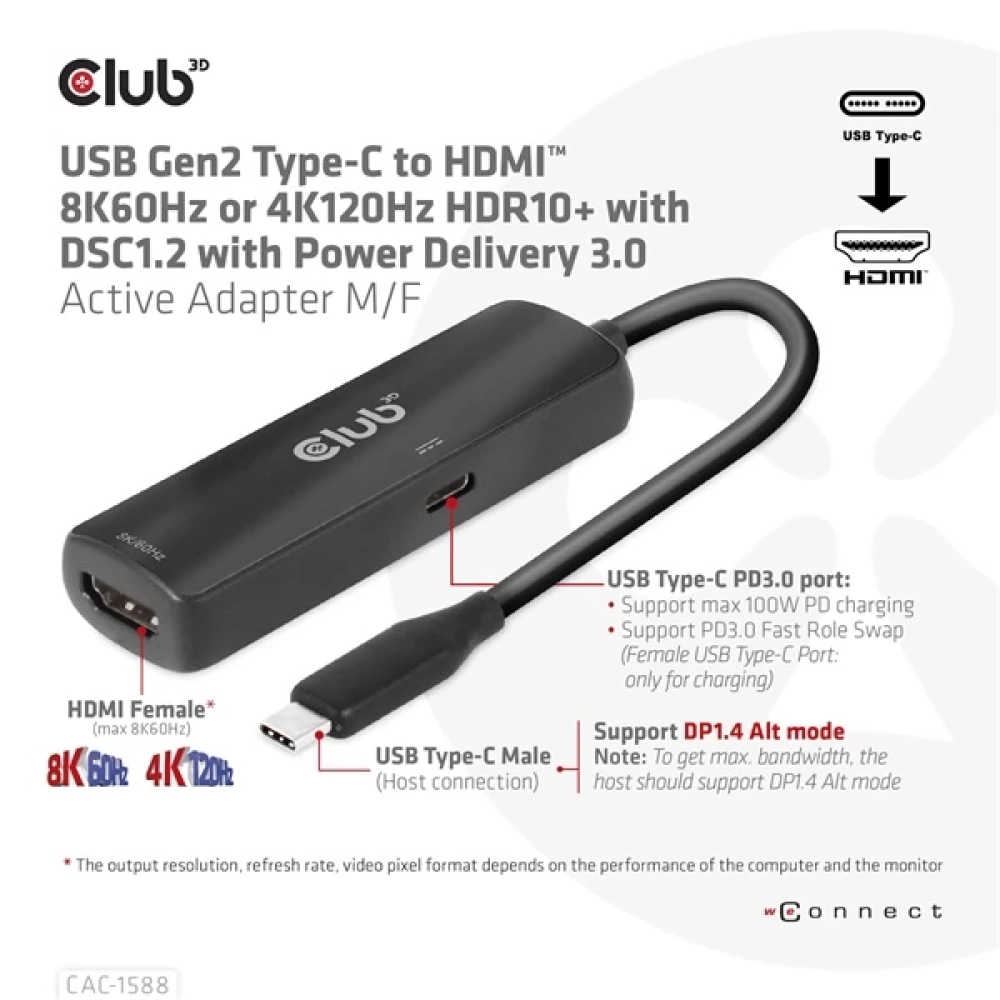

Interfaces available
Input:
• USB GEN2 TYPE C Plug
Output:
• 1x HDMI ™ (female)
• USB Type-C PD3.0 port

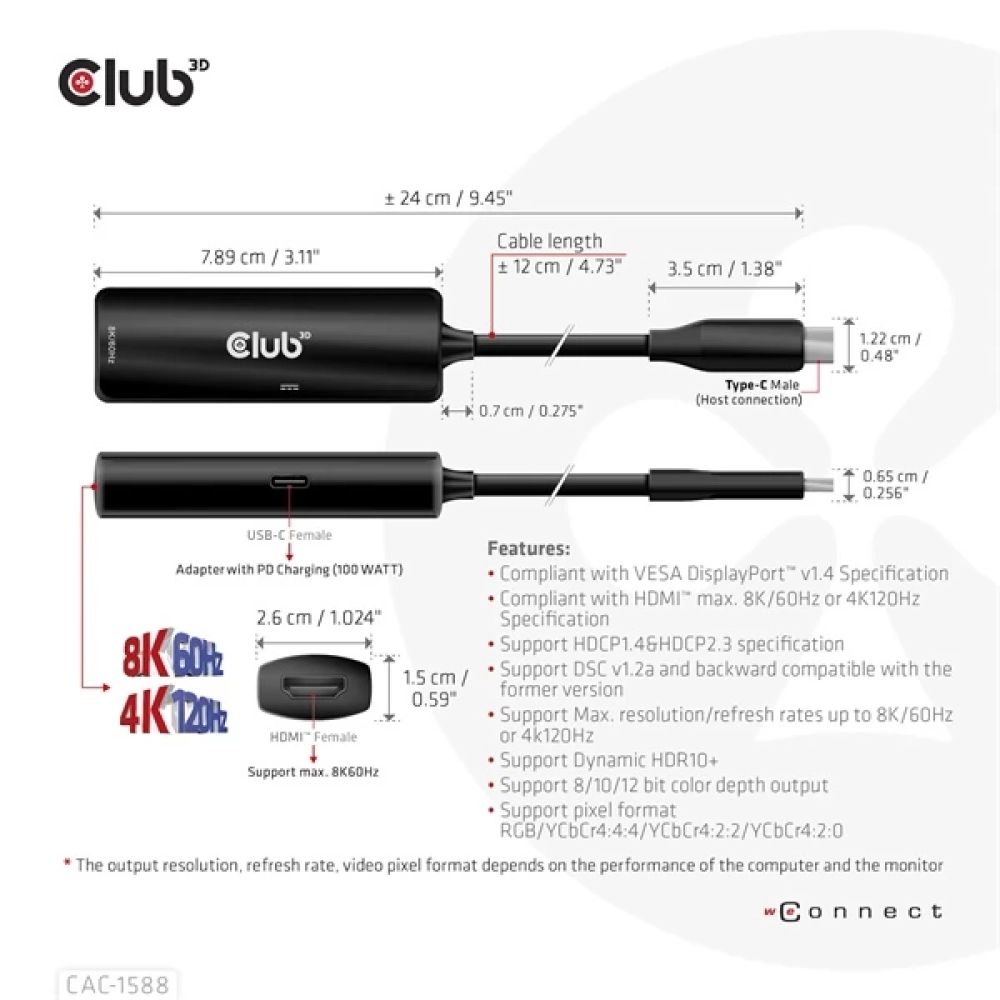

Other information:
• Box size: 10 x 10 x 3.5 cm / 3.94 x 3.94 x 1.38 inches
• Size of the device: 8.5 x 2.5 x 1.4 cm / 3.35 x 0.98 x 0.55 "
• Cable length approx: 17 cm / 6.69 "
• Total length approx. 25 cm / 9.84 "
• Connector dimensions:
- Type C USB father 2.9 x 1.2 x 0.7 cm / 1.15 x 0.5 x 0.28 "
• Weight of the device: 40 gr
• Box weight: 22 gr / 0.78 ounces
• LDPE bag weight: 5 gr / 0.18 oz
• Total weight: 67 gr / 2.36 ounces
• meets Rohs, FCC and CE EMI requirements

Note:
- Please update your TV firmware to the version that supports these resolutions/update frequency!
- Please update the graphics drivers on your computer and make sure DSC1.2 supports your devices to support these resolutions/refreshments!
