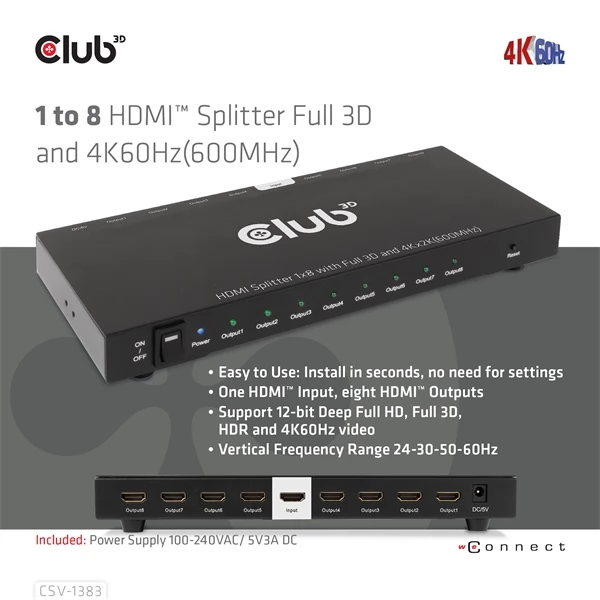

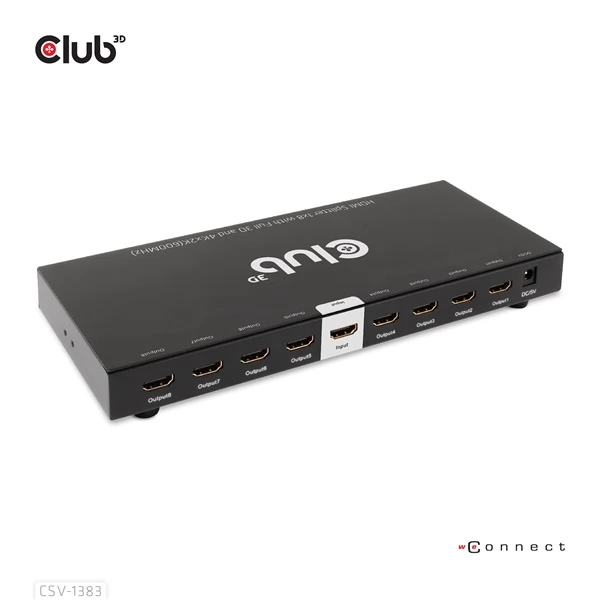

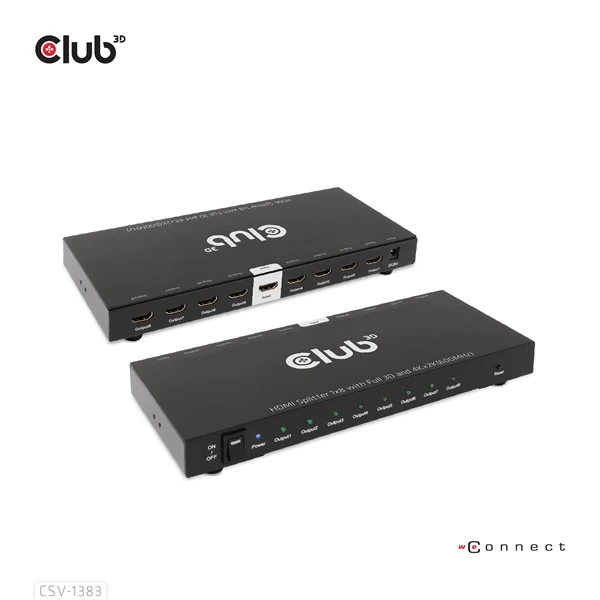

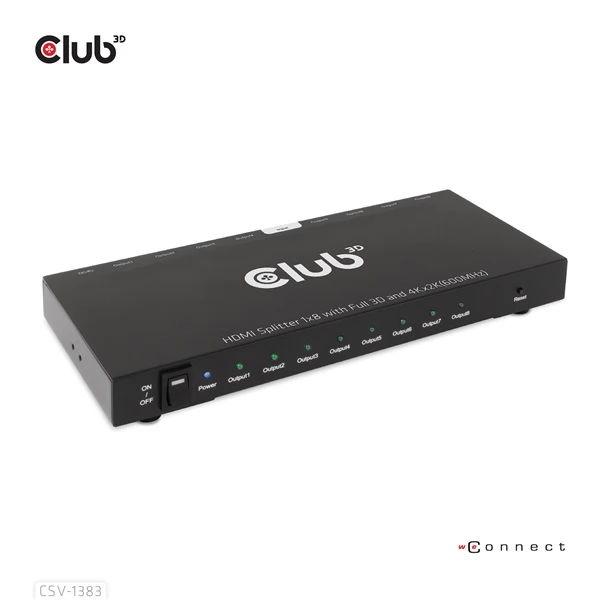

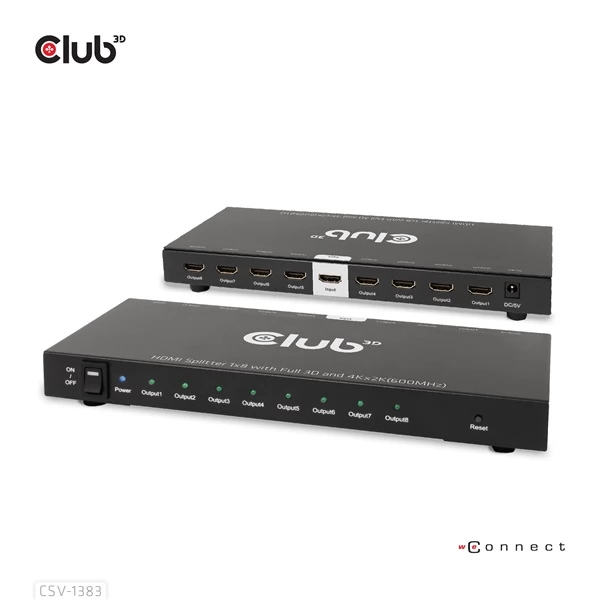

The Club 3D CSV-1383 is a high-performance and small 1 to 8 HDMI ™ Ultra High Definition Splitter for hot and iron. The input of the HDMI ™ signal is divided into eight identical outputs at a time. Provides high quality audio and video signal via HDMI ™ cables up to 4K@60Hz, and can receive and forward up to 6Gbps/600MHz.

This is a high-performance and small HDMI ™ Splitter metal cover, with an external power supply 100-240VAC / 5V-3A DC, maximum consumption of 11.3 watts. Ideal auxiliary home and work.

Features:
• Easy to use: installed in seconds, no setting is required
• an HDMI ™ input, eight HDMI ™ output
• Supports 12-bit Deep Full HD, Full 3D, HDR and 4K60HZ video
• vertical frequency range 24-30-50-60 Hz
• Resolution HDTV Interlace (50 & 60Hz) 480i, 576i, 1080i Progressive (50 & 60Hz) up to 4k@60Hz
• Supported compressed audio
• HDCP 2.2 Support
• Overload protection: The power supply is automatically interrupted if the voltage of the connected power supply exceeds 5.5V (Note: The control circuit can be damaged if the voltage is above 30V, so avoid connecting the power supplies above 30V)
• OS Support: Windows 10/11
• Warning Safe Use - The product is only used under 2000 meters/6562 feet
OS Support: Windows 10/11

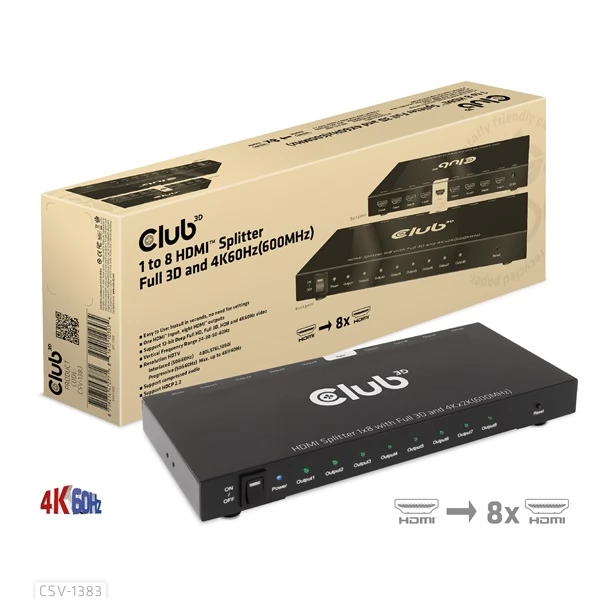

In the box:
• Club 3D csv-1383 1 to 8 HDMI ™ Splitter
• 100-240VAC/5V3A DC Power Supply (Please enter the plug type when ordering)
• QR code to download the quick installation guide (QIG)

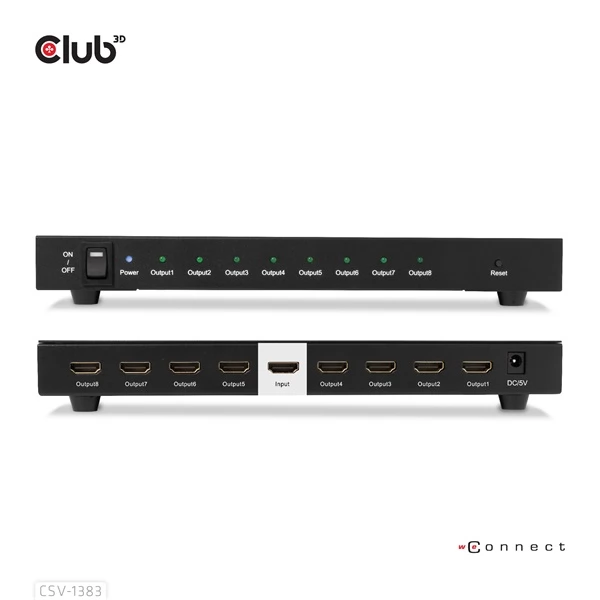

Available interfaces:
Input:
• 1x HDMI ™ female
Output:
• 8x HDMI ™ female

Other information:
• Box size: 35 x 13 x 5.5 cm
• Switch size: 25.8 x 11.35 x 3.5 cm
• drum weight: 137 g
• Product Weight: 770 g
• Power Supply Weight: 127 g (depending on the type of power supply)
• Total weight: 1034 g (depending on the type of power supply)

Complies with Rohs, FCC and CE EMI regulations.
Comment:
- Please update your TV firmware to support the resolutions/update speeds shown!
- Please update the graphics drivers on your computer and make sure your devices support DSC 1.2 to support these resolutions/update speeds!

Use one of our extension/adapter cable to connect to the devices: If you need help to select the right cable, visit our website www.club-3d.com or write to us for support@club-3d.com and we will be happy to help you.
