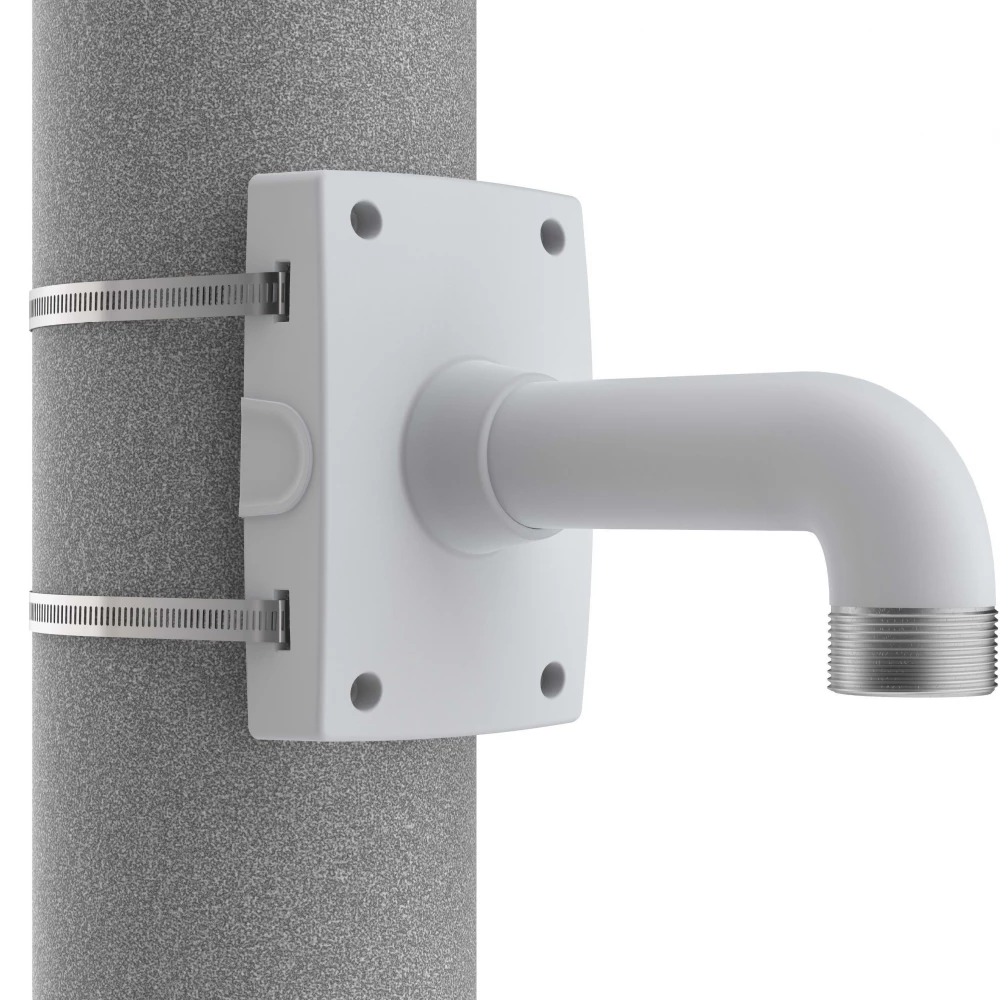

AXIS T91B67 Pole Mount

Column holder for fixed dome cameras

- Robust and secure pole installation
- Suitable for indoor and outdoor use
- Impact resistant to prevent vandalism
- Cable sealing to prevent insect infestation
- Supports Axis suspension kits with 1.5" NPS thread

The outdoor AXIS T91B67 pole assembly has a 1.5" NPS thread for Axis mounting kits for a wide range of Axis fixed dome and panoramic cameras, and its impact-resistant and outdoor-colored material makes the mount suitable for both indoor and outdoor environments.

AXIS T91B67 can also be used for columns and beams with a diameter of 65mm ~ 165mm. Includes 3/4" conduit for shielded cable runs and an enclosed backrest with cable screws to protect against insect infestation.

The pole attachment is tightened with two marine grade (SS316L) stainless steel straps with a TX30 screw face for easy and secure installation.

Specifications
- Supported products: Axis fixed dome cameras are compatible with Axis pendant kits with 1.5" NPS thread
- Column diameter: 65 mm ~ 165 mm
- Maximum load: 15 kg
- Cable routing: Back: Cable opening, Sides: 3/4" cable entrance
- Cover: NEMA 4X and IK10 class powder-coated aluminum holder
- Color: white, NCS S 1002-B
- Interface: 1.5" NPS
- Sustainability: PVC-free
- Environment: indoor/outdoor
- Size: 252 x 134 x 194 mm
- Weight: 1.2 kg
