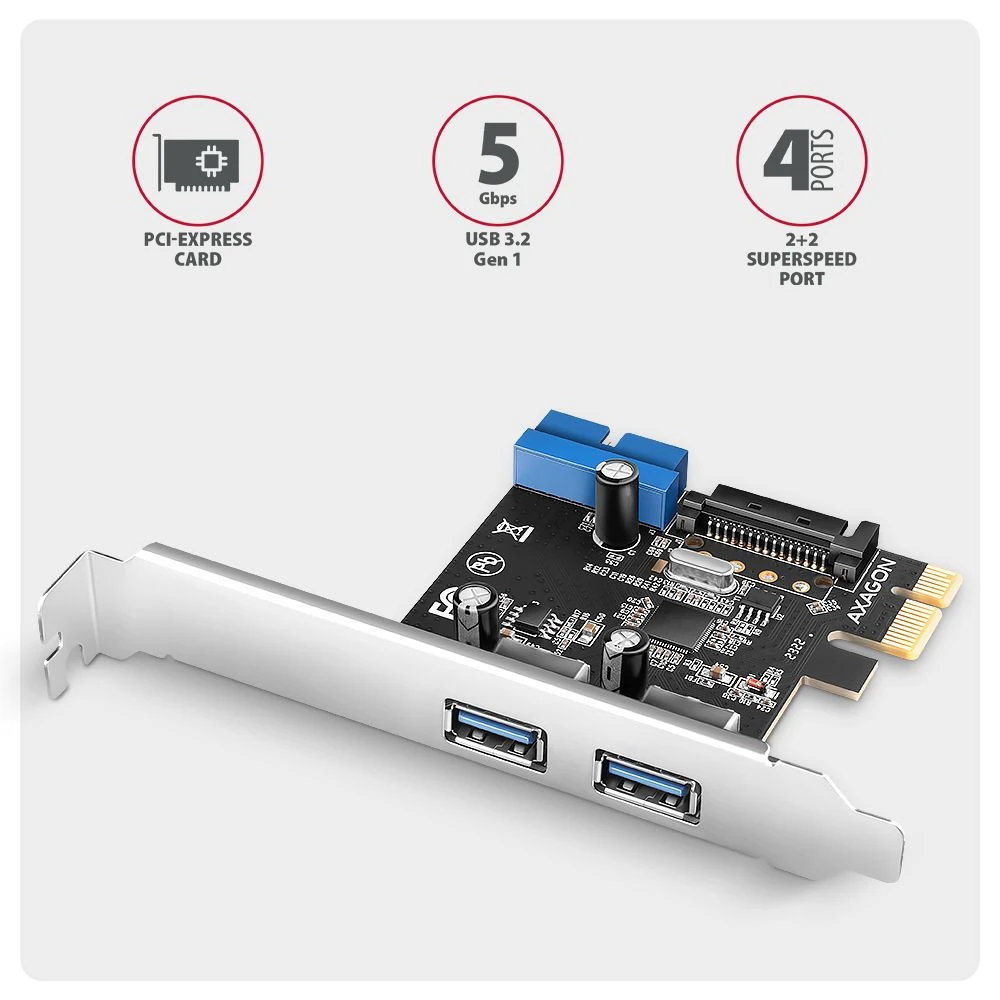

The AXAGON PCEU-232RS PCI-Express card completes the desktop computer with four USB 5Gbps ports. The card is designed for fast data transfer of up to 5 Gb/s.

There are two USB-A ports on the back. Two different USB devices, such as printers, keyboards, card readers, flash drives, external HDDs, etc. can be connected. Two more ports (in the form of an internal USB 5Gbps 19-pin connector) are integrated on the board. This allows you to connect an internal USB reader or the front USB ports on your computer case.

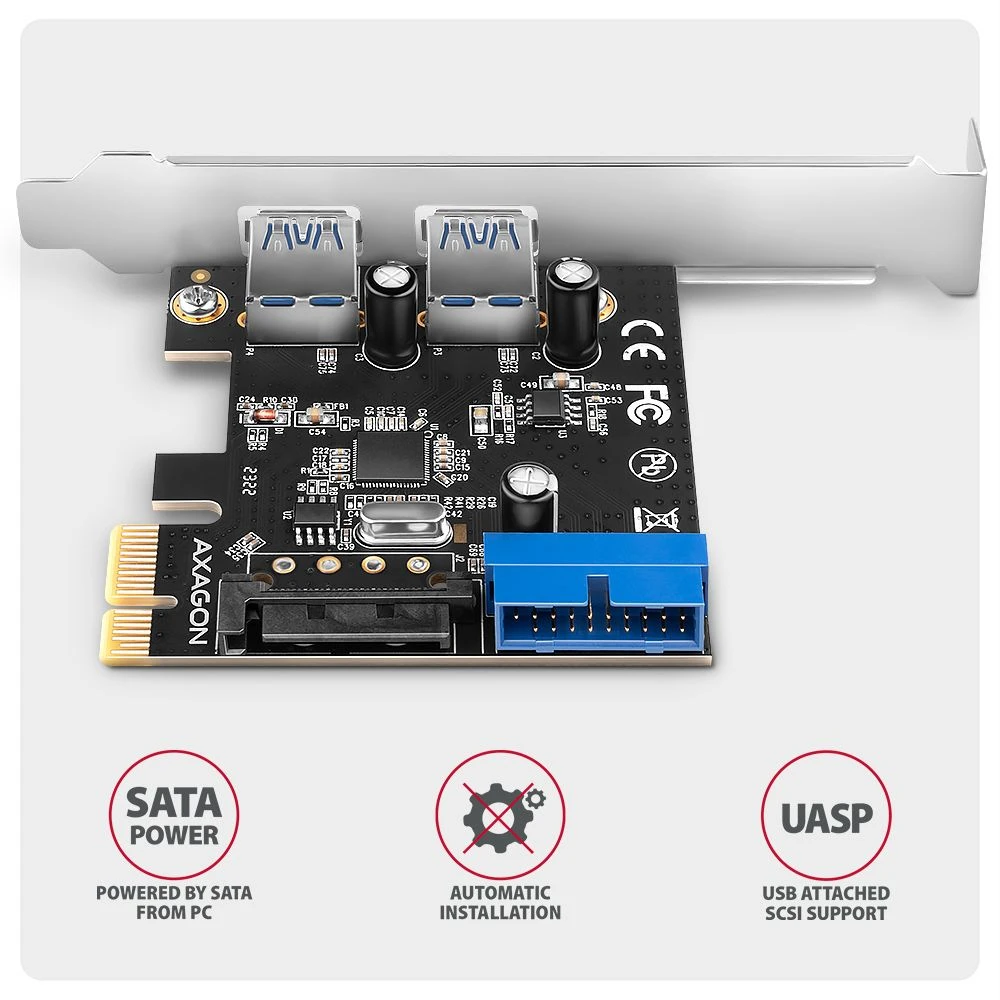

Reliable power supply from PC source via SATA power connector. The control unit is equipped with the Renesas chipset, known for its trouble-free compatibility, and is characterized by UASP support.

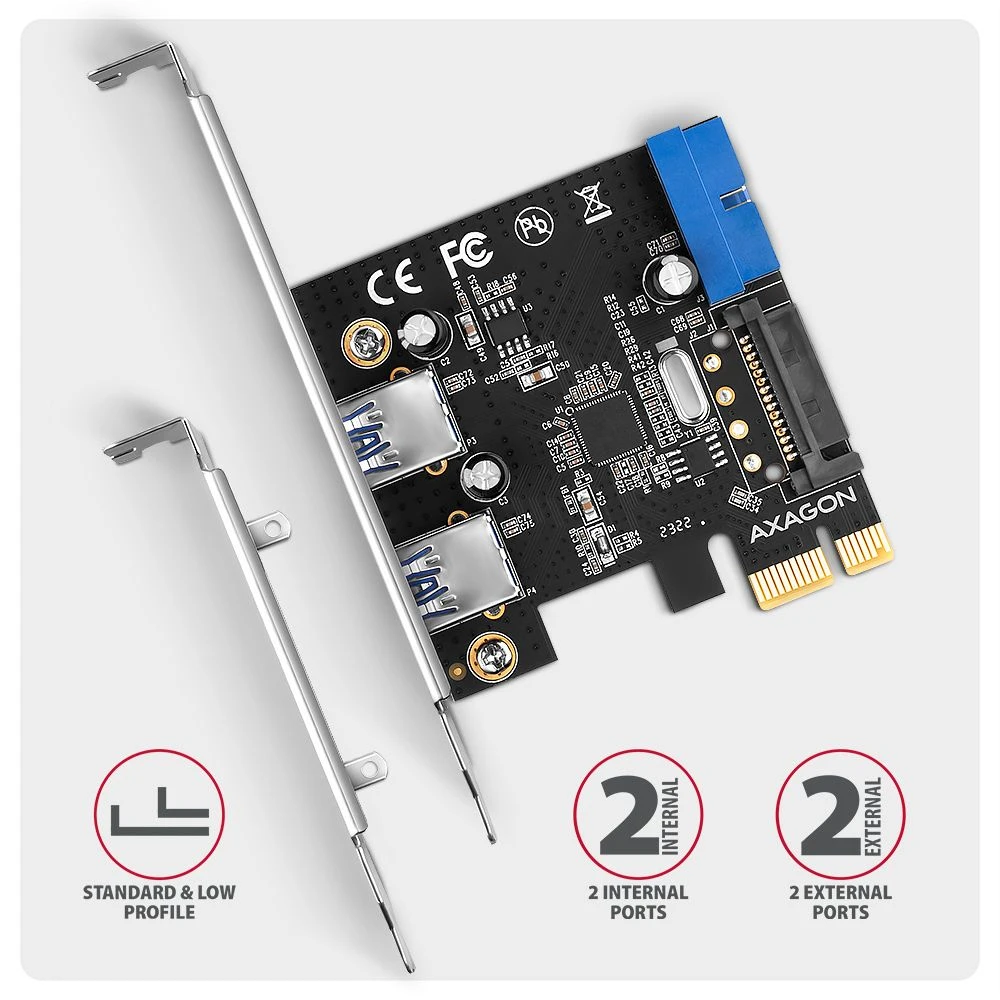

The package also includes a low-profile backplate for installation in low-profile enclosures.

Input:

- PCI-Express 2.0 interface, PCI-Express 1.0a / 1.1 / 2.1 / 3.0 / 4.0 compatible.
- Number of 1 lane (x1) lines compatible with x1 / x4 / x8 / x16 PCIe lanes.
- The bandwidth of the 1 lane PCI-Express 2.0 bus is 5 Gb/s.

Input (power supply):

- 15-pin SATA network connector.

Outputs:

- 2x external USB 5Gbps ports with USB Type A-F connectors.
- 19-pin internal USB 5Gbps connector with two ports for connection, for example internal USB reader or front USB port for PC chassis.
- USB 5Gbps interface - formerly USB 3.2 Gen 1 / USB 3.0.
- Fully compatible with USB 3.2 Gen 2, simultaneous operation of devices USB 2.0 and USB 1.1.
- Supports the following transfer rates 5000 / 480 / 12 / 1.5 Mb/s.
- When connected to a PCI-Express version 1.0 bus, the transfer speed is max. 2500 Mb/s.

Additional features:

- Full Plug and Play support.
- Supports the simultaneous operation of USB5Gbps, USB 2.0 and USB 1.1 devices.
- Compliant with version 1.0 of the final official xHCI specification of USB-IF.
- UASP (USB Attached SCSI) support in Windows 8 and newer versions for faster data transfer.
- Fully supports USB Hot Plug connection and disconnection of devices during operation.
- Internal SATA power connector for powering the controller from a PC power supply.
- With Renesas PD720201 chipset.

Supported operating systems:

- MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (all 32- and 64-bit Windows systems are supported), Linux with 2.6.31 kernel or above.
- Note: Installing hardware drivers is only for Windows XP / Vista / 7. For Windows 8 / 8.1 / 10 / 11, Server 2012 / 2016 / 2019 / 2022 and later, there is no need to install external drivers anymore, they are already the operating system are part of.

Package contents:

- PCI-Express controller standard backplane,
- low profile back panel,
- installation guide CZ / DE / DK / ENG / ESP / EST / FIN / FR / GR / HR / HU / IT / LT / LV / NL / NOR / PL / PT / RO / SK / SLO / SRB / SWE / TR / UA / ALB / BG / BOS / CN / ARA,
- packed in a cardboard box.
