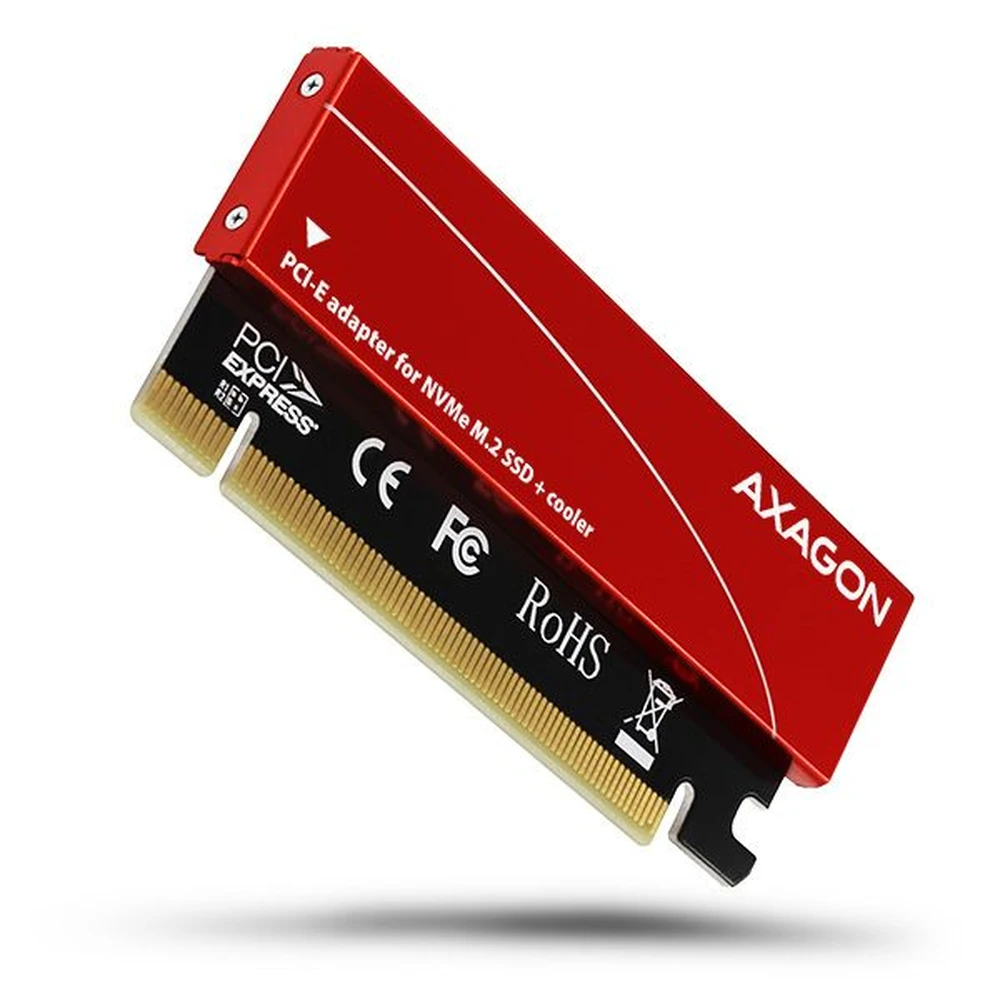

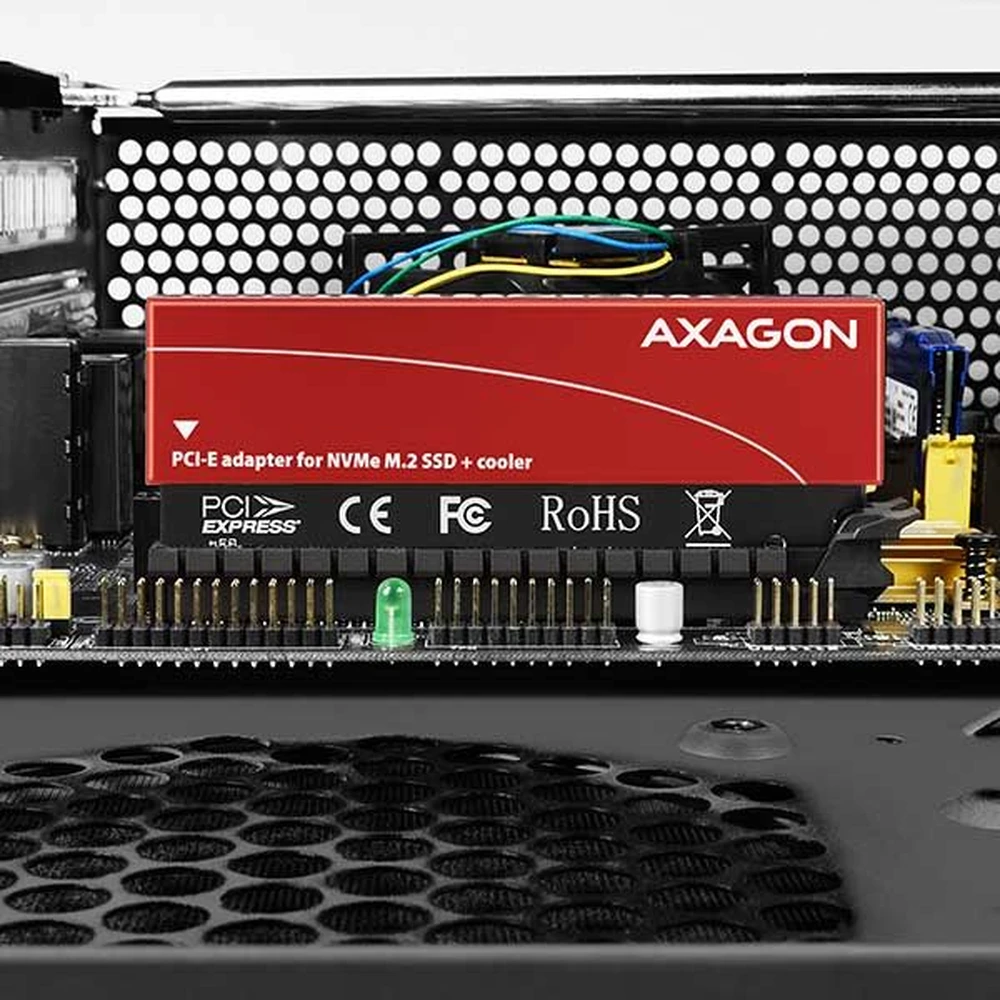

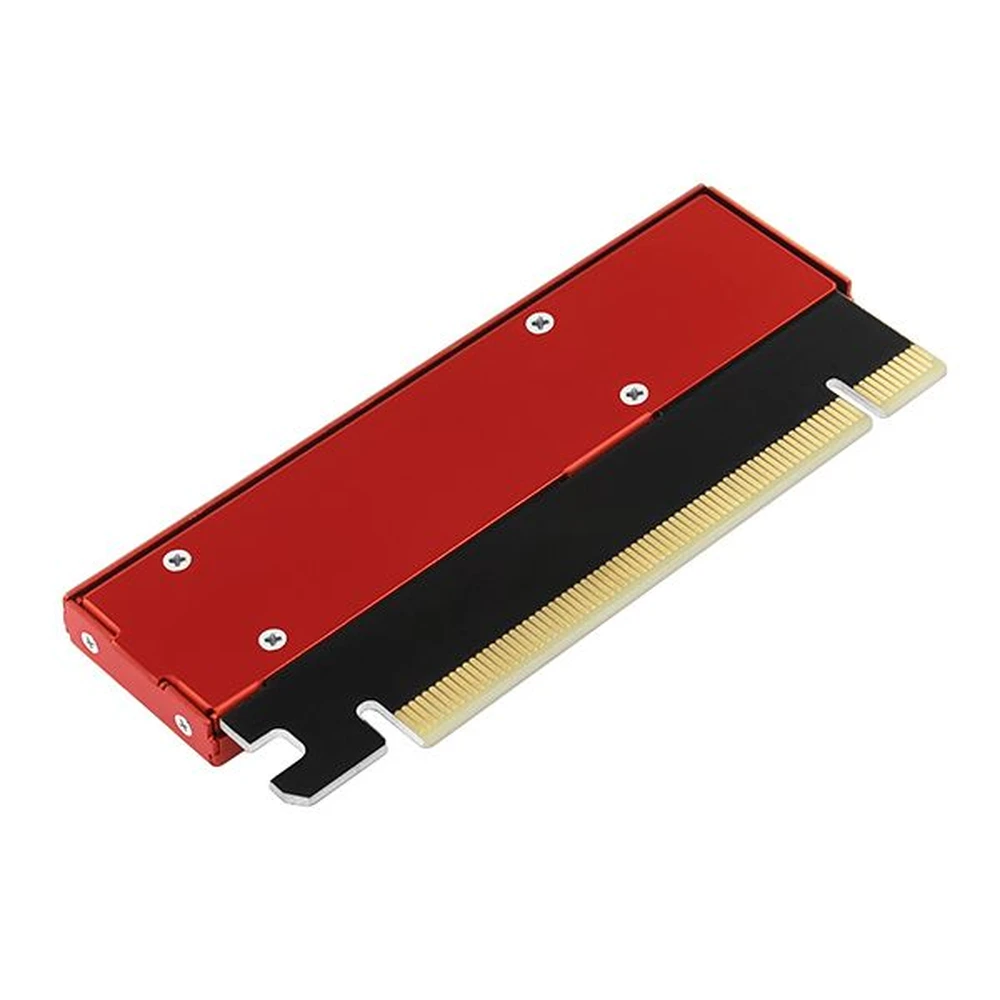

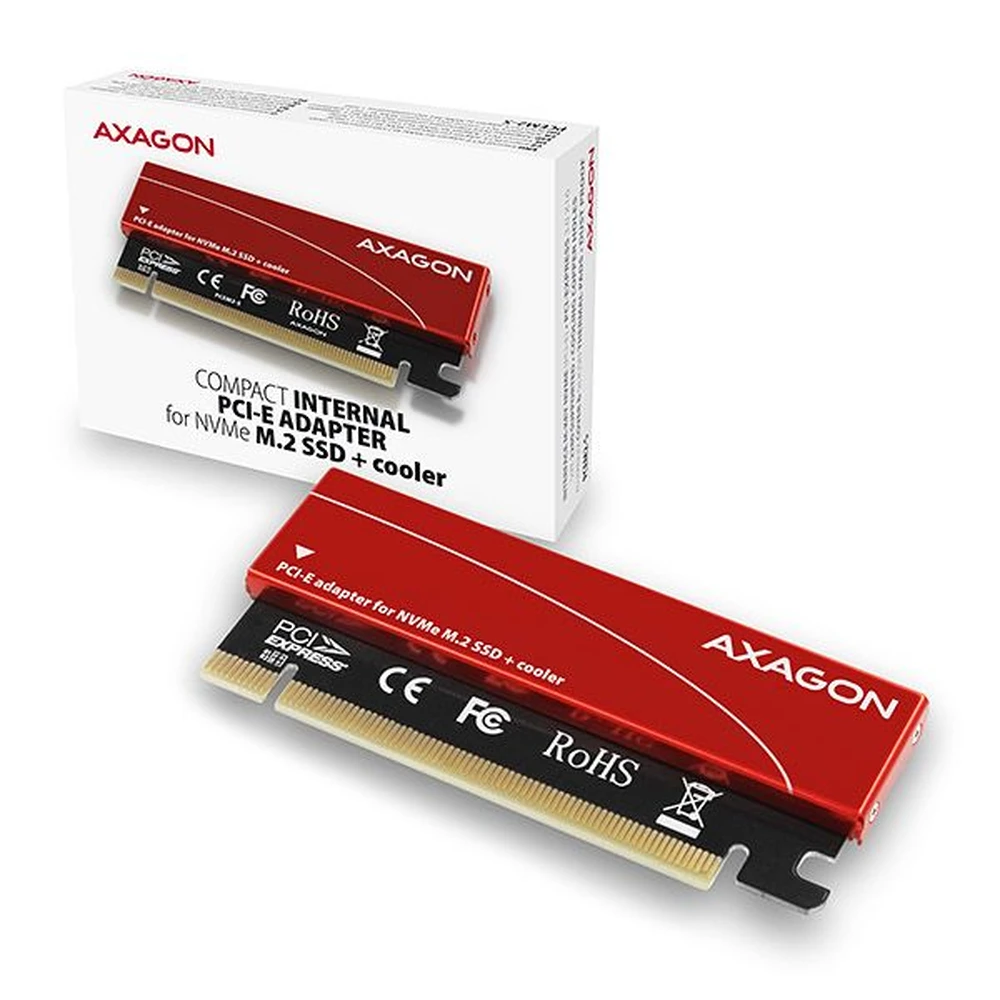

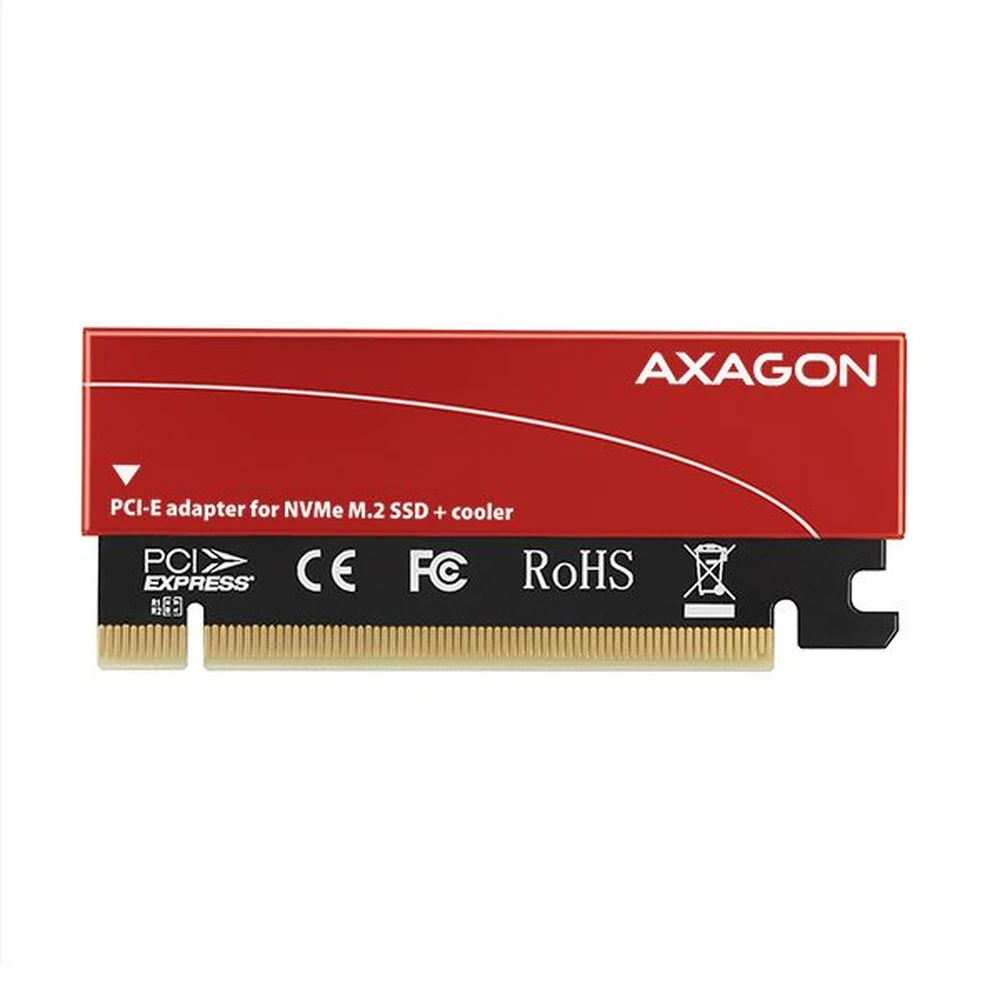

AXAGON PCEM2-S PCIe NVMe M.2 adapter

The internal AXAGON PCEM2-S adapter enables the M.2 SSD disk to be connected to a computer using the PCI-Express busbar.

Thanks to the high-quality workmanship, compact dimensions, attractive design and thoughtful cooling, the adapter is an ideal choice for upgrading desktop computers not equipped with an M.2 slot.

The adapter supports the use of single-sided and double-sided NVMe (PCI-Express) M.2 SSD disks. The reducer has unlimited SSD disk capacity and max. Allows the use of 22x80 mm M.2 cards.

Thanks to the PCI-Express 3.0 4-lane interface, a speed of up to 8GBps is available. The data transfer speed of NVMe SSD disks is several times higher than that of traditional SATA SSD disks.

The cooling of the M.2 SSD disk is assisted by the aluminum casing acting as a cooler, as well as by the attached heat-conducting pads. The result is an ideal combination of M.2 SSD disk cooling and heat conduction.

The LED light indicates connection or data transfer of the M.2 slot.

- Full Plug and Play support.
- Support for 2230, 2242, 2260, 2280 mm size M.2 disks.
- Support M-Key or B+M-Key NVME (PCI-Express) M.2 SSD drives without limitation of maximum capacity.
- Support for single-sided and double-sided M.2 disks.
- Better heat conduction thanks to the galvanized ventilation holes, heat-conducting washers and aluminum cladding.
- SSD card booting support.
- Device driver installation is not required
- Dimensions: 102 x 43 x 8 mm, weight 43 g.
