Internal PCI-Express x4 adapter for connecting an NVMe M.2 SSD disk to a computer.

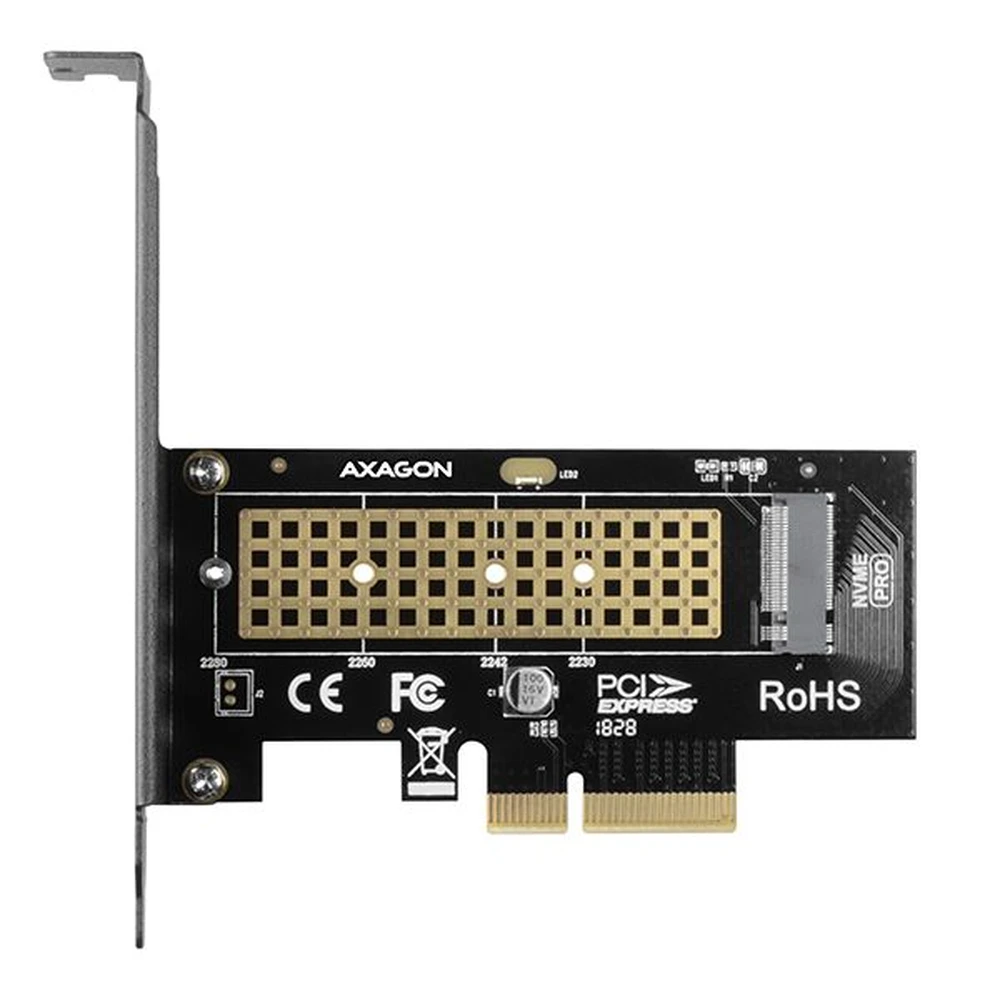

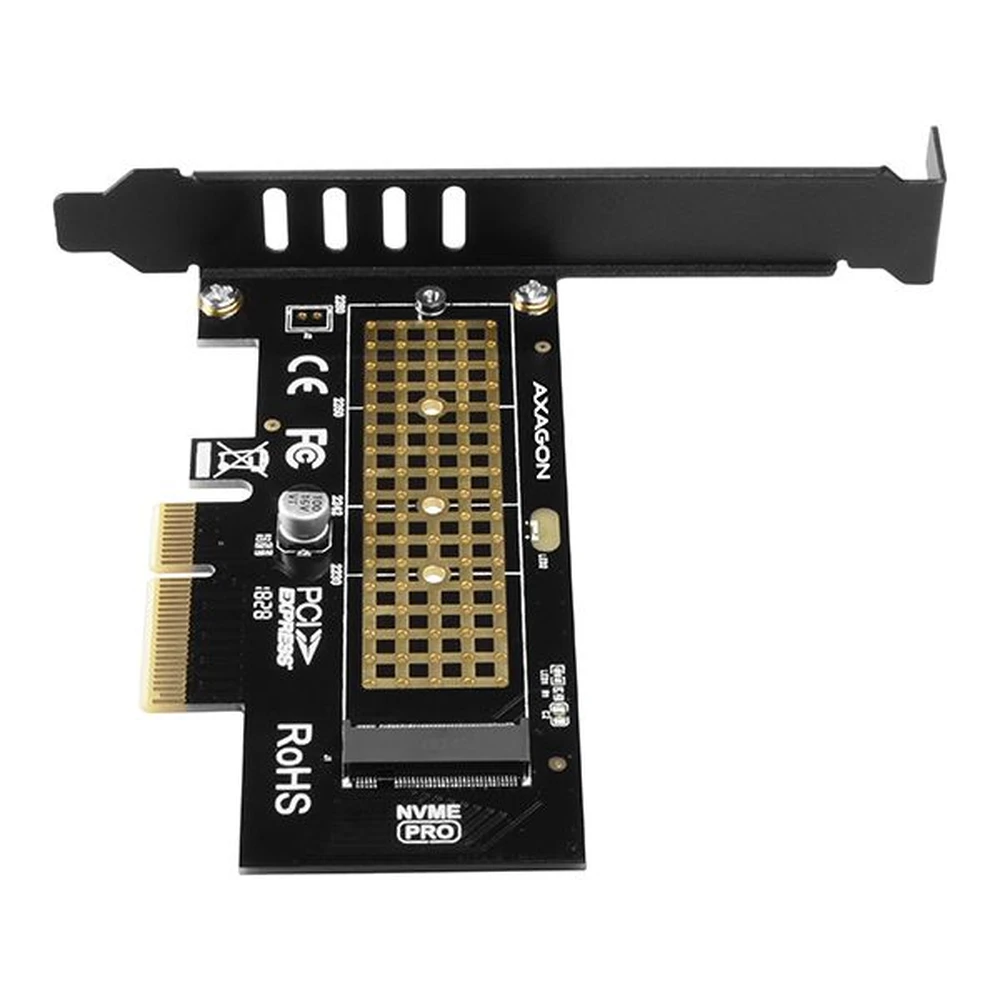

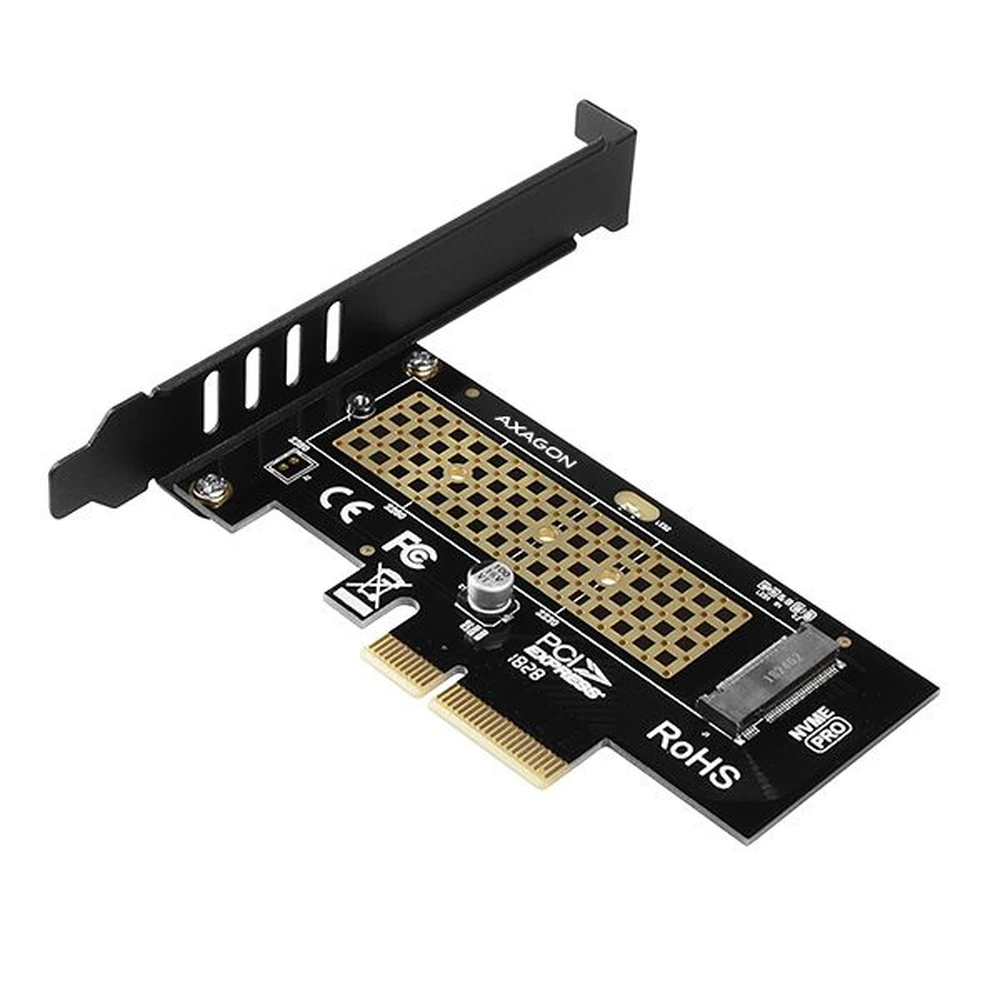

The internal AXAGON PCEM2-N adapter allows you to connect an M.2 SSD disk to a computer using a PCI-Express busbar.

Thanks to the high-quality workmanship, compact dimensions, and intelligent design, the adapter is an ideal choice for upgrading desktop computers not equipped with an M.2 slot.

The adapter supports the use of single-sided and double-sided NVMe (PCI-Express) M.2 SSD disks. The reducer has unlimited SSD disk capacity and max. Allows the use of 22x80 mm M.2 cards.

Thanks to the PCI-Express interface compatible with x4, x8 and x16 slots, maximum data transfer speed can be achieved.

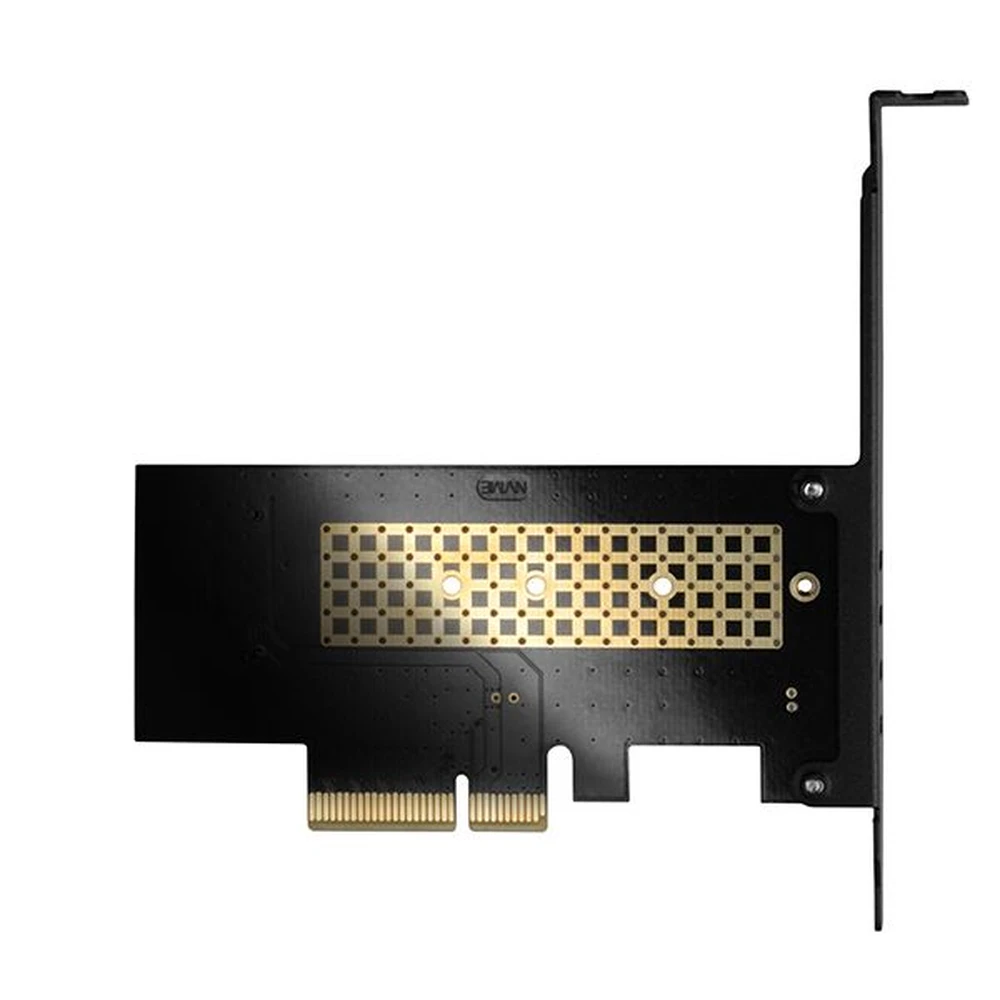

The heat-conducting washers and ventilation copper-coated openings help the heat generated during the operation of the M.2 SSD disks to be dissipated better. The LED indicator light indicates M.2 slot connection or data transfer. To install the adapter in low-profile cabinets, the package contains a low-profile backplate.

Input
- PCI-Express interface, compatible version PCI-Express 4.0 / 3.0 / 2.1 / 2.0 / 1.1 / 1.0a.
- Number of 4-Lane lines compatible with x4 / x8 / x16 PCIe slots.

Outputs
- NGFF 75-pin M-key slot for NVMe (PCI-Express) M.2 SSD disk installation.

- Full Plug and Play support.
- Support for 2230, 2242, 2260, 2280 mm M.2 drives.

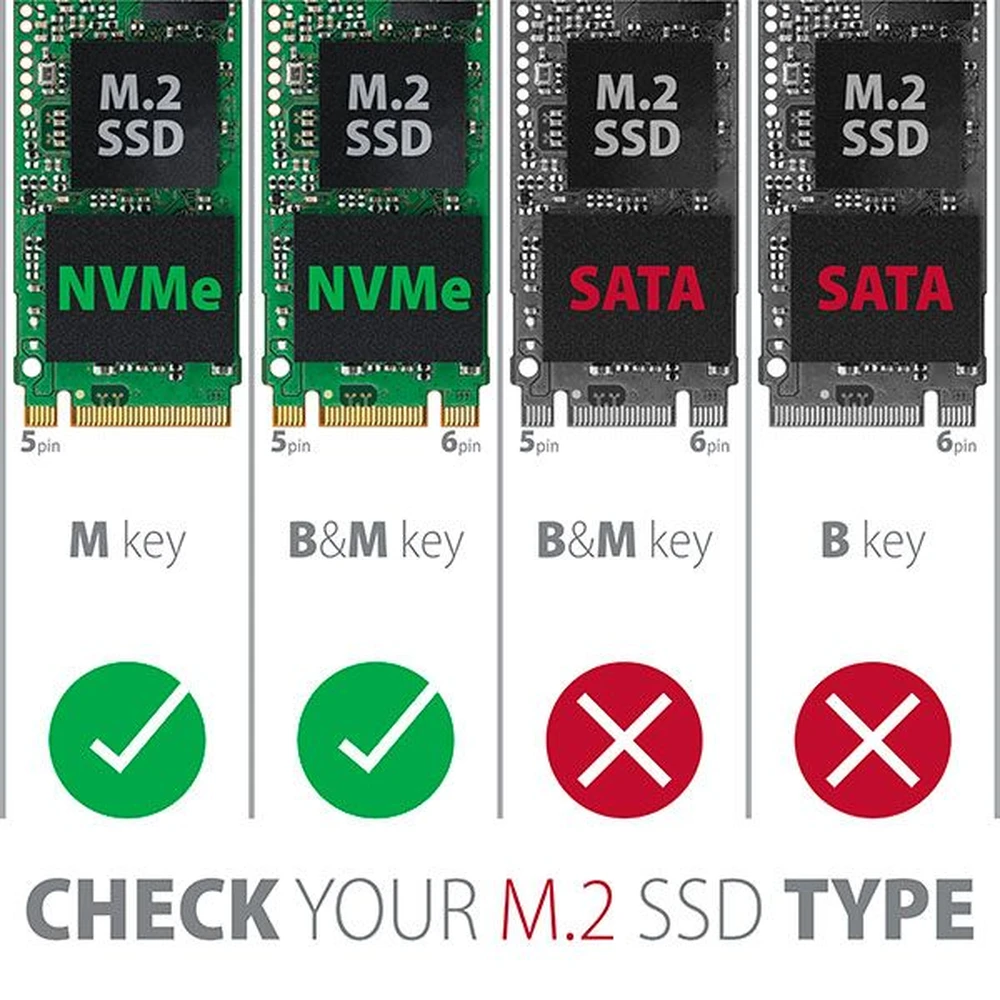

- Support for M key or B+M key NVMe (PCI-Express) M.2 SSD disks without limiting the maximum capacity.
- Support for single-sided and double-sided M.2 disks.
- Better heat conduction thanks to copper-coated vents and heat-conducting pads.
- SSD card booting support.
- Dimensions: 105 x 49 x 8 mm.
- Weight 32 g.
- Device driver installation is not required.

Nutrition
- The adapter is powered directly from the PCI-Express busbar, no external power supply is required.

Supported operating systems
- MS Windows 7 / 8 / 8.1 / 10, Windows Server 2008 R2 / 2012 / 2016 (all 32 and 64-bit Windows OR supported), Linux with kernel 2.6.31 and higher.
- Note: If Windows 7 is used, the support of the OR in question must be checked with the manufacturer of the M.2 SSD disk.

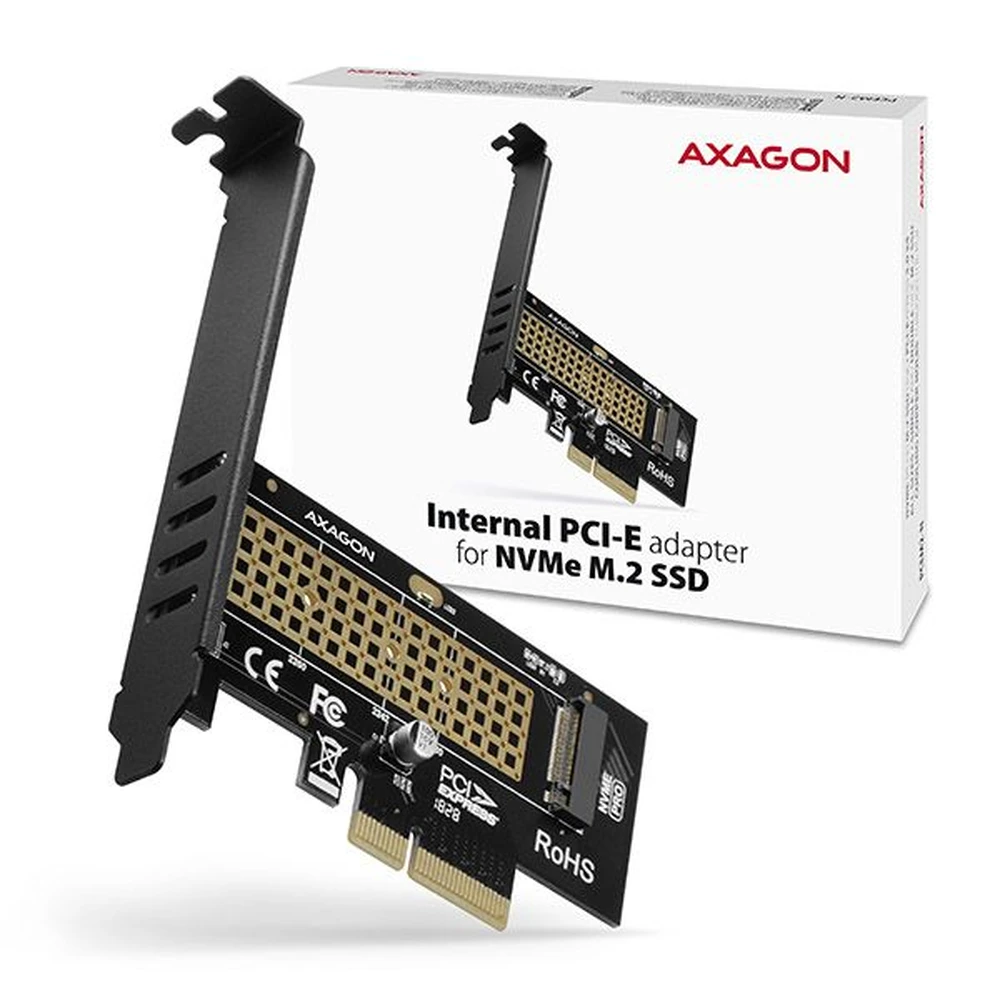

Contents of the package:
- PCI-Express adapter with standard cover cap,
- Low profile back panel,
- Heat conducting washer,
- Mounting material and screwdriver,
- Printed Installation Guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
- Cardboard box packaging.
