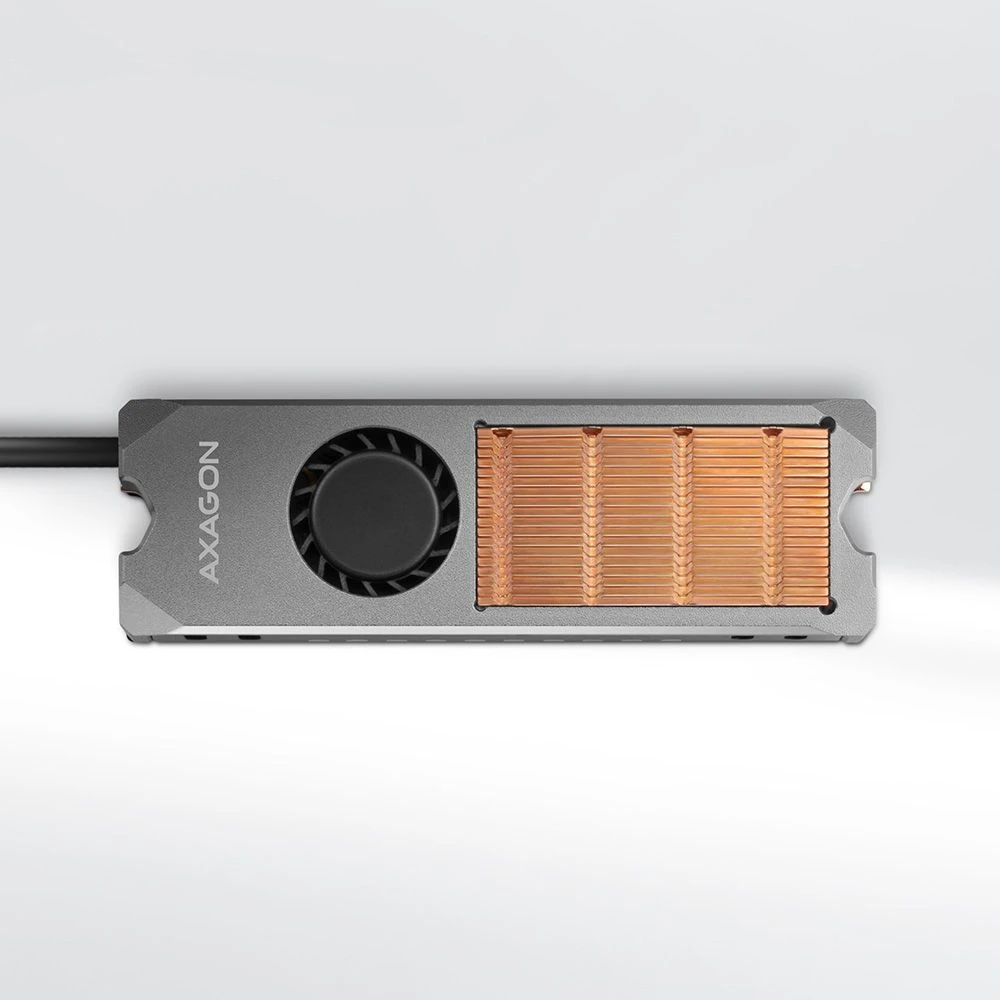

AXAGON CLR-M2FAN copper heatsink with fan for perfect cooling of high-performance M.2 SSD disks, especially NVMe. The universal passive heatsink can be used for M.2 cards, size 22 x 80 mm. The included thermal pad enables cooler operation for all single-sided and double-sided M.2 SSDs.

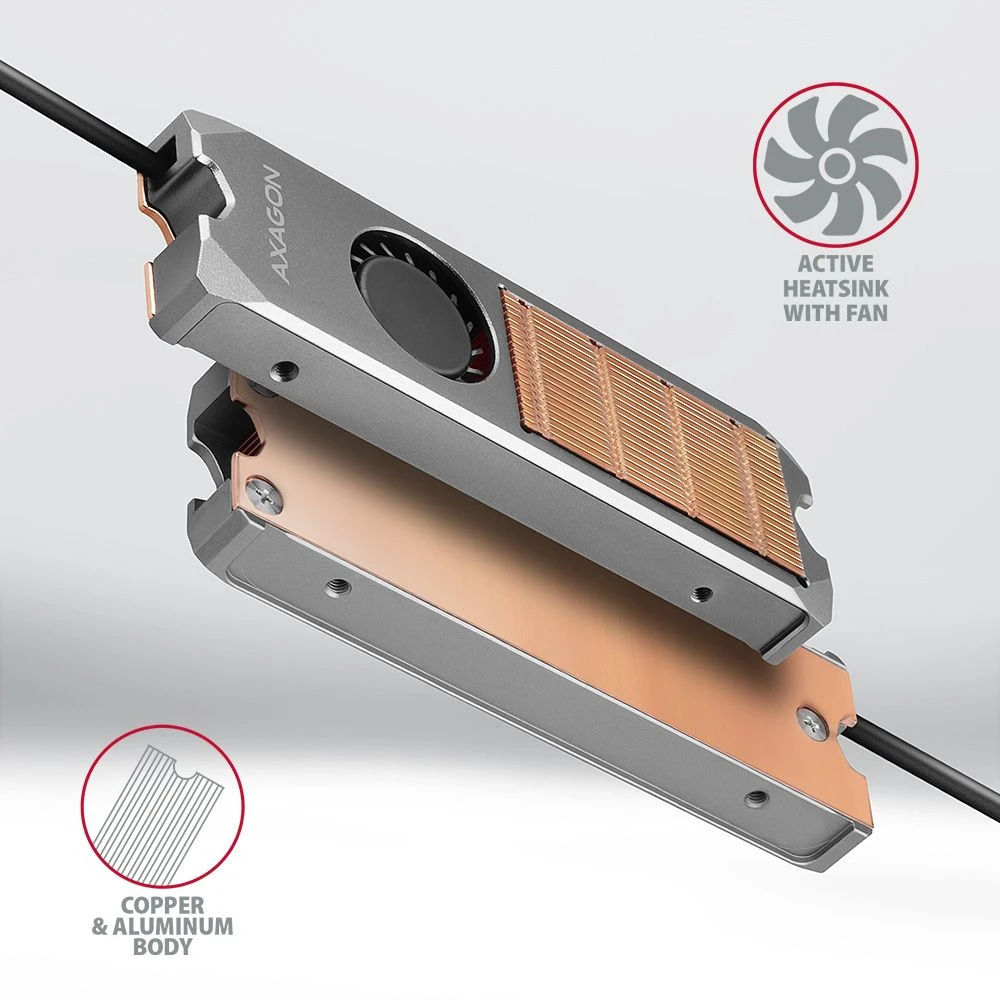

The core of the copper heatsink with an aluminum body is 8.6 mm high. Inside the body there is a fan with PWM speed control, which is connected to the computer's motherboard with a 4-pin power connector. The speed of the fan can be automatically controlled depending on the temperature, in order to save energy or reduce noise.

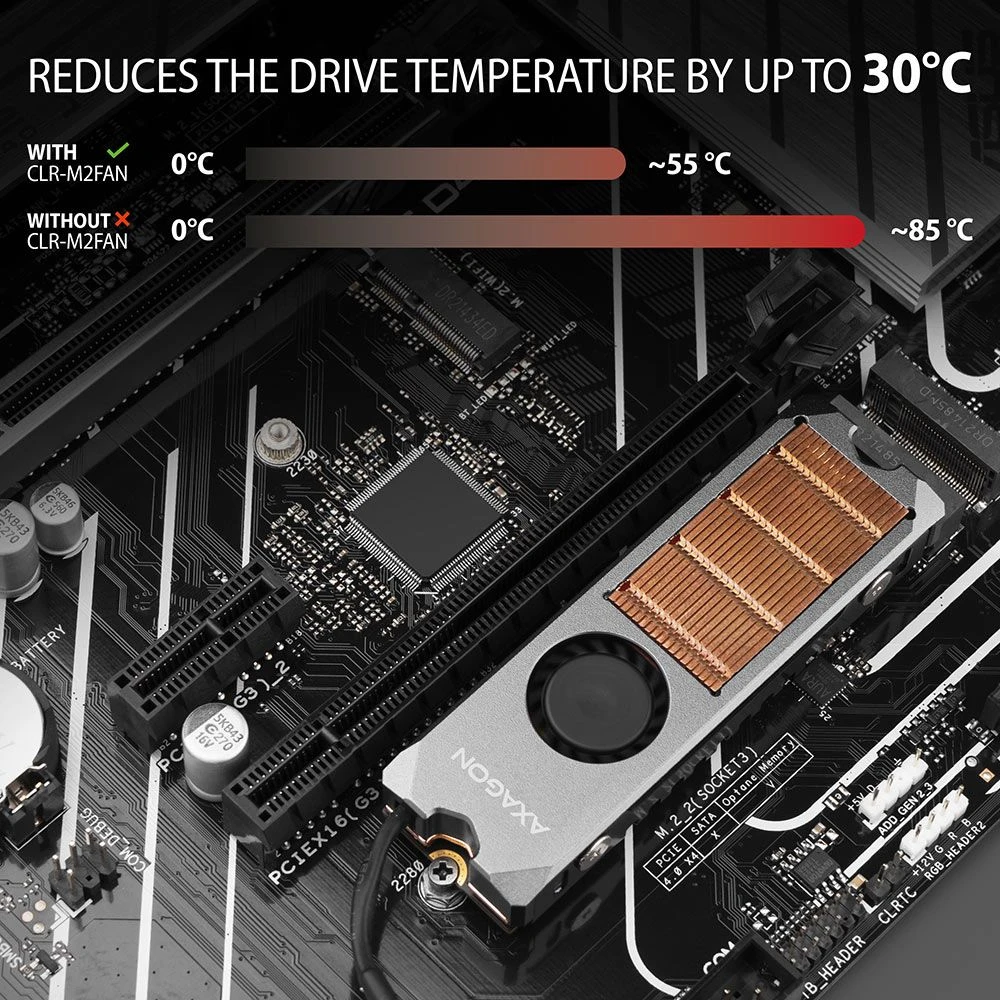

The copper heatsink together with the fan and metal frame help to optimally dissipate the heat generated during the operation of the M.2 SSD. It also reduces the temperature of the drive by up to 30 °C. This extends the life of the M.2 SSD and prevents the disk from slowing down, the so-called "Thermal Throttling".

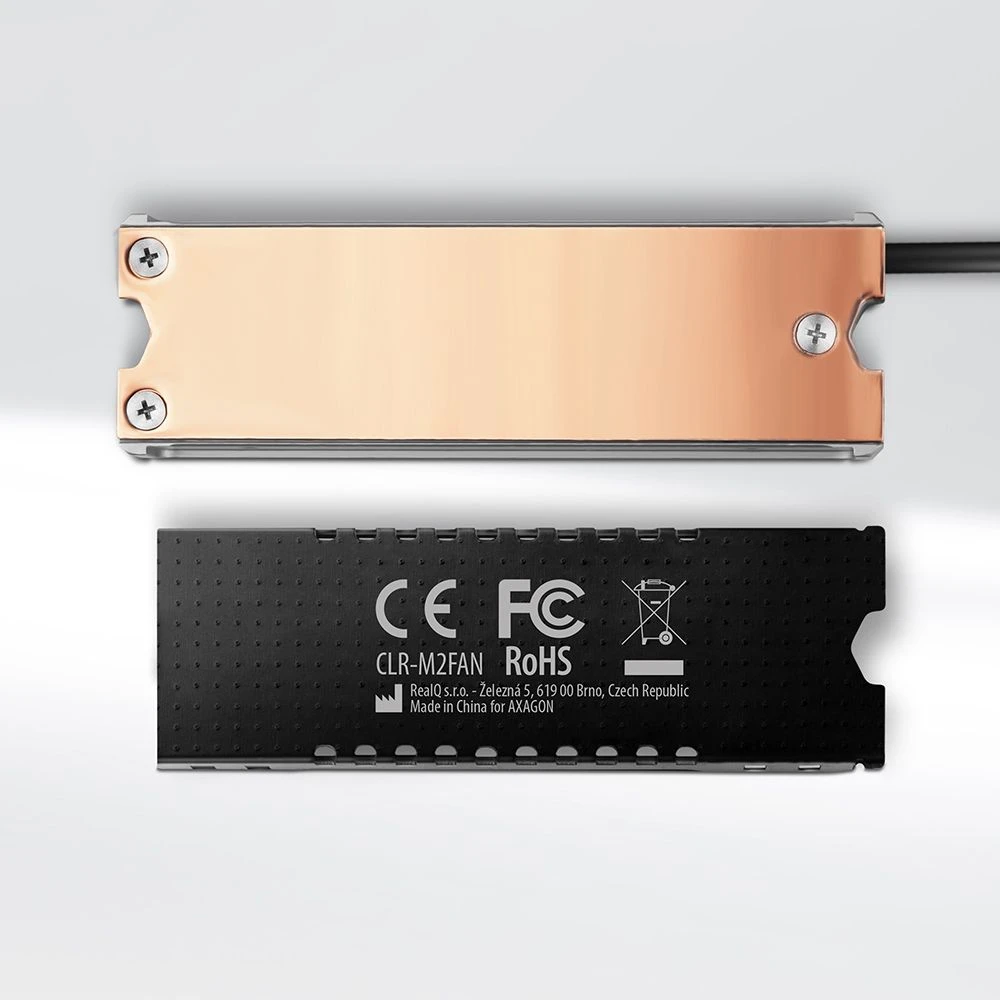

The heatsink can be used not only with the M.2 AXAGON adapters, but also with the M.2 (NGFF) slots of the motherboards. Thanks to the metal frame, the heatsink dissipates heat from both sides of the M.2 disk and thus achieves maximum cooling efficiency.

Features:

- Support for M.2 disks of any capacity
- Support for single-sided and double-sided M.2 disks
- Support for 22 x 80 mm M.2 disks
- Support for SATA (AHCI) and NVMe (PCI-Express) M.2 disks
- Ribbed copper heatsink core, aluminum body
- Fan with PWM speed control, 4-pin power connector

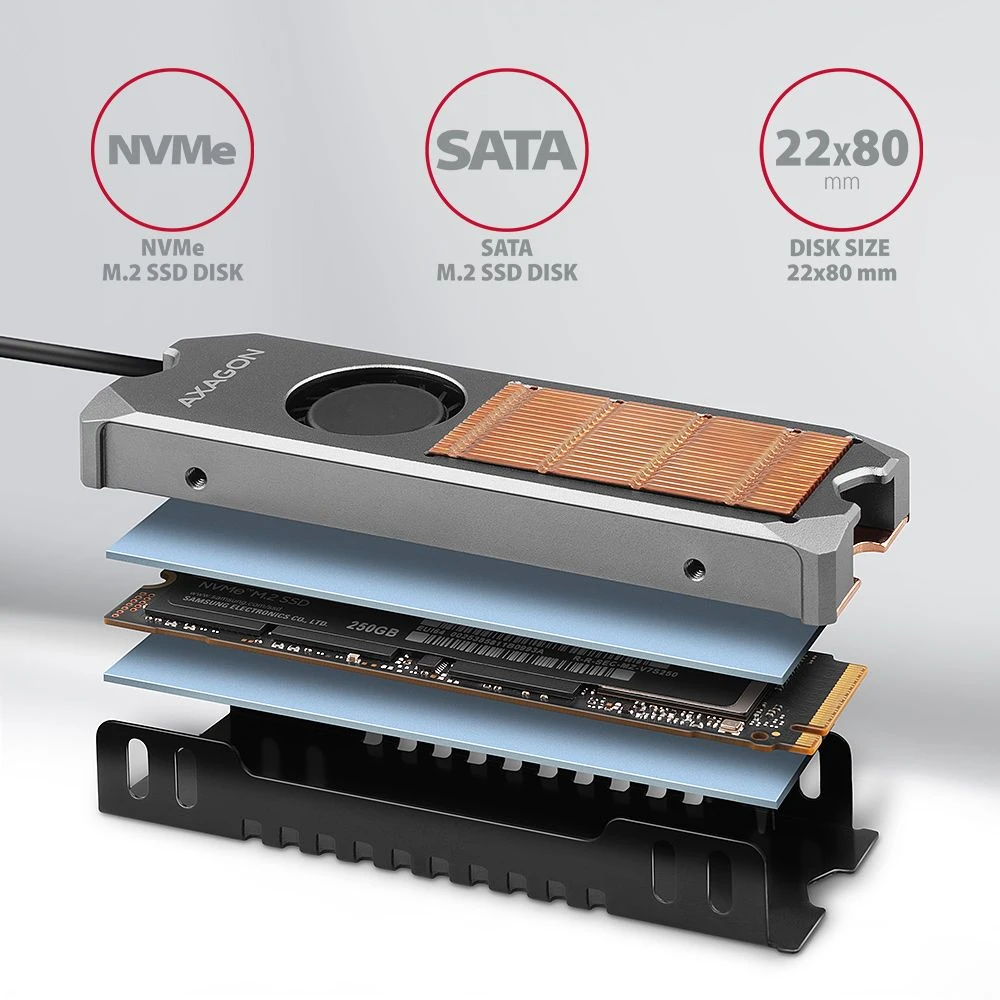

- The 3 heat-conducting washers can be combined as desired, and thus can be used both with single-sided and double-sided SSD disks of different heights.
- Compact dimensions 76 x 24 x 12 mm
- Weight 45 g

Package contents:

- Cooling fin with fan and fixed 38 cm long power cable
- Metal frame
- 3 heat conducting washers
- Mounting material and screwdriver
- Packed in a cardboard box
