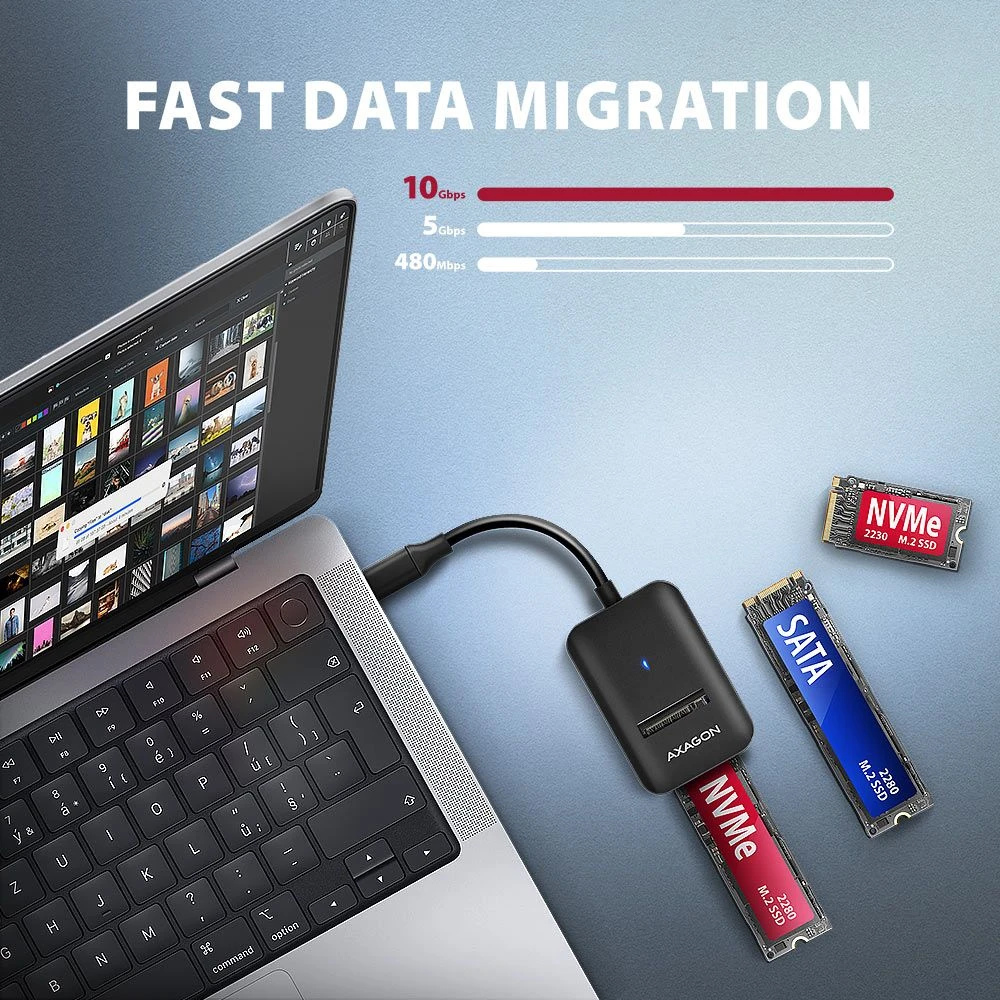

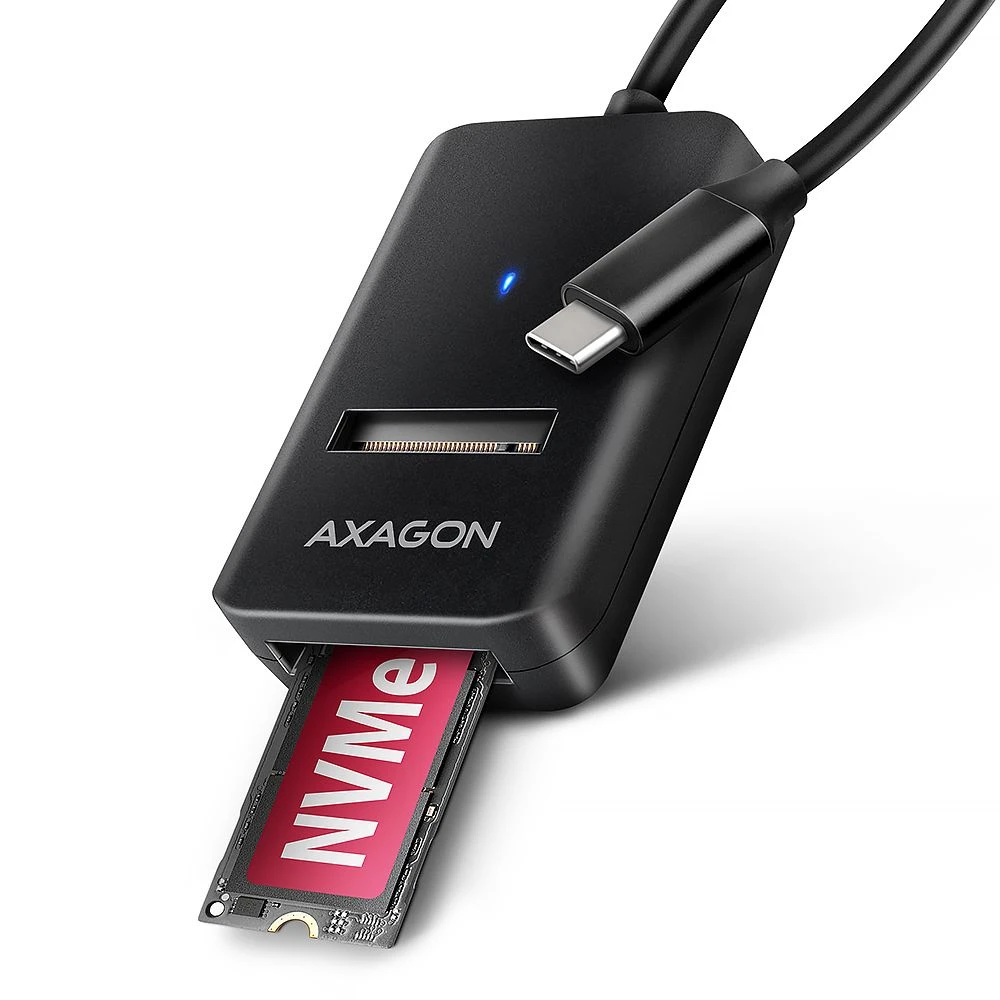

Compact AXAGON ADM2-CM M.2 adapter with USB 10Gbps connection, designed for easy use of M.2 NVMe or SATA SSDs. The 10 cm long USB-C cable connects firmly for a reliable connection to your computer.

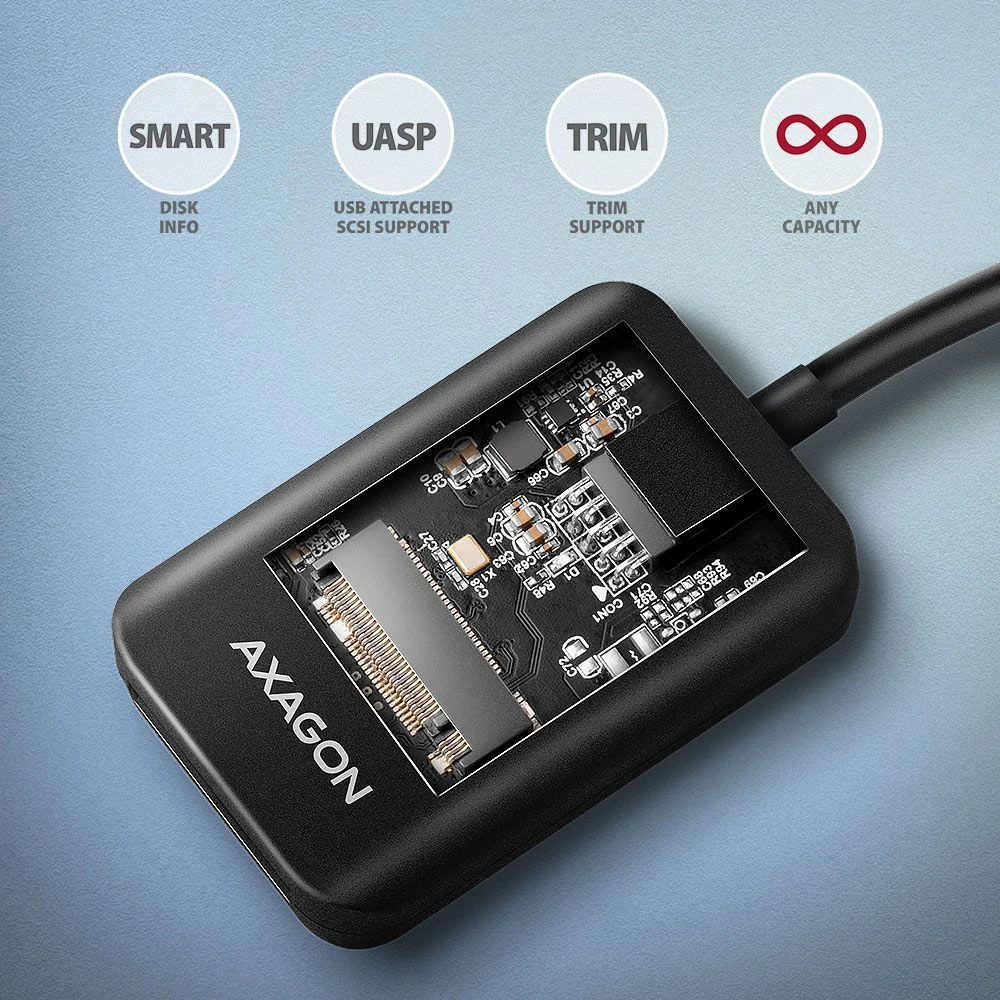

Thanks to the fast USB 3.2 Gen 2 connector, the transfer speed can be up to 10 Gb/s. The second generation of the fast USB connector allows you to enjoy the speed of modern M.2 SSD drives. The universal M.2 adapter also supports other modern functions, e.g. UASP, TRIM and enables S.M.A.R.T. reading information by monitoring disk status. Support idle state.

Thanks to the new chipset, a unique feature is the possibility of using M.2 NVMe and SATA disks. You don't have to think about which type of M.2 drive the adapter is made for, it simply reads all types. Another advantage of the adapter is that the disk can be inserted very quickly into the socket of the adapter. Changing the discs is also easy. These features make the adapter a very practical and useful tool for frequent work with different types of drives. This makes it an ideal tool for disk testing, data transfer, backup and recovery, and more.

Thanks to its small size, it can be at hand at any time. The adapter does not prevent heat from being removed from the disk, this extends the life of the disk and prevents the disk from slowing down, which is called "Thermal Throttling". This USB-C-M.2 drive adapter can be used for computers and laptops as well as mobile phones and tablets.

Input:
- USB 10Gbps (USB 3.2 Gen 2), USB-C male connector.
- Compatible with USB 3.2 Gen 1, USB4 and Thunderbolt 3/4.

Aid:

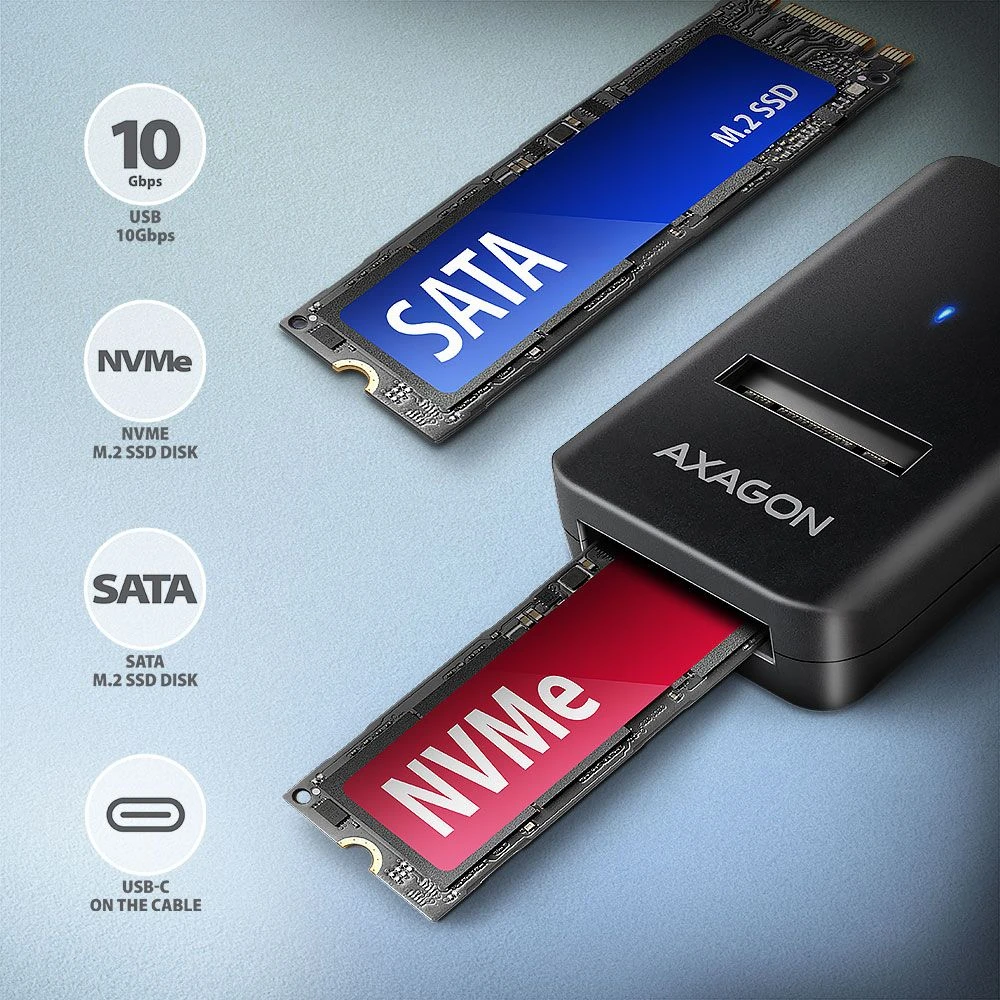

- NMVe M.2 SSD disks,
- SATA M.2 SSD disks,
- for M-key and B+M-key format cards,
- NGFF 75-pin M-key slot for M.2 disks.

Additional features:
- Supports the following transfer rates 10,000 / 5,000 / 480 Mbit/s.
- Supported M-key or B+M-key NVMe (PCI-Express) M.2 SSD drives without maximum capacity.
- Support for M.2 drive sizes, no length limit.
- Support for single-sided and double-sided M.2 SSD drives.
- Complies with the PCI Express Base Specification Revision 3.1a specification.
- Complies with the NVM Express 1.3 specification.
- Meets the Serial ATA 3.2 specification (SATA/600) with a transfer speed of up to 6 Gb/s (600 MB/s).
- Meets the USB Mass Storage Class specification.
- The total throughput / transmission speed of the station depends on the USB interface used (theoretically 10 Gbit/s).
- The adapter's actual transfer/transfer speed of around 1000MB/s (1GB/s) is due to the limitations of the USB 3.2 Gen 2 interface.
- Supported BOT (Bulk-Only Transport).
- UASP (USB Attached SCSI) support in Windows 8 and newer versions for faster data transfer.
- Support for the TRIM function that prevents the gradual degradation of SSD performance over time.
- S.M.A.R.T., which monitors the state of the disks. (Self-Monitoring, Analysis, and Reporting Technology) system support.
- Support for booting from SSD in the external housing.
- Possibility to connect the device thanks to the support of Hot Plug.
- Full Plug and Play support.
- Power supply by the USB bus up to 900mA, one USB port is enough in any case.
- A decent blue LED to indicate connection to the computer's USB port (steady light) and data transfer (blinking).

Additional data:

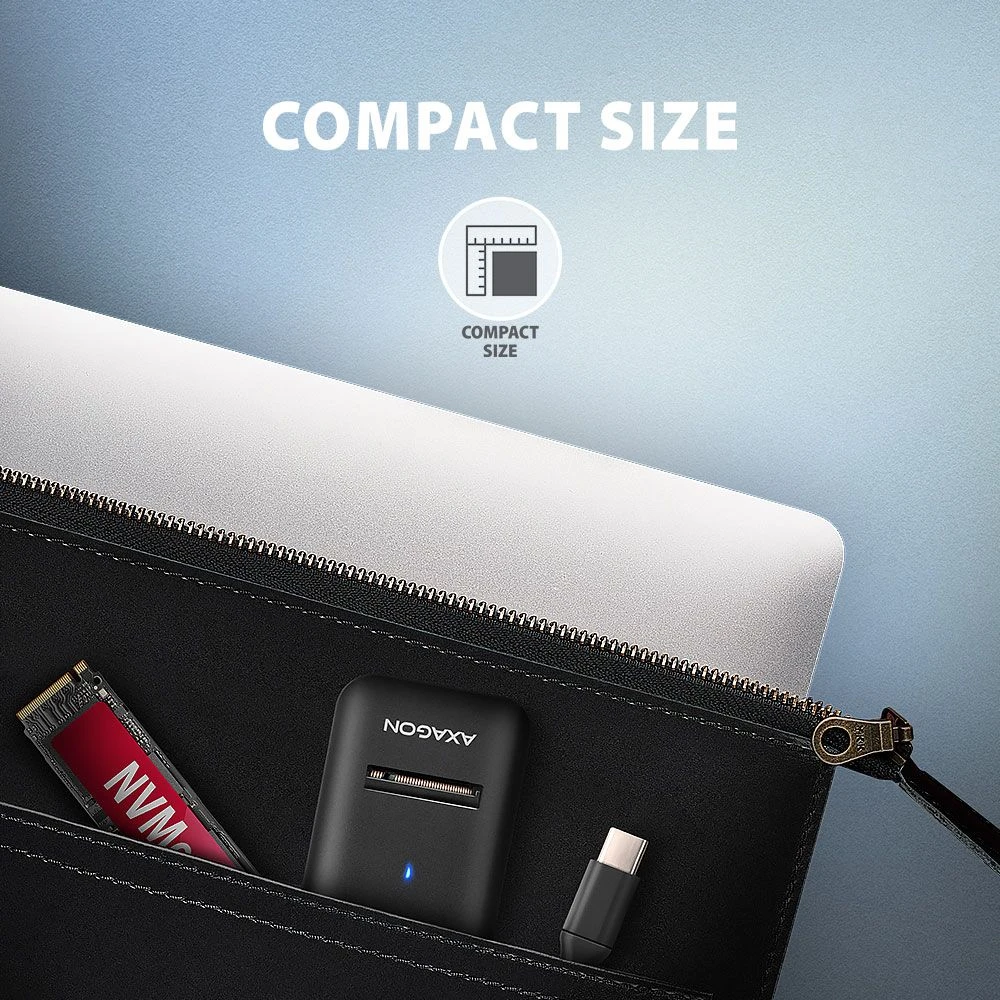

- The dimensions of the adapter are 55 x 37 x 12 mm.
- The weight of the adapter is only 19 g.
- USB-C male cable length 10 cm.

Supported operating systems:
- Windows 7 / 8.1 / 10 / 11 or later, macOS, iPadOS, iOS, Linux, Chrome OS and Android.
- Compatibility depends on updated operating system and device manufacturer support.

Package contents:
- M.2 adapter with 10 cm fixed cable,
- Multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA,
- Equipped with an opening for hanging on a shop rack.
