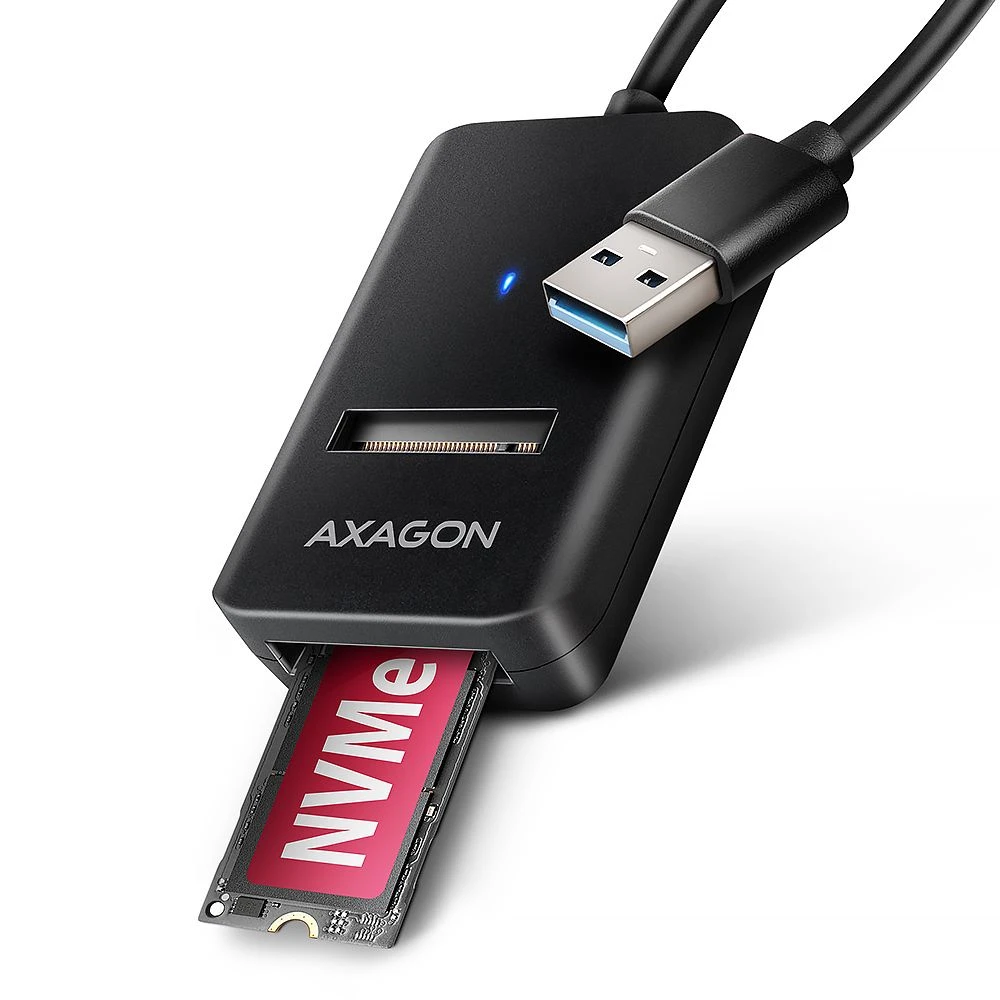

Compact Axagon ADM2-AM M.2 Adapter USB 10GBPS connection designed to simply use M.2 NVME or SATA SSDs. The 10 cm long USB-A cable is firmly connected to a reliable connection to your computer.

Thanks to the fast USB 3.2 Gen 2 (USB 3.1) connector, the transfer rate can be up to 10GB/s. The second generation of a fast USB connector allows you to enjoy the speed of modern M.2 SSD drives. The universal M.2 adapter also supports other modern features, for example. Uasp, trim and allows S.M.A.R.T. reading information by monitoring the status of the disk. Support for standby at idle.

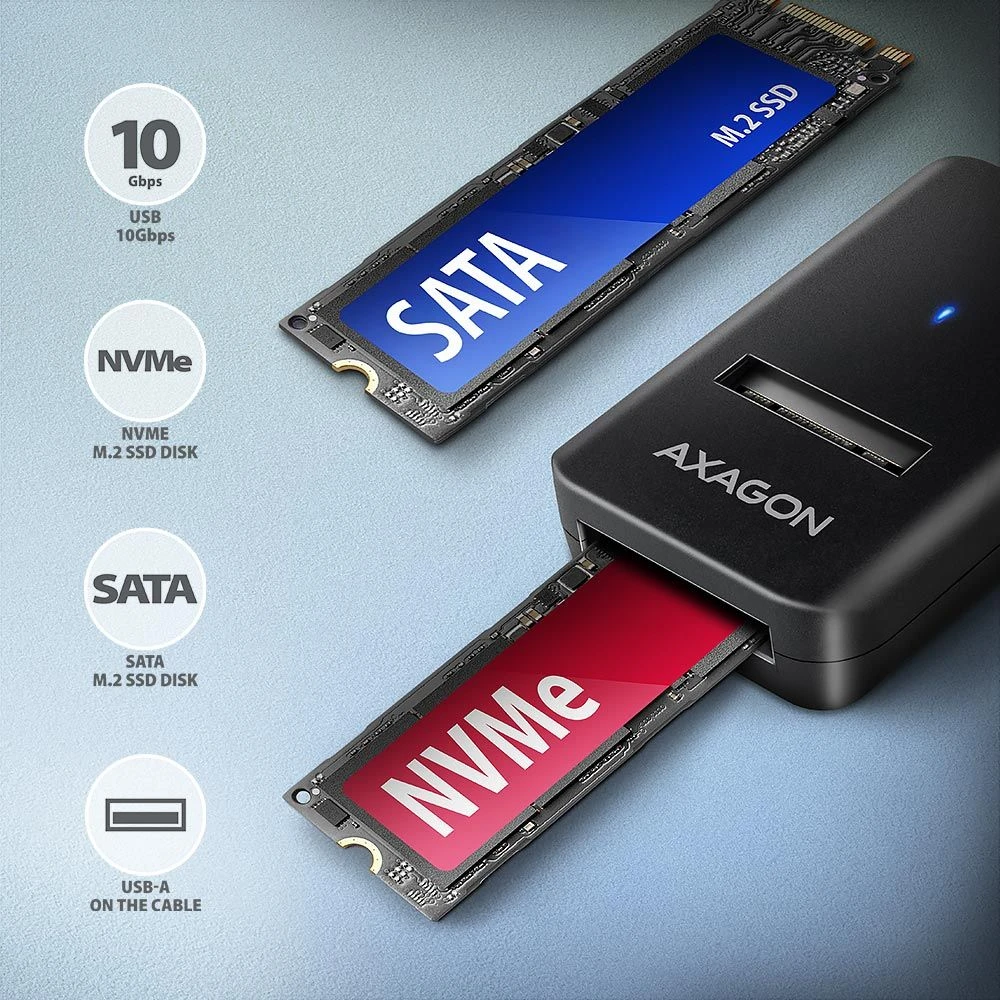

Thanks to the new chipset, the unique function is to use M.2 NVME and SATA discs. You don't have to think about which M.2 drive type is made, you simply read every type. Another advantage of the adapter is that the disk can be inserted very quickly into the adapter slot. The replacement of the discs is also simple. These features make adapter a very practical and useful tool for working with different types of drives. This makes it an ideal tool for testing, data transfer, backup and recovery, etc.

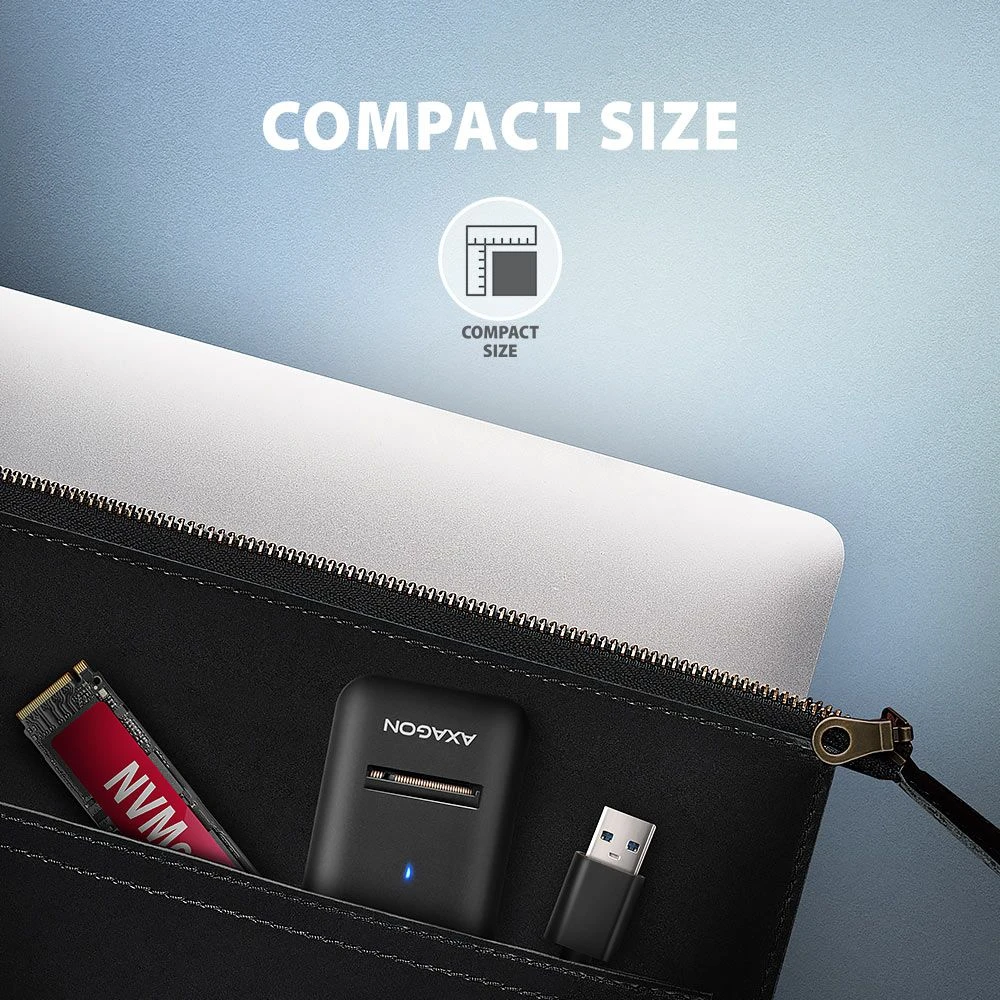

Thanks to its small size, you can be at hand at any time. The adapter does not prevent heat from the disc, extending the life of the disk and preventing the decline of the disk called "Thermal Throttling". This USB-A-M.2 drive adapter can be used for computers and laptops, as well as mobile phones and tablets.

Input:
- USB 10GBPS (USB 3.2 Gen 2), USB-A Male connector.
- Compatible with USB 3.2 Gen 1, USB4 and Thunderbolt 3/4.

Aid:
- NMVE M.2 SSD discs,
- SATA M.2 SSD plates,

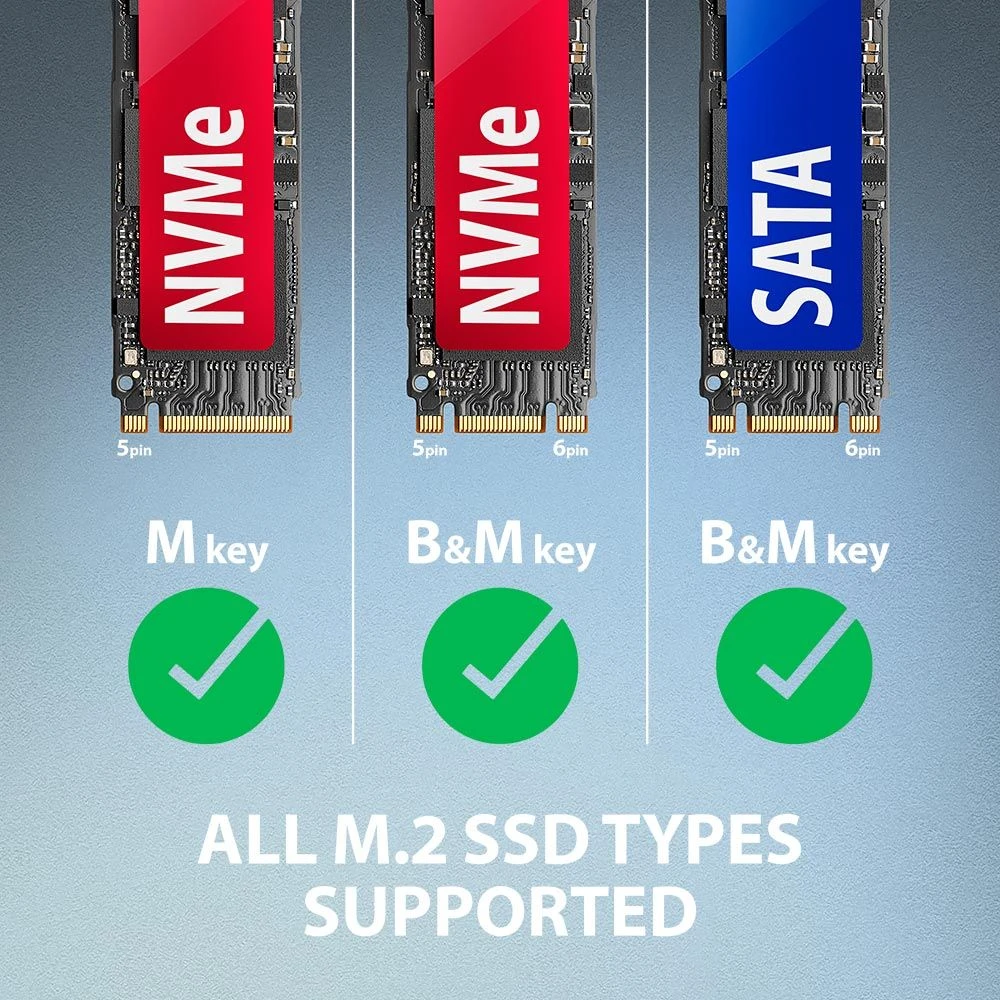

-For M-Key and B+M-Key format cards,
-NGFF 75-PINES M-Key Slot M.2.

Further features:

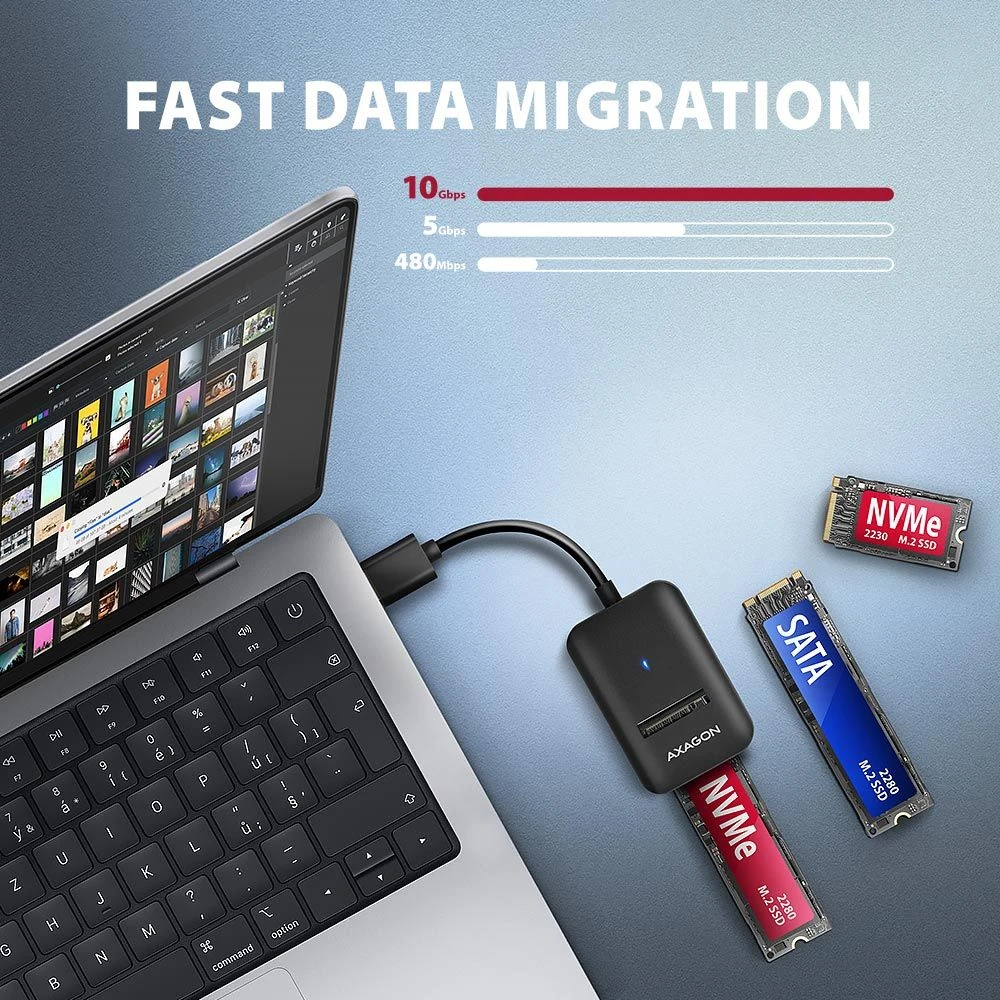

- Supports the following transmission speeds 10,000 / 5,000 / 480 Mbit / s.
-Supported M-Key or B+M-Key NVME (PCI-Express) M.2 SSD drives without maximum capacity.
- M.2 Support for Drive Sizes No Length Range.
- Support for one -sided and double -sided M.2 SSD drives.
- Complies with the PCI Express Base Specification Revision 3.1A specification.
- Complies with the NVM Express 1.3 specification.
- corresponds to the Serial ATA 3.2 specification (SATA/600) at up to 6 GB/s (600 MB/s).
- Complies with the USB Mass Storage Class specification.
- The total permeability / transmission rate of the station is a function of the USB interface used (theoretically 10 Gbit / s).
- The real transmission/transmission speed of the adapter around 1000 MB/s (1GB/s) is due to the limitations of the USB 3.2 Gen 2 interface.
- Bulk-only transport.
- UASP (USB Attached SCSI) Support for Faster data transfer in Windows 8 and newer versions.
- Support TRIM function before gradual time degradation of SSD.
- S.M.A.R.T. (Self-monitoring, analysis, and reporting technology).
- Support boot from SSD in the external house.
- Possibility to connect the device thanks to the support of Hot Plug.
- Full plug and play support.
- Power supply to the USB bus up to 900mA, a USB port is always enough.
- A decent blue LED that indicates connection to your computer's USB port (constant lighting) and data transfer (flashing).

Further data:
- The adapter's dimensions are 55 x 37 x 12 mm.
- The adapter weight is 23 g.
- USB-A male cable length 10 cm.

Supported operating systems:
- Windows 7 / 8.1 / 10/11 or higher, macos, iPados, iOS, Linux, Chrome OS and Android.
- The compatibility depends on the updated operating system and the support of the device manufacturer.

Packaging Contents:
- M.2 adapter with a fixed cable of 10 cm,
- Multilingual Handbook Cz / DK / Eng / ESP / FIN / FIN / FR / GR / HR / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / CN / ARA,
- Hanging on a store rack with an opening.
