The ATEN Control System includes the VK2100 (ATEN Controller), the VK6000 (ATEN Configurator) and the ATEN Control System App. An Ethernet-based control system that enables central control of all connected devices via iPad. The VK2100 is the main control unit to which the devices are physically connected. Once connected, the VK6000 software provides customizable setup options with easy 4-step creation of system profiles. By connecting the VK2100 to Ethernet, the ATEN Control System App provides mobility and easy switching between preset profiles. Thus, the settings of several devices can be changed at the same time with a single button press.

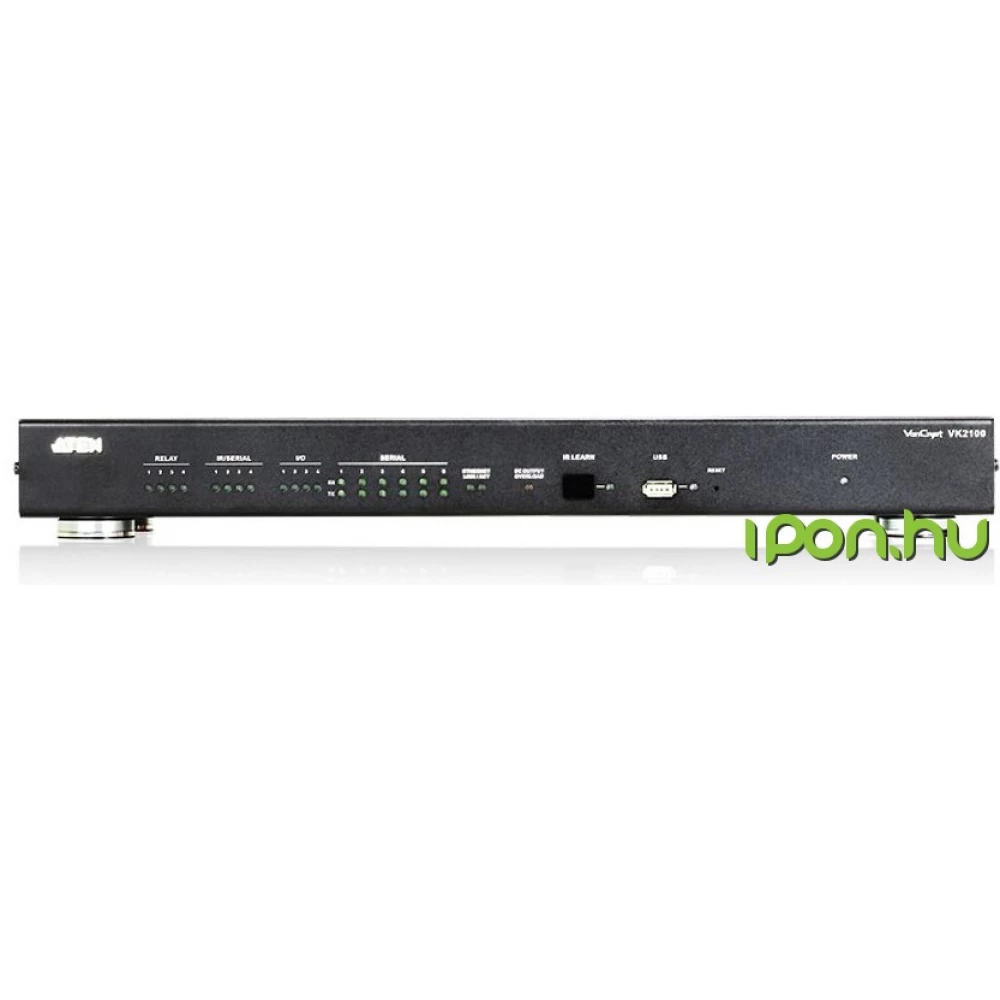

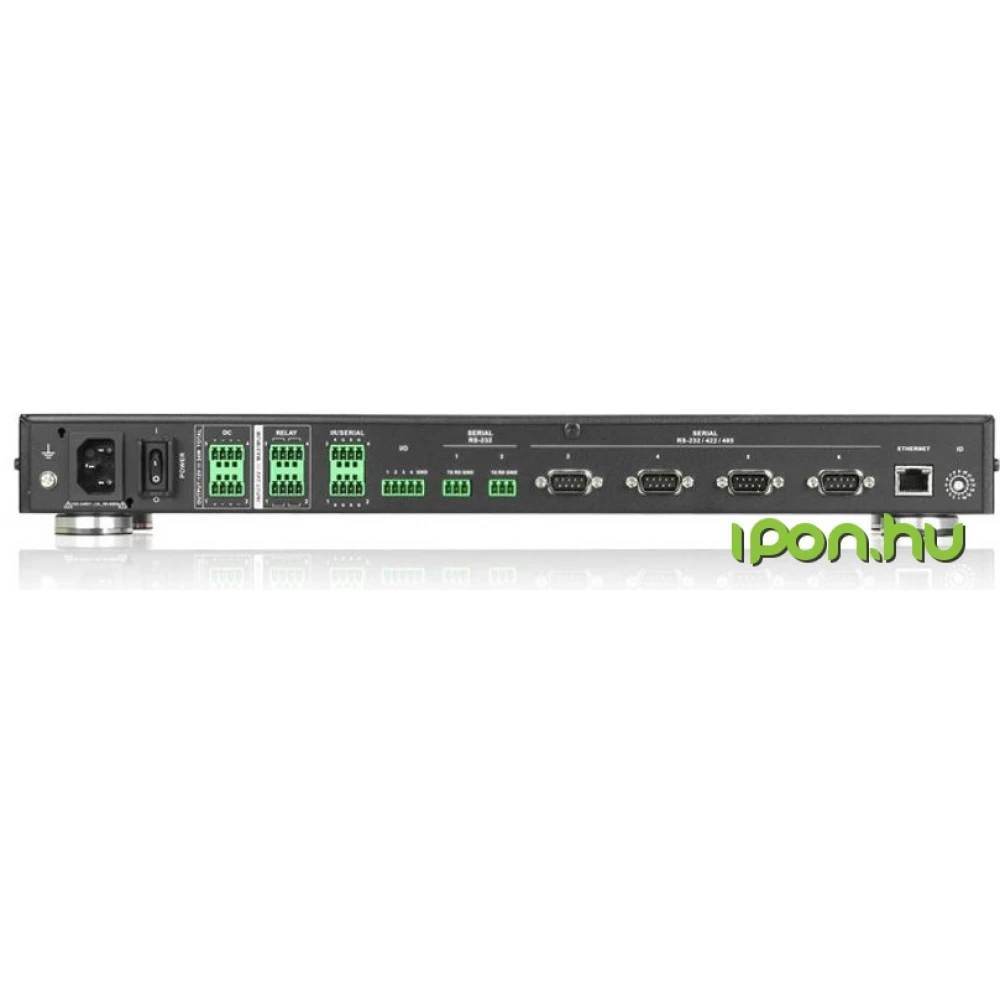

VK2100 (Hardware Controller)

- Support for different interfaces such as:
- 6 x Serial ports;
- 4 x IR/Serial ports;
- 4 x Relay channels;
- 4 x I/O channels;
- 1 x Ethernet port

- 4 x DC output for power supply
- 1 x USB port for convenient profile uploading
- IR Learning function for managing various IR devices
- Simple setting on the web interface
- LED status indicator
- SSH tool for monitoring input and output signals
- Rack mountable

VK6000 (Configurator Software)
- Simple profile setting in 4 steps using an intuitive user interface
- Customizable graphic interface and control functions for iPad
- Built-in ATEN Library with 10,000+ device controls and full ATEN VanCryst product line support
- Telnet and PJLink protocol support

ATEN Control System App
- Easily control multiple rooms with different profiles using a single iPad
- Import profiles from VK2100
- Limited profile access and password authentication
- Synchronization of system control between several iPads
