Small space -demand, double conversion online power protection device scalable with bridging time.

- Capacity: 2700 W/3000 VA
- Nominal output voltage: 230 V
- Output voltage Note: Configurable 220 V, 230 V, or 240 V to Nominal Output Voltage
- Output voltage distortion: less than 2%
- Output frequency (synchronized with main power supply): 50/60 Hz +/3 Hz
- Other output voltages: 220 V, 240 V
- Maximum load factor: 3: 1
- Topology: online double conversion
- Type of waveform: sinus wave

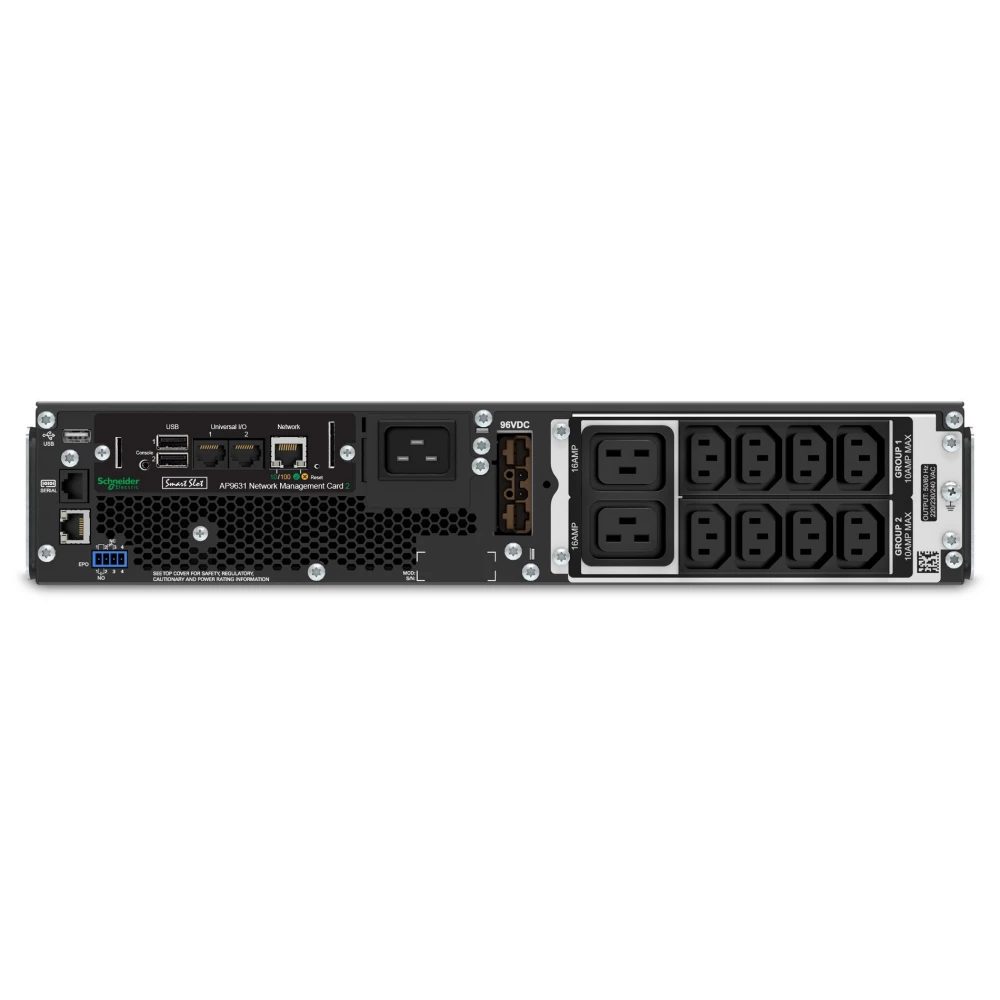

- Output connections: 8 IEC 320 C13 (battery spare), 2 pieces IEC 320 C19 (battery spare), 2 pieces of IEC Jumpers (battery spare)
- Bypass: internal bypass (automatic and manual)
- Nominal input voltage: 230 V
- Input frequency: 40 V ~ 70 Hz (Automatic Detection)
-Type of input connection: British BS1363a, IEC-320 C20, Schuko CEE 7/EU1-16p
- Cable length: 2.44 meters
- Input voltage range for main operations: 160 V ~ 275 V
- Bemeneti feszültség beállítási tartomány a fő műveletekre: 100 V ~ 275 V (fél töltés)
- Number of power cables: 1 piece
- Other input voltages: 220 V, 240 V
- Battery Type: Stamped, non-maintenance-free lead-acid battery with suspended electrolytes: Leak-free
- pre -installed batteries: 1 piece
- Typical recharge time: 3 hours
- Nominal battery voltage: 96 V
- Replacement battery: APCRBC152
- Expected battery life: 3-5 years
- Number of replacement batteries: 1 piece
- extendable running time: 1
-Battery capacity was expressed in amp hours: 505
-Interface Port: RJ-45 10/100 BASE, RJ-45 Serial, Smart Slot, USB
- Pre -installed SmartSlot Cards: AP9631

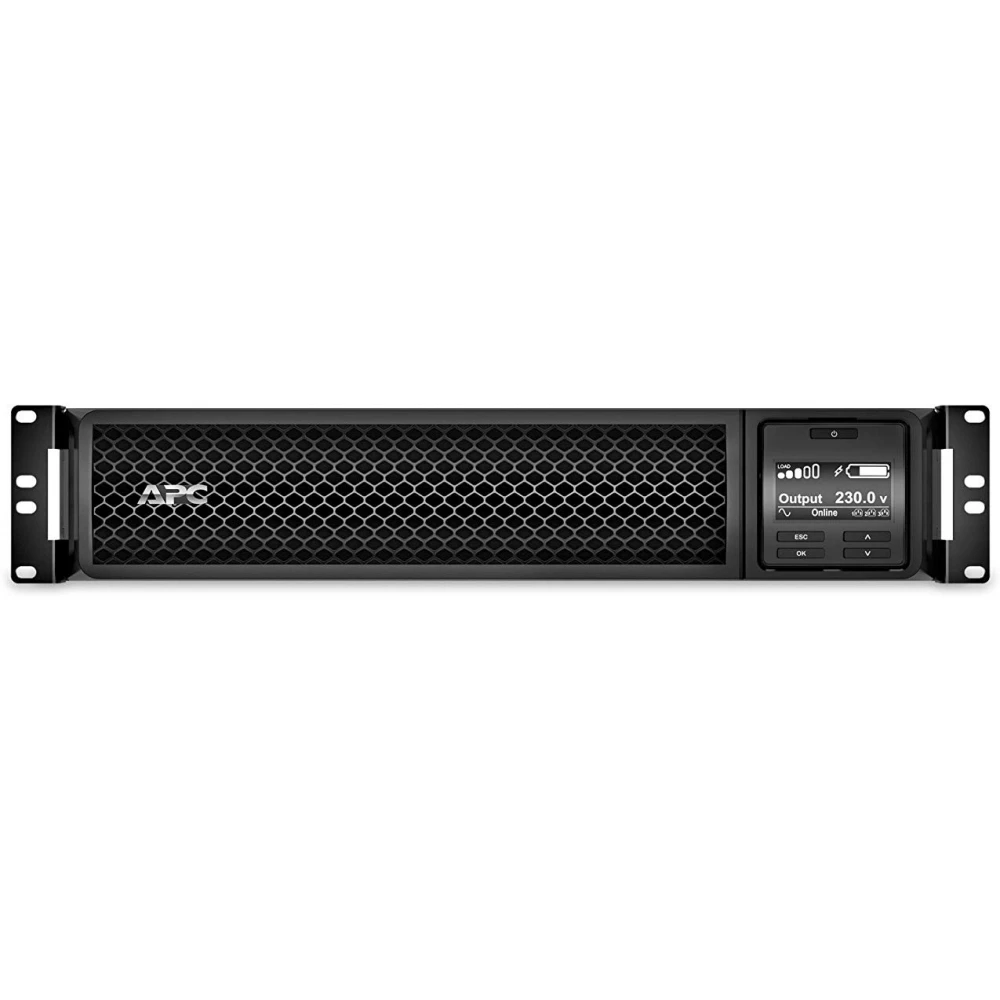

- Control panel: Multifunction Liquid Crystal Display (LCD) with Status Signals and Controller Function
- Alarm Functions: Alarms with Sound and Light Signs, Ranking
- Emergency Flow off (EPO)
- Classification of Energy Energy: 340 J
- Size: 85 mm x 432 mm x 635 mm
- Rack height: 2u
- Mass: 31.3 kg
- Color: black
- Operating temperature: 0 ° C ~ 40 ° C
- Operating humidity: 0% ~ 95%
- Storage temperature: -15 ° C ~ +45 ° C
- Storage humidity: 0% ~ 95%
- audible noise from the unit surface 1 meter: 55.0 dba
- Protection class: IP20
