- Output power capacity: 500 W/750 VA
- Nominal output voltage: 230 V
- Output voltage Note: Configurable 220 V, 230 V, or 240 V to Nominal Output Voltage
- Output voltage distortion: Less than 5%
- Output frequency (synchronized with main power supply): 50/60 Hz +/3 Hz
- Other output voltages: 220 V, 240 V
- Topology: line interactive
- Type of waveform: sinus wave

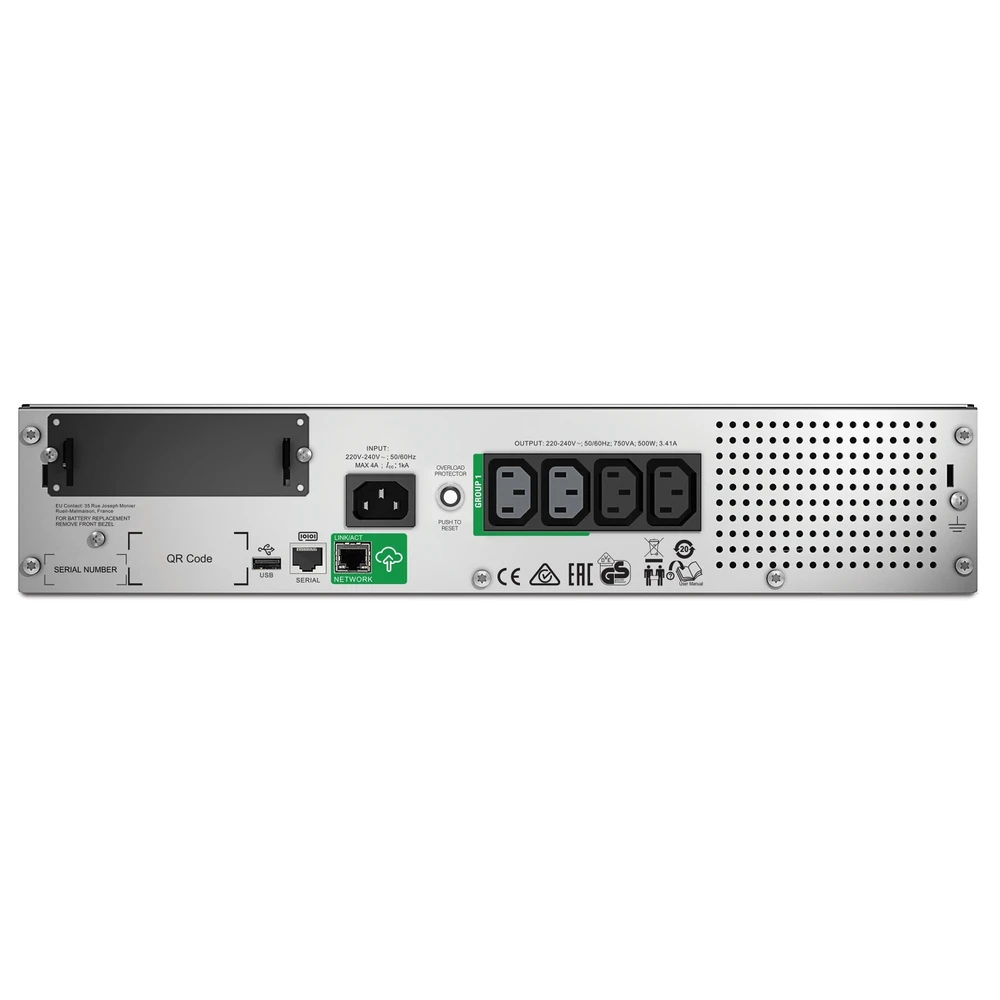

- Output connections: 2 pieces IEC Jumpers (battery spare), 4 pieces IEC 320 C13 (battery spare)
- Transfer time: 6 ms typical, 10 ms maximum
- Nominal input voltage: 230 V
- Input frequency: 50/60 Hz +/3 Hz (automatic detection)
- Type of input connection: IEC-320 C14
- Input voltage range for main operations: 160 V ~ 286 V
- Input voltage setting range for main operations: 151 V ~ 302 V
- Number of power cables: 1 piece
- Other input voltages: 220 V, 240 V
- Battery Type: Stamped, non-maintenance-free lead-acid battery with suspended electrolytes: Leak-free
- Typical recharge time: 3 hours
- Replacement battery: APCRBC123
-Expected battery life: 4-6 years
- Number of replacement batteries: 1 piece
- Interface Port: RJ-45 Smartslot, USB
- Control panel: Multifunction Liquid Crystal Display (LCD) with Status Signals and Controller Function
- Alarm Functions: Alarm When switching to battery, distinctive battery discharge is alarm, configurable delays
- Emergency Flow off (EPO): Optional
- SmartSlot Interface Quantity: 1 piece
- Survival Energy Qualification: 459 J
- Filter: Full -time multi -pole noise filtration, 0.3% IEEE overvoltage transfer, zero closing time, corresponds to UL 1449
- Size: 86 mm x 432 mm x 409 mm
- Mass: 17.27 kg
- Color: black
- Operating temperature: 0 ° C ~ 40 ° C
- Operating humidity: 0% ~ 95%
- Storage temperature: -15 ° C ~ +45 ° C
- Storage humidity: 0% ~ 95%
- audible noise from the unit surface 1 meter: 42.0 dba
