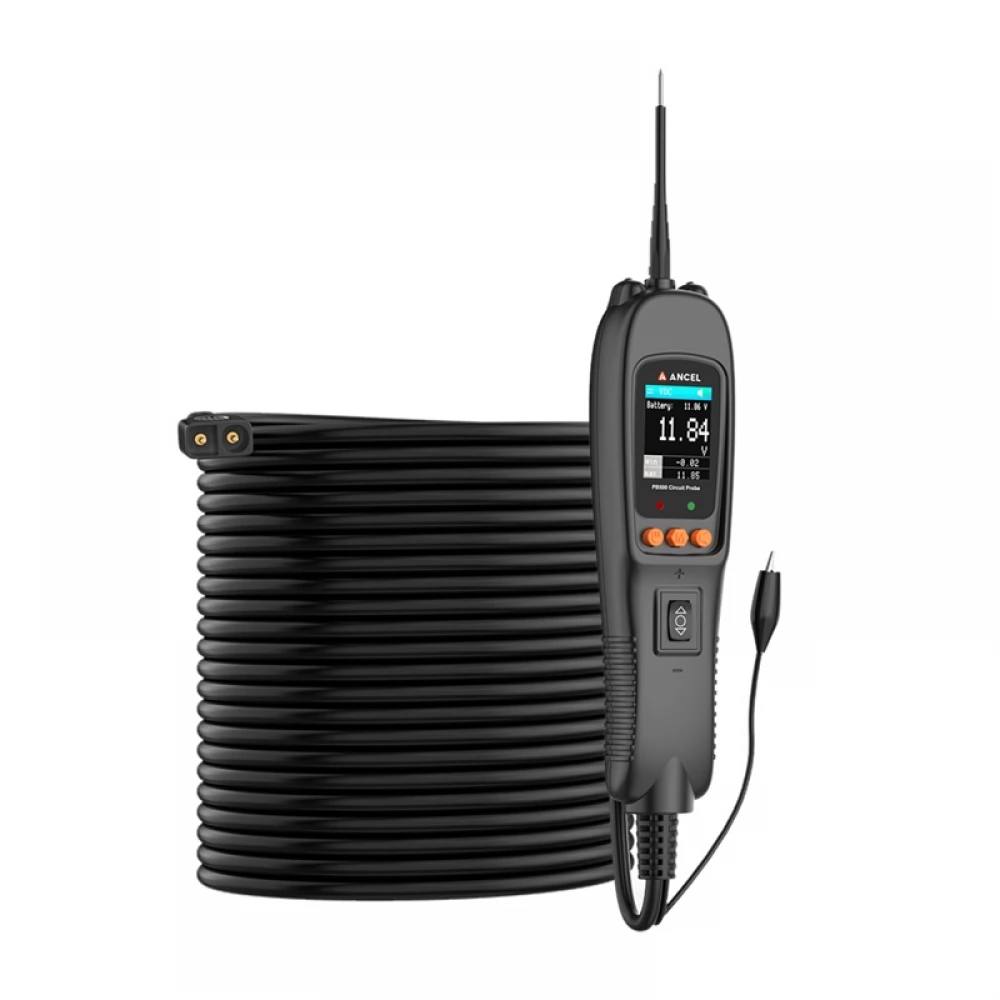

ANCEL PB500 Circuit Tester

The Ancel PB500 is a compact circuit tester for 12-24 V applications. It offers 7 diagnostic modes including AC/DC voltage measurement, resistance and diode test, frequency, work cycle and injection tract tests. The colored TFT display allows real -time parameter analysis and faster error calzation.

Universal operating tension

The Ancel PB500 circuit tester operates in a voltage range of 12 to 24 volts, making it suitable for cars, trucks, motorcycles or ships. The device supporting basic voltage and resistance measurements quickly detects short circuits, circuit interruptions and incorrect earthing, accelerating the definition of the problem without being dismantled.

7 diagnostic mode

The device offers a range of basic measurement functions - equation and alternating voltage, resistance, diodes, frequency, plant cycle and injector circuit test. This combination makes the tester suitable for serving as a basic multimeter, which function is a quick detection of the irregularities of the vehicle's electrical systems.

Comfortable operation and easy -to -read screen

The display shows the most important parameters in real time, allowing accurate measurement without further analyzer. The handling of the device is reduced to some physical buttons, so it is easy to use in even heavier workshops.

Built -in security features

The Ancel PB500 has overload protection, which protects both the tester and the electrical system from the effects of incorrect connections. In addition, LED light on the tip of the probe makes work easier in the dark, so you can find wires in hard-to-reach places.

- Model PB500
- Display TFT color display (160 × 128 dpi)
- operating temperature between -10 ° C and 60 ° C
- Dimensions 200 × 52 × 39 mm
- Weight 0.48 kg
- Power voltage 8 V DC current 30 V DC
-AC/DC voltage measurement from -110 V to +110 V
- Frequency measurement 0 Hz 1 MHz
- Operating time is 0.0% 100.0%
-Injector test voltage 0-180 V, time 0-25 ms
- Resistance measurement 0 1 mω
- diodate test germanium and silicon diodes
- Nominal current 1 a 8 a
