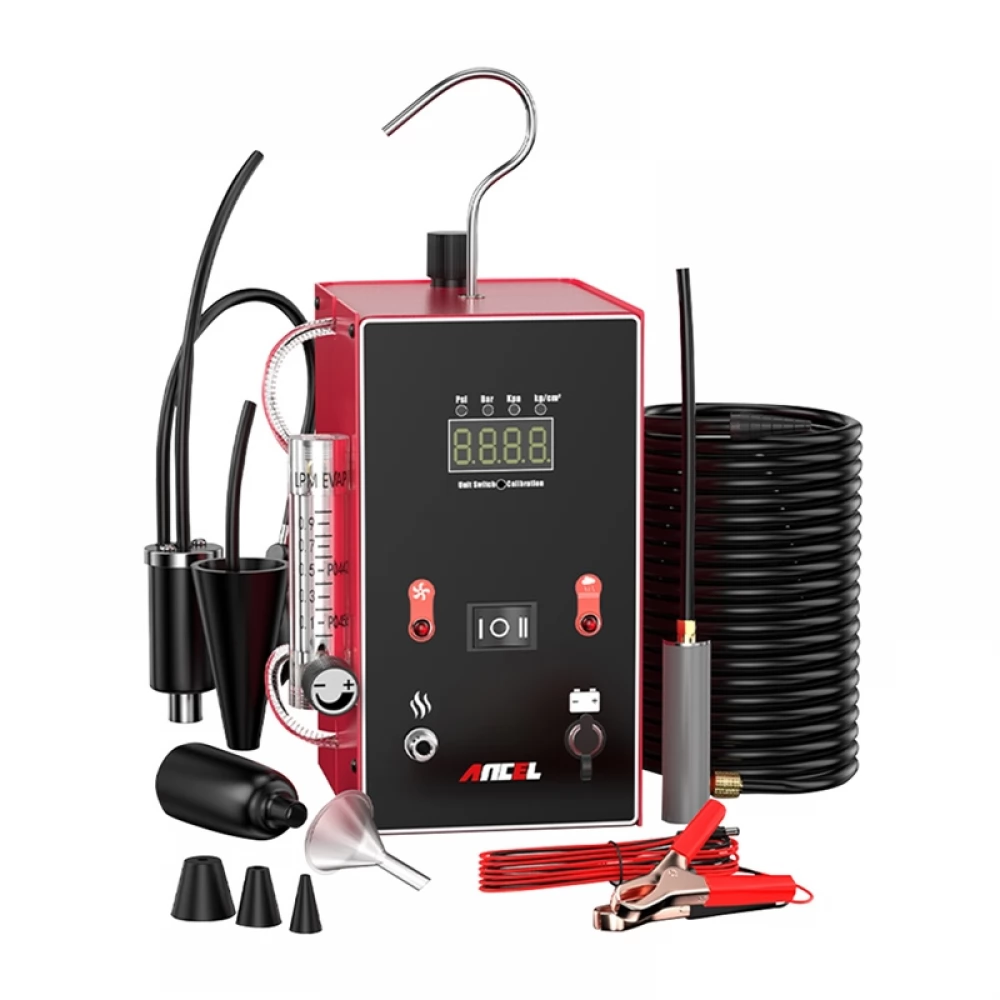

The Ancel L300 is a dual -function leak detector that combines air and smoke mode in a single compact device. The device supports the study of suction, fuel, evap, exhaust, refrigerator, crank, turbocharged and passenger compartment leakage systems. It has a digital pressure gauge, a built -in air pump and temperature protection, allowing a quick and secure diagnosis in a wide range of applications.

2 mode

The device is equipped with independent switches to activate air and smoke modes, so the diagnostic method can be adjusted to the system underlying without rebuilding connections or configurations. Separate control of the pump and generator facilitates accurate testing.

High -performance smoke generator

The built-in system produces smoke in 6-8 l/min, allowing the system to quickly fill the system and to make the leak point visible. The test can be started by enema 20 ml of test oil. The smoke is dense and stable, so it can be easily observed even in microsens.

Digital pressure indicator

The digital pressure indicator with variable units (PSI, BAR, KPA, KG/cm²) is located at the beginning of the case. Accurate reading facilitates the tracking of power and allows a clear evaluation of the pressure drop during the test, which indicates leaks.

Adjustable smoke current

The Ancel L300 has a diagnostic leak detector with a built -in flow meter with an alignment button. You can accurately adjust the flow rate to the characteristics of the system tested. Constant flow indicates a leak, while the decrease in flow indicates the size of the leak.

Protection against overheating and freezing

The built -in protection system protects the device from damage. Overheating protection stops the device at 75 ° C, and frost protection allows you at -20 ° C. Thanks to the built -in air pump, the device does not require an external compressor.

Simple liquid control

You can use the oil level indicator on the side of the house to check at any time to see if there is enough liquid in the chamber. This facilitates the preparation of the device for operation and prevents damage to the lack of test oil.

- Model L300
- Power supply 12 V (Fully Filled Vehicle Kumulator)
- consumed electricity 6 a
- flow rate
