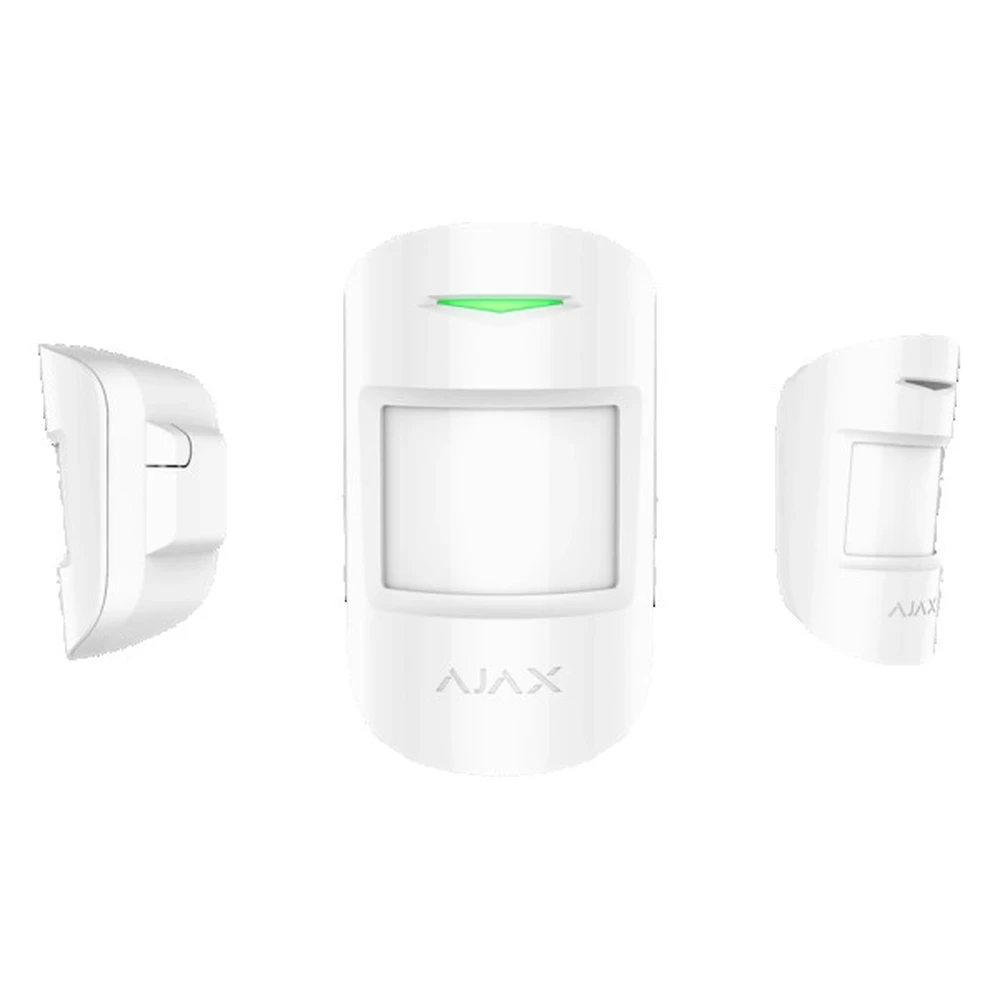

PIR sensor with pet protection

Ajax MotionProtect detects the very first step of an intruder, but also ignores pets, drafts and air movements generated by the air conditioner.

Maximum performance
It can operate up to 1,700 meters away from the Ajax Hub in a large open area or in multi-story facilities.
Detection range of up to 12 meters.
You sense the intrusion from the very first step.
Digital signal processing.

Intrusion and error protection
Use authentication to prevent unauthorized access.
Tamper-resistant housing.
System pinging can be adjusted periodically (12-300 seconds).
Interference detection, frequency jump.
Use an encrypted connection.

Easy operation
Adjustable sensitivity level.
Using the SmartDetect algorithm eliminates false alarms generated by animals weighing less than 20 kg.
Using the FresnelTech optical component made of POLY IR4 material and the Excelitas PIR sensor, it filters out false alarms caused by other devices and electromagnetic interference.
With the help of digital temperature compensation, it stands its ground in almost any environment.
Two-way communication enables regular testing and easy customization.
The battery life can be up to 7 years.

Professional installation, made easy

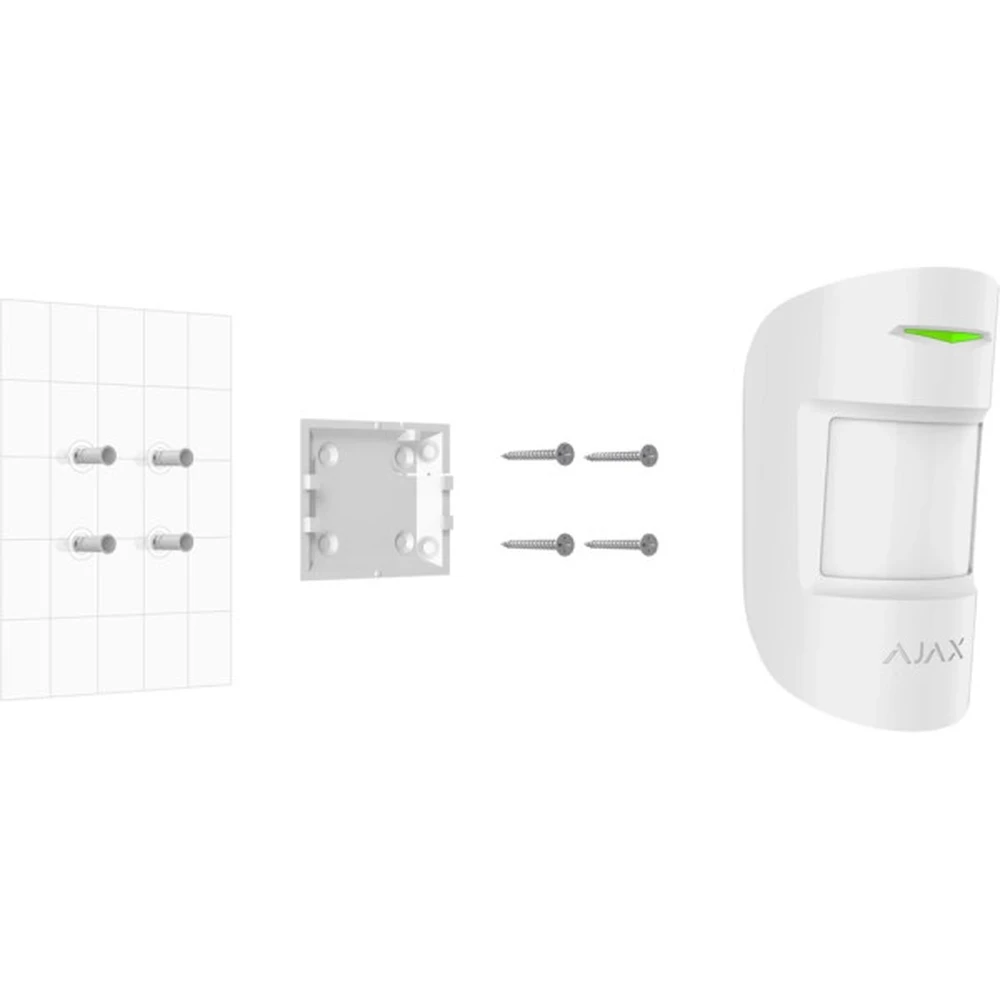

The device can be installed quickly and easily using the SmartBracket holder.
The quality of the connection and the detection area can be tested remotely.
You can connect to the Ajax Hub with a single button press.
It can also be used with systems from other manufacturers using the uartBridge and ocBridge Plus modules.

Technical specifications
- Sensor type: wireless
- Use: indoor
- Motion detection range: up to 12m
- Sensitivity: adjustable in 3 levels (low, medium, high)
- Detection angle: 88.5° (horizontal), 80° (vertical)
- Recommended installation height: 2.4m
- Pet protection option: weight up to 20kg, height up to 50cm
- Tamper protection: Available
- Radio signal power: 20mW
- Communication protocol: Jeweler (868.0-868.6MHz)
- Maximum distance between the sensor and the central unit: up to 1700m (in an open area)
- Power supply: CR123A battery
- Supply voltage: 3V
- Battery life: up to 7 years
- Operating temperature range: from 0°C to + 50°C
- Ambient humidity: up to 80%
- Dimensions: 110x65x50mm
