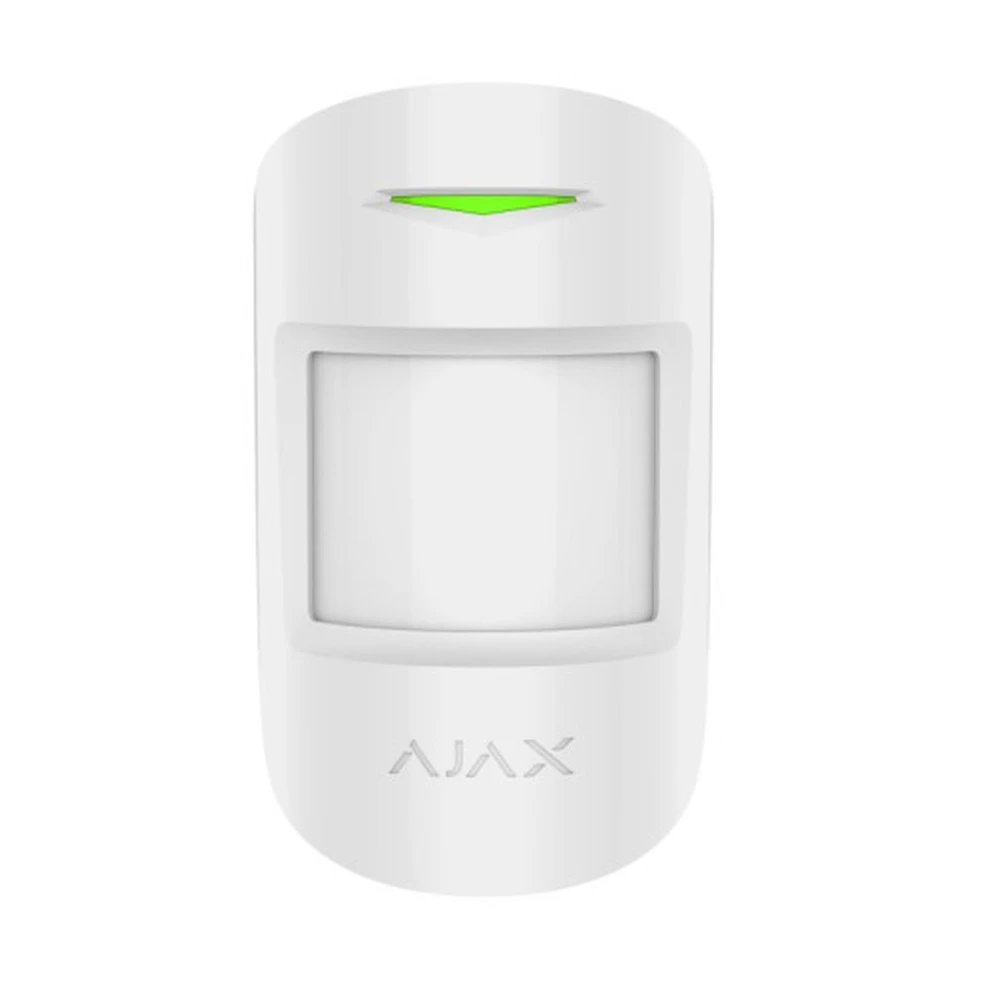

Glass break sensor combined with motion sensor with pet protection

Ajax MotionProtect detects the very first step of an intruder, but ignores pets, drafts and
also the air movements generated by the air conditioner.

Maximum performance
It can operate up to 1,200 meters away from the Ajax Hub in a large open area or in multi-story facilities.
Motion detection from a distance of up to 12 meters.
Detection of glass breakage from a distance of up to 9 meters.
You sense the intrusion from the very first step.
Digital signal processing.

Intrusion and error protection
Use authentication to prevent unauthorized access.
Tamper-resistant housing.
System pinging can be adjusted periodically (12-300 seconds).
Interference detection, use of encrypted communication channels, authentication.

Clean operation
Adjustable sensitivity level.
Using the SmartDetect algorithm eliminates false alarms for animals weighing less than 20 kg.
Using the FresnelTech optical component made of POLY IR4 material and the Excelitas PIR sensor, it filters out false alarms caused by other devices and electromagnetic interference.
Digital temperature compensation.
Two-level glass break detection with low and high frequency to filter out false alarms.
Two-way communication enables regular testing and easy customization.
The battery life can be up to 5 years.

Professional installation, made easy
The device can be installed quickly and easily using the SmartBracket holder.
The quality of the connection and the detection area can be tested remotely.
You can connect to the Ajax Hub with a single button press.
It can also be used with systems from other manufacturers using the uartBridge and ocBridge Plus modules.

Technical specifications
- Sensor type: wireless
- Use: indoor
- Motion detection range: up to 12 m
- Motion and glass break sensitivity: adjustable in 3 levels (low, medium, high)
- Detection angle: 88.5° horizontal/ 80° vertical
- Recommended installation height: 2.4 m
- Pet protection option: weight up to 20kg, height up to 50cm
- Glass break detection range: up to 9 m
- Tamper protection: yes
- Radio signal power: 20mW
- Communication protocol: Jeweler (868.0-868.6MHz)
- Maximum distance between the sensor and the central unit: up to 1200 m (in an open area)
- Power supply: CR123A battery
- Supply voltage: 3V
- Battery life: up to 5 years
- Operating temperature range: from 0°C to + 50°C
- Ambient humidity: up to 80%
- Dimensions: 110x65x50mm
