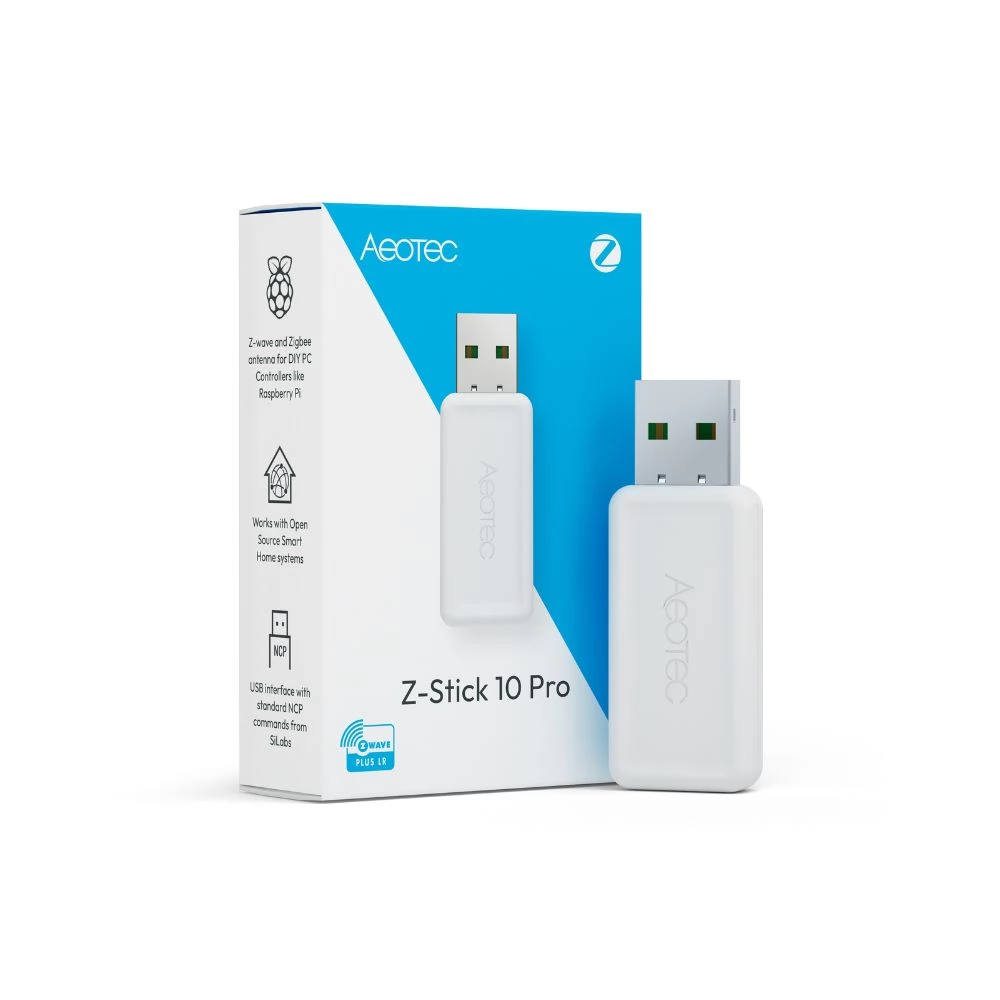

Aeotec Z-Stick 10 Pro is an advanced USB smart home adapter that combines the Z-Wave 800 and Zigbee 3.0 protocols in a single device. It allows you to design your own smart home center with open source platforms such as Home Assistant.

Main product features

-2 In 1 Smart Home Adapter supports both the Z-Wave 800 and the Zigbee 3.0 protocol, so that various smart devices can be easily integrated and controlled using a single adapter.
- Local control, cloudless operation Tool control works faster response time without internet connection, more reliability and increased data security.
- Compact design The thin adapter is barely located and easily fits with other USB devices.
- Widespread compatibility is compatible with Home Assistant, Zigbee2MQTT, Openhab and other open source platforms.
- Raspberry Pi, Windows, Linux Compatibility
- Advanced technology is equipped with the latest Silicon Labs technology, providing excellent performance and reliable connection.

Smart home protocols and platform compatibility

- Z-Wave chip: EFR32ZG23
- Zigbee chip: EFR32MG21
-Supported protocols: Z-Wave 800 (Z-Wave Plus, Z-Wave Long Range), Zigbee 3.0
- Z-Wave 800: The new generation in smart home automation!
- The new Z-Wave 800 chip (EFR32ZG23) offers increased range, energy efficiency and safety for ideal modern home-automation solutions.
- With an indoor wireless range of up to 100 meters and improved network stability, this new standard provides reliable communication between your smart home devices.
- High efficiency communication with EFR32ZG23 SOC (Silicon Labs) chip
- Frequency band: 868.4 MHz (Europe)
- Data transfer speed: up to 100 kbit/s
- Advanced AES-128 encryption for maximum safety
- optimized energy consumption for longer battery life for sensors
- Increased network capacity: Support up to 4,000 devices on LR network
-Back-compatible with existing Z-Wave devices (Z-Wave Plus and more)

Z-Wave Long Range (LR)

- Larger range and more flexibility!
- Z-Wave Long Range (LR) technology is significantly increased by wireless range:
- up to 1.5 km wireless range is ideal for larger buildings or outdoor areas
- No Mesh Network Direct Point-Point Communication with Central Unit
-Support up to 4,000 devices per network (as opposed to classic Z-Wave 232)
- lower energy consumption for sensors that work from a perfect element

- Local remote control: Direct control through USB connection
- Factory platform: does not use a specific factory platform; compatible with open source systems
- Cloudy platform integrations: not necessary; Local control is supported
- Third -party compatibility with platforms: Home Assistant, Zigbee2MQTT, Openhab
- Integration options: Z-Wave Serial API, EZSP (Zigbee)
- Compatibility with other systems: compatible with Windows, Linux and MacOS systems, as well as Raspberry Pi 3 and more versions

Smart features

- Integration of devices allows you to add and manage z-wave and zigbee devices
- Automation supports the creation of automation rules through compatible platforms
- Local control works without an internet connection, ensuring fast and reliable operation
- Safe operation supports the Z-Wave S2 security protocol

Other features

- Dimensions: 49 x 17 x 7 mm
- Operating temperature: 0 ° C 40 ° C
- Operating humidity: 8% 80%
- Range: Z-Wave: Up to 150 m outdoor, Zigbee: Up to 200 m on open field

Description:

- Manufacturer: Aeotec
- Factory article number: ZWA060-C
- Color: white
- Plug & Play Installation: Yes

Operation / Operation

- IP protection: IP20

Supported protocols

- Ethernet / wired network (RJ-45): No
- Wi-Fi: No
- Zigbee: Yes
- Thread: No
- Z-Wave: Yes
- RF / Radio Control: No
- Bluetooth: No

Remote control, smart control

- You can be controlled from the internet from a distance: Yes
- Cloudy (Cloud) mode (with factory firmware): No
- Local network mode (with factory firmware): Yes

Other

- Communication protocols: Z-Wave, Zigbee
- Size: 5 x 18 x 35 mm
- Main category: hub
- Dimensions: 1.7 × 0.85 × 3.7 cm
