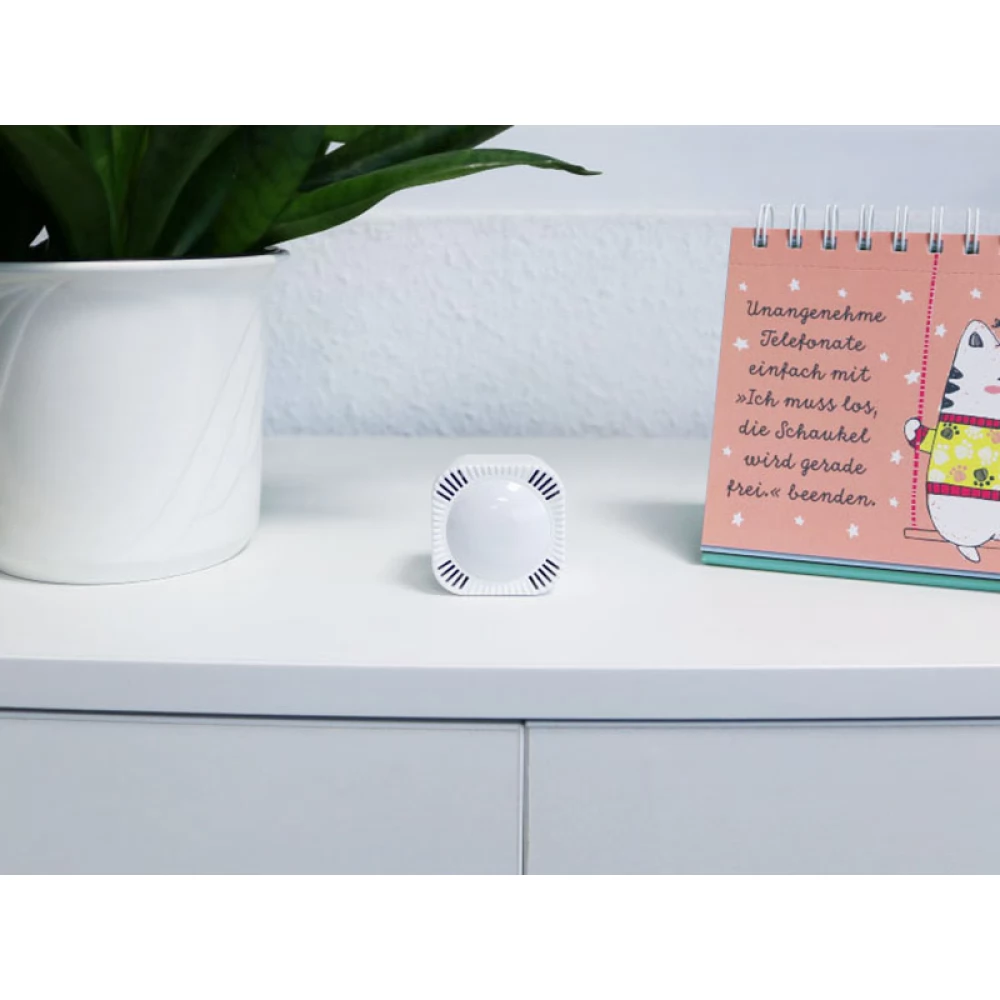

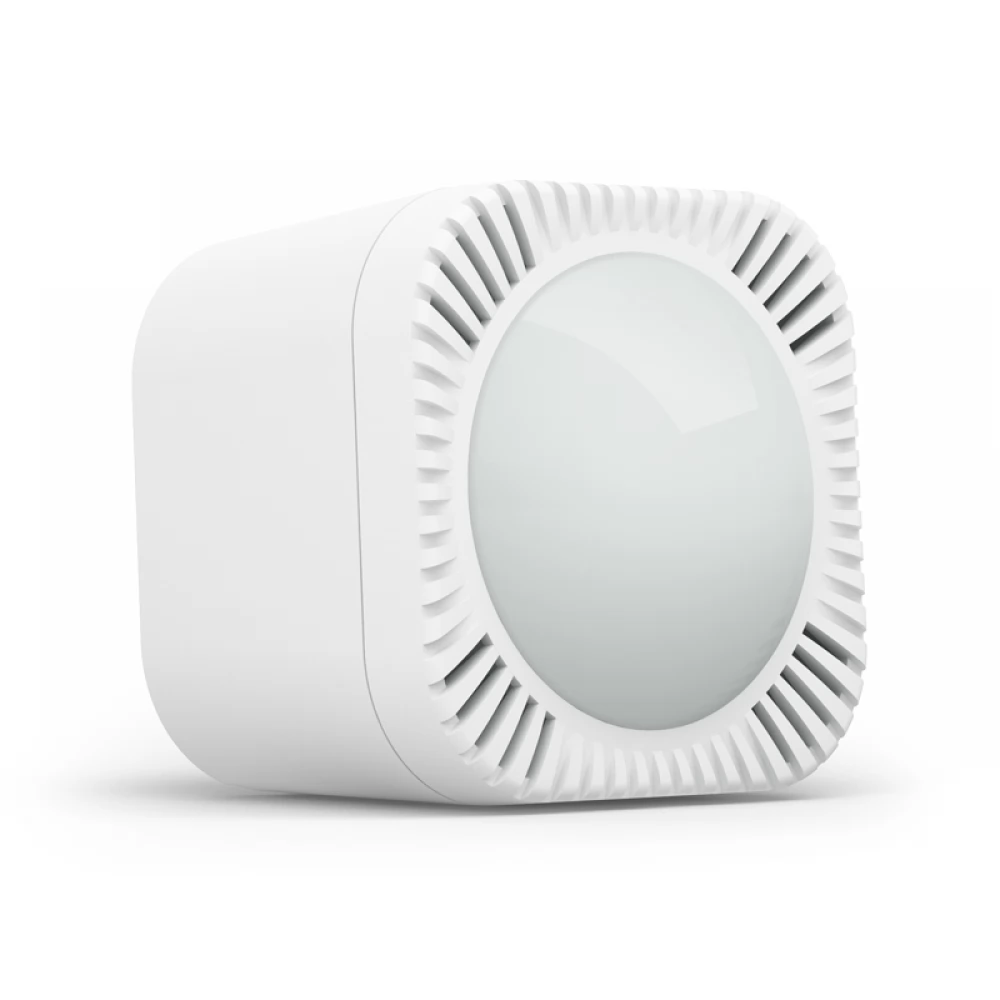

AEOTEC TriSensor 8 Z-Wave

Aeotec TriSensor 8 provides the most important data related to your smart home system, as it contains 3 different sensors. The motion sensor monitors movements in the rooms, the heat sensor transmits information to control heating and cooling, and the light meter helps with lighting control.

It is only 60 mm deep and weighs only 50 grams. This means that it can be placed almost anywhere in your home. TriSensor offers 4 different installation options: in the corner, on the shelf, on the beam or in a plasterboard wall or ceiling (using the Aeotec Recessor).

Motion sensor
The sensor monitors a distance of up to 7.5 m. It can also be set and calibrated, e.g. to avoid false alarms due to pets.

Temperature
The thermometer can measure temperatures between -10°C and +50°C. The temperature value can then be used for heating and cooling equipment. The Aeotec TriSensor can also directly control a connected device if the temperature exceeds the set level (e.g. air conditioner, boiler).

Light
Measure the light intensity between 0-30000 lux and automate the lighting of the room depending on the sunlight!

Specifications
- Power supply: 1×CR123A battery/battery
- Operating temperature: up to -10-40°C
- IP protection: IP20
- Temperature measurement: up to -10-50°C (±0.5°C)
- Light intensity: 0–30000 lux
- Motion detection: up to 7.5 meters
- Communication: Z-Wave 800
- Maximum range: 150 meters outside the building
- Dimensions: 45×45×60 mm
