Description:


- projection system: DLP ™
- Light source: LED RGB
- Native resolution: 3840 x 2160
- Maximum resolution: 3840 x 2160
- brightness: 1000 lm (standard), 800 lm (ECO), (corresponds to ISO 21118)
- Image ratio: 16: 9 (native), 4: 3 (supported)
- Contrast ratio: 8 000: 1
- Screenshot: 55 inches (139.7 cm) ~ 7.62 m (300 inches)
- Image width/projection distance ratio: 1.5 - 1.65 (2540 mm @ 3300 mm)
- magnification ratio: 1.1x
- Digital zoom: 2x
- lens: f = f/2.0 ~ f/2.05, f = 15.84 mm ~ 17.44 mm, manual zoom, manual focus
- projection shift (half -height): 110%
- projection mode: front, back, front, ceiling, back
- Color display: 1.07 billion
- vertical synchronization rate: 24 ~ 240 Hz
- horizontal synchronization rate: 15-135 kHz

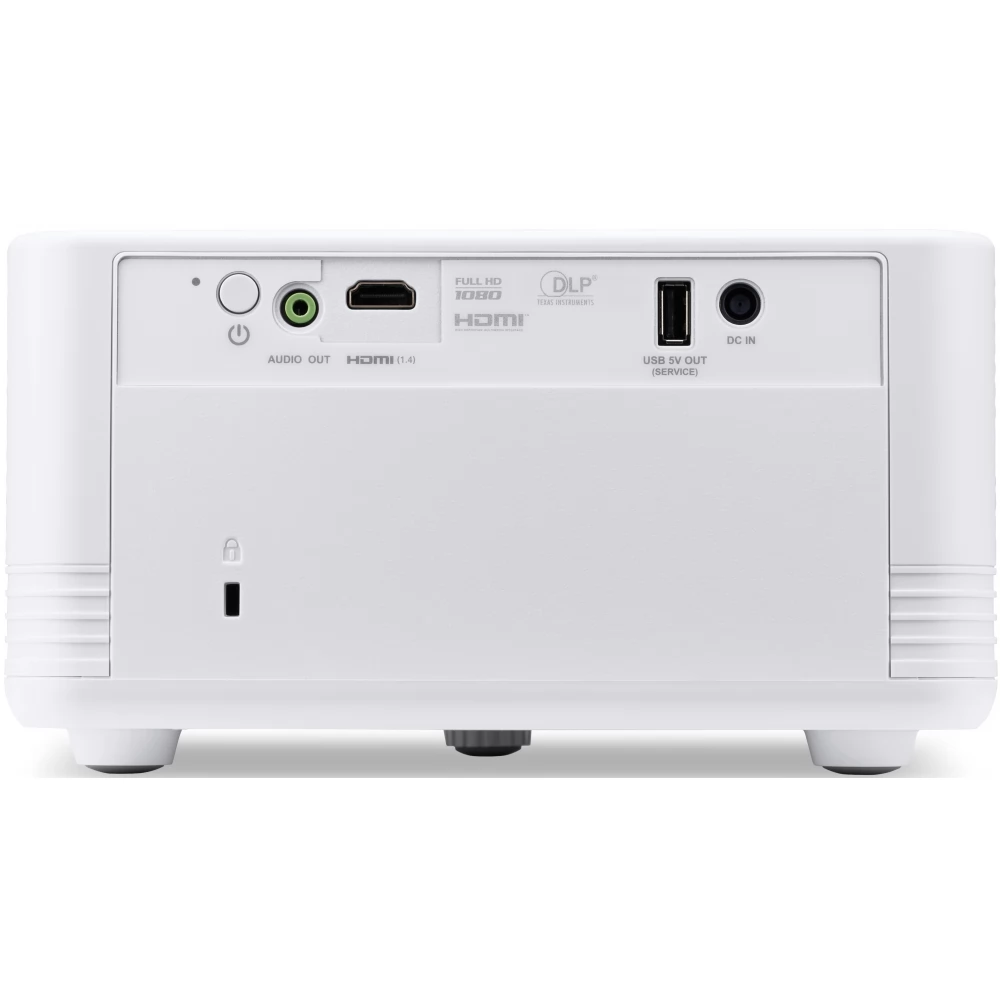

Interfaces / connections

- HDMI: HDMI 2.0 (HDCP 2.2) x 1
- Audio output: X1, 3.5 mm Mini Jack
- S/pdif
- Speaker: X1.5 W speaker

Power supply

- Power Consumption: 87 W (Standard), 62.5 W (ECO), 0.5 W (Standby)

Dimensions / weight / color

- Installation: Ceiling assembly
- Dimensions (sz x m x today): 238 mm x 215.40 mm x 127.40 mm
- Weight: 2.4 kg

Other

- Standard accessories: PD1800 DLP projector, power cord, battery for remote control, lens protector, fast commissioning instructions, remote control, carrier, EMEA warranty
