Specifications: 4U-450 rackmount server house, 19 “IPC server computer house

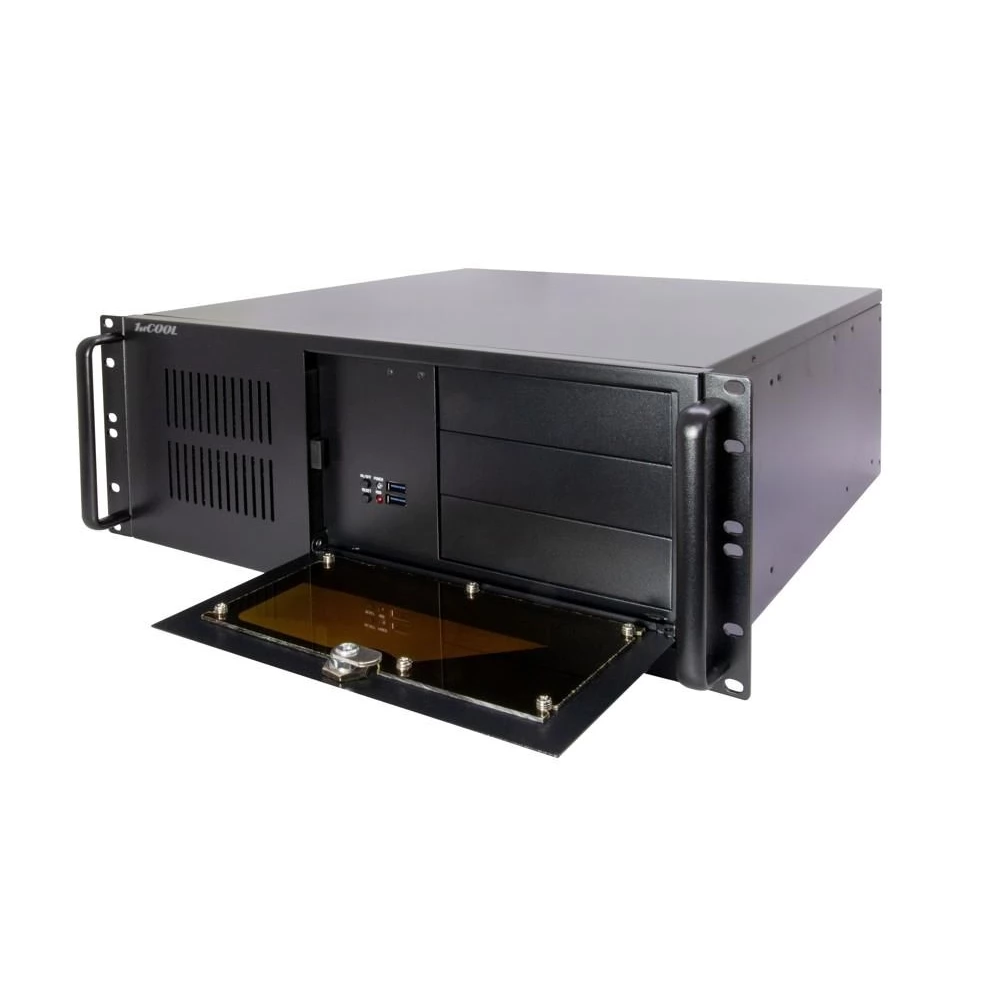

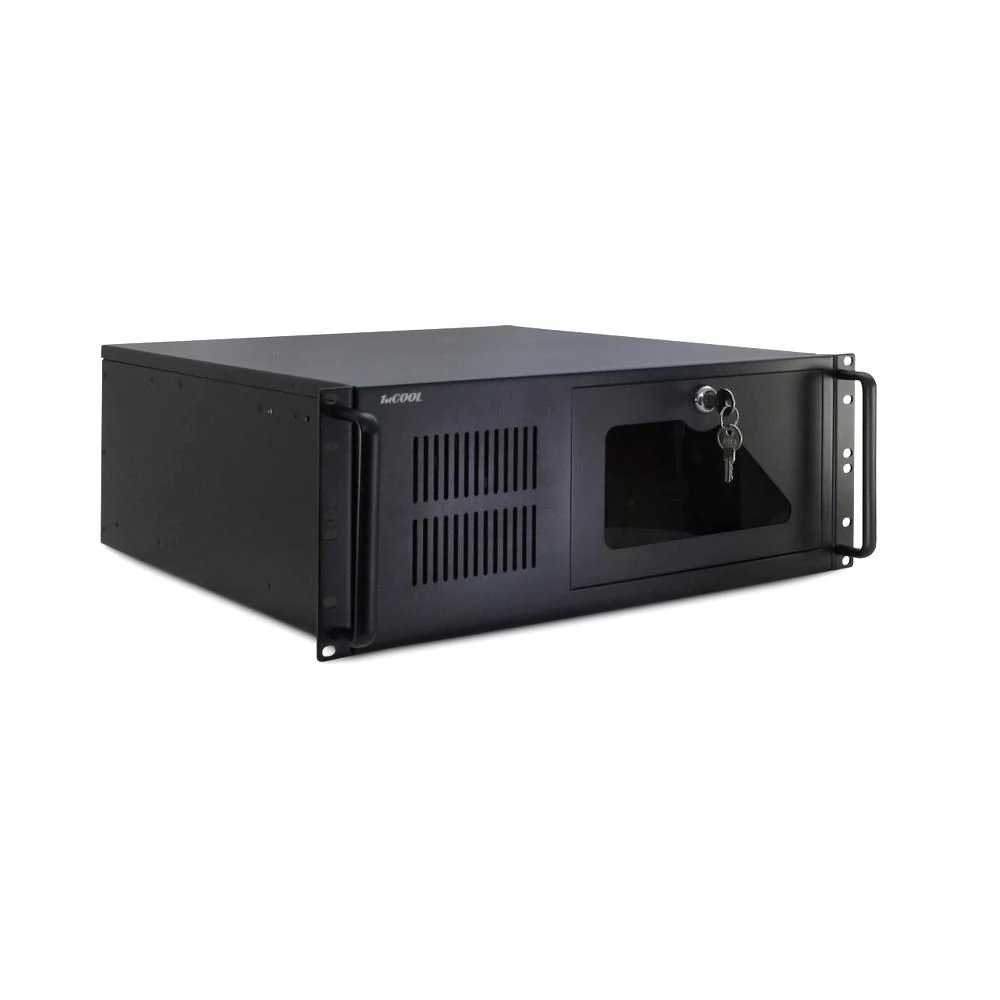

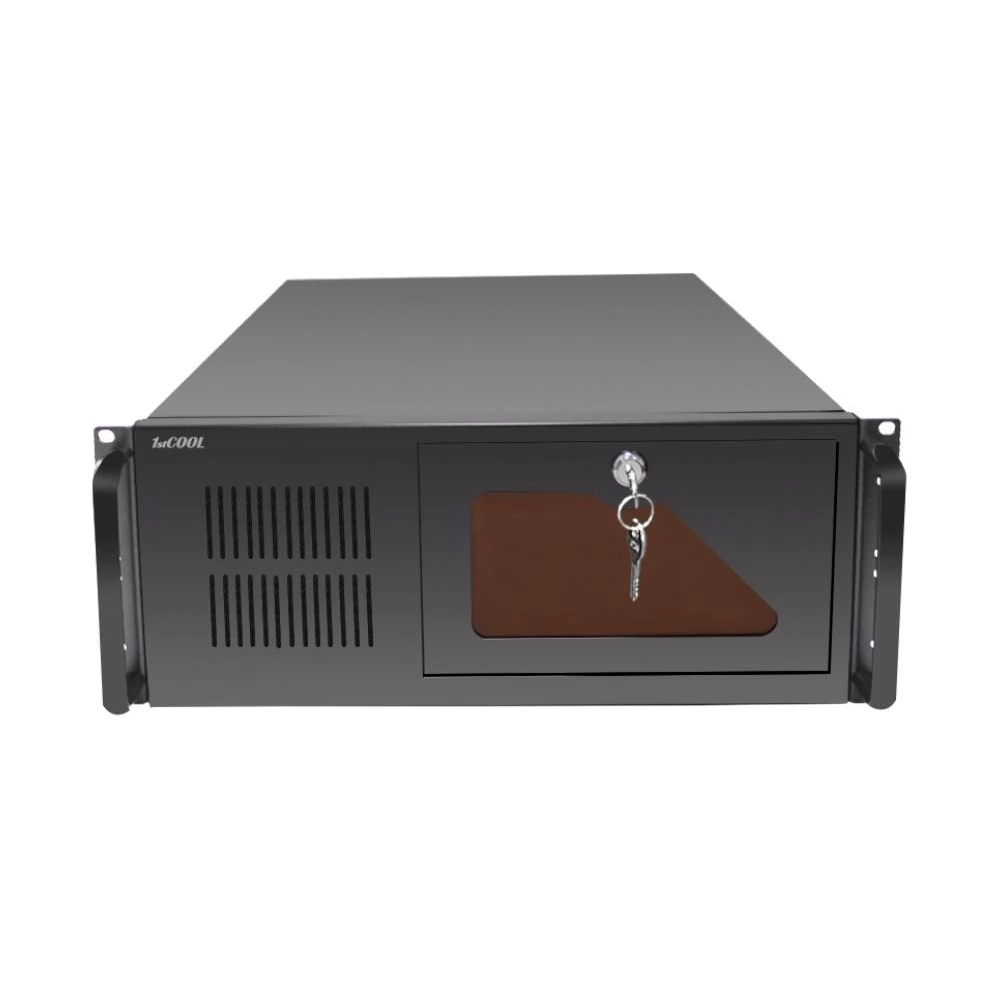

The IPC 4U-450 is a high-quality server cabinet designed for installation in a 19 "rack cabinet. The cabinet is made of 1.2 mm thick steel sheet, which is rare nowadays. The front is covered with a hinged, lockable metal plate door.

The front panel has two USB 3.0 port connectors behind the door (there is a branch on the USB cable leading to the motherboard, which allows the older USB 2.0 motherboards). In addition, you will find LED displays on/off for on/off, hard drive, and on/off/sleep mode and reset buttons.

On the outside of the house, the bottom of the lid and the frame is painted black, which eliminates the rows and protects the hands during assembly, while the inner, HDD and ODD holders do not ensure that the components are perfectly conducted. The positions of hard drives and CD/DVD drives can be removed, which facilitates their assembly.

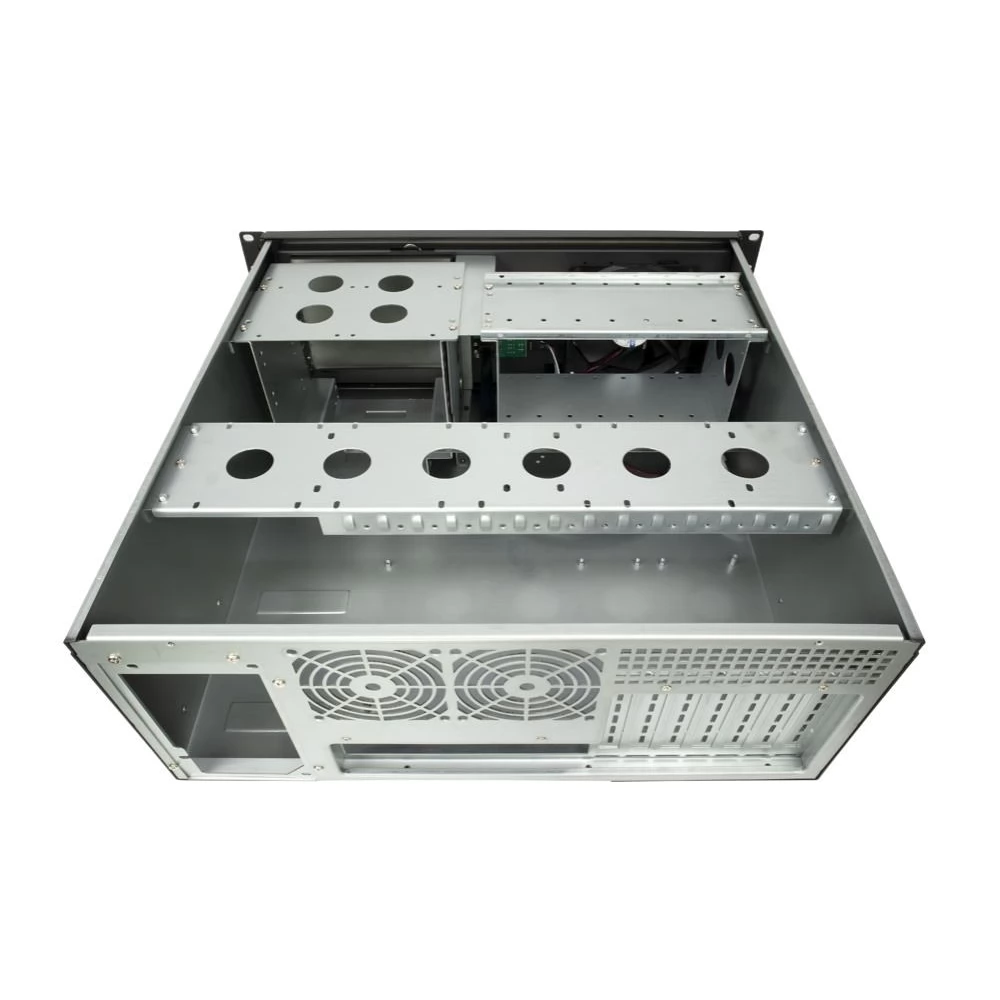

There are 3 5.25 "compartments for drives, panels, etc., and 8 3.5" and 7 2.5 "compartments for HDDs and SSDs. All widespread ATX motherboard can be installed from ITX, Micro ATX to Full ATX.

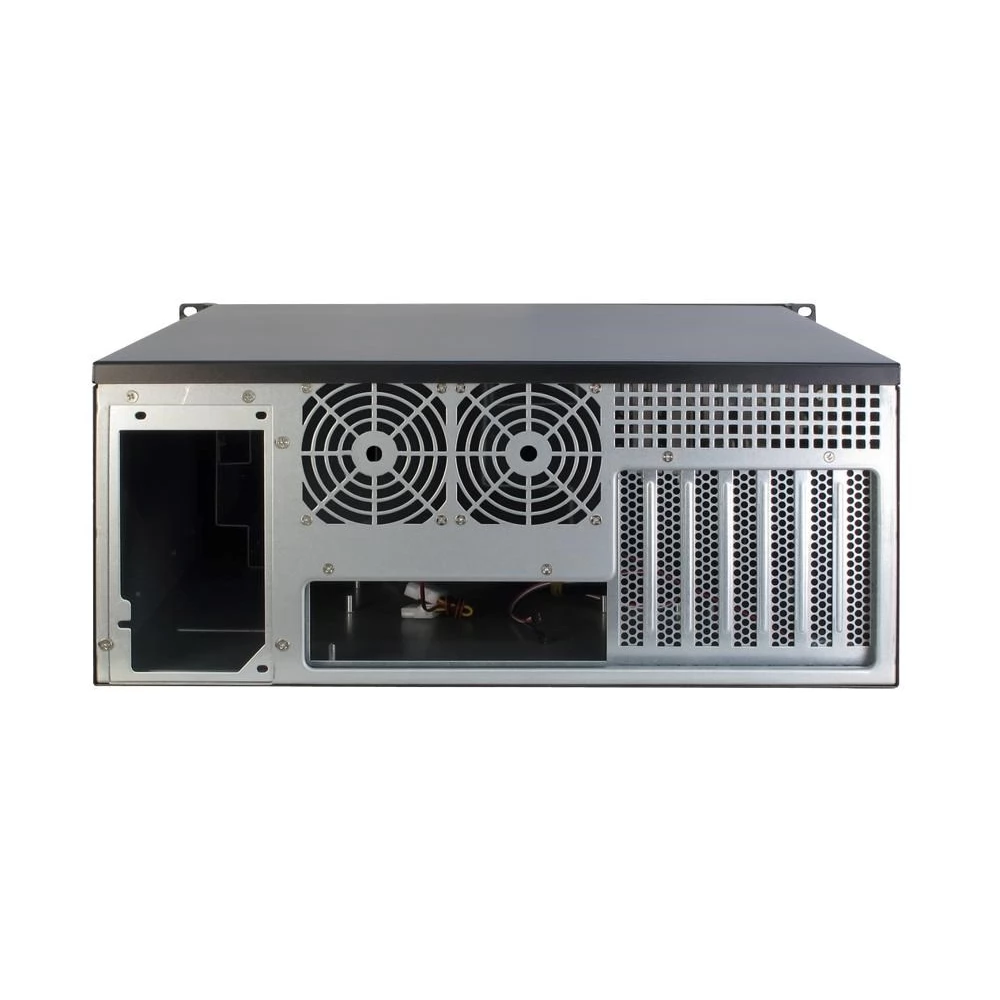

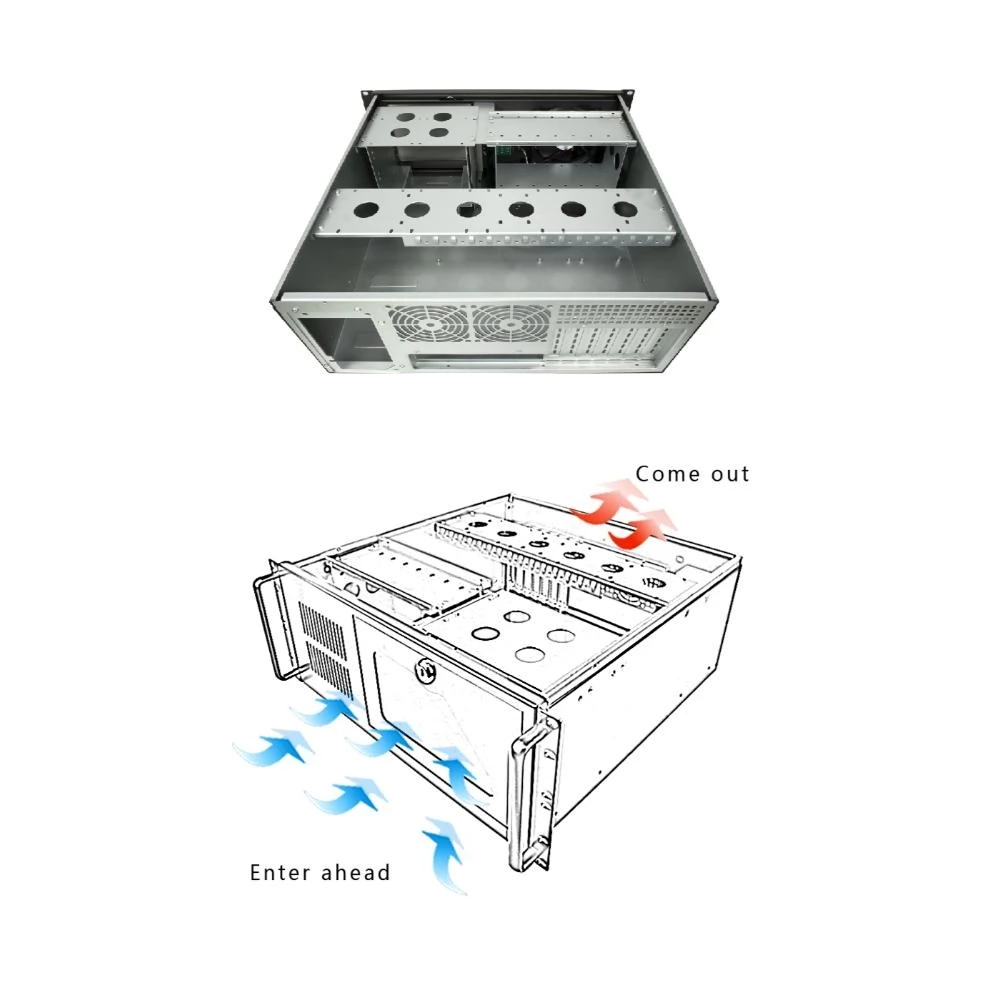

The house is cooled by a 120 mm fan and two optional 60mm fans in the back of the house (default is 1x 120 mm).

Fitted with removable dust filter and lockable door. Holes on the side of the cabinet are located with a thread for fastening 450 mm (18 ") linear ball slides (rails) with 900 mm sled. For example, the recommended RL450.18.
