XTOOL P3 Automatic feed

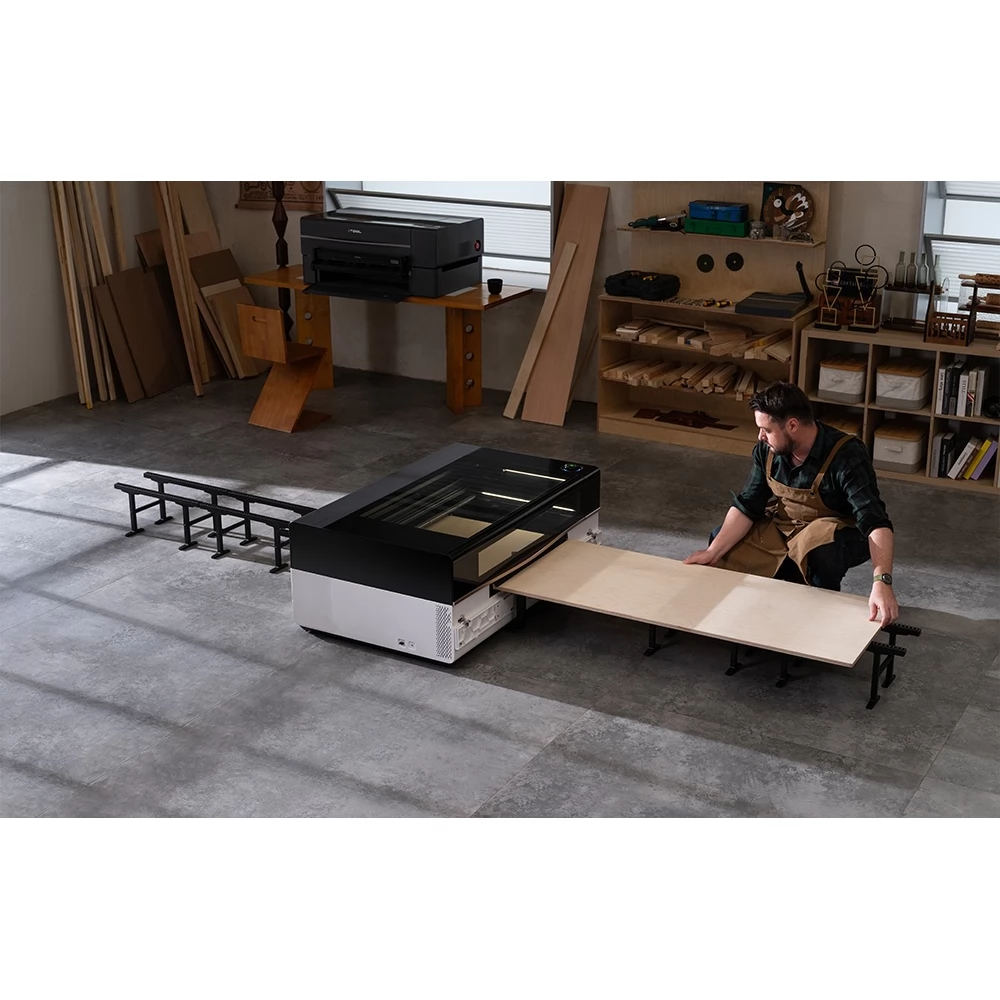

The automatic feeder for the xTool P3 engraver completely transforms the way you work with CO2 lasers. It allows you to process sheets of much greater length, maintaining accuracy and repeatability at every stage. The system increases the working area by up to 111% - up to an impressive size of 610 x 1300 mm - which opens up completely new possibilities for large-scale projects such as furniture panels, wall decorations or structural elements.

Smooth dosing and precise adjustment

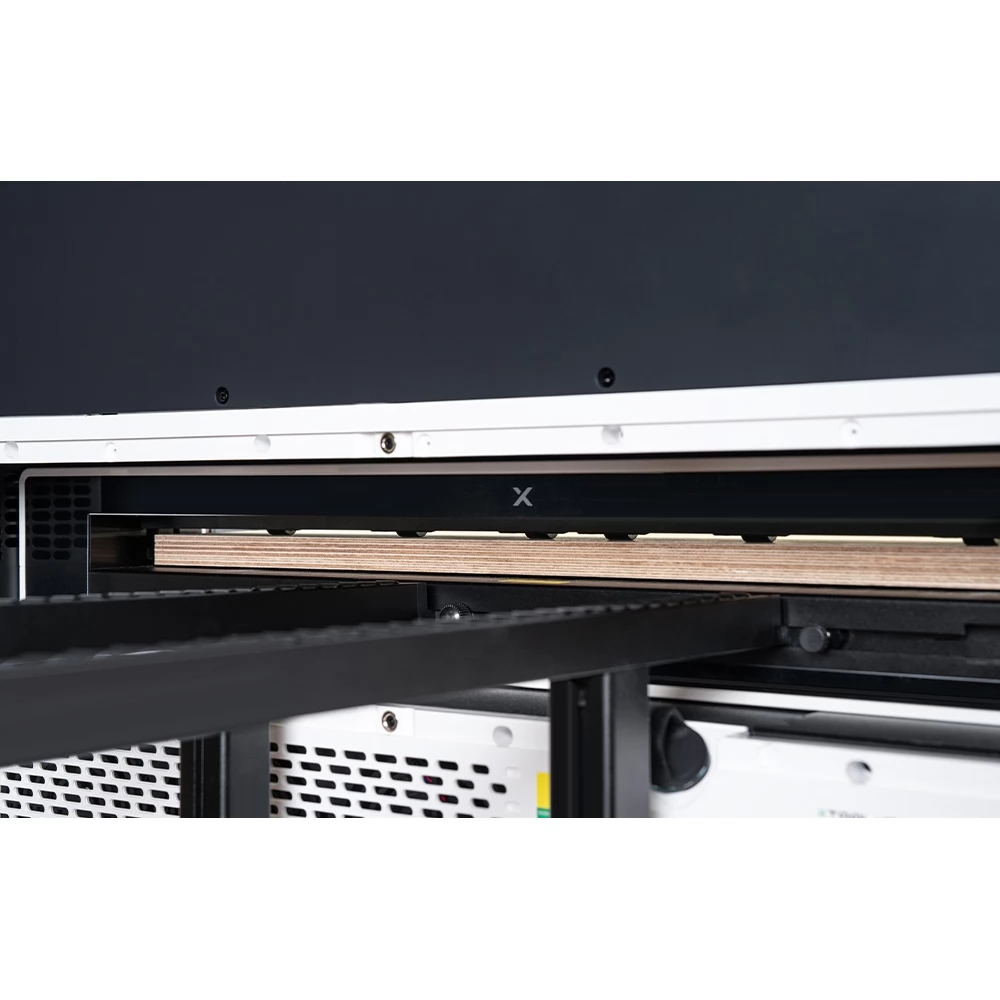

The feeder uses an intelligent material transport system that automatically moves the sheet while running, eliminating manual intervention and the risk of error. Perfect alignment of consecutive sections ensures total accuracy, even for extremely long parts. This solution increases productivity and allows you to focus on the creative side of your work.

Support for different materials and thicknesses
The xTool P3 with automatic feeder allows processing a wide range of materials - from wood and acrylic to fiberboard and cork to felt or EVA foam. The maximum material thickness can be up to 26 mm in the case of wood, 20 mm in the case of acrylic and fiberboard, 12 mm in the case of cork plastics and felt, and 15 mm in the case of foam. This versatility makes the system ideal for art, craft and advertising production.

It's a simple four-step process
Using the dispenser is very simple and intuitive. All you have to do is arrange the material, scan its position, prepare the blueprint in the software and start the automatic processing. The system itself takes care of moving the sheet, maintaining the perfect continuity of the pattern and the sharpness of the cut.

Greater efficiency, less downtime
With the feeder, you can process larger orders without having to divide the sample into smaller pieces. This solution is ideal for small production plants, art studios and product line creators where fluidity and speed are important.

Technical data
- Work area: 610 × 1300 mm
- Compatibility: xTool P3 laser engraving machine
- Max. material thickness (wood): 26 mm
- Max. material thickness (acrylic): 20 mm
- Max. material thickness (fiberboard): 20 mm
- Max. material thickness (felt/bark): 12 mm
- Max. material thickness (EVA): 15 mm
