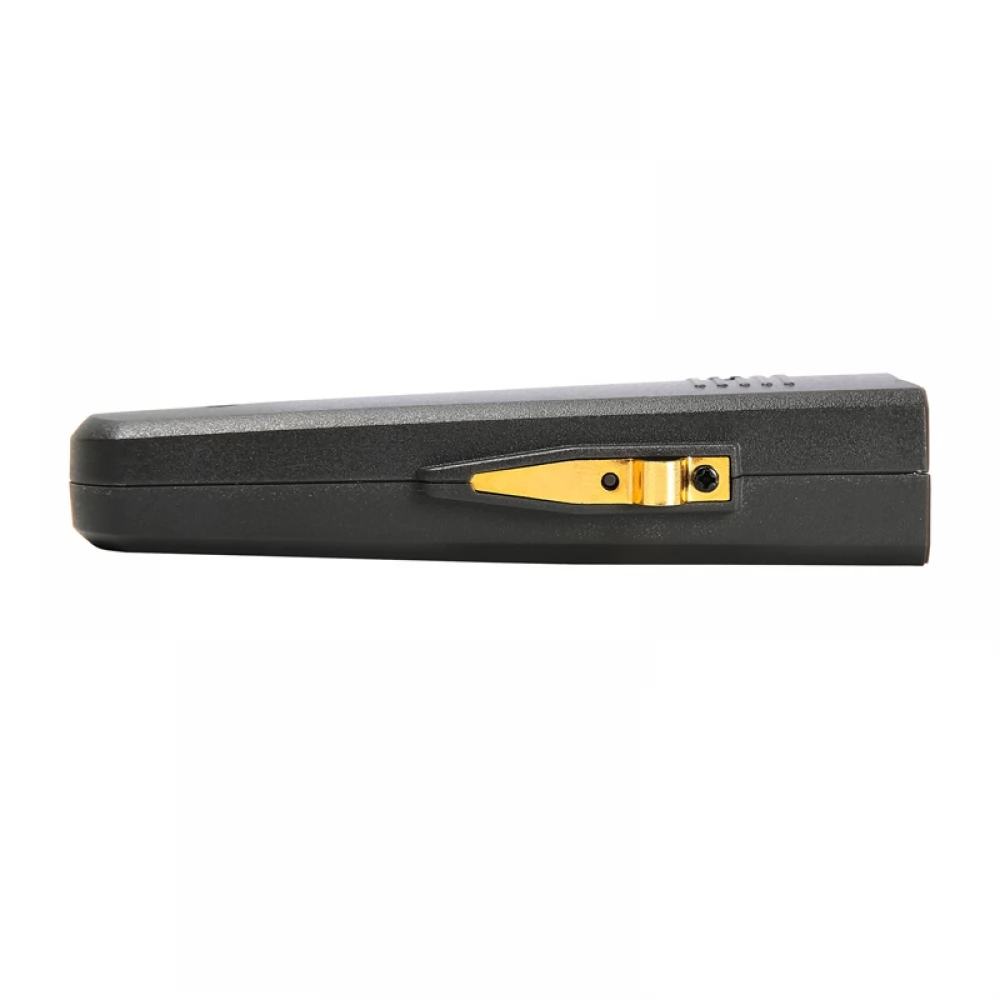

UNI-T UT116C SMD Tester

The UNI-T UT116C SMD tester is a versatile and compact measuring device, ideal for electronics repair shops and manufacturing plants. The instrument enables the automatic recognition and measurement of the parameters of components such as resistors, capacitors (up to 100 mF), diodes, and polarity testing of Zener diodes. The UT116C also allows measuring DC voltage up to 36V and checking the battery condition with a 10mA load. Thanks to the continuity measurement function and the built-in LED display, the device provides quick and clear results regardless of the intensity of the work. The product is also CE and UKCA certified, which confirms high quality and safety standards.
The UT116C tester combines several functions in one compact device. Automatic component identification simplifies daily work, and the ability to manually check the polarity of LEDs and Zener diodes enables accurate analysis of electronic circuits. In addition, the UT116C provides convenient measurements for measuring DC voltage and battery health, making it an extremely versatile tool in the electronics professional's workshop.
The design of the UT116C is designed for maximum ergonomics - the tester's 180° rotatable tip allows easy reading of results even in hard-to-reach places. The built-in LED display and compact size make the tester not only functional, but also extremely convenient for everyday use. The UNI-T UT116C is an indispensable aid in any professional electronics service, guaranteeing safety and accuracy in all work.

- Model UT116C
- The number of displayed digits is 6000
- Resistance 60 MΩ
- Capacity 100 mF
- Diode test 3.2 V
- LED/stabilizing voltage test Approx. 21 V / 1 mA
- Circuit continuity test < 50 Ω
- Direct voltage (DCV) measurement 36 V
- Battery/battery test Load current = 10 mA
- Automatic range selection Yes
- Automatic component identification Yes
- Automatic shutdown Yes
- Power supply 2 × 1.5 V battery (R03)
- Display dimensions 39 mm × 20 mm
- Color Red and gray
- Weight About 80 g
- Dimensions 204 mm × 33 mm × 25 mm
