- Built-in 12 dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable data transmission power from 0 to 30 dBm/100 mw
- System-wide optimization for wireless connection over 10 km
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology increases the transmission and capacity performance of the device, ideal for PTMP applications
- Centrally controlled system Pharos Control
- AP / Client / Bridge / Repeater / AP Router / AP client Router (WISP) modes
- Passive PoE Adapter provides Power over Ethernet up to 60 m and allows the device to restore remote default settings

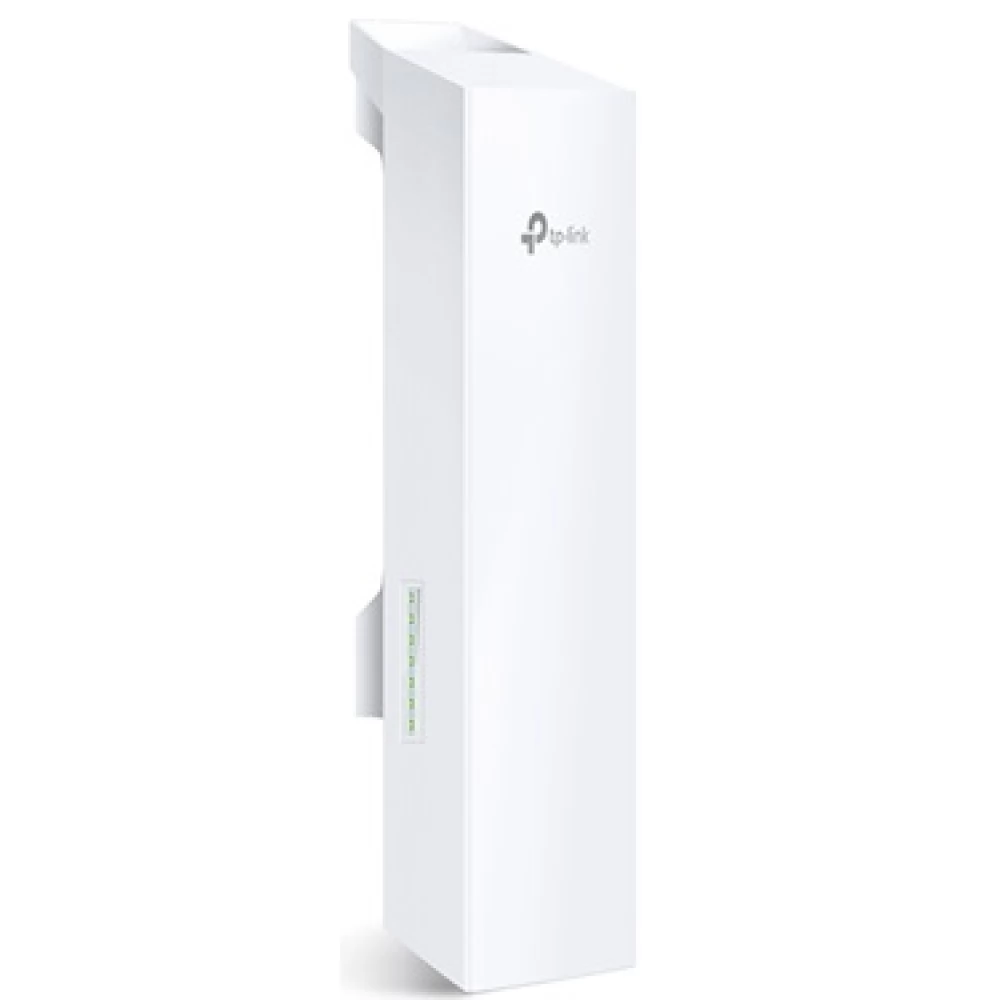

TP-Link's 2.4 GHz 300 Mb/s 12 dBi Outdoor unit, the CPE220, is a cost-effective solution for creating an outdoor wireless network. Using its own central controller, it is ideal for P2P (point-to-point) or P2M (point-to-multipoint) connection or for outdoor Wi-Fi coverage. Professional performance is combined with a user-friendly appearance, making the CPE220 an ideal choice for both business and home use.

Hardware for businesses
With Qualcomm Atheros enterprise chipset, high-performance antennas and the use of high-quality materials, special design and PoE capability, the CPE220 is specially designed for outdoor use and provides flawless operation under most weather conditions from -40℃ to +70 ℃ between.

Advanced antenna system
Built-in long-range Dual-Polarized antenna
The developed metal mirroring ensures a long range and low noise level

13 km of wireless data transmission
Designed specifically for outdoor use, it is ideal for long-distance wireless data transmission, which can be up to 13 km based on our tests.

TP-LINK MAXtream TDMA Technology
As the network size increases, wireless competition and collisions between base stations and CPEs are so
will be large in the near future that real network performance will decrease, which will have a serious impact on end users
experience. experience. To mitigate these effects, the CPE220 uses MAXStream TDMA Technology.

Pharos Control - Central control system
The CPE220 comes with a central control system, which helps users easily and simply control all devices from a single computer. Options such as device detection, status monitoring, firmware updates and network maintenance can be easily managed through Pharos Control.

PharOS
The web-based user-friendly control system gives professionals the option of thorough configuration.

Specifications
- CPU: Qualcomm Atheros 560 MHz CPU, MIPS 74Kc
- RAM: 64 MB DDR2
- Flash: 8 MB

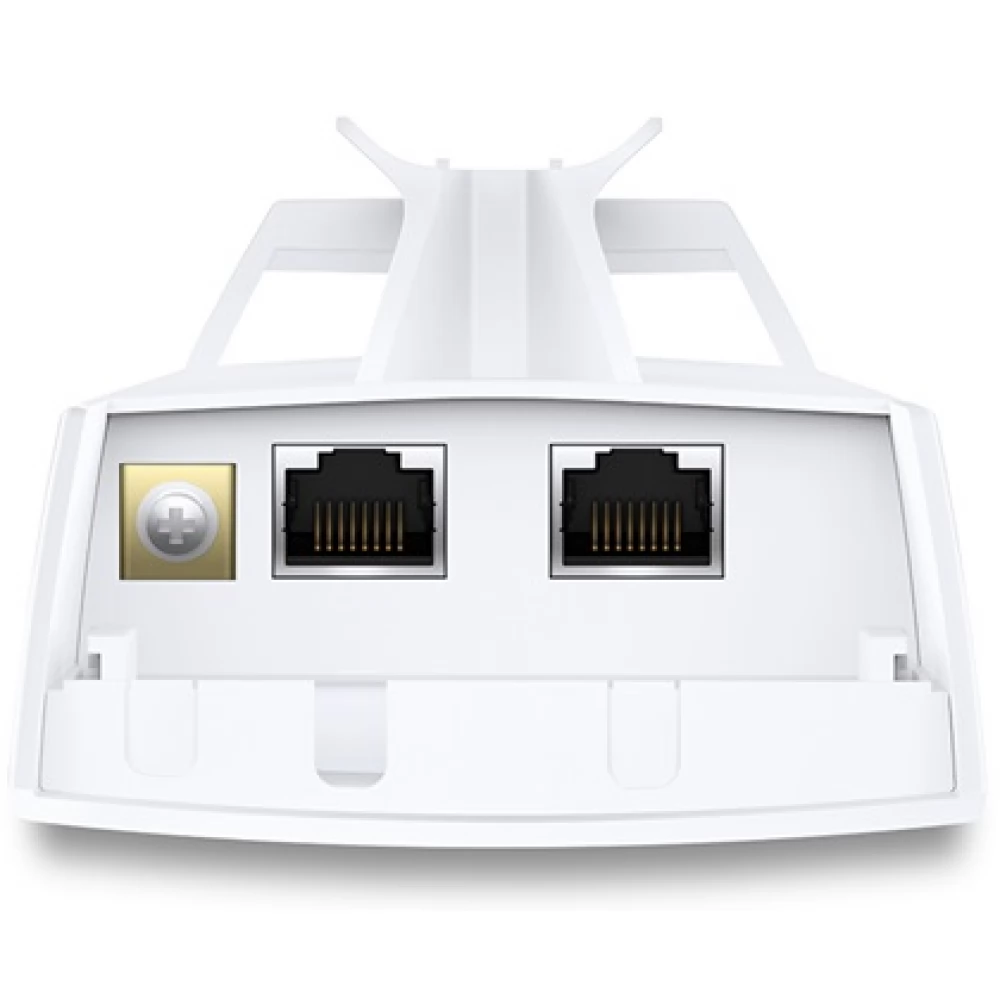

- 1 10/100 Mbps shielded LAN port (LAN0, Passive PoE input)
- 1 10/100 Mbps shielded LAN port (LAN1)
- 1 grounding terminal
- Size: 276 x 79 x 60 mm
- Built-in 12 dBi 2x2 dual-polarized directional antenna, Direction: 60° (H-Plane) / 30° (E-Plane)
- Protection against 15 kV electrostatic discharge, lightning protection up to 6000 V
- Outdoor ASA fixed plastic cover, IPX5 waterproof certificate
- Operating temperature: -40°C ~ +70°C
- Operating Humidity: 10% ~ 90%
- Storage temperature: -40°C ~ +70°C
- Storage Humidity: 5% ~ 90%

PoE adapter
- Size: 110 x 57 x 33.5 mm
- Input current: 0.8 A max @ 100 V AC
- Input voltage: 100 VA ~ 240 V AC @ 50-60 Hz
- Output power voltage: 24 V DC/1.0 A max, PoE supported up to 60 meters
- 1 AC connector with grounding
- 1 10/100/1000 Mbps shielded Ethernet connector (power + data)
- 1 10/100/1000 Mbps shielded Ethernet connector (data)
