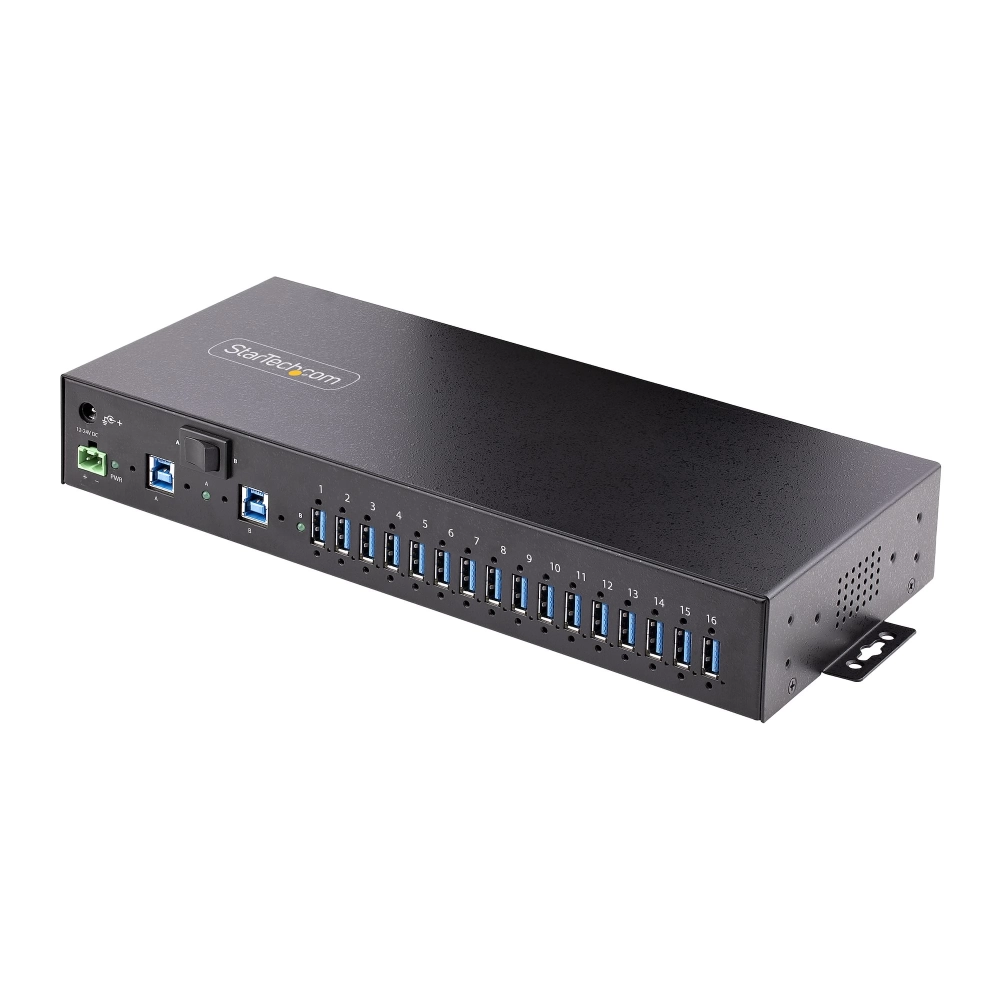

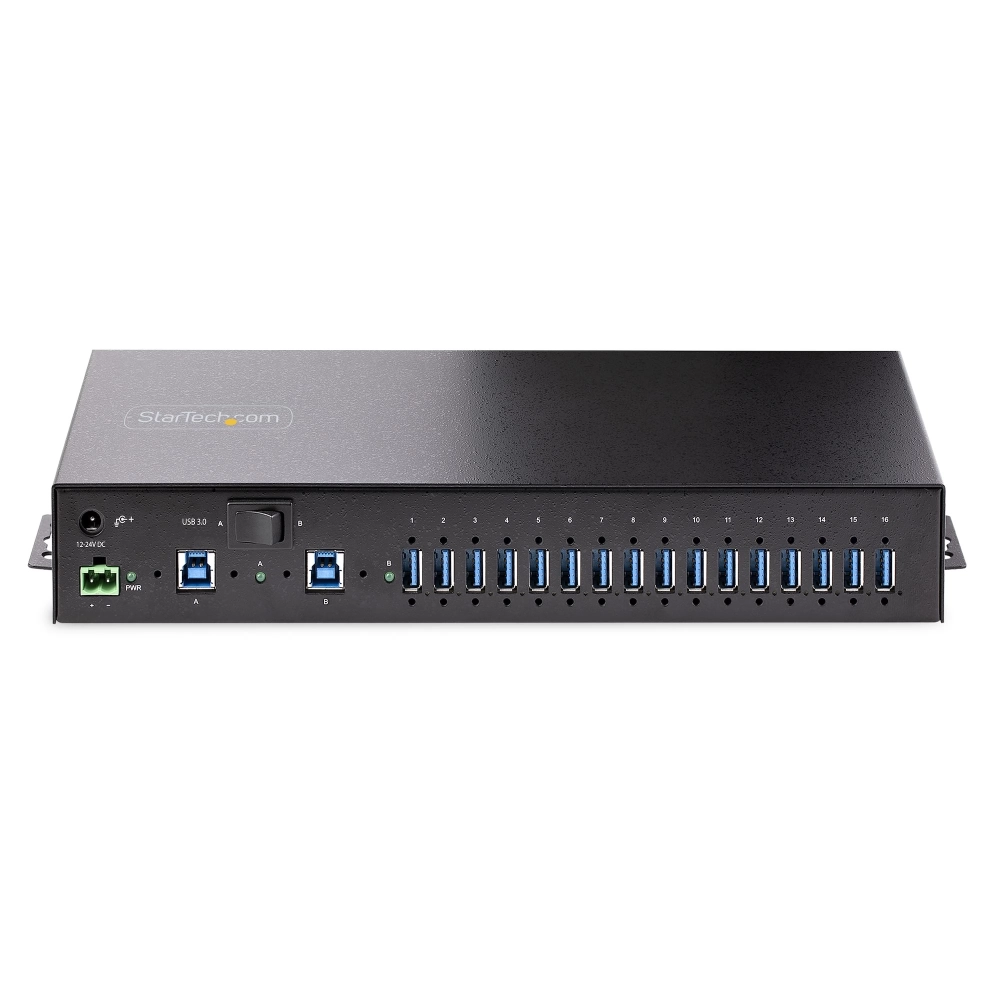

The 16-port industrial USB 5Gbps hub with power adapter has 16 downstream USB-A ports. The robust all-metal construction is suitable for industrial rack-mounted applications. Level 4 electrostatic discharge (ESD) protection against 15 kV air / 8 kV contact discharges. The hub has a 2-port host switch that allows users to switch between two hosts.

Designed for use in industrial environments

This USB hub is built to withstand harsh industrial environments. It has a rugged steel body that protects against physical hazards such as drops and shocks. Equipped with level 4 ESD protection with 15kV air and 8kV contact discharge ratings to protect against damage from static electricity.

Three mounting options

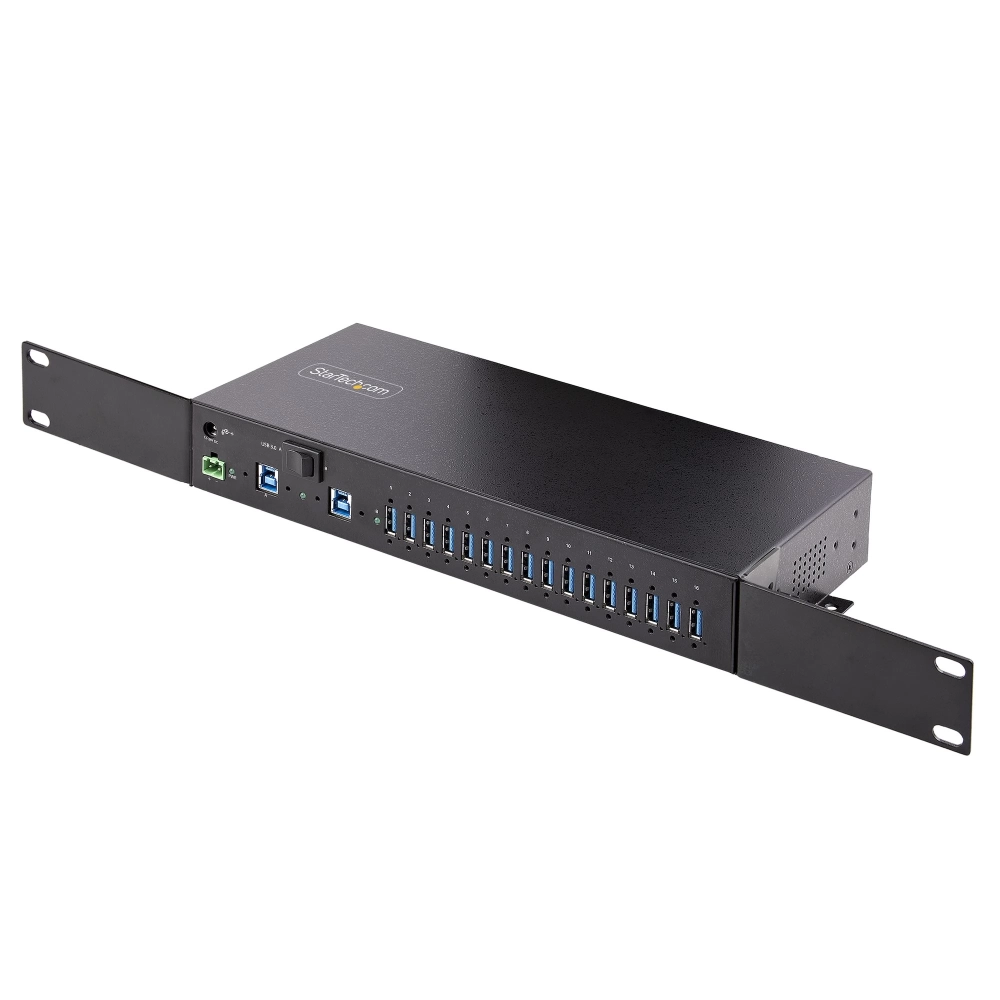

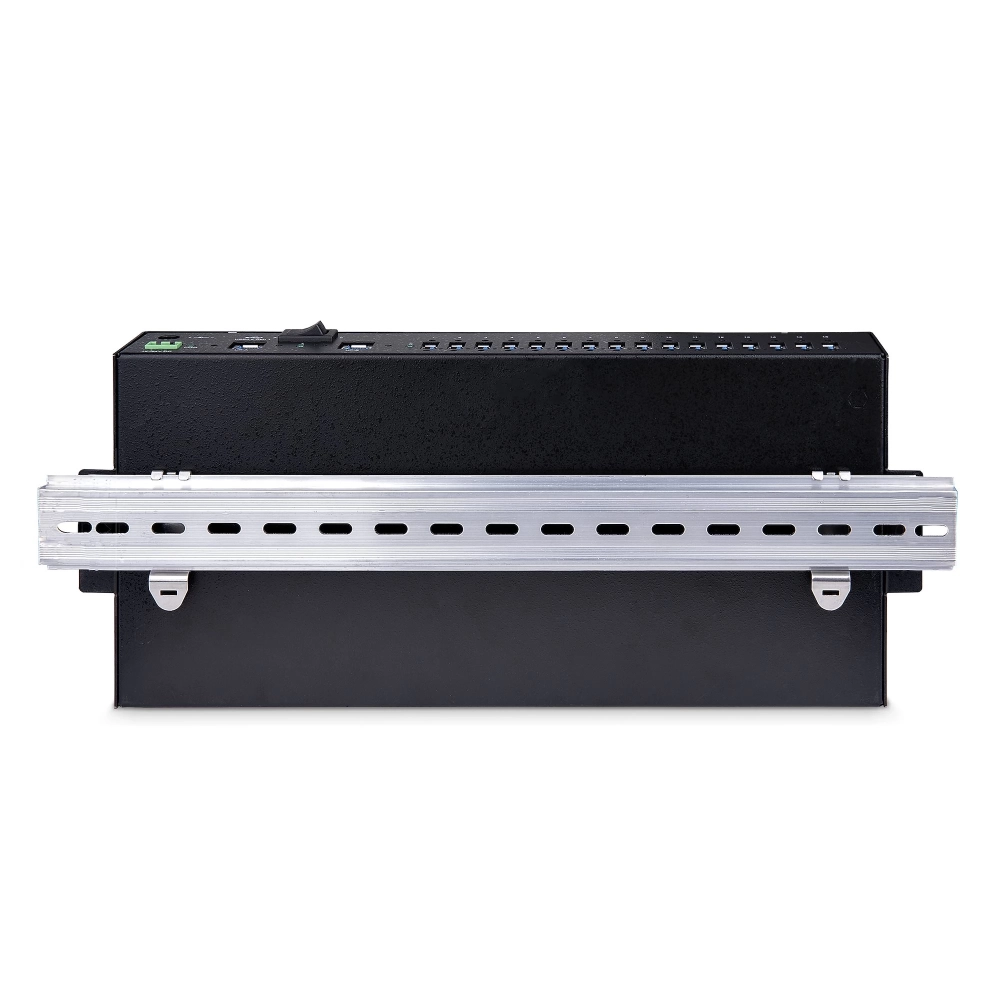

The 16-port USB hub can be mounted on a surface (for example, mounted on/under a table or on a wall), mounted on a stand or on a DIN rail. 19" rack mount rails meet EIA-310-D standards to ensure compatibility with standard racks. These rails can be used to install a USB hub in 1U rack space for applications in data centers and server rooms. Industrial automation and control equipment equipment in an electrical cabinet or cabinet using standard DIN-rail (Top Hat/TH) fasteners.

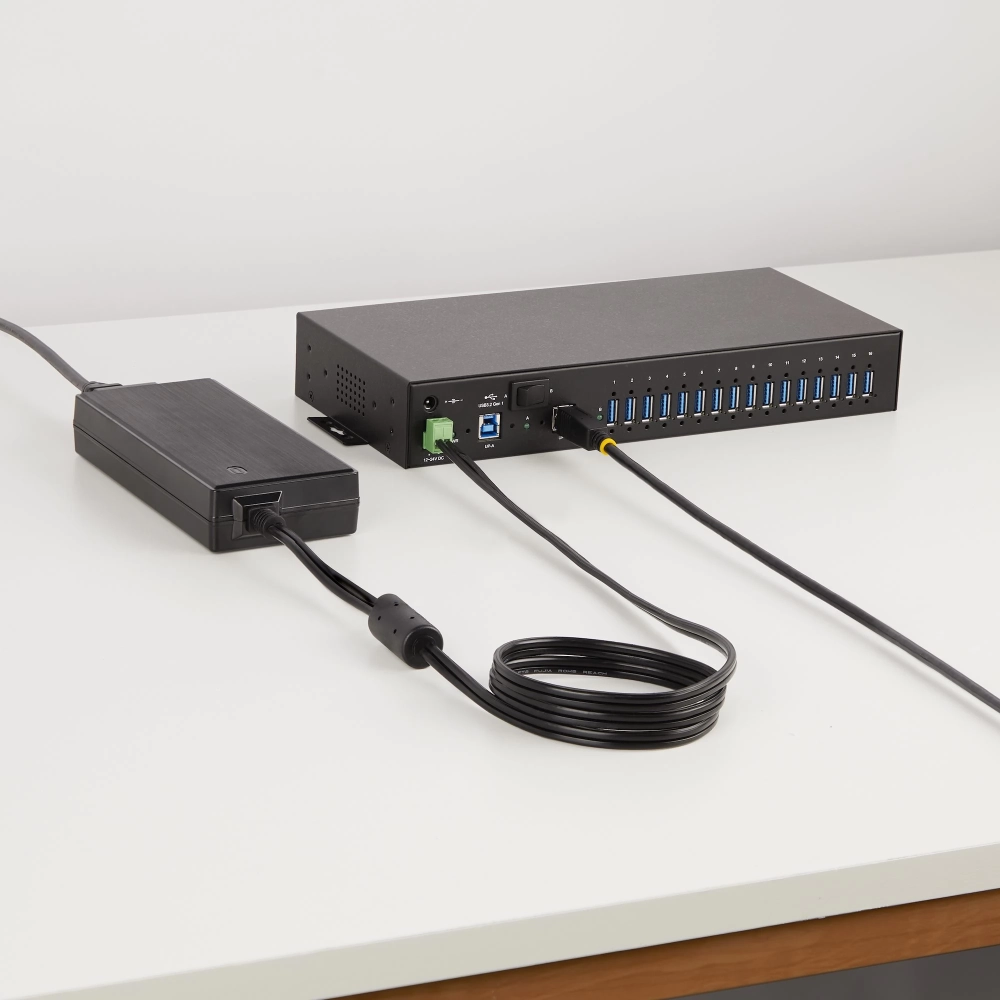

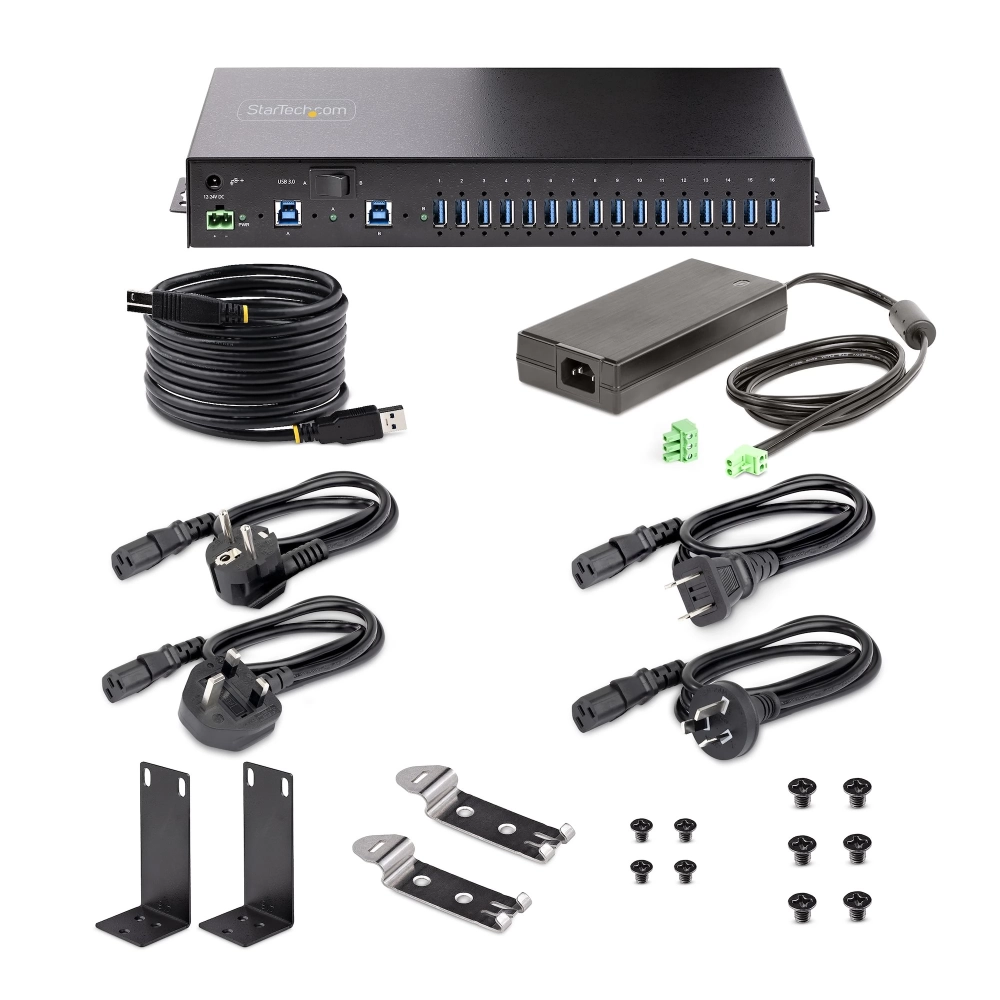

Power adapter included

This USB hub includes a 160W power adapter that plugs into the 2-wire terminal connector. When connected to a power adapter, the USB hub supports the USB Battery Charging Specification 1.2 (BC 1.2) standard, distributing 120W on each port. The ports are grouped into 8 pairs (1&2, 3&4, 5&6, 7&8, 9&10, 11&12, 13&14, 15&16), and each pair is a maximum of 3.0A/15W combined (1.5A/7.5W per port) or a maximum of 2.0A- supports t. 10 W per port if only one of both ports is used.

For optional power redundancy, the USB hub has a secondary power input to which a barrel power adapter (not included) can be connected. The barrel input supports a 12-24 volt input range and can be ideal for mission-critical applications.

Dual-Host Switch

The USB hub connects to two desktop or laptop computers and has a dual-host switch that allows easy switching between hosts.

Increase productivity and device management with StarTech.com Connectivity Tools

Designed to improve performance and security, StarTech.com Connectivity Tools is the only software package on the market that is compatible with a wide range of IT connectivity accessories. This product uses the USB Event Monitoring utility. Use this utility to monitor and log connected USB devices.
