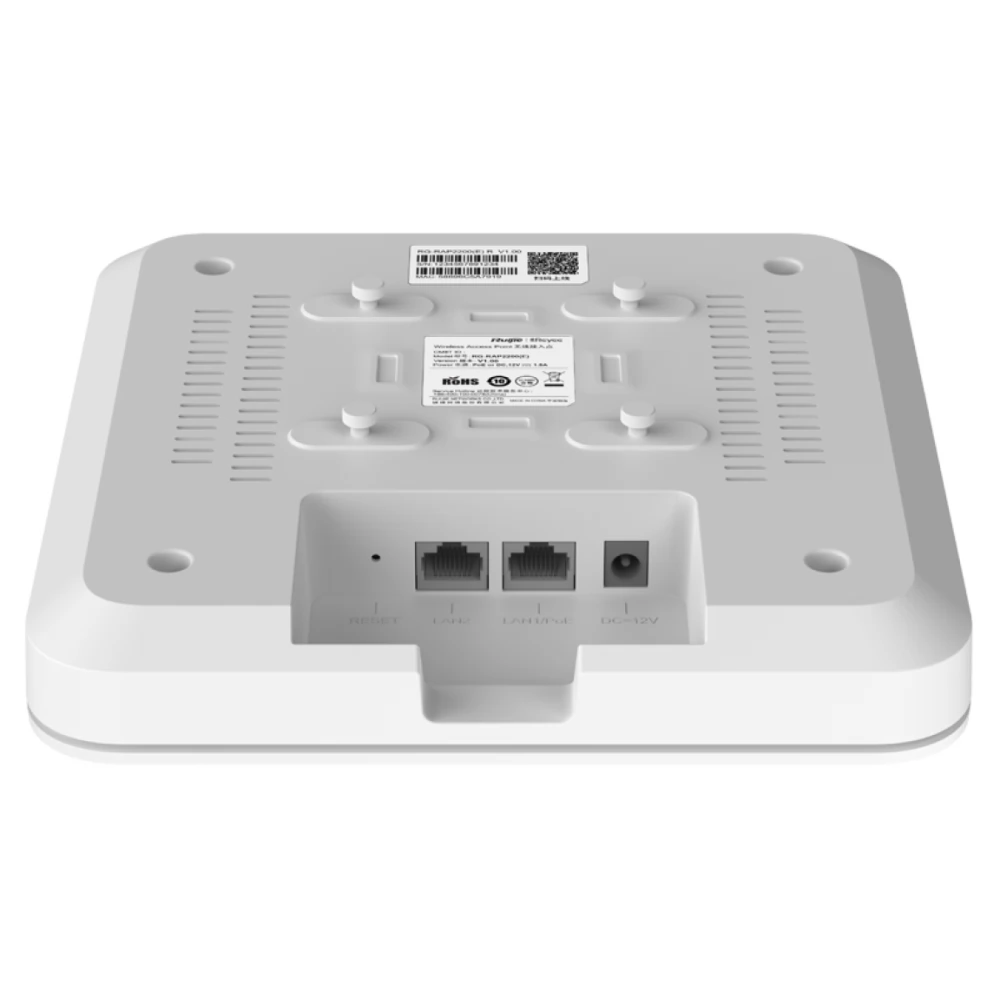

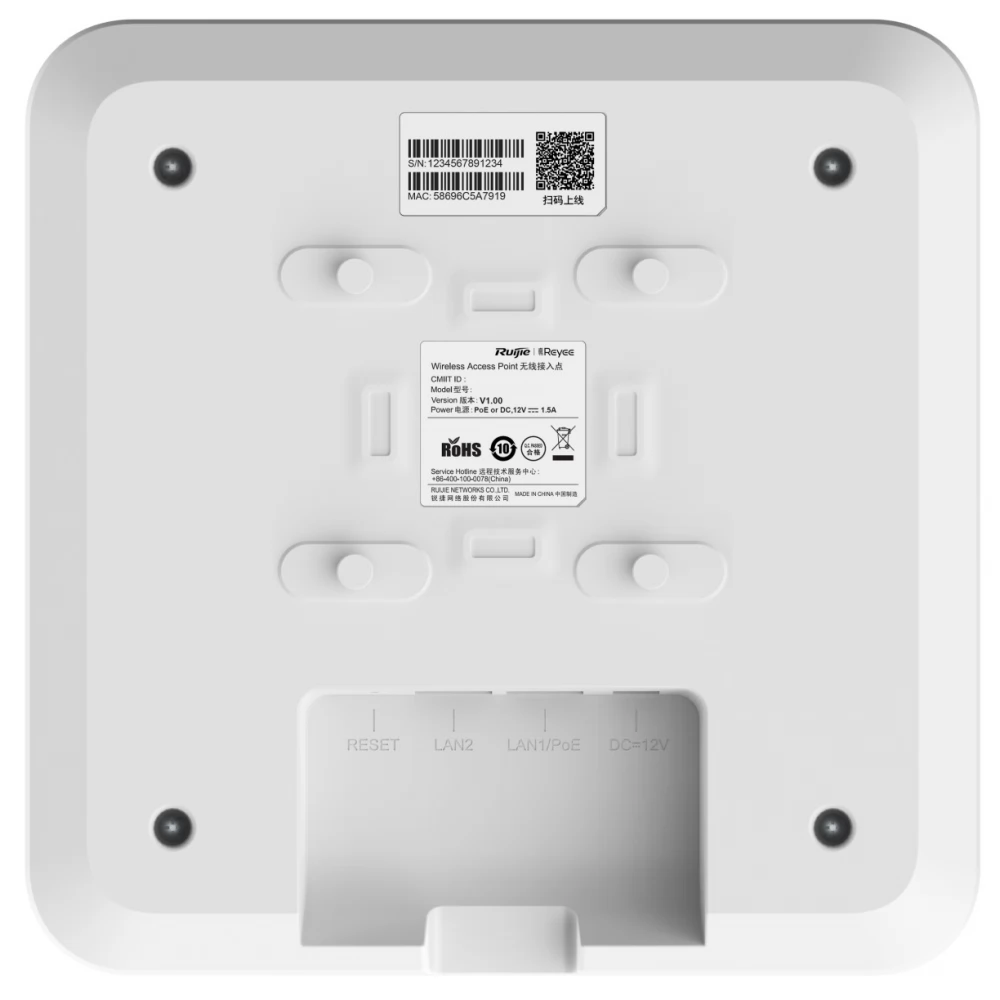

The Ruijie Reyee Series RG-RAP2200 Series Dual-Band Ceiling AP Mount is a high-performance ceiling-mounted AP for indoor large-area Wi-Fi coverage scenarios. The device supports 802.3af/at PoE and 12V DC local power supply. The dual LAN port design makes it easy to expand third-party devices to meet the needs of multiple network scenarios. Compliant with the 802.11a/b/g/n/ac Wave1/Wave2 Wi-Fi protocol, the RG-RAP2200 supports MU-MIMO dual-stream technology and offers built-in omnidirectional antennas. It can operate simultaneously on 2.4 GHz and 5 GHz, providing high-speed wireless access of 400 Mbps on 2.4 GHz, 867 Mbps on 5 GHz and up to 1267 Mbps per access point. Its coverage of over 20 meters makes it an ideal choice for many wireless scenarios, especially in offices, commercial industries, hotels, service scenarios, etc. Industrial product design, iconic edges and breathable light make the product more recognizable. Adopting a non-directional installation design, the new mounting kits support a variety of installation methods, including desktop, ceiling, wall, and pole, which improves installation versatility, simplifies installation steps, reduces installation difficulties, and greatly improves the installation experience. about the device. The RG-RAP2200 series supports Ruijie's self-developed intelligent network function. With the Ruijie Cloud application, users can quickly complete device installation and configuration, remote monitoring, operation and maintenance of the entire network, which greatly reduces equipment cost, labor cost and time cost in the process of building a wireless network. Users can use Ruijie Cloud app, equipment EWEB management, Ruijie Cloud platform, etc. can perform comprehensive local or remote monitoring over the entire network of equipment. simpler, easier to use, safer and more convenient company network operation and maintenance.

- 802.11ac Wave2 technology
- Automatic provisioning through self-organizing network: Supports Ruijie's self-developed intelligent network function, which breaks through product limitations and realizes automatic detection, automatic networking and automatic configuration of gateways, switches and wireless access points without controllers or Internet access;
- Lifetime free Ruijie Cloud management: Remote error alert, one-click optimization and maintenance in Ruijie Cloud App;
- Multiple LAN ports: Two LAN interfaces are used to support multiple services;
- Smooth 3rd layer roaming • Industrial design: Robust casing, provides better strength and security for products;
