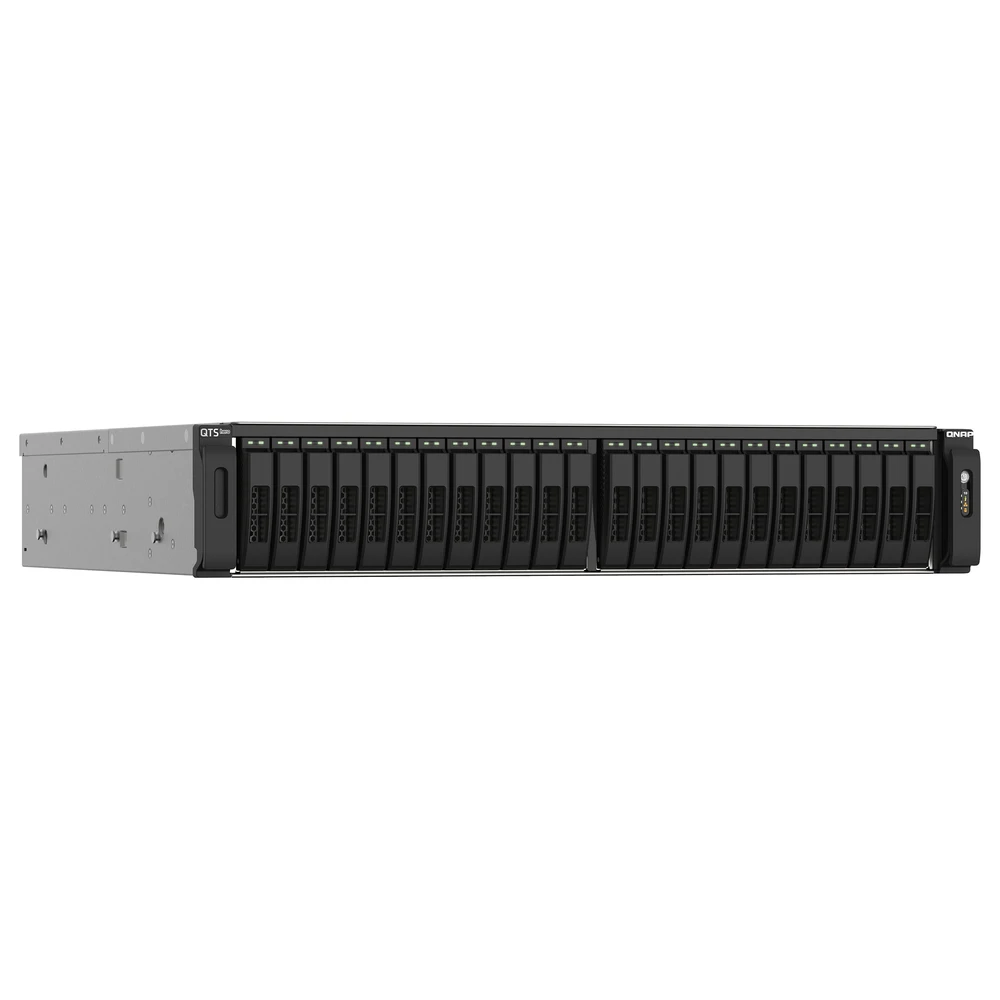

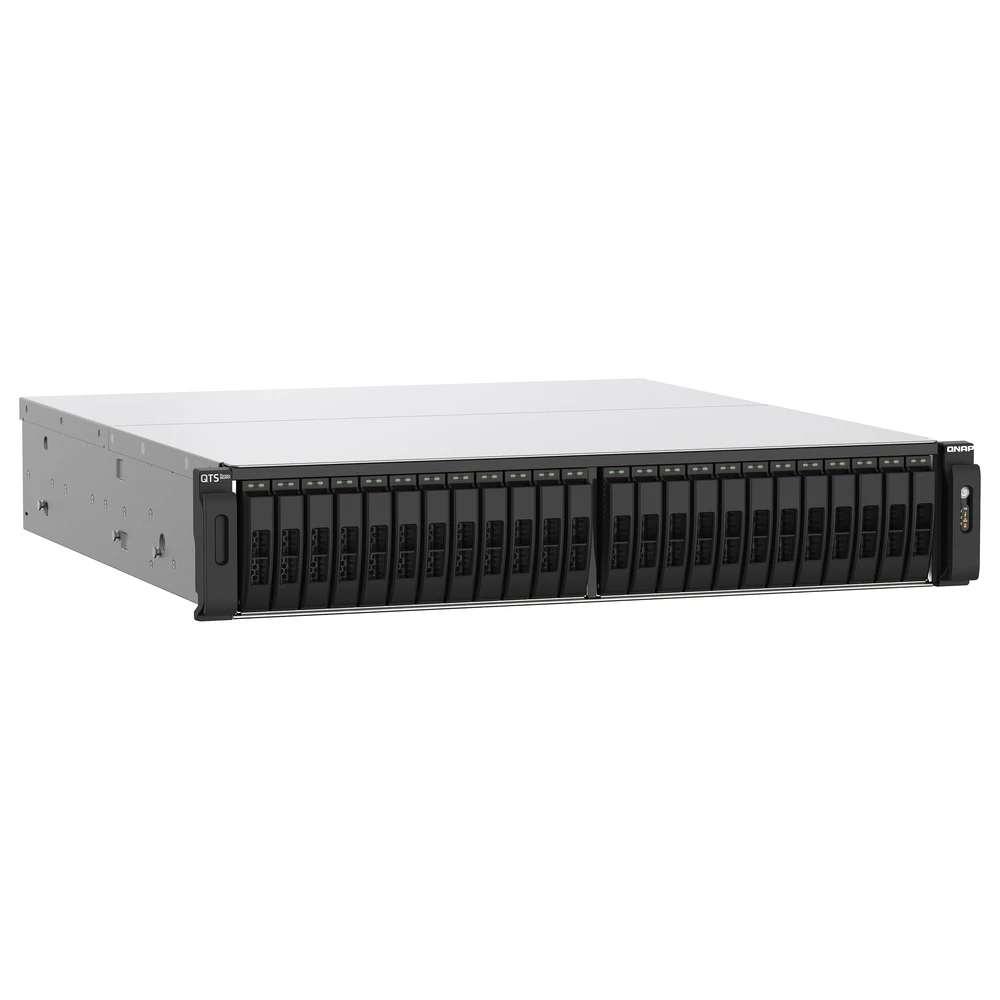

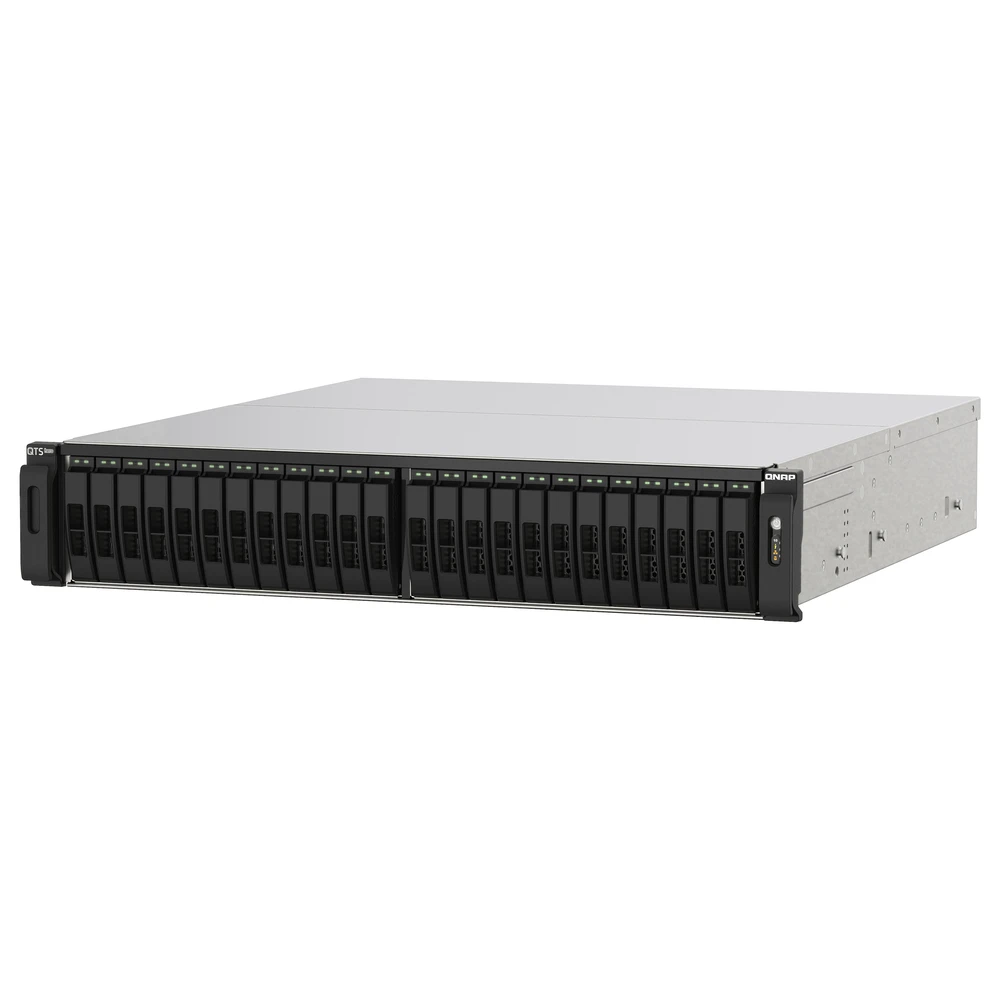

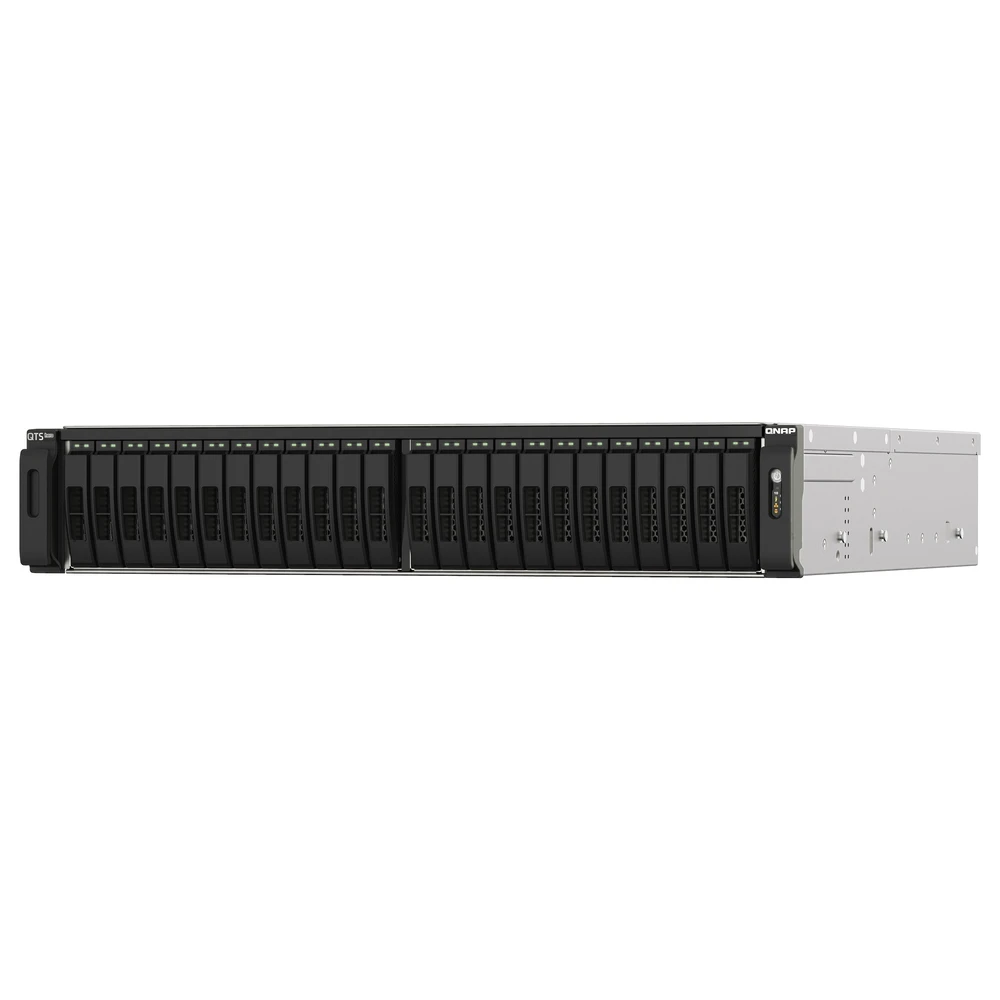

ZFS-based, 24-disk U.2 NVMe flash storage for high-performance virtualized tasks and 8K broadcasts
The all-NVMe flash-based TS-h2490FU offers exceptional performance and outstanding cost-effectiveness. With 24 U.2 NVMe Gen 3 x4 SSD bays, the TS-h2490FU delivers up to 472K/205K random read/write IOPS performance with ultra-low latency. The ZFS-based QuTS hero operating system supports embedded data deduplication and compression to reduce I/O operations and load on SSDs, significantly extending the life of higher-priced flash storage array SSDs. With near-limitless snapshots, real-time SnapSync and petabyte scale capabilities, the TS-h2490FU is ideal for I/O-intensive and low-latency applications, reducing productivity bottlenecks in modern data centers, virtualization and for vital backup/restore tasks.

2nd generation AMD EPYC™ processors and DDR4 ECC memory
TS-h2490FU is equipped with 2nd generation AMD EPYC™ 7002 series processors (Rome). The "Zen 2" architecture based on cutting-edge 7nm manufacturing technology, with up to 128 PCIe lanes, up to 32 Gb/s dedicated bandwidth I/O performance per SSD is available. With DDR4 ECC memory that detects and corrects single-bit memory errors - for greater reliability - the TS-h2490FU has 8 channels, so it supports up to 16 Long-DIMM modules for memory-intensive applications. With massive computing power and multitasking capabilities, the TS-h2490FU is an ideal choice for uncompromising performance needs in HPC, virtualization and hybrid/multi-cloud applications.

U.2 NVMe Gen 3 x4 Flash storage array
The 2U rack design TS-h2490FU has 24 drive bays for U.2 NVMe Gen 3 x4 SSDs, and each SSD has 32 Gb/s of dedicated bandwidth with the best possible response time. Coupled with powerful ZFS data reduction and SSD optimization technologies, the TS-h2490FU provides a solid foundation for tackling complex and performance-intensive tasks, meeting the needs of evolving data centers.

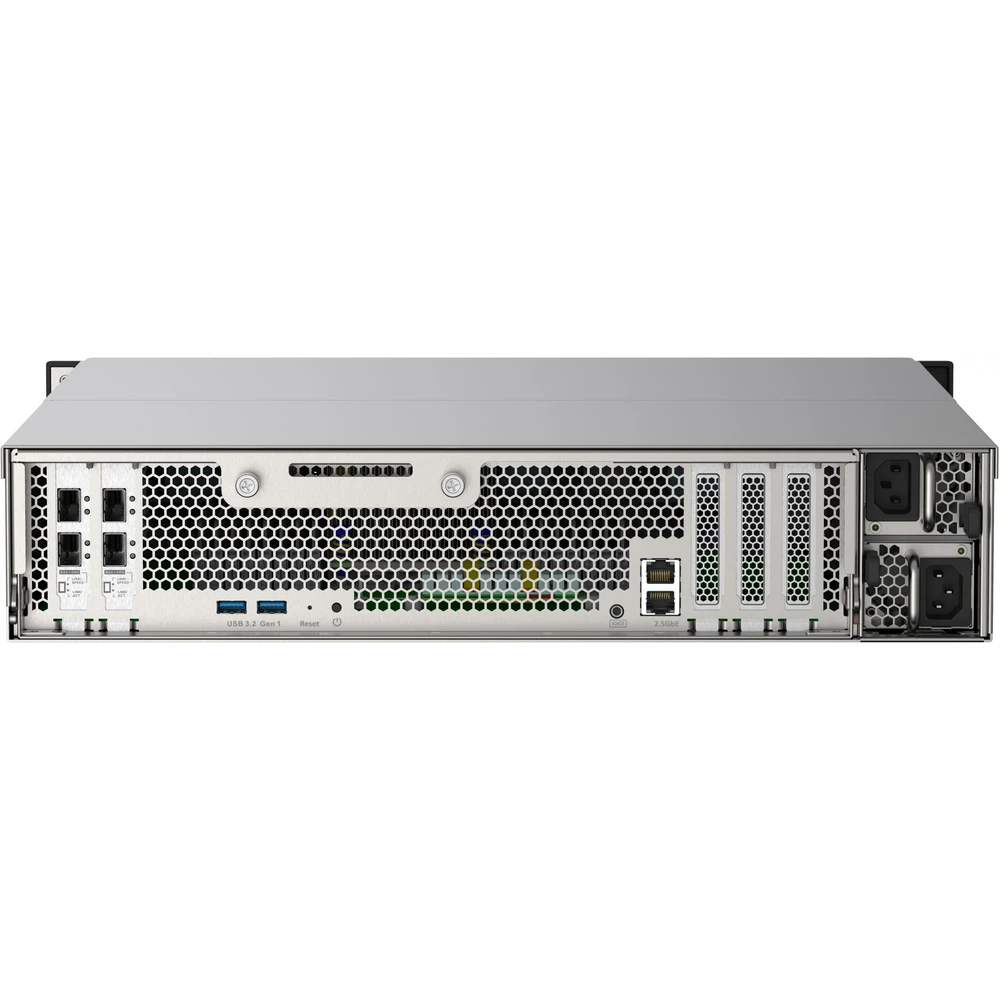

High-speed data transfer with four 25 GbE ports
The TS-h2490FU provides breakthrough networking with two pre-installed dual-port 25 GbE SFP28 SmartNICs* (using Broadcom NetXtreme®-E Series BCM57414, Mellanox® ConnectX®-4 Lx or equivalent SmartNICs). With failover and port trunking for up to 100GB/s bandwidth, the TS-h2490FU enables organizations to handle the most data-intensive applications, including data centers, virtualization, massive file transfers, high-speed backup/recovery and multimedia transmission.

Take advantage of the possibilities of the M.2 PCIe NVMe SSD - U.2 adapter
Install one or more QDA-UMP adapters in the TS-h2490FU to cost-effectively utilize PCIe bandwidth and use M.2 SSDs instead of expensive U.2 SSD solutions to optimize data-intensive applications. Additional benefits include increased IOPS performance after configuring SSD caching. With QTS Storage & Snapshots Manager, users can easily check drive status and manage SSD usage options. The M.2 SSDs installed in the QDA-UMP adapter can also be easily replaced.

Multiple PCIe Gen 4 expansion slots for flexible expansion
The TS-h2490FU has five PCIe Gen 4 lanes. With twice the I/O performance of PCIe Gen 3, the TS-h2490FU allows you to use multiple PCIe cards to expand the capabilities of your storage system.

Powerful hardware to boost NVMe performance
The TS-h2490FU is equipped with high-end hardware with a scalable architecture to offer enterprises high-performance and low-latency access. With a removable motherboard tray design, administrators can easily access the hardware of the TS-h2490FU without having to remove it from the storage cabinet.

Deduplication, compression and shrinking of embedded data improves SSD durability
QuTS hero supports advanced block-based data reduction technologies (including embedded data deduplication, compression, and shrinking) to reduce file size, preserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, the storage requirements of all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h2490FU optimizes storage utilization to provide a reliable storage pillar in the Big Data era. All-flash solutions are more cost-effective, while also improving random write performance and SSD
