Allows you to distribute high resolution 4K@60Hz HDMI signal without delay up to 70 meters, and at the same time transmitting USB (such as keyboard, mouse or other USB peripherals).

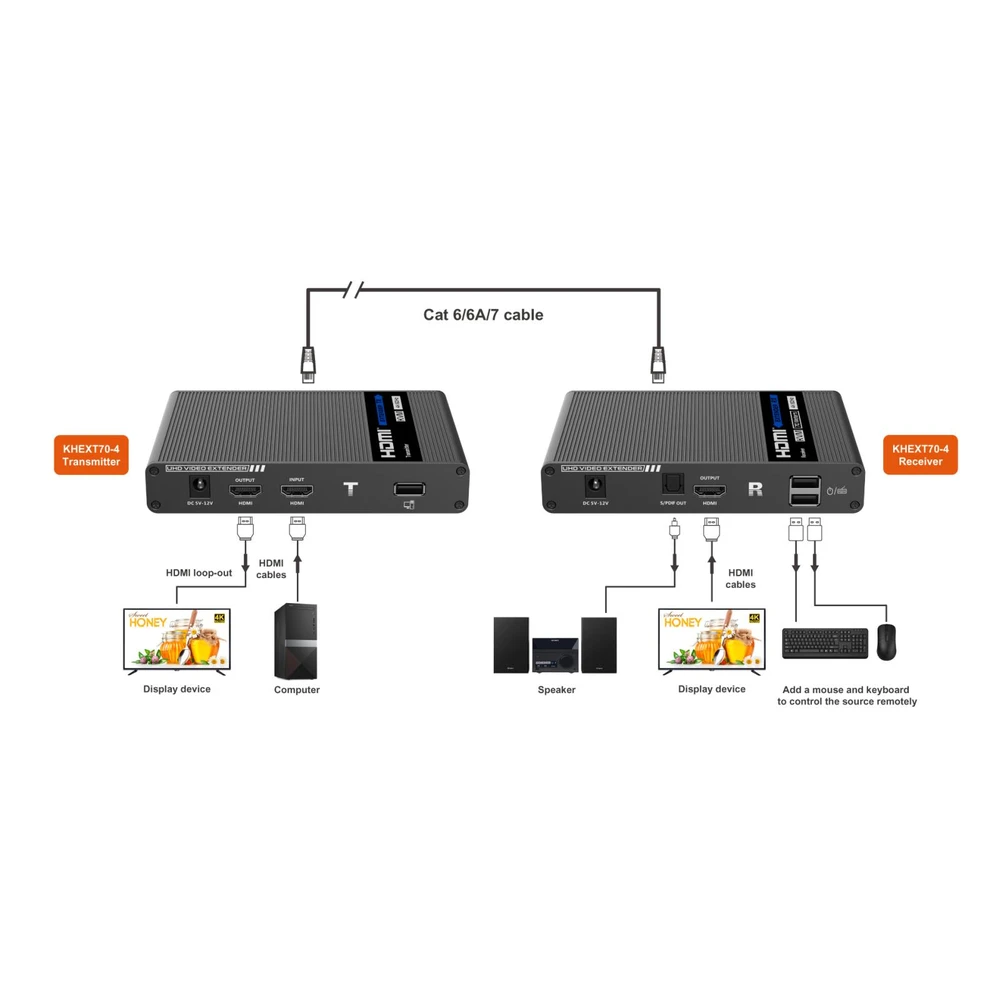

This HDMI Extender device allows you to transmit HDMI signals for long distances using CAT6 / 6A / 7 network cable. With a network cable, you can transfer up to 70 meters of transmission distance with 4K@60Hz or Full HD 1080P video resolution and simultaneously transmitted via USB (such as keyboard, mouse or other USB peripherals).

- 4K HDMI extension core up to 70 meters
- The kit includes a tax and a buyer that is connected to a quality Cat.6 / 6a / 7 cable.
- Supports Ultra High Definition resolution: 4K @ 60Hz (2160p @ 60Hz), Yuv 4: 4: 4
- Video resolution: 480i@60hz, 480p@60Hz, 576i@50hz, 576p@50hz, 720p@50/60hz, 800x600, 1024x768, 1280x768, 1280x800, 1360x768, 13666668, 1600x900, 1680x1050, 1080i@50/60hz, 1080p@50/60hz, 3840x2160@24/25/30/60Hz, 4096x2160@24/25hz
- Supports HDMI 2.0 and HDCP 2.2 (supports HDCP1.4)
- bitrate: 18 Gbps
- Supports the face standard
- Edid permeability

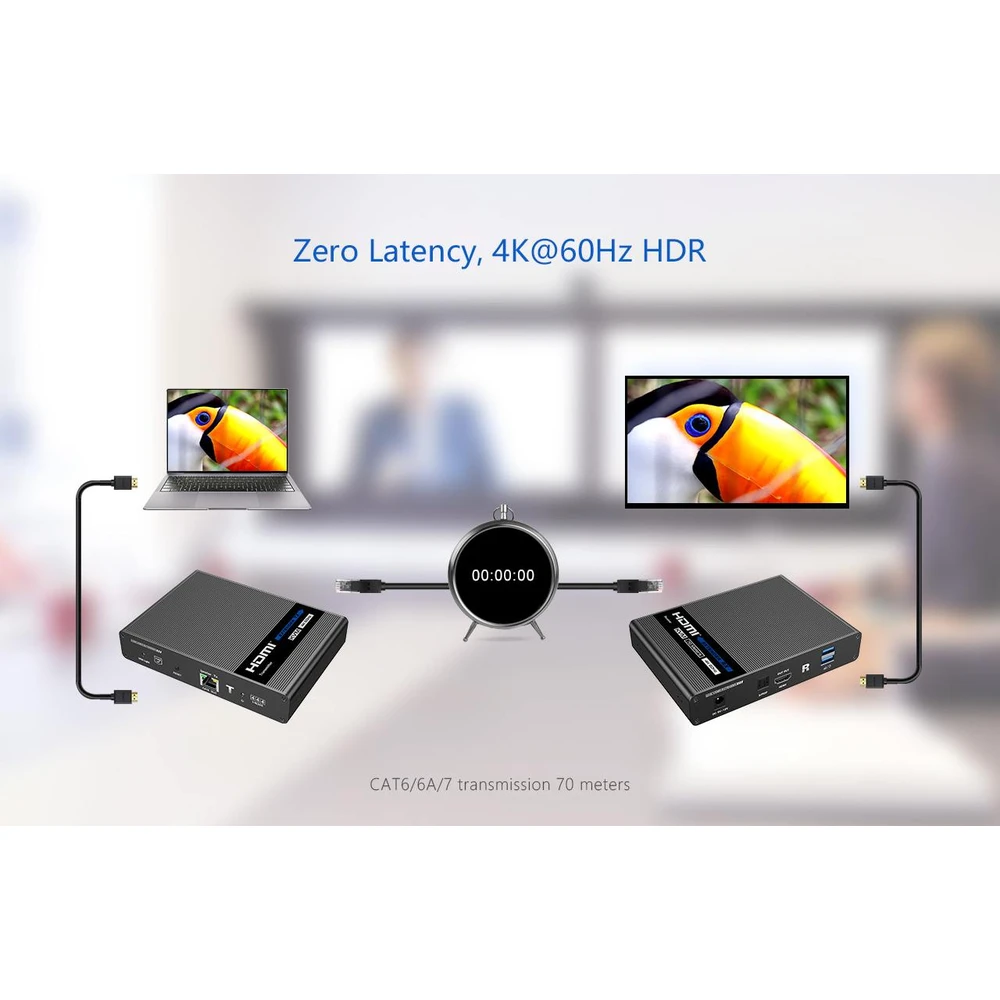

- zero delay, no compression loss, no sign delay
- The HDMI signal can be transmitted up to 70 m via Cat.6 / 6a / 7 cable; up to 40 m cat.5e cable

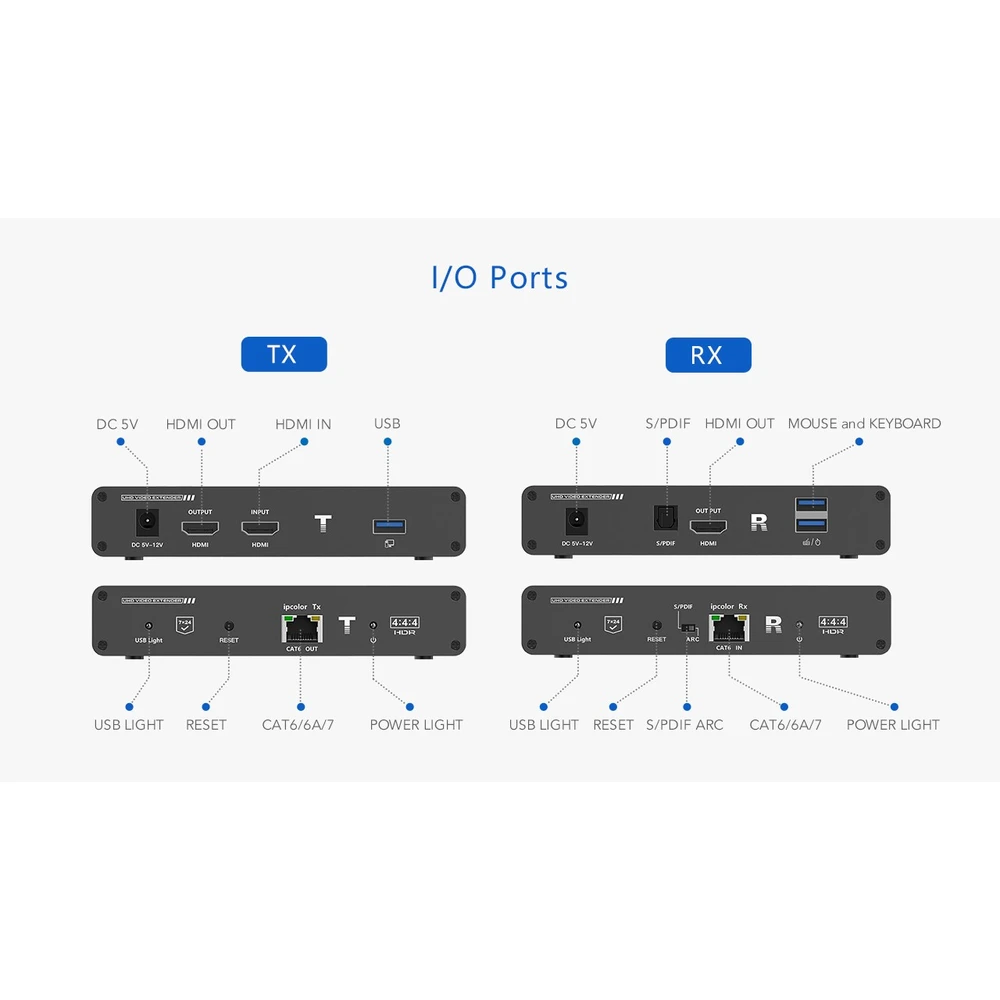

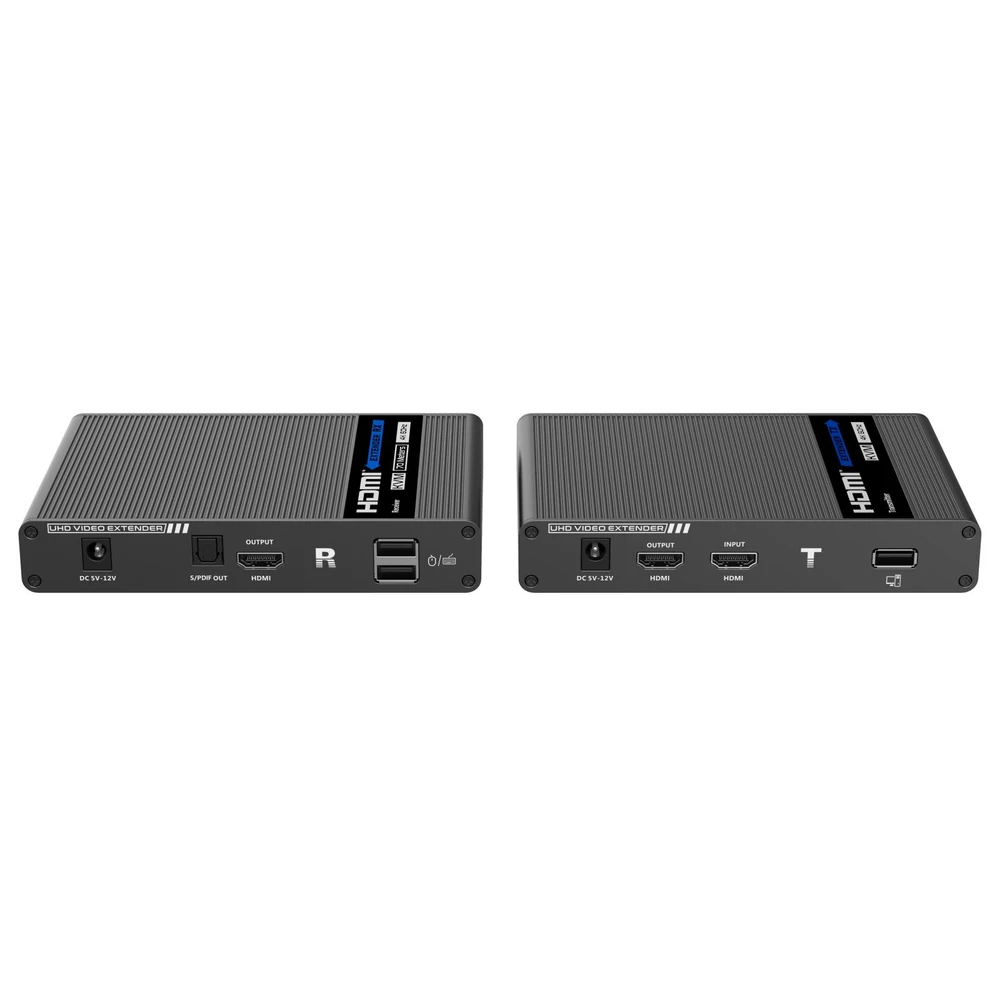

- Connectors on the tax unit: HDMI input, HDMI output to local monitor, USB input, RJ45 connector to connect to the receiver, power connector
- Connectors on the receiver: HDMI output, 2x USB output, RJ45 connector to connect to the tax unit, power connector, S/PDIF digital audio output
- The receiver supports S/PDIF Audio output
-Supports LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1ch/Dolby TRUEHD 7.1CH audio formats, does not support Dolby Atmos and Dolby Vision formats
- Supports HDR (YUV4: 4: 4), maximum transmission speed 18Gbps
-Supports HDR10 and Edid Pass-Back formats (supports HDR10 but HDR10+ and Dolby Vision formats do not support)
- The tax unit supports the HDMI loopback format, the tax unit also has an HDMI output for a local monitor
- It has lightning, overvoltage and antistatic protection

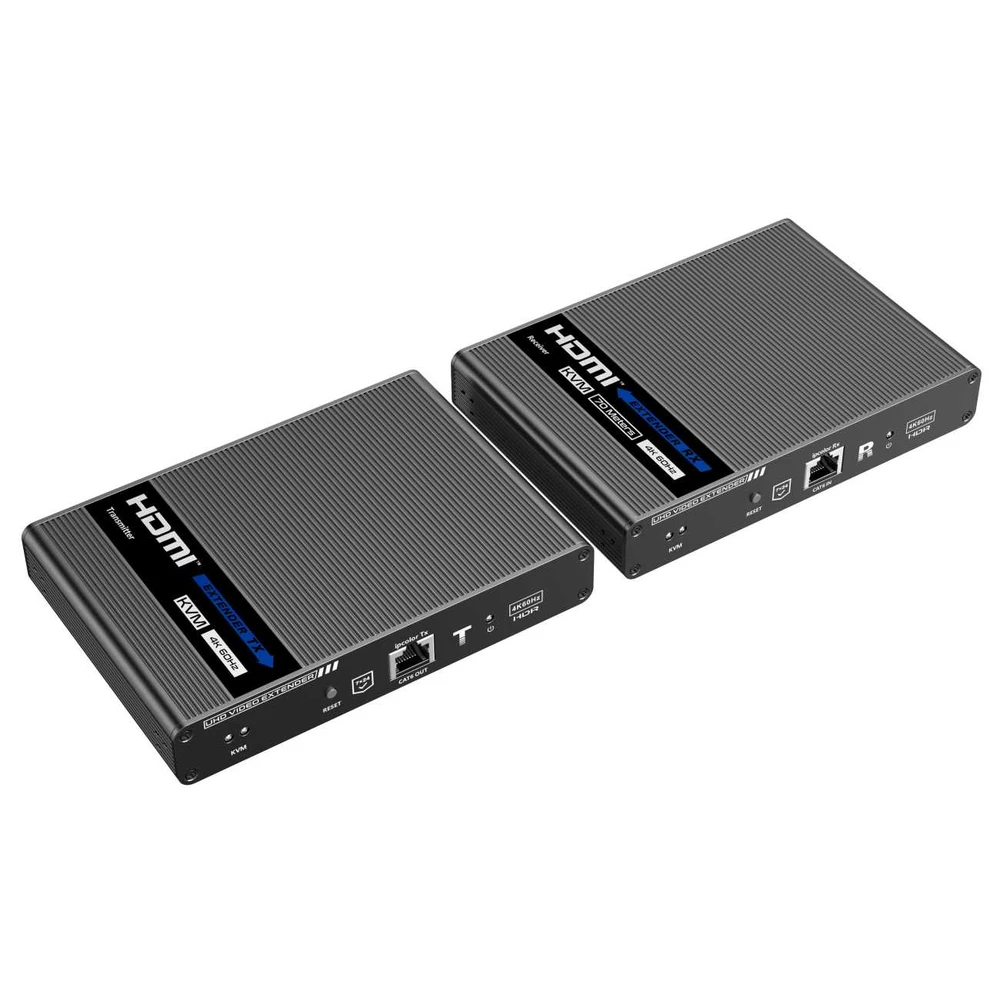

- metal house, stable and durable
- Supports HDMI 2.0
- Supports HDCP 2.2
- Size: width: 150 mm, depth: 107 mm, height: 28.4 mm
- mass broadcast: 260 g, reception: 260 g
- Operating temperature: -20 ~ 60 ° C
- Storage temperature: -30 ~ 70 ° C
- Relative humidity: 0 ~ 90% (non -dragged)

The contents of the package

1x tax
1x receiver
2x 5V / 2A power supply
1x USB A-A connecting cable
8x fastener console
18x screw
1x user manual
