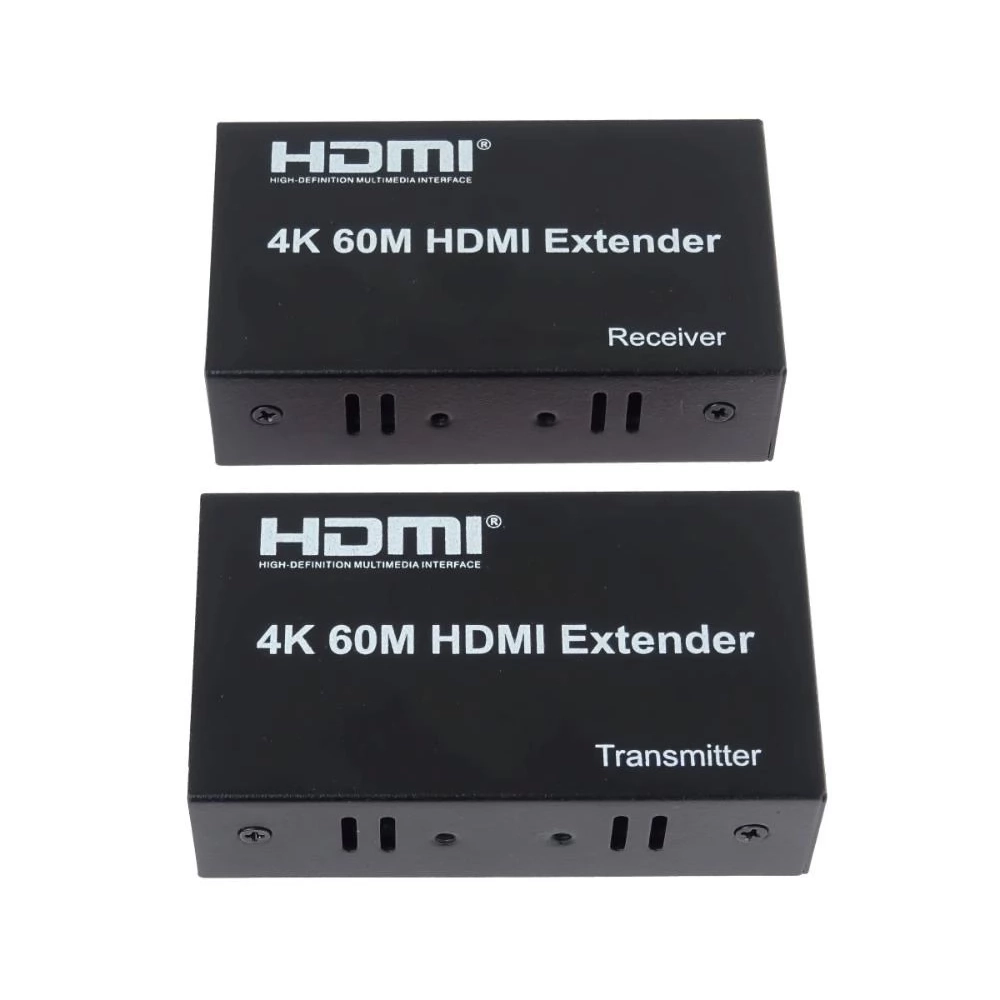

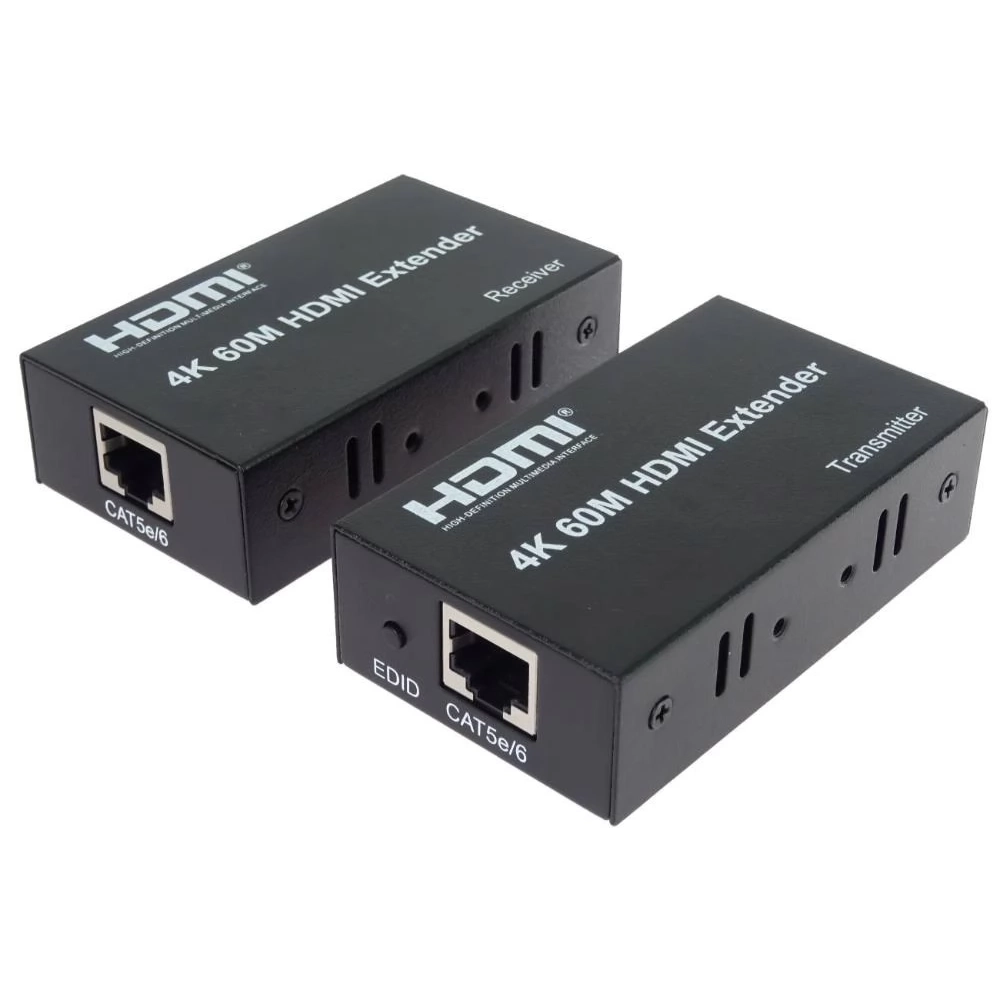

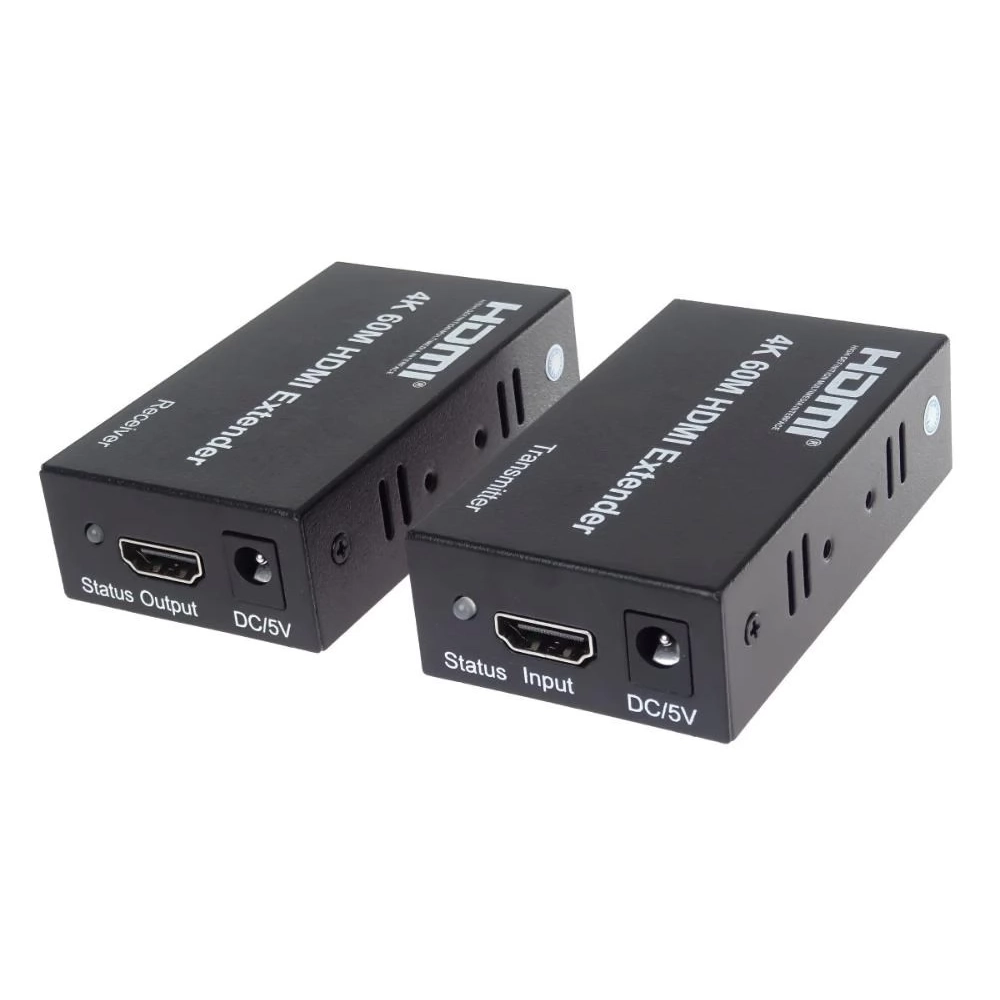

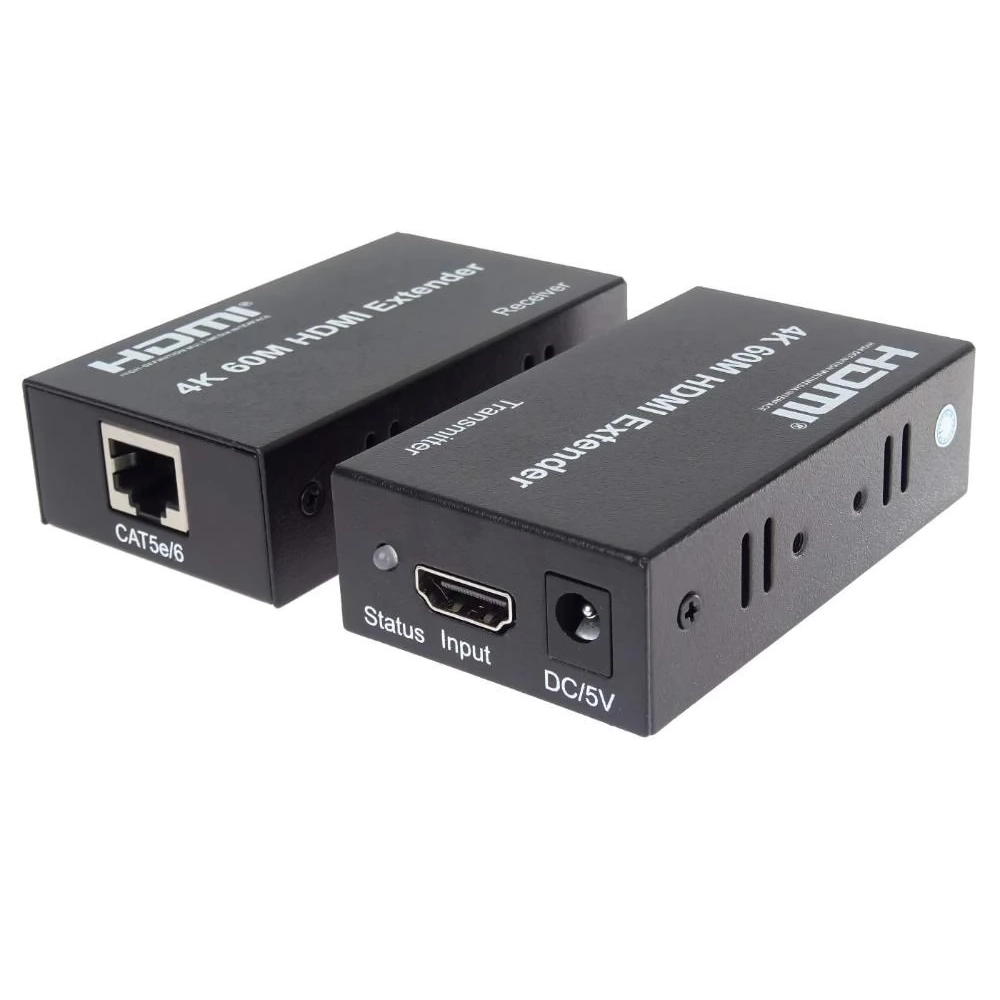

PREMIUMCORD khext60-15 HDMI2.0 extender

The device allows you to transfer high quality 4K@60Hz or Full HD 1080P signals up to 60 meters with a single high quality network cable, simply through a CAT5E/CAT6/CAT7 cable.

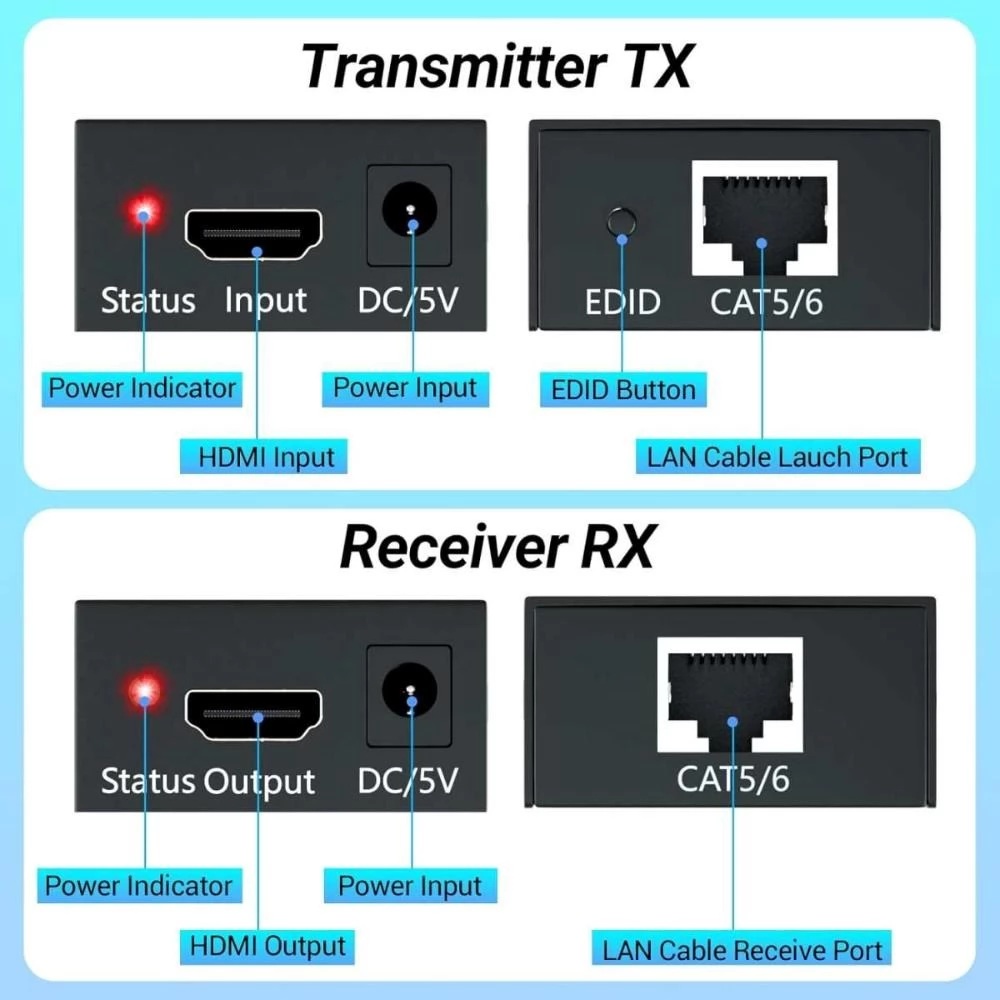

- Input: 1x HDMI input
- Output: 1x HDMI output
- Supported resolutions: 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1920x1200, 1360x768, 1366x768, 1600x900, 1024x768, 800x600, 1080p@50/60hz, 1080i@50/60hz, 720p@50/60Hz, 576p@50hz, 480p@60Hz
- Maximum data transfer: 18 Gbps
- Maximum bandwidth: 600 MHz
- Applicable image resolution: 4K2K (60Hz), 4K2K (30Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
- Supports compressed DTS Digital, Dolby Digital (including DTS-HD and Dolby TRUE HD formats)
- Supports uncompressed LPCM sound signals
- Edid button is between 4K or 1080p
- High quality aluminum house
- The sign amplifier HDMI is transmitted digital image and sound
- Use high quality 1x LAN cable with Cat5e, Cat6, Cat6a, Cat7 Copper to Connect AWG23 drivers
(for long-distance reasons) (for 60 m length of copper cable with AWG23 drivers)
- The signal amplifier is forbidden to connect to an active computer network, switch, router or other active network device. The signal amplifier tax and receiver must be connected directly with a LAN cable directly, preferably without interruption.
- up to 10 m long input and output HDMI cables with AWG26 copper guides
- The tax and the buyer are fed by 5V/1A AC adapter
- Tax maximum current: 450mA
- Maximum power of reception: 250mA
- Elegant black metal house
- Dimensions: 81 (h) x 43 (sz) x 22 (m) mm
- Mass: Tax 102g, Buyer 103g
- operating temperature: -15 to +55 ° C
- Operational humidity: 5-90% relative humidity (non -dragged)
