PREMIUMCORD khext200-1 HDMI matrix extender

The device allows you to transfer HDMI Full HD signals up to 200 m via a single network cable or LAN network, and simultaneously control the infrared remote control signals.

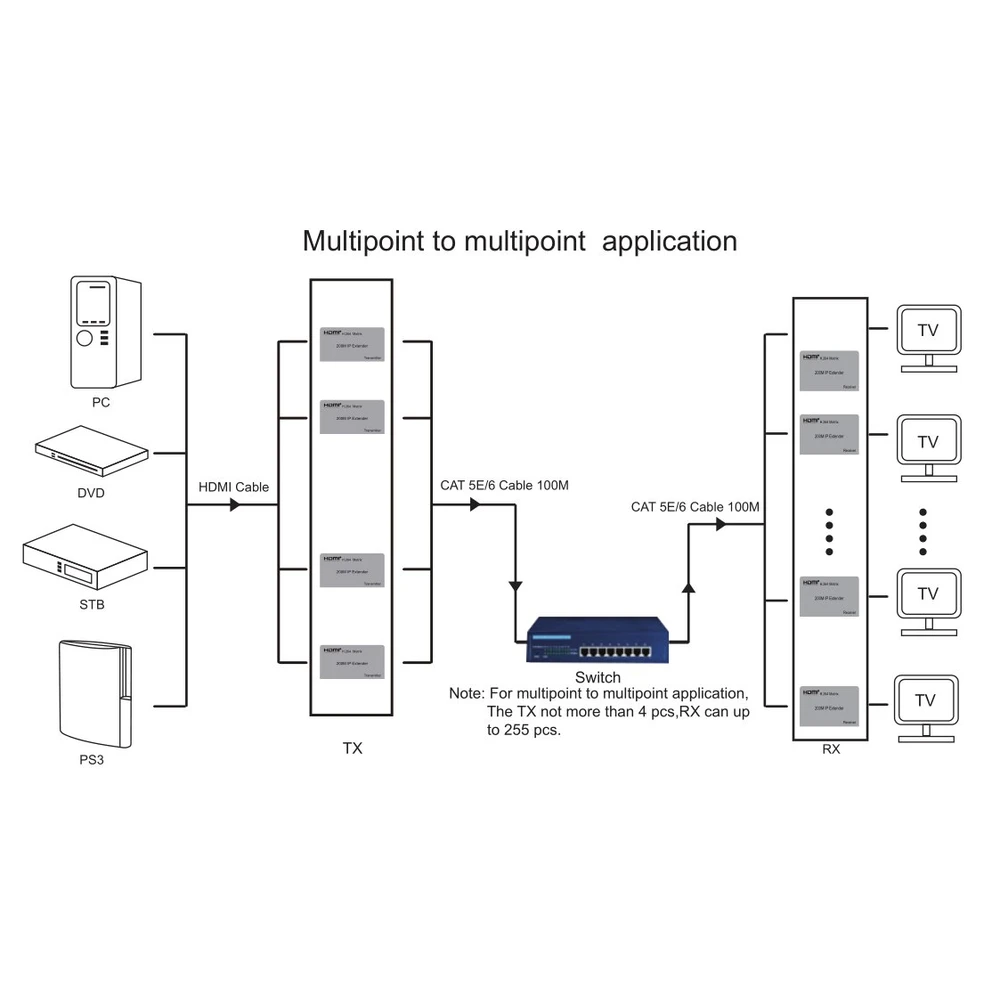

- the signal amplifier matrix, allows you to use one or more taxes and more customers through LAN network, switches and routers (attached image: "Use example 1")
- Support Full HD 1080p resolution up to 200 m
-Supports H.264 format, also known as MPEG-4 AVC
- Inputs and outputs: HDMI connector
- connectors for network connection: RJ45
- The tax has a local HDMI output for a local monitor
- Supports HDMI 1.3 format and standard HDCP 1.1 and 1.2
- Supports 802.3 Ethernet standard
- Resolutions: 480i@60hz, 480p@60hz, 576i@50hz, 576p@50hz, 720p@50/60hz, 1080i@50/60hz, 1080p@50/60hz
- Supported video format: 24bit/Deep Color 30bit/Deep Color 36bit
- Sound format: PCM
-Supported Sound Format: DTS-HD/Dolby-True HD/LPCM7.1/DTS/Dolby-AC3/DSD
- Transmission Speed: 10.2GBPS
- The sign amplifier HDMI transmits a digital image and sound.
- Tia/EIA568 B LAN Cable
-We recommend a high quality copper-wiring CAT5E, CAT6, CAT7 LAN cable for connection, preferably AWG23.
- The tax and receiver operates from the supplied 230V/5V 1A network adapters.
- The tax and the receiver have LED marks indicating when the units are connected and the signal is being transmitted.
- Recommended input and output HDMI cables shorter than 5 meters
- Consumption: 3 W tax, 3 W receivers
- Tax dimensions: length: 163 mm, width: 87 mm, height: 24 mm
- Buyer dimensions: length: 163 mm, width: 87 mm, height: 24 mm
- Weight: 474 g buyer, 474 g transmitter

Package contents:

1x tax unit
1x receiving unit
2x ir cable

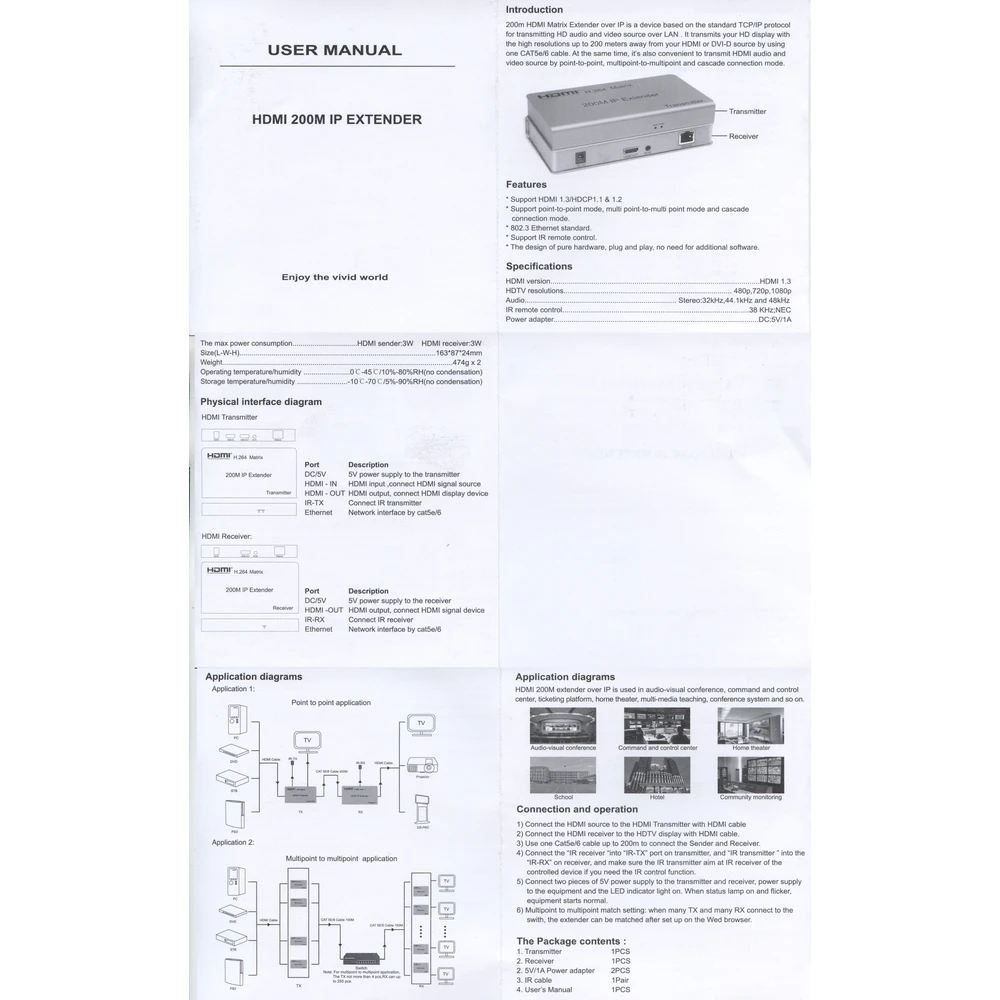

1x Handbook
2x Network Adapter
