PREMIUMCORD HDMI video wall controller 1 input 4 output 4K/1080p khvid-05

The PREMIUMCORD HDMI video wall controller distributes a single HDMI or DVI signal across four monitors or displays at the same time. The input image, which can be Full HD 1080p or 4K resolution, is split into four sections, with each quarter shown on one of the connected screens, so the four displays together form one large picture.

The unit features one HDMI/DVI input and four HDMI outputs. The input supports Full HD (1920×1080p, 25/30/50/60 Hz) and 4K at 30 Hz (3840×2160p), while the outputs run at 1080p/60 Hz. It complies with the HDMI 1.4 and HDCP 1.4 standards. A 3.5 mm stereo audio output allows you to connect speakers.

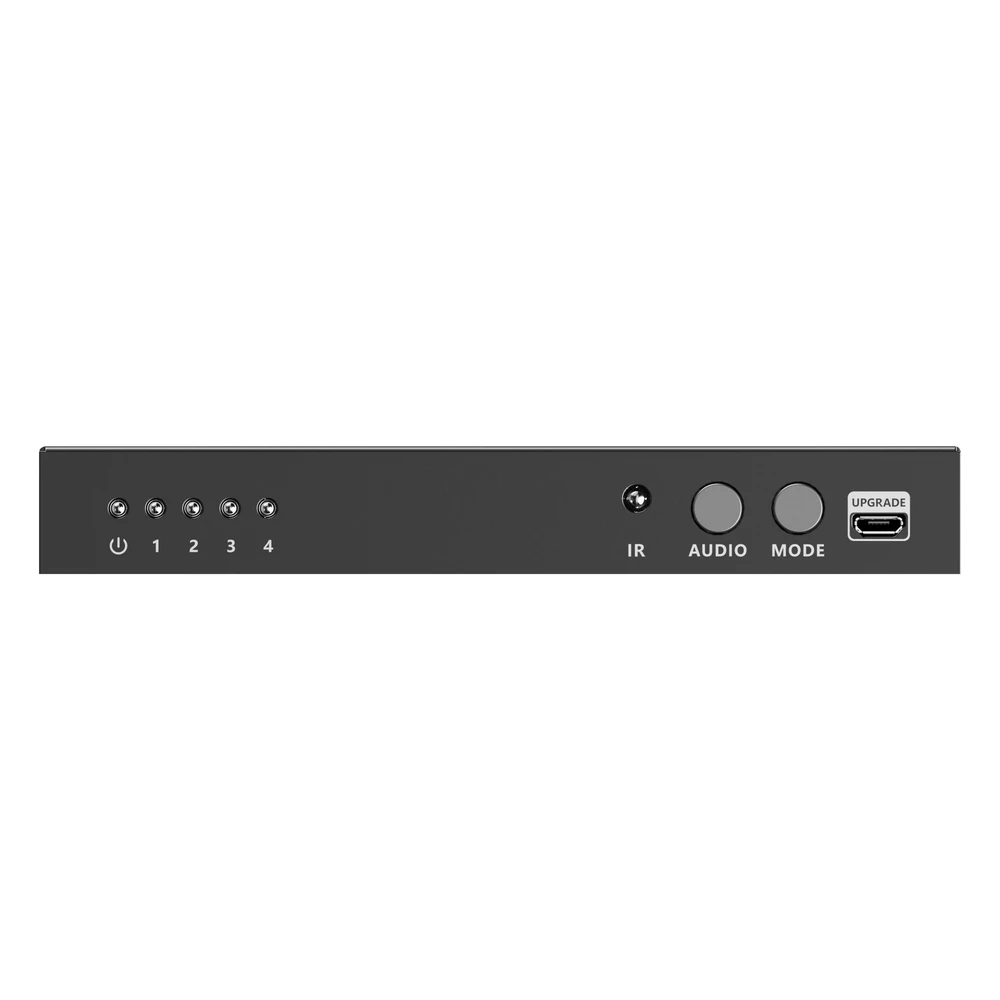

The controller can be operated with its front buttons, an infrared remote control or via an RS232 serial line. Units can be cascaded: three controllers display one image across 8 screens, and five controllers across 16 screens. The package includes a 12 V/2 A power supply, a remote control and a user manual.
