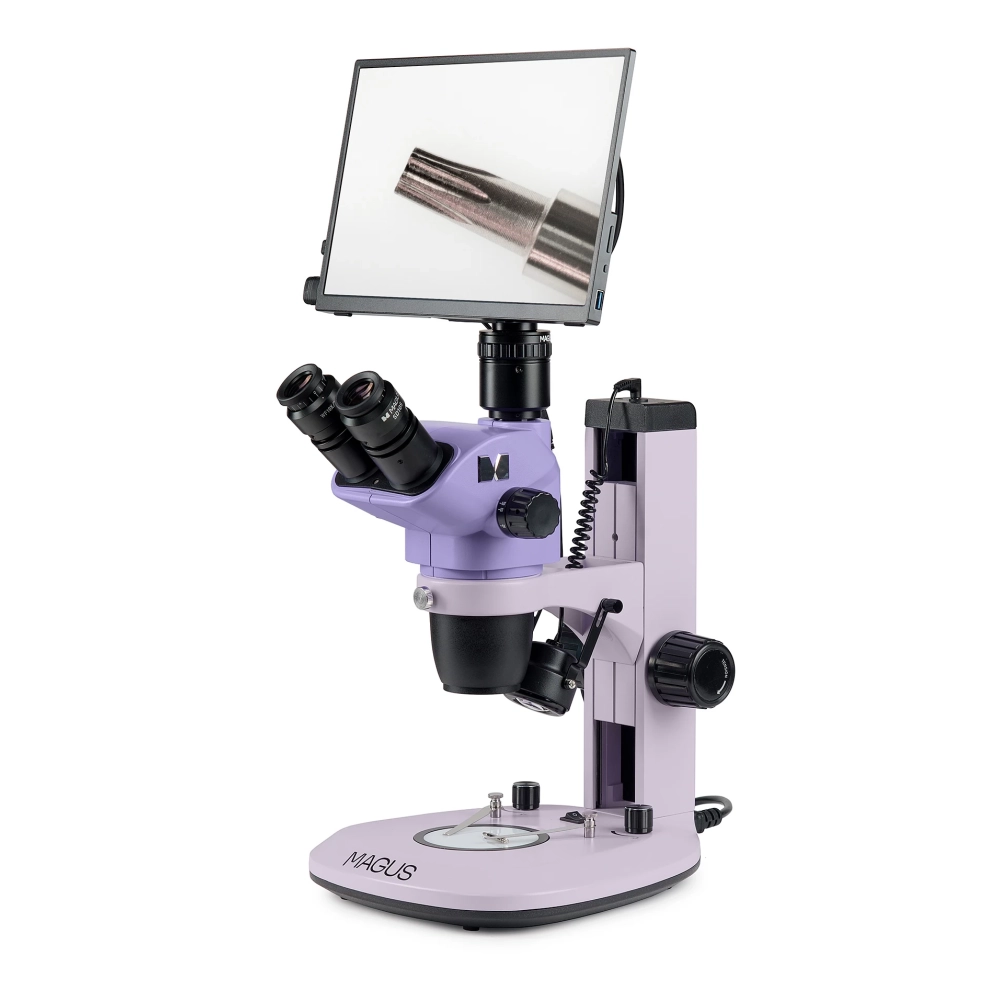

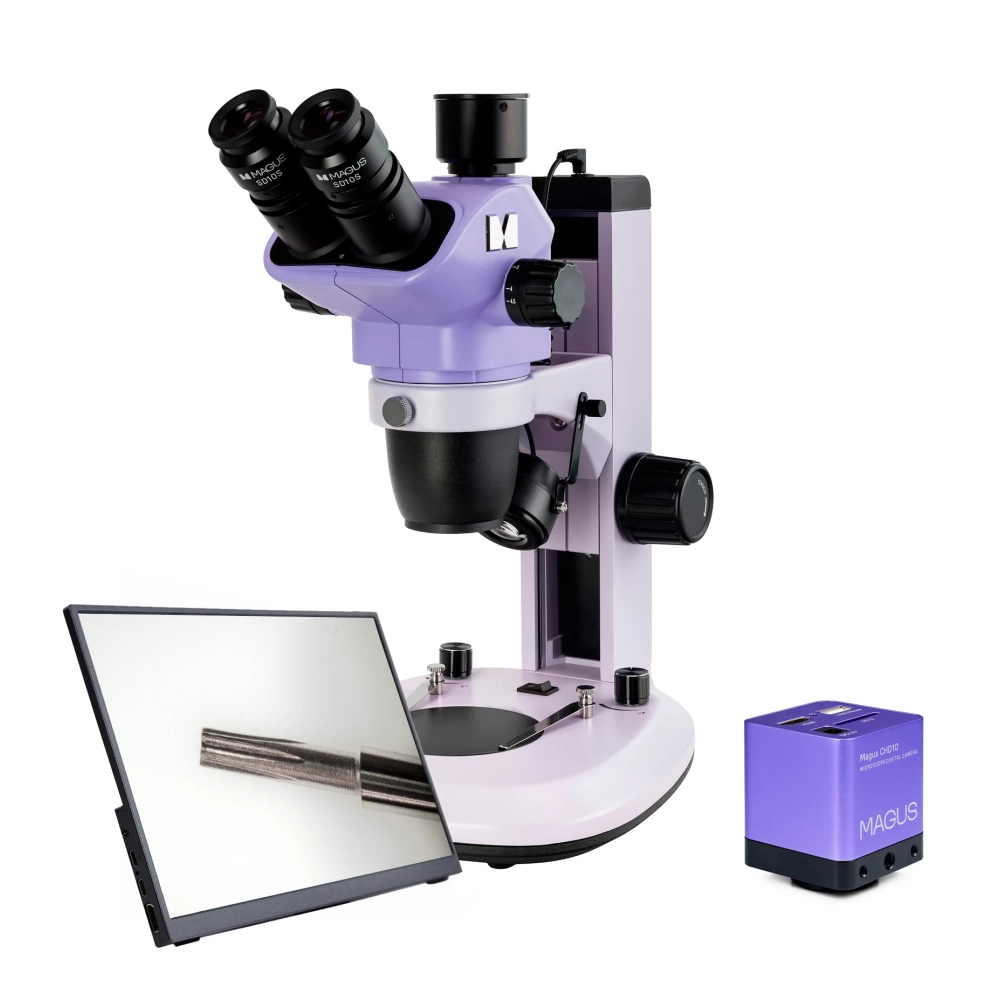

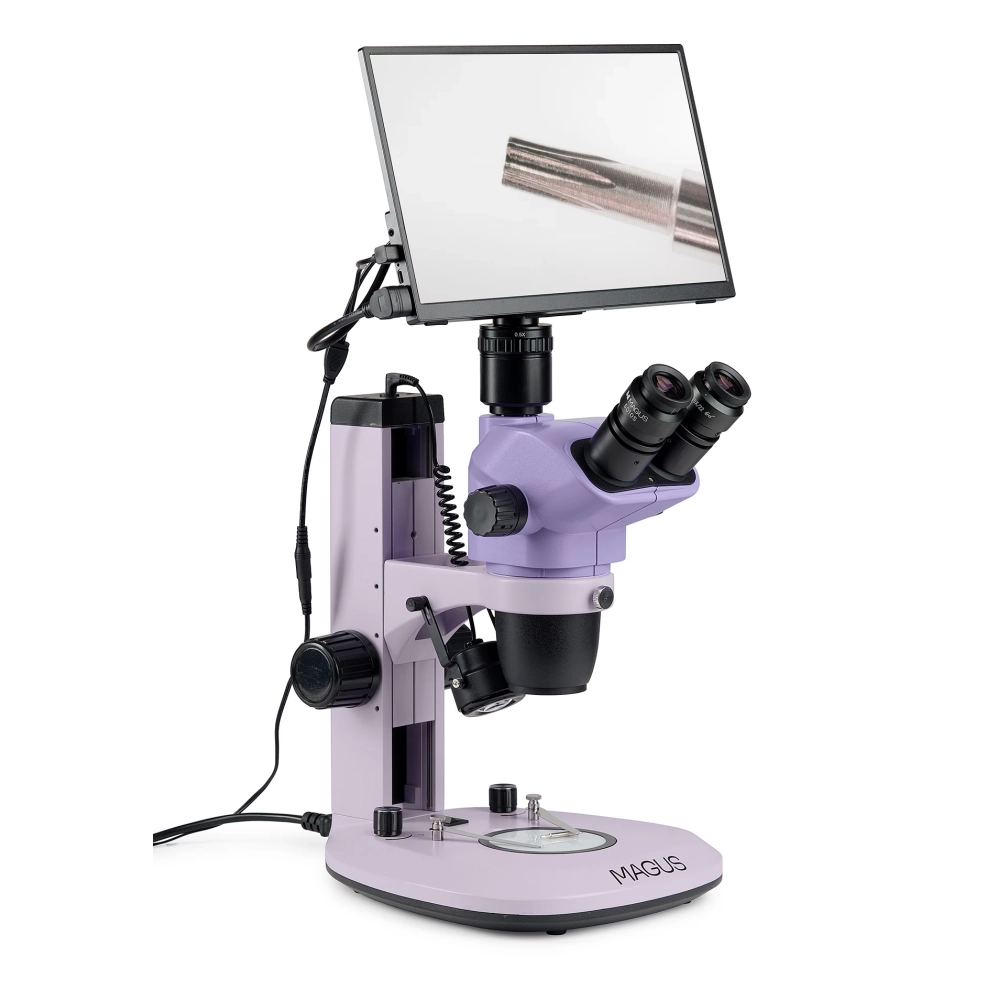

MAGUS D7T LCD BASE digital stereo microscope

The Greenough Optical stereomicroscope provides the exact details of the surface topography without loss of spatial orientation, thus providing a great depth in observation of three -dimensional objects.

The microscope can be infinitely modified by factor 6.7 to enlarge between 6.7x and 45x, while maintaining 105 mm work distance. It has built -in and reflected light to study translucent and non -translucent objects. The microscope can also be equipped with polarized and dark -visible accessories.
The microscope has a wallet-friendly 2MP camera and a HDMI connector. It is not necessary to connect it to a computer as it displays the image directly on the monitor screen. At the lowest degree of magnification of the microscope, the 1/2.8 "sensor with a 0.5x adapter provides a 16.6x9.3 mm field of view on the monitor. The monitor in the digital microscope has a Full HD resolution.

The microscope can also be used for restoration, assembly and quality control, as well as zoological and botanical tasks.

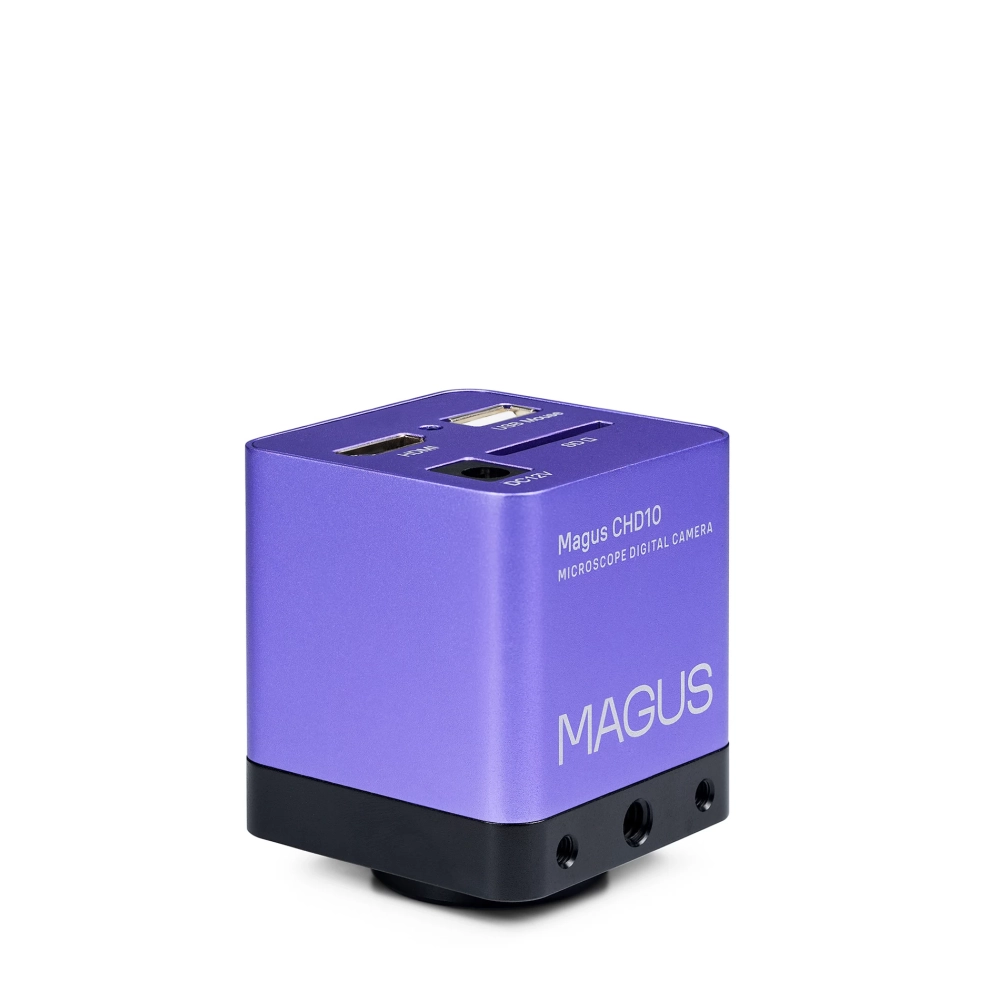

Digital camera
The camera with a 2MP sensor is a Full HD resolution (1920x1080 pixels), a realistic picture.

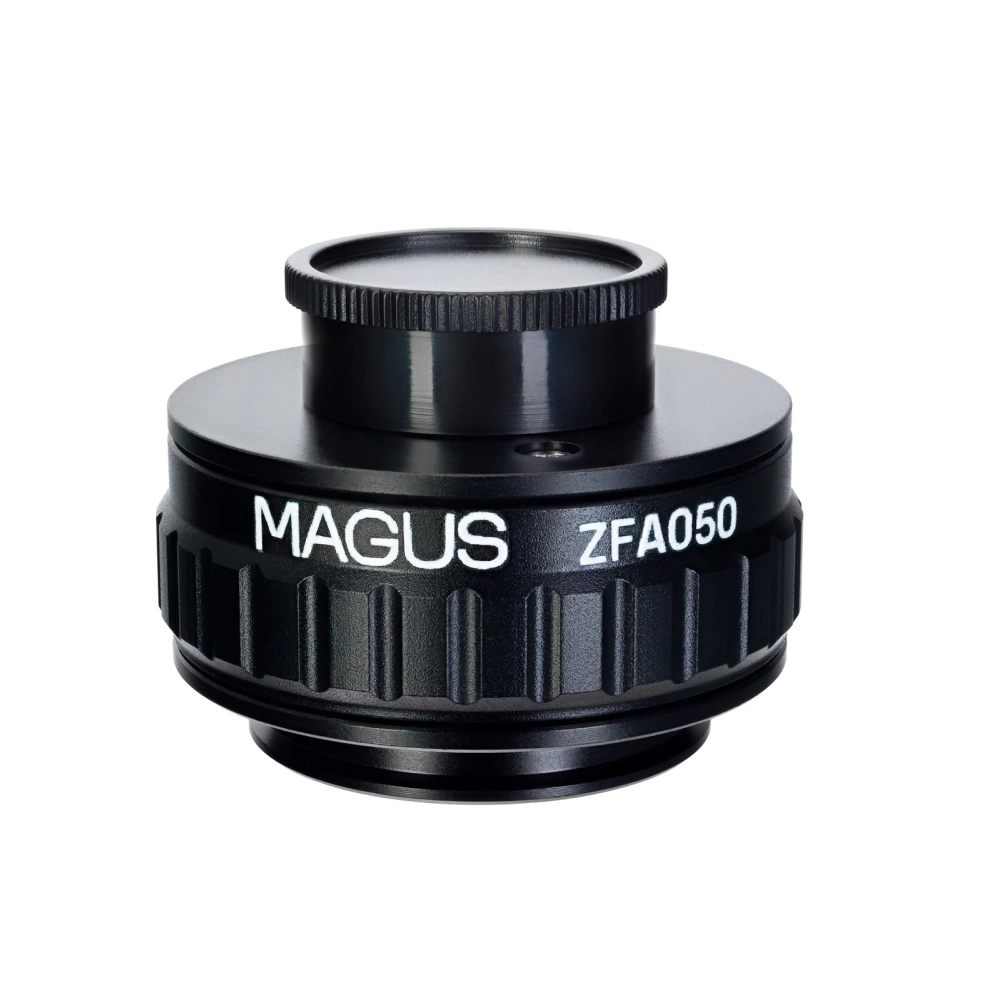

The sensor size is 1/2.8 ". Therefore, the digital microscope has a 0.5x adapter to enlarge the field of view on the screen.
There is no need for a computer connection or the use of additional software. The camera is mounted in the triple tube with the help of a C-branch adapter and is connected to the monitor via an HDMI output. In HDMI mode, 60 frames/second speed can be used, which is suitable for microscopic manipulations and fastening processes and moving objects.

Monitor
The monitor connects to a microscope -mounted camera to display a real -time image. Compatible with the Full HD resolution Magus HDMI camera. The screen is 13.3 inches. The IPS sensor provides a bright image with high views: if you look at the monitor from an oblique direction, the colors will not distort.
The monitor can be placed on the table and connected to the camera.
A three -pointed microscope with a monitor is suitable for those who do not like to look down the patterns, but forward. This method of observation is the most ergonomic because it reduces the load on the back and neck. This monitor microscope is also suitable for classroom use for educators.

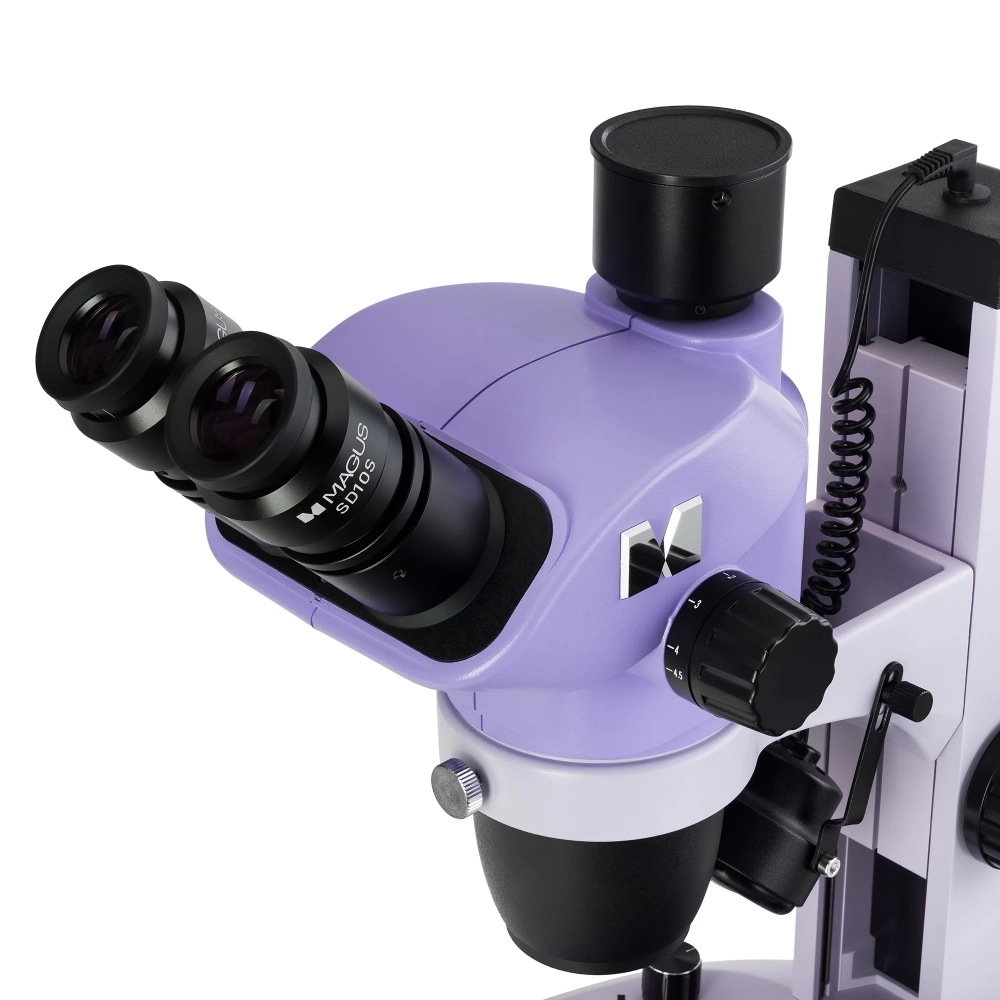

Microscope head
The triple lens head can be turned around 360 ° and can be secured in any desired position.
The path of light does not change. The division rate is fixed: 80% go to the lens and 20% on the triple tube. The user can monitor the image at the same time in the lens and on the screen.
The basic configuration contains the 10x/22 mm eye lens, which can be adjusted to diopter and eye distance to work with glasses.

Zoomable
With the lens, you can change the enlargement up to 6.7 times with a 105 mm work distance without focus loss. The microscope creates a straight, vertical (non -inverse) three -dimensional image. With additional lenses, you can change the magnification range, field of vision and operational distance of the microscope.

Focusing mechanism
The coarse focus-adjusting buttons can be found on both sides of the stand. The tension of the coarse focus can also be adjusted.

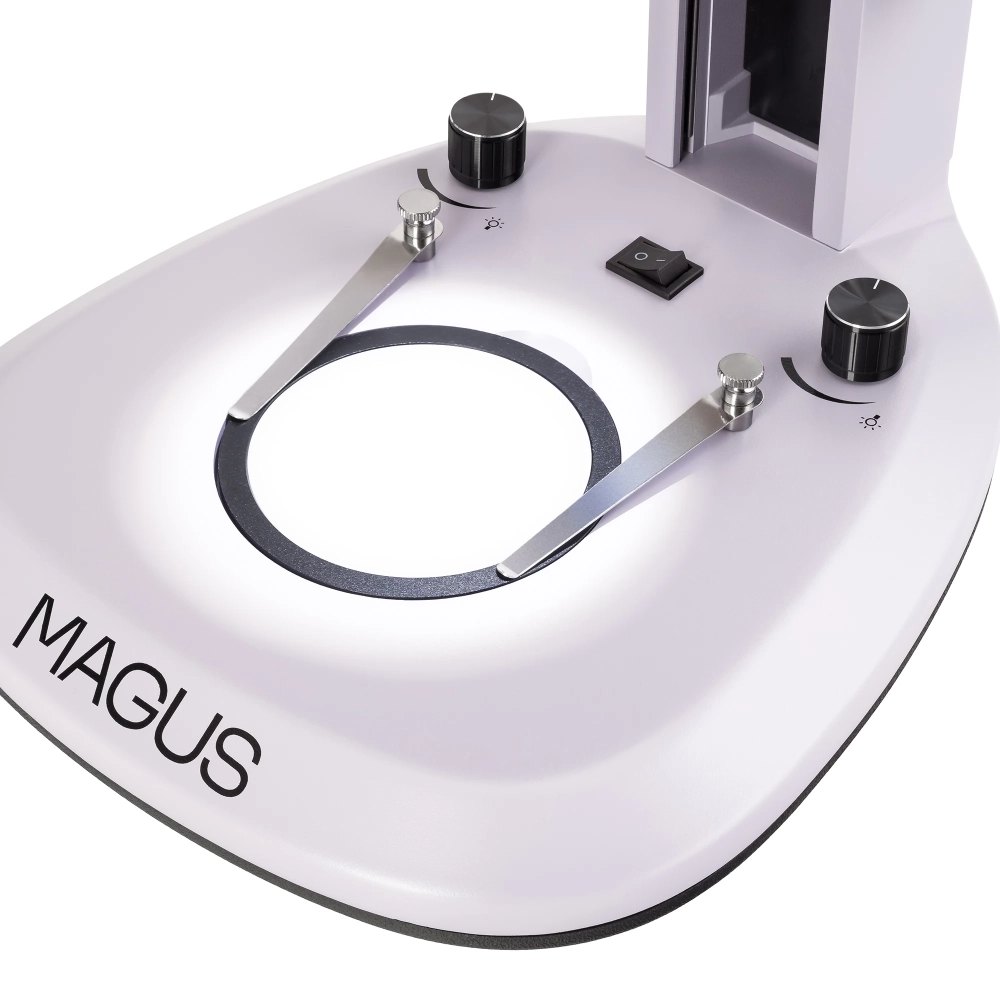

Table table
Depending on the sample, you can choose a matte bottle or a black and white disc. The matte glass sheet provides steady illumination and optimum head scatter when observing transparent and translucent objects. Objects that are not translucent with a black and white disk can be examined before a contrasting background: For light objects, the black side and my dark object have to choose the white side.

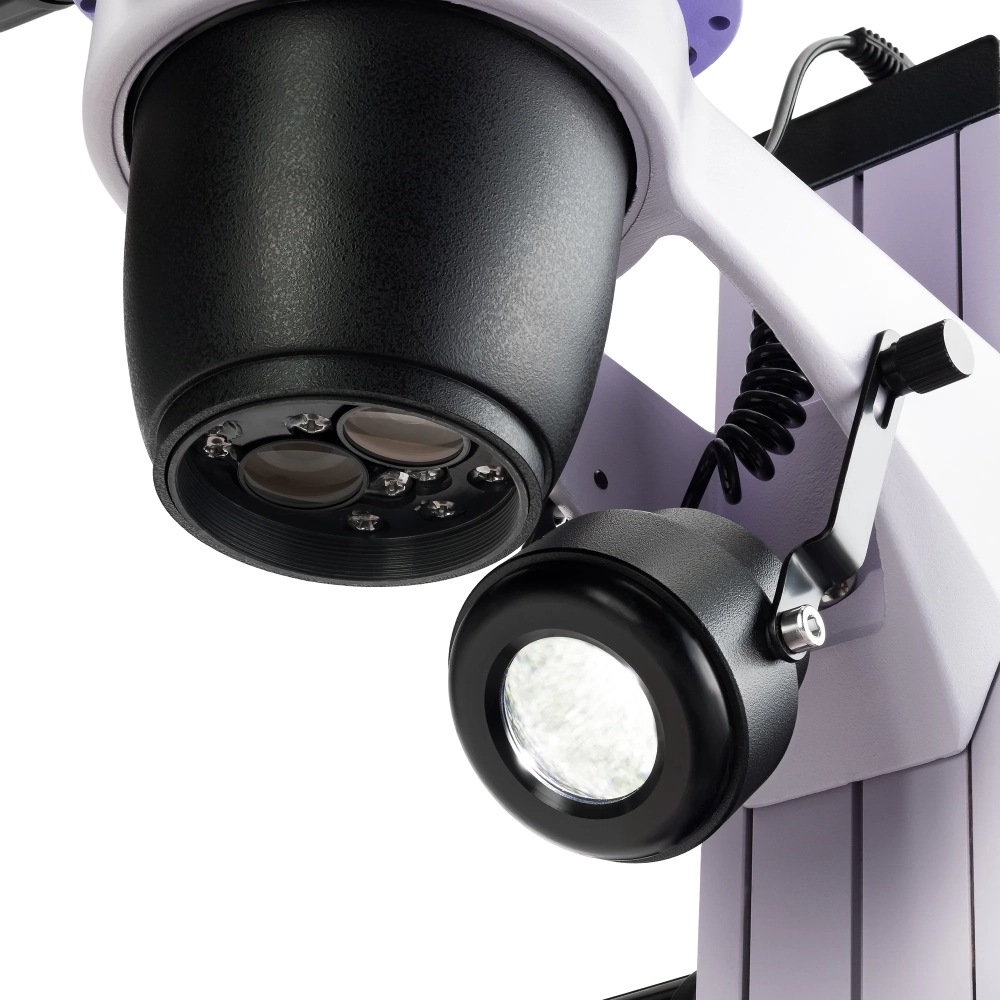

Light sources
The microscope has a 3 W, permeable LED light and 3 W, reflected, oblique LED illumination. LED life is 50,000 hours.

The characteristics of the microscope
- The zoom lens can change the magnification infinitely without focus loss: 6.7: 1 zoom ratio
- rotated 360 ° to install a digital camera with a vertical tube with a vertical tube
- Advantages of Greenough Optical Design: High Depth, High Resolution, 3D Spatial Effect, Compact Design and Affordable Price
- Between 3 W) and reflected (3 W) LED lamps with long life
- a wide range of optional accessories compatible

Camera features
- An autonomous camera is not required to connect to a computer and does not require any additional software installation
- HDMI connector for high speed and reliable data transfer
- Camera resolution is 1920x1080 pixels that are the best choice to display images on Full HD monitor or TV
- 60 frames/sec for classroom shows, video recordings, and monitoring moving objects
- The backlight, colorful Sony Starvis Cmos sensor low noise and high photosensitivity
