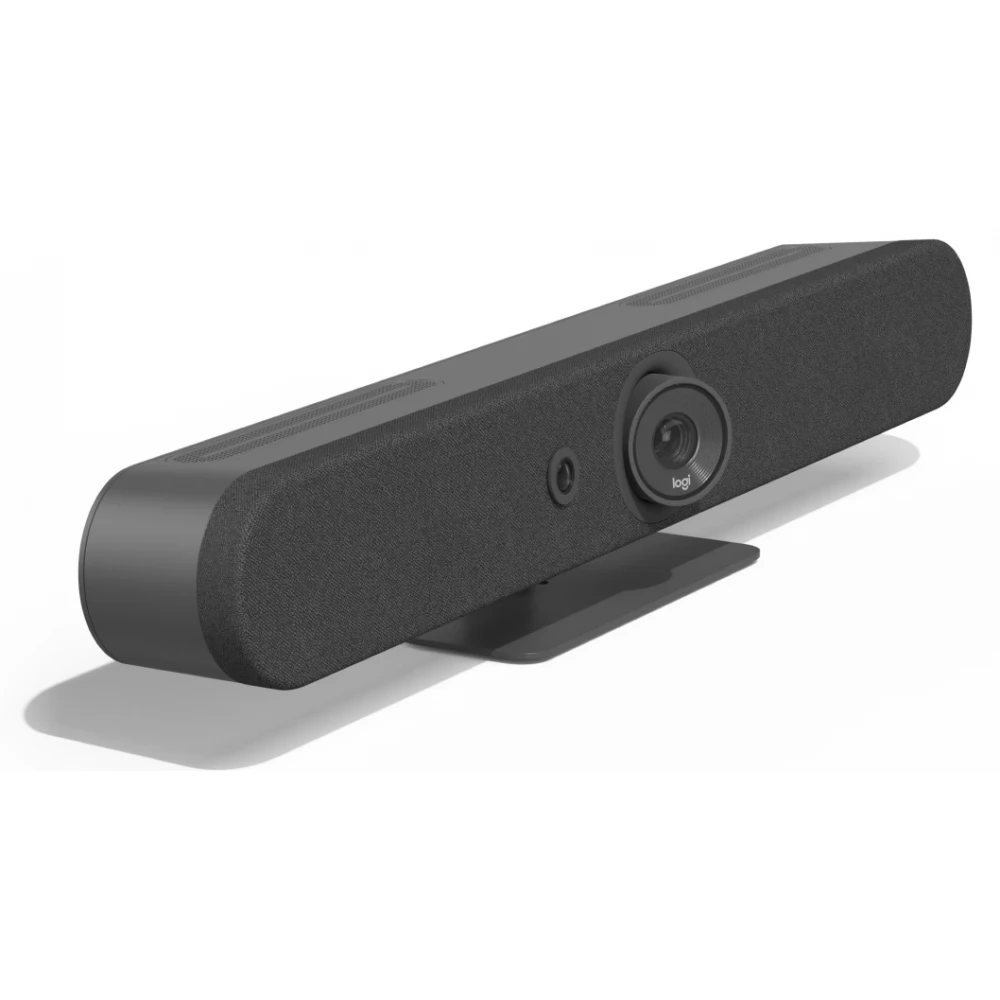

LOGITECH Rally Bar Mini conference camera graphite SWISS

Full-fledged mini conference system. All-in-one housing with built-in desktop stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference

- 6 beamforming microphones
- PTZ camera
- 3 speakers
- AI-based image search engine
- Cable management and fixing system
- Desktop stand
- Logitech CollabOS platform
- Number of supported displays: 2
- Display resolution: up to 4K
- Color: graphite gray

Camera
- Scanning: motorized, ±25°
- Tilt: motorized, ±15°
- Zoom: 4x HD digital zoom
- Diagonal viewing angle: 120°
- Horizontal viewing angle: 113°
- Vertical viewing angle: 80.7°
- Full room coverage (viewing angle + panning and tilting): 163° horizontal x 110° vertical

Speakers
- Subwoofer: 70 mm
- Center speaker: 2x 43 mm
- Output: 90 dB sound pressure level at 1 W, 99 dB sound pressure level at 8 W, both +/-2 dB at a distance of 0.5 meters
- Sensitivity: 86 +/-2 dB sound pressure level at 1 W, at a distance of 0.5 meters
- Total harmonic distortion (THD): 1 kHz < 2 %
- Sampling frequency of speakers: 48 kHz

Microphone
- Frequency range: 90Hz 16 kHz
- Sensitivity: >-36 dBFS +/-1 dB at 1 Pa pressure
- Microphone sampling frequency: 48 kHz
- Voice reception range: 4.5 m
- Beamforming elements: Six omnidirectional digital MEMS microphones that form five adaptive, lateral acoustic beams
- Sound processing: AEC (acoustic echo cancellation), VAD (speech detection)
- Noise reduction: Artificial intelligence filter
- Additional microphones: supports the use of 2 additional Rally microphone units

Connectors
- 1 x HDMI, 1 x USB-C 3.0, 1 x RJ45, 3 x USB-A 2.0

Compatible software
- Microsoft Teams, Zoom, BlueJeans, BroadSoft, Cisco Jabber, Fuze, GoToMeeting, Google Hangouts Meet, VidyoDesktop
