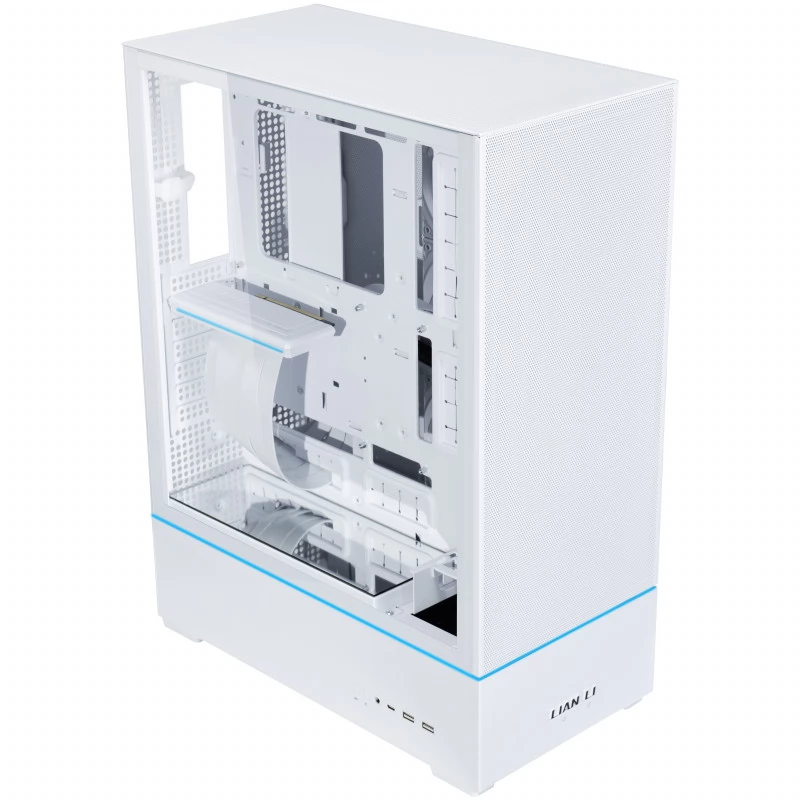

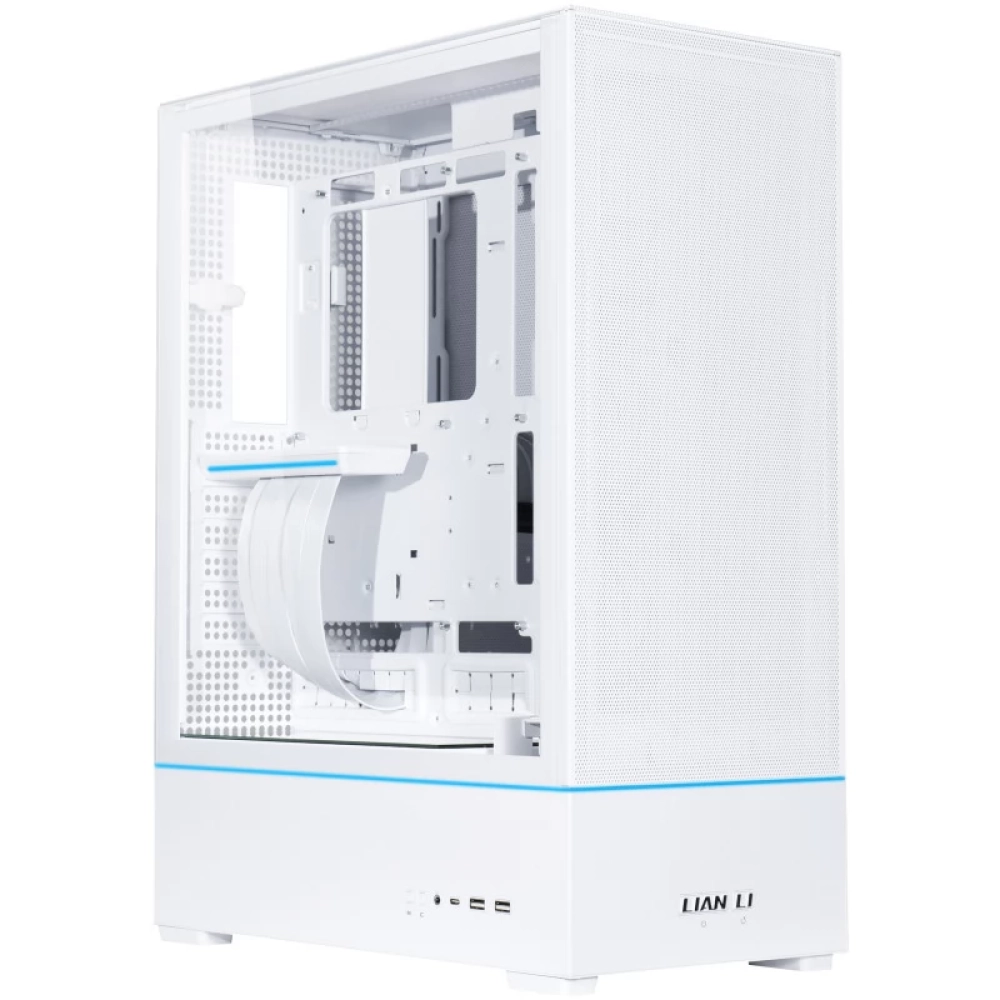

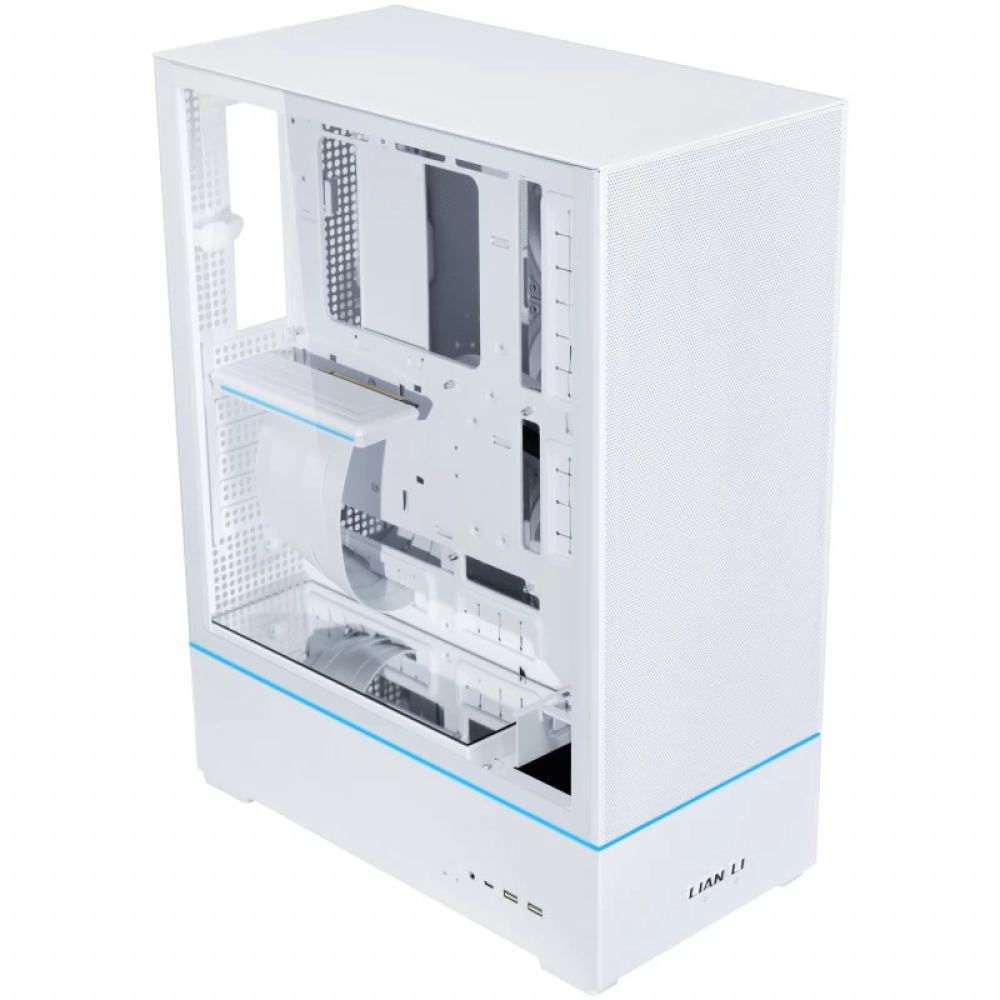

The Lian Li SUP-01 is a compact 45-liter midi-tower computer case that combines minimalist style and efficient cooling. The unique three-chamber design of the case allows for efficient integration of GPU, water cooling, power supply, motherboard, CPU and storage drives while providing excellent thermal performance. Let's look at some details:

Optimization of cooling: The three chambers of the case provide direct cooling to the GPU, which is located on the front panel. CPU cooling can be further improved with a radiator that can be mounted on the right side panel. Additionally, an additional 120mm fan bay is used to cool the VRM, DRAM, and M.2 areas, with heat escaping through the top grille panel. The case includes three pre-installed 120 mm fans that provide an efficient basis for cooling the main components.

Flexibility and customization: The SUP-01 supports ATX, Micro-ATX and ITX format motherboards, as well as ATX power supplies up to 220mm long. The case comes with a pre-installed PCIe 4.0 Riser cable for an attractive appearance and allows for horizontal and vertical GPU mounting. It can accommodate up to four 2.5-inch SSDs or two 3.5-inch hard drives. On the left side of the I/O panel, there are two USB 3.0 ports, one USB-C port, an audio connector and RGB lighting color control buttons.

The Lian Li SUP-01 is a versatile housing that is worth taking advantage of with careful planning and precise placement of components.

- Dimensions: 403.45 x 212 x 534 mm (with legs) (L x W x H)
- Material: steel, tempered glass
- Volume: 44.8 l
- Motherboard support: ATX, Micro-ATX, ITX
- Pre-made PCIe 4.0 highlight cable with aRGB strip
- Maximum GPU length: 400 mm
- Maximum CPU cooler height: 88.2 mm
- Power supply: ATX (max. 220 mm)
- Pre-installed fans: 3x 120 mm

Fan expansion slots
- Side 1: 3x 120 mm (pre-installed)
- Side 2: 3x 120 mm or 2x 140 mm
- Rear exterior: 1x 120 mm
